Description

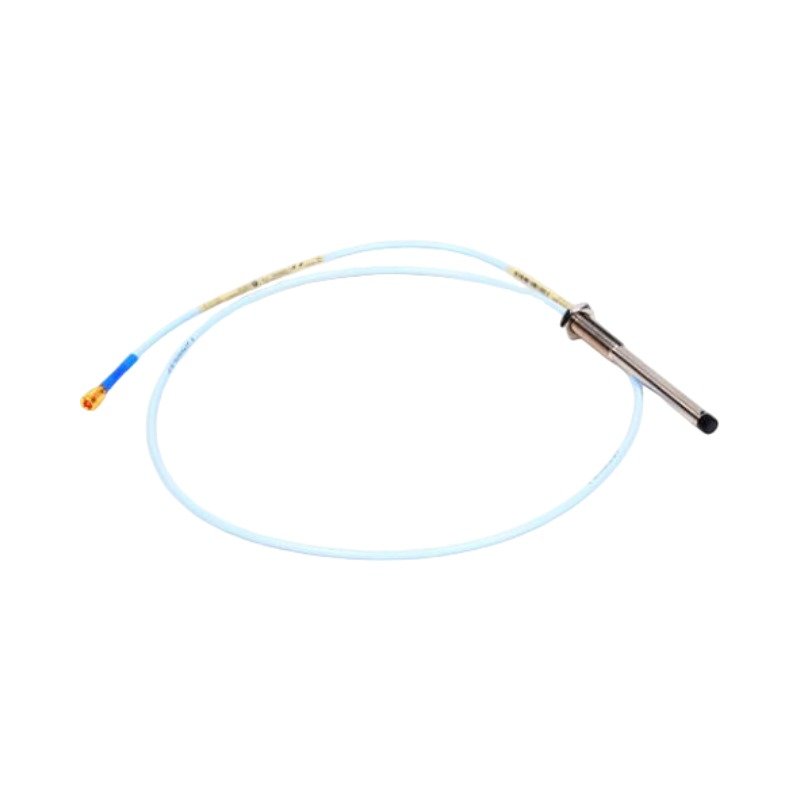

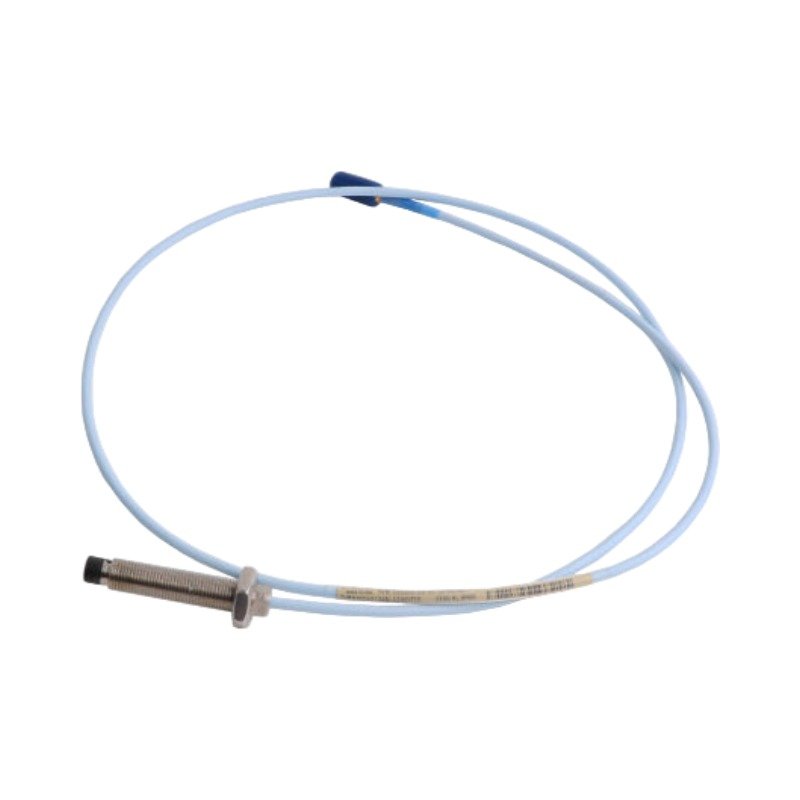

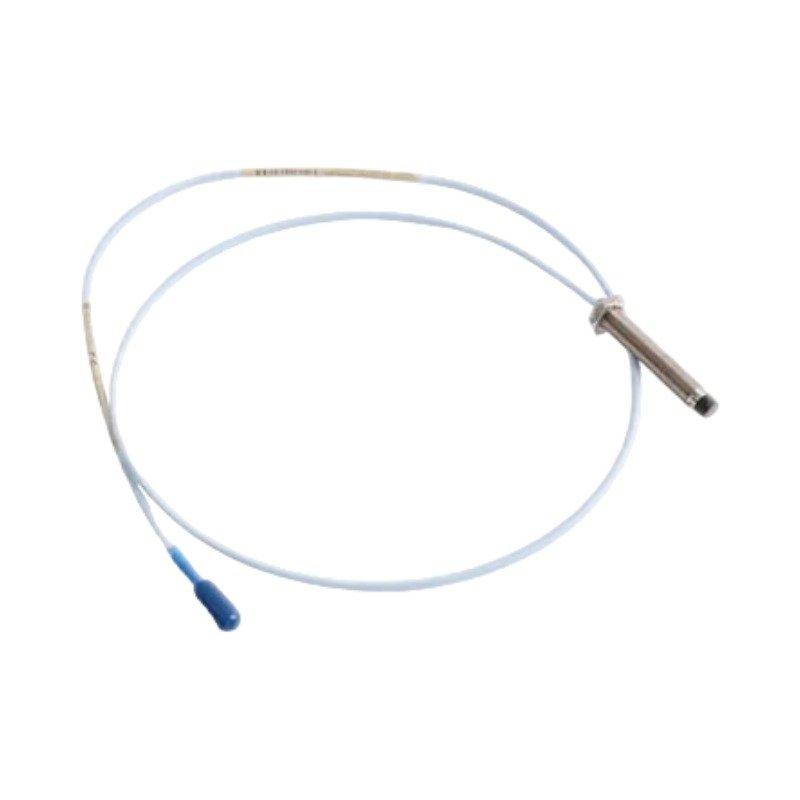

The Bently Nevada 330103-00-06-10-02-05 serves as the primary 330103 Proximity Probe utilized to execute non-contacting displacement and vibration measurements across 3300 XL 8 mm Proximity Transducer System platforms.

Suffix Breakdown & Model Matrix

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics

The 330103-00-06-10-02-05 operates via high-frequency eddy-current probe scaling, inducing an RF magnetic field into conductive targets. For correct signal processing, field engineers must complete gap voltage validation to anchor the baseline at -10 VDC targets. This voltage maps the sensor directly to the center of its linear range. Maintaining proper mounting coordinates facilitates cross-talk suppression between close-proximity transducers on the same machine surface. Consequently, the resulting voltage fluctuations enable real-time diagnostic evaluation of rotor dynamics, tracking fluid-film bearing clearance profiles and shaft orbit trajectories.

Frequently Asked Questions

Q: What physical symptoms indicate a cross-talk suppression failure between adjacent probes?

A: Cross-talk failures present as beat frequencies or artificial low-frequency noise in the vibration spectrum, caused by overlapping RF fields when probes are mounted closer than the minimum required spacing.

Q: Is this probe compatible with older non-XL Proximitor components?

A: Yes, the 330103 probe is backward compatible and interchangeable with legacy 3300 series 5 mm and 8 mm transducer system components without needing individual bench recalibration.

Field Installation Guidelines

• Mechanical Torque Limits: Hand-tighten the M10 x 1 threads into the housing, then verify with a torque wrench. Do not exceed the maximum allowable torque rating for stainless steel probe cases to avoid internal winding damage.
• ClickLoc Connector Care: Ensure the gold-plated miniature coaxial connection clicks firmly into place. Wipe any oil or debris from the connection point prior to joining the extension cable.
• Conduit and Shielding Constraints: Run the unarmored standard FEP cable through dedicated, rigid or flexible low-noise conduit. Ground the triaxial cable shield exclusively at the Proximitor terminal block to prevent ground loops.
