Description

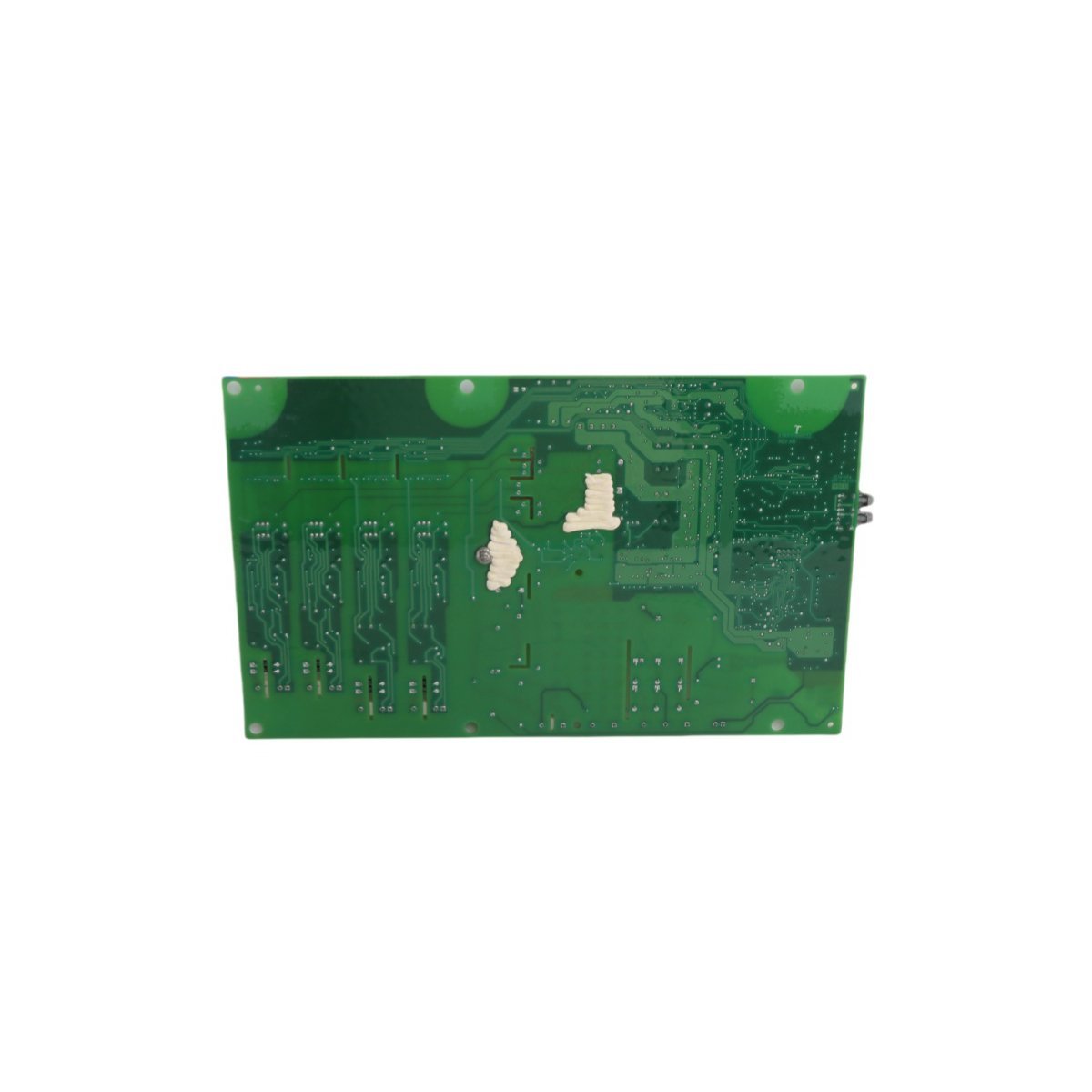

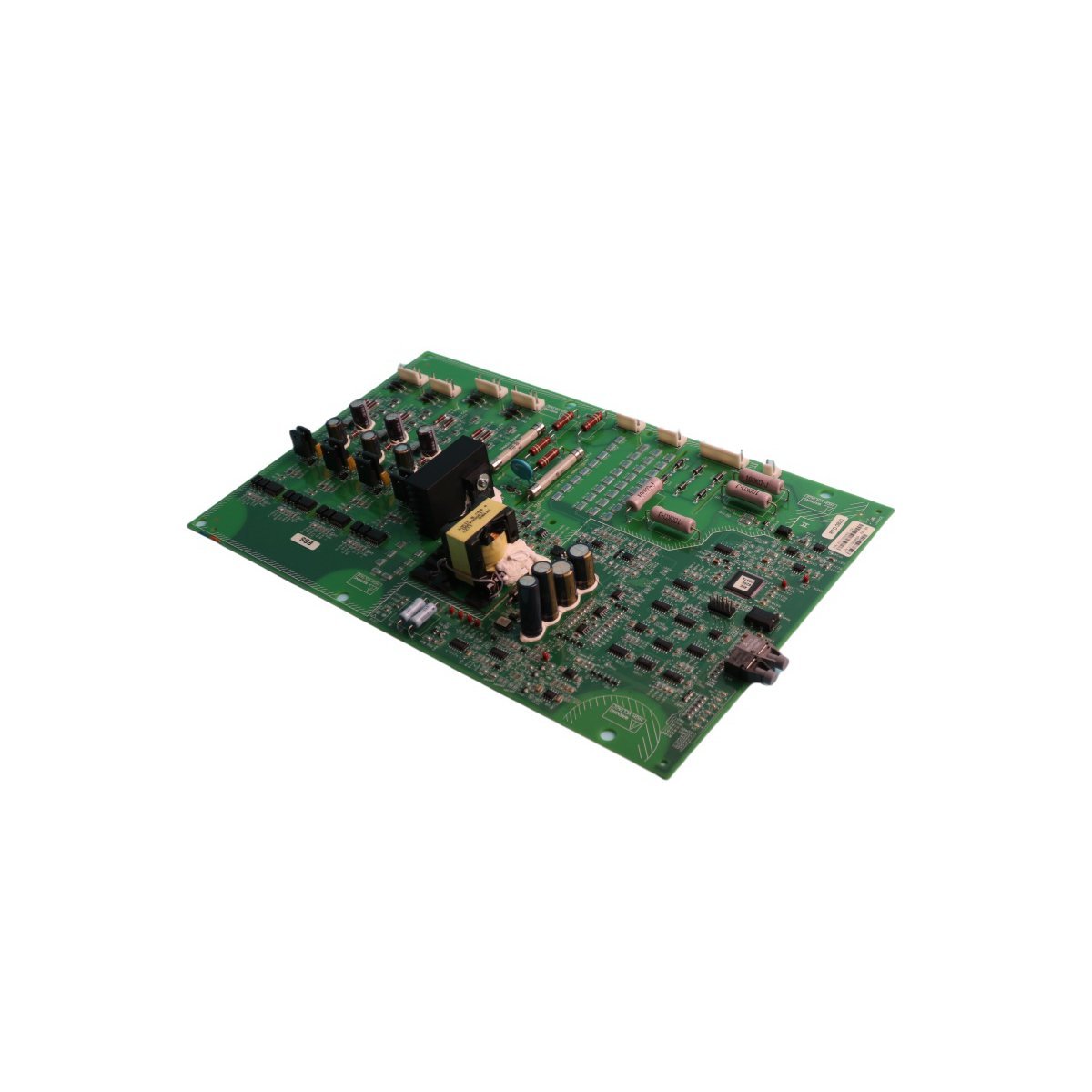

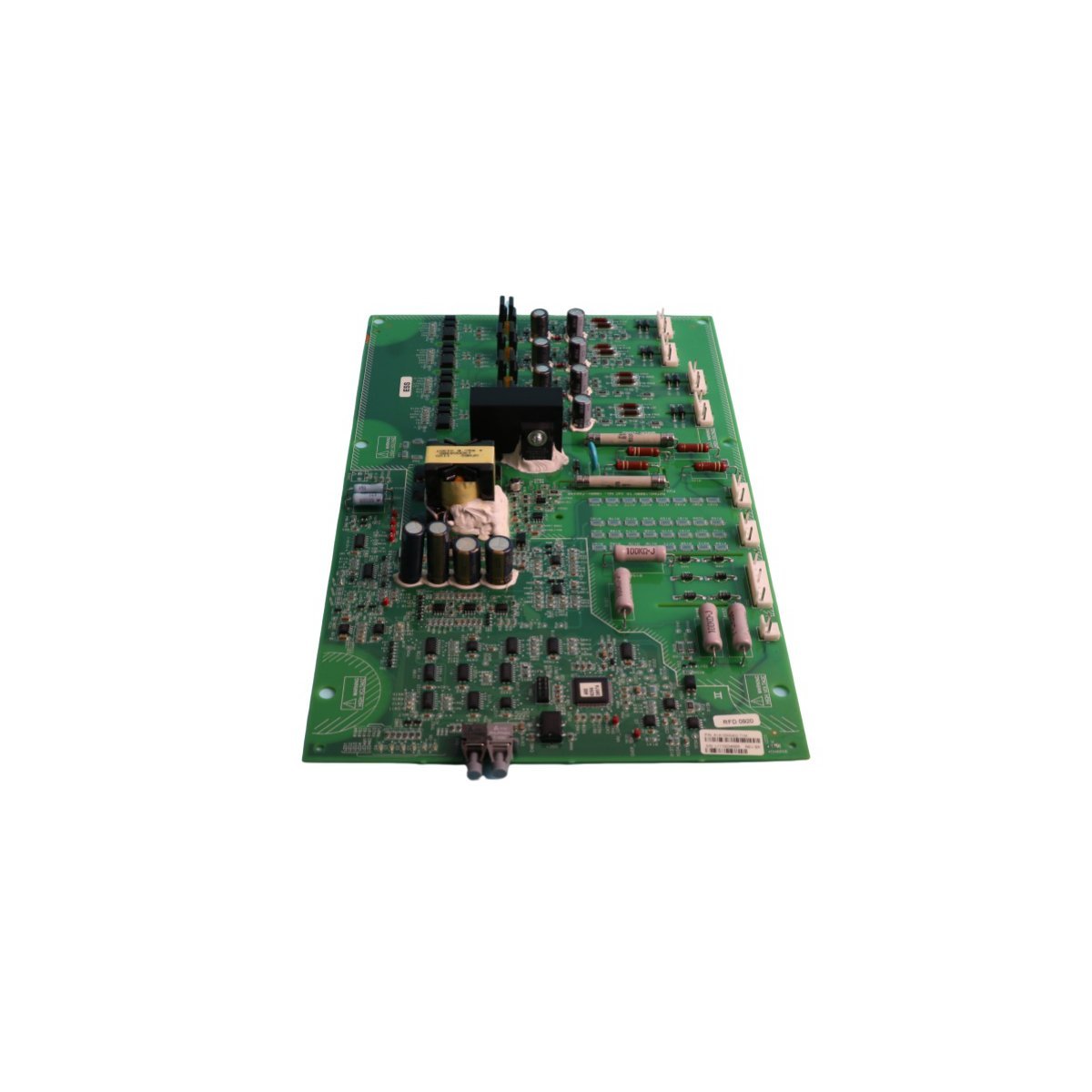

The Siemens A1A10000432.71M, also cataloged as the A1A10000432.71M Control Board, operates as a dedicated hardware component for signal processing and power regulation within medium-voltage drive platforms.

Hardware Specifications

Industrial Control and Drive Communication

The A1A10000432.71M module facilitates deterministic communication across the drive control backplane, thereby ensuring synchronized command execution for power conversion tasks. To begin with, it supports high-velocity bus communication, which is necessary for precise gate firing and timing in medium-voltage inverter architectures. Furthermore, this module ensures I/O density scaling, which in turn allows for modular integration within complex drive control networks. In addition to these technical capabilities, the unit maintains full firmware flash compatibility; consequently, this feature enables standardized operational updates through the central controller bus, while simultaneously preserving system integrity across multiple installations.

Frequently Asked Questions (FAQ)

Q: What is the primary function of the DC bus voltage sensing circuit on this board?

A: The sensing circuit provides real-time feedback (0-10 VDC analog signal) of the DC link voltage, allowing the main controller to execute overvoltage or undervoltage protection trip logic.

Q: Is this module compatible with existing Robicon firmware versions?

A: Yes, the module supports standardized firmware flash compatibility, allowing it to be updated to match the specific software version of the existing drive control platform.

Q: What are the grounding requirements for the control board chassis?

A: The board must be mounted using conductive fasteners to ensure a low-impedance path to the drive chassis, which is required to maintain electromagnetic compatibility and signal integrity.

Field Installation Guidelines

• Ensure the drive main power is disconnected and verified as de-energized before handling the module.
• Inspect the module for physical damage to the PCB or connector pins prior to installation.
• Seat the control board firmly into the designated guide rails, ensuring the backplane connector is fully engaged.
• Secure the module using the provided fastening hardware to ensure mechanical stability under vibration.
• Ensure all shielded control cables are properly terminated at the designated ground terminals to prevent electromagnetic coupling.
• Route sensitive signal wiring separately from power-carrying conductors to minimize induced noise.
