Description

Brief Product Description

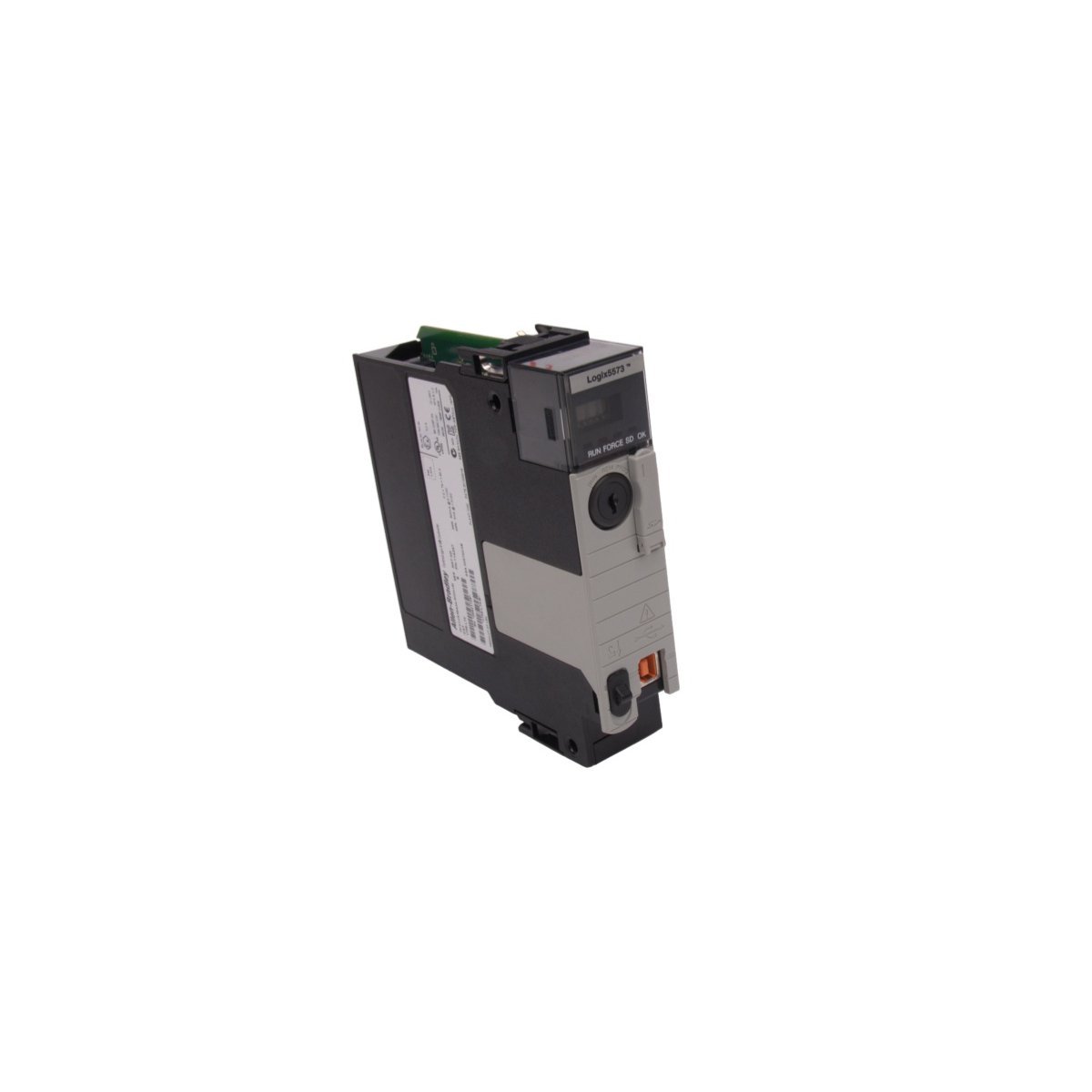

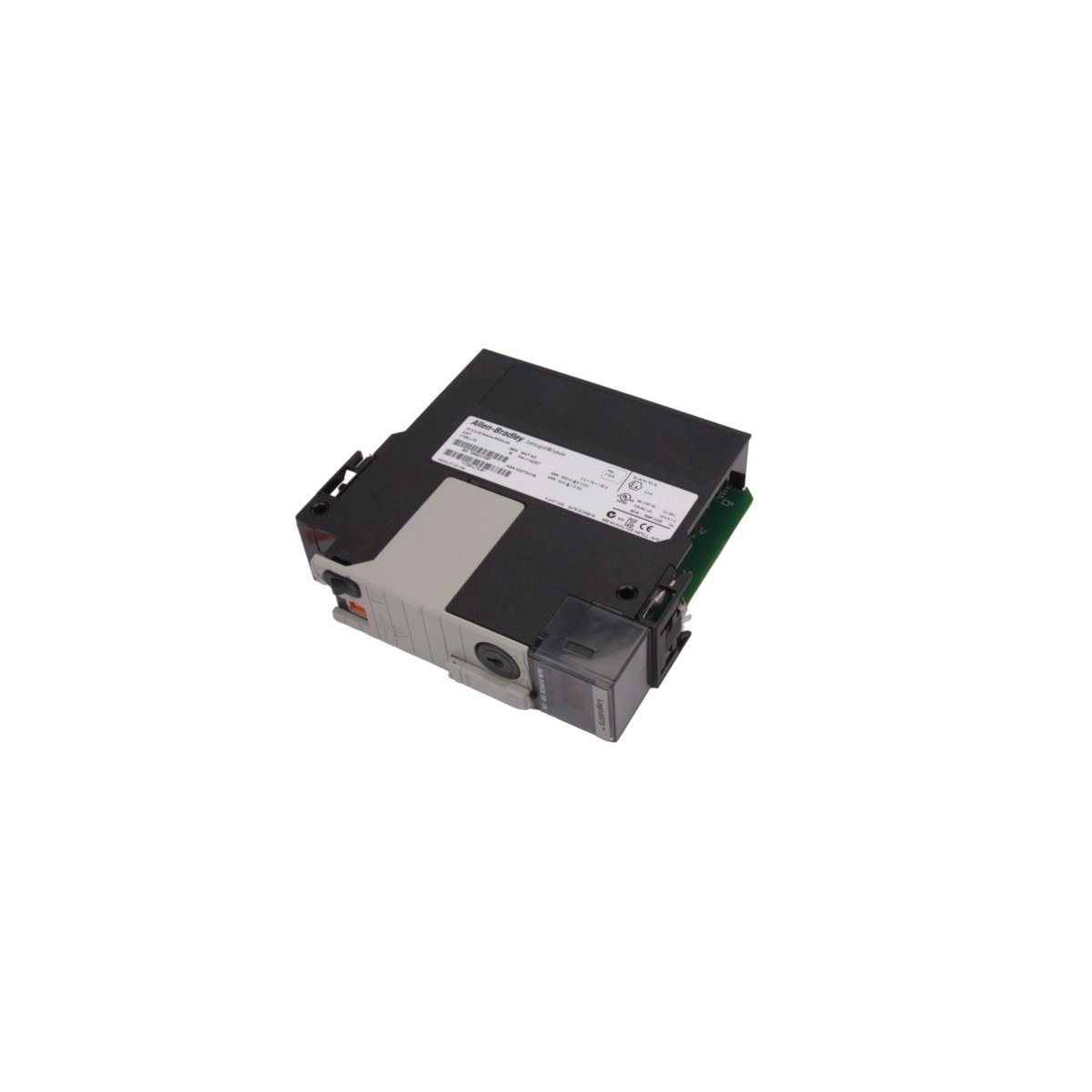

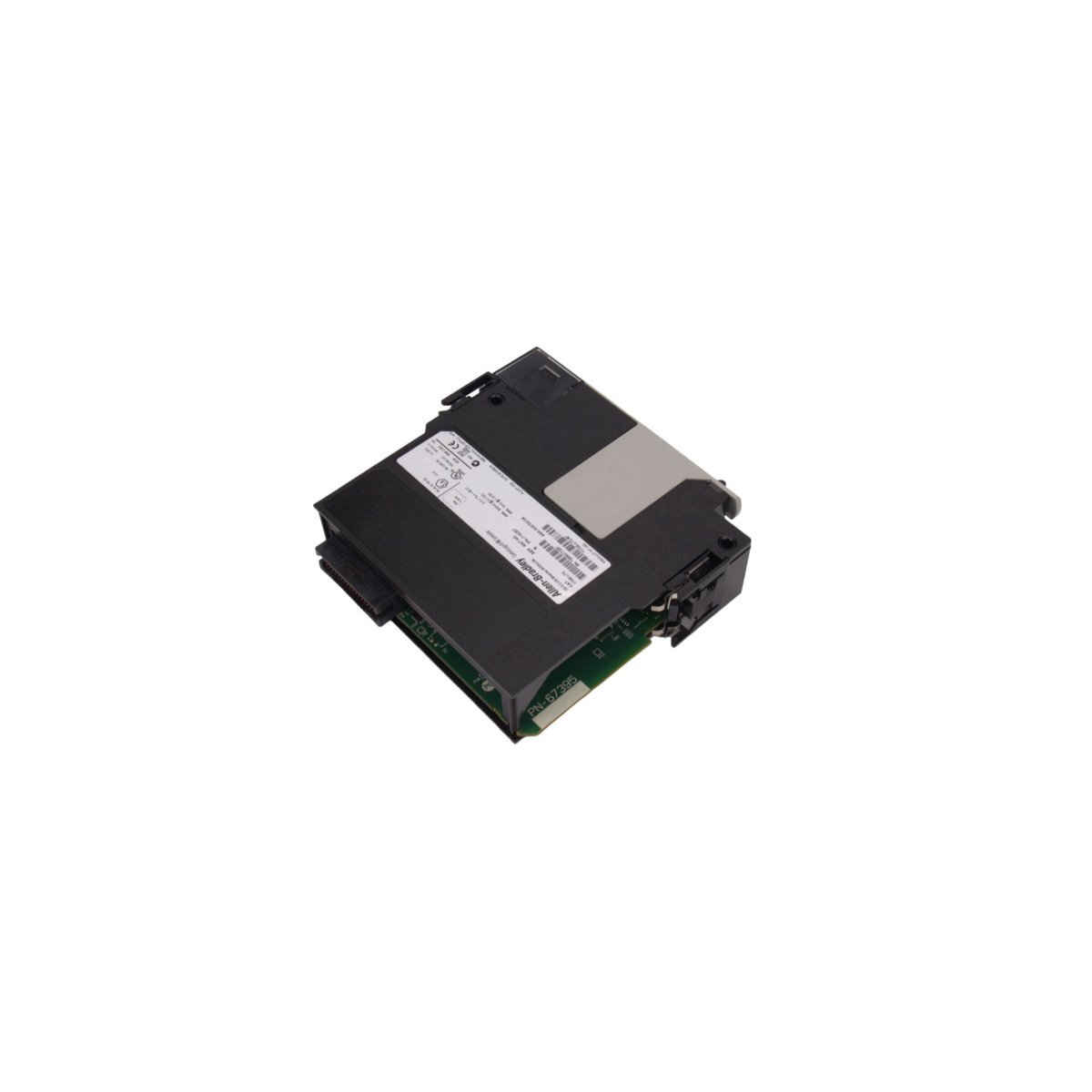

The Allen-Bradley 1756-L73 is a high-capacity ControlLogix 5570 series processor featuring 8 MB of user memory and advanced motion control capabilities. This controller provides a battery-less, high-performance solution for complex automation tasks requiring extensive I/O density and multi-discipline logic execution.

Product Description

High-Performance Logic and Memory Architecture

The Allen-Bradley 1756-L73 functions as a premier processing engine within the ControlLogix 5570 family, specifically designed for data-intensive automation environments. By providing 8 MB of volatile user memory alongside 0.98 MB of dedicated I/O memory, the controller easily manages large-scale programming and sophisticated data arrays. Furthermore, the unit incorporates modern energy storage technology, which utilizes an internal capacitor to save data to non-volatile storage during power interruptions. This innovation completely eliminates the maintenance requirements associated with traditional lithium batteries.

Multi-Discipline Control and Motion Integration

Automation professionals deploy the 1756-L73 to harmonize diverse control disciplines within a single chassis. The module excels in high-speed motion applications, supporting Integrated Motion on EtherNet/IP, SERCOS interface, and analog motion sensors. To ensure precise execution, the controller supports up to 32 multitasking priorities with 100 programs per task. Engineers can develop these strategies using any IEC 61131-3 compliant language, including Ladder Diagram (LD), Structured Text (ST), and Function Block Diagram (FBD), allowing for highly customized and scalable control logic.

Industrial Connectivity and System Resilience

The 1756-L73 streamlines network integration by supporting a vast array of communication protocols, including EtherNet/IP, ControlNet, and DeviceNet, via separate bridge modules. This PAC can oversee a massive I/O infrastructure, handling up to 128,000 digital points and 4,000 analog points across local and remote topologies. Built to withstand the rigors of the factory floor, the module maintains operational stability in temperatures up to 60°C and resists significant mechanical shock and vibration. These features make the 1756-L73 a reliable cornerstone for critical manufacturing, power, and process industries.

Technical Specifications
