Product Overview

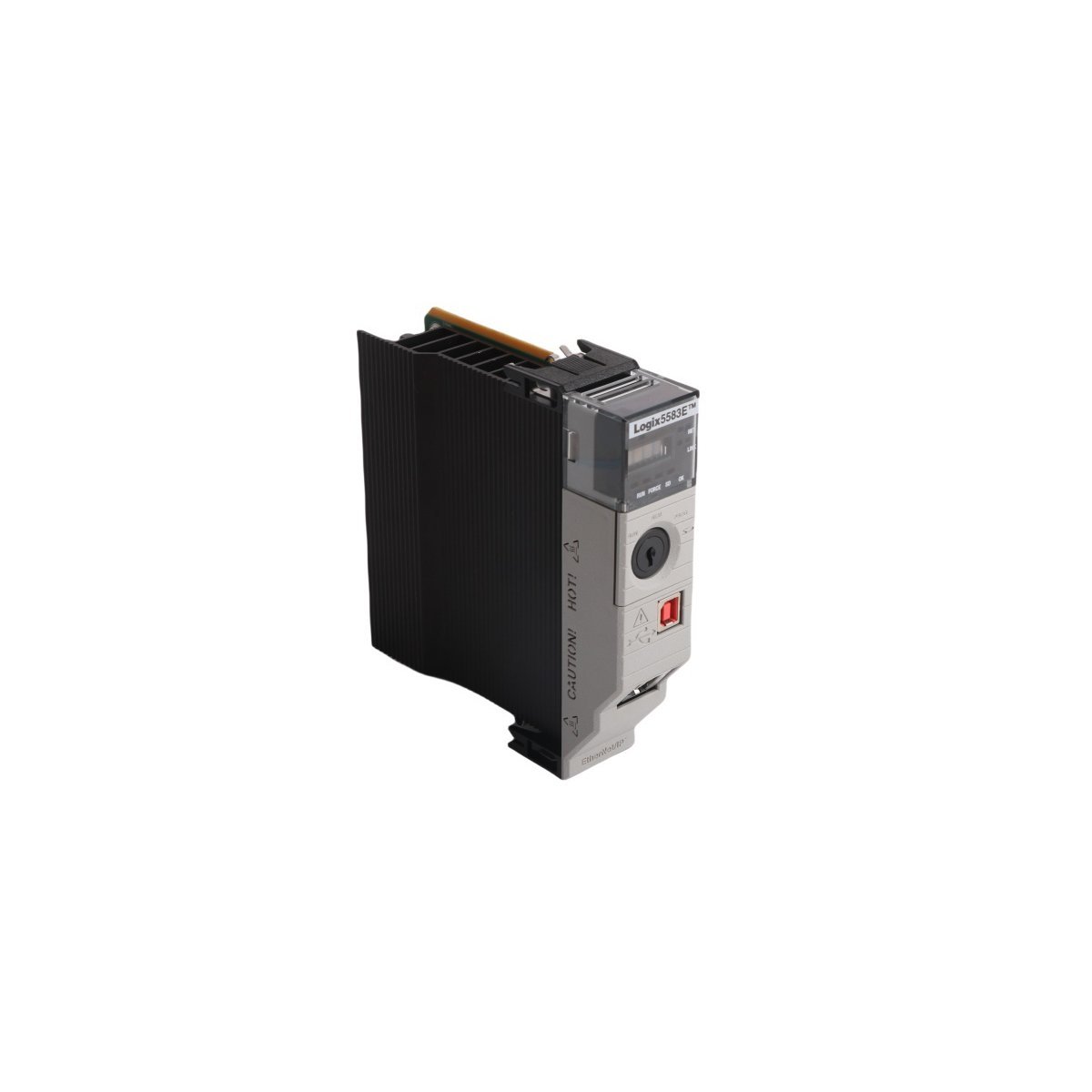

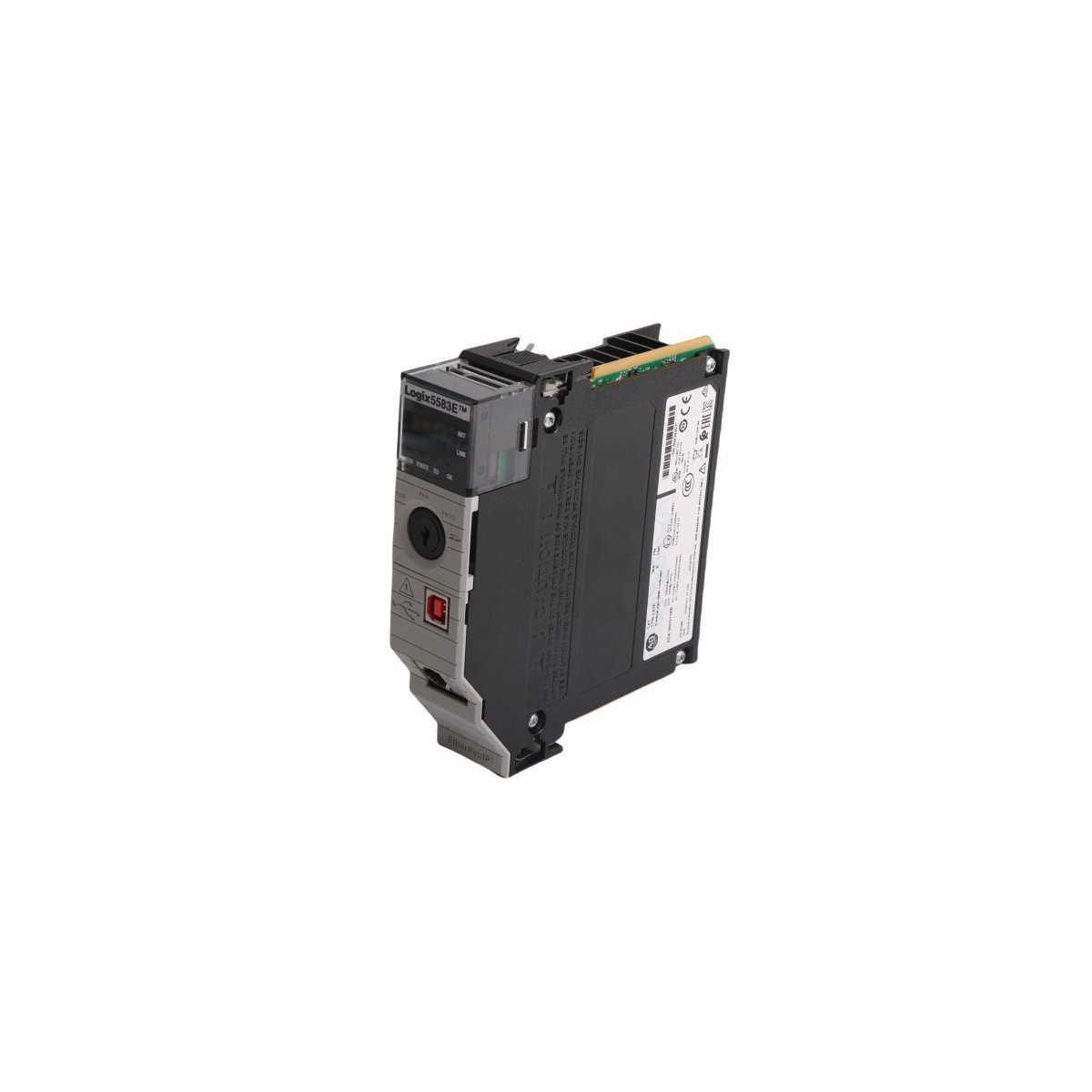

The Allen-Bradley 1756-L83E represents a high-performance member of the ControlLogix 5580 controller series. This processor optimizes industrial automation workflows by integrating high-speed processing power with advanced communication flexibility. Engineers utilize this module to manage demanding applications that require substantial memory, rapid execution times, and robust network connectivity. As a core component of the Logix architecture, it facilitates seamless integration across complex manufacturing environments.

Technical Specifications

• Model Number: 1756-L83E
• Manufacturer: Rockwell Automation / Allen-Bradley
• Product Family: ControlLogix 5580
• User Memory Capacity: 10 MB
• Storage Media: Included 2 GB SD Card (1784-SD2)
• Communication Interfaces: 1 x RJ45 EtherNet/IP Port (10/100/1000 Mbps), 1 x USB Type-B Port
• Digital I/O Capacity: Up to 128,000 points
• Analog I/O Capacity: Up to 4,000 points
• EtherNet/IP Node Capacity: 250 nodes (requires Studio 5000 Logix Designer V30 or later)
• Thermal Operating Range: 0°C to 60°C (32°F to 140°F)
• Weight: 0.4 kg
• Dimensions: 3.5 cm x 14 cm x 14.5 cm

Functional Capabilities

This controller executes complex logic tasks with high efficiency. Operators can configure up to 32 individual tasks with 1,000 programs per task, ensuring precise control over multifaceted processes. The onboard Ethernet port supports versatile network topologies, while the architecture allows for scalable expansion through additional communication modules, such as DeviceNet or ControlNet, when system requirements evolve.

Furthermore, the 1756-L83E enhances system uptime through integrated redundancy support. During a primary processor failure, the system automatically transitions to the secondary controller, which maintains operational continuity. Users manage these settings and security configurations, including static or dynamic IP addressing, via the BOOTP-DHCP utility to ensure network integrity. By utilizing Studio 5000 Logix Designer, maintenance teams can easily monitor I/O diagnostics and messaging exchanges with legacy platforms like PLC-5 or SLC 500 systems.

Key Applications
