Description

Technical Functionality and Circuit Protection

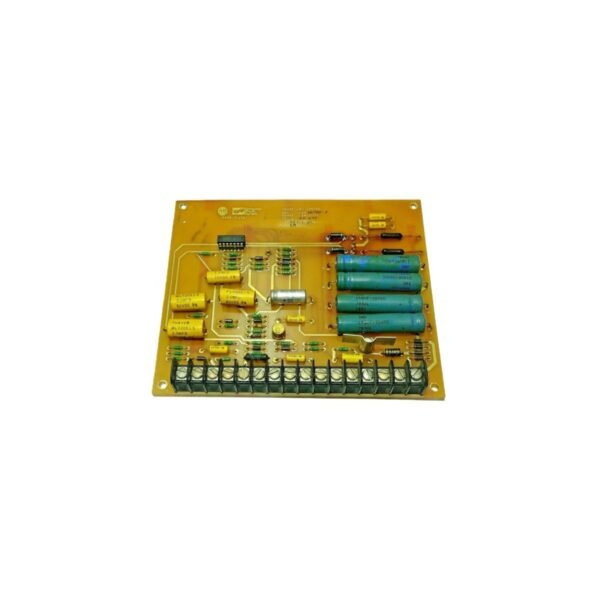

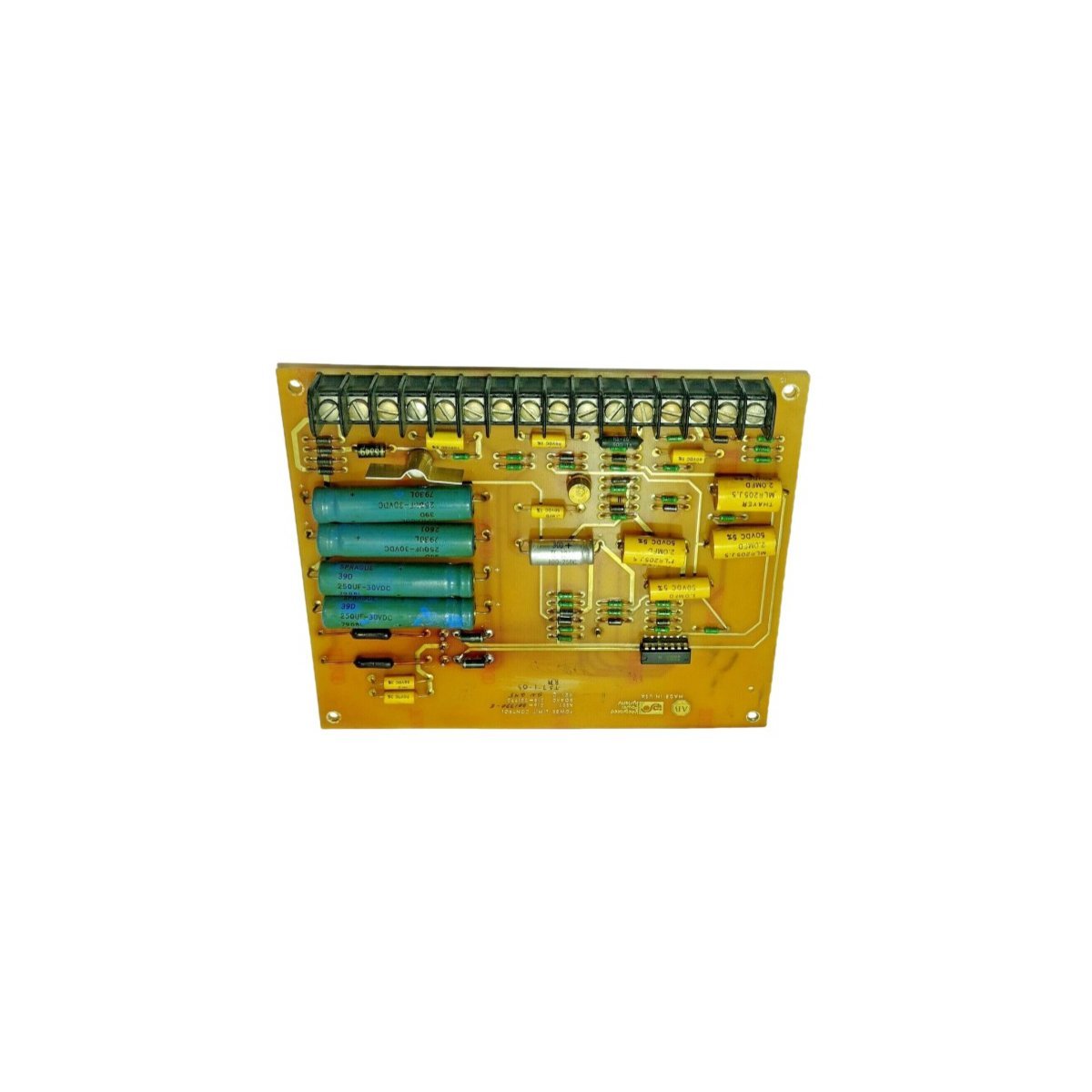

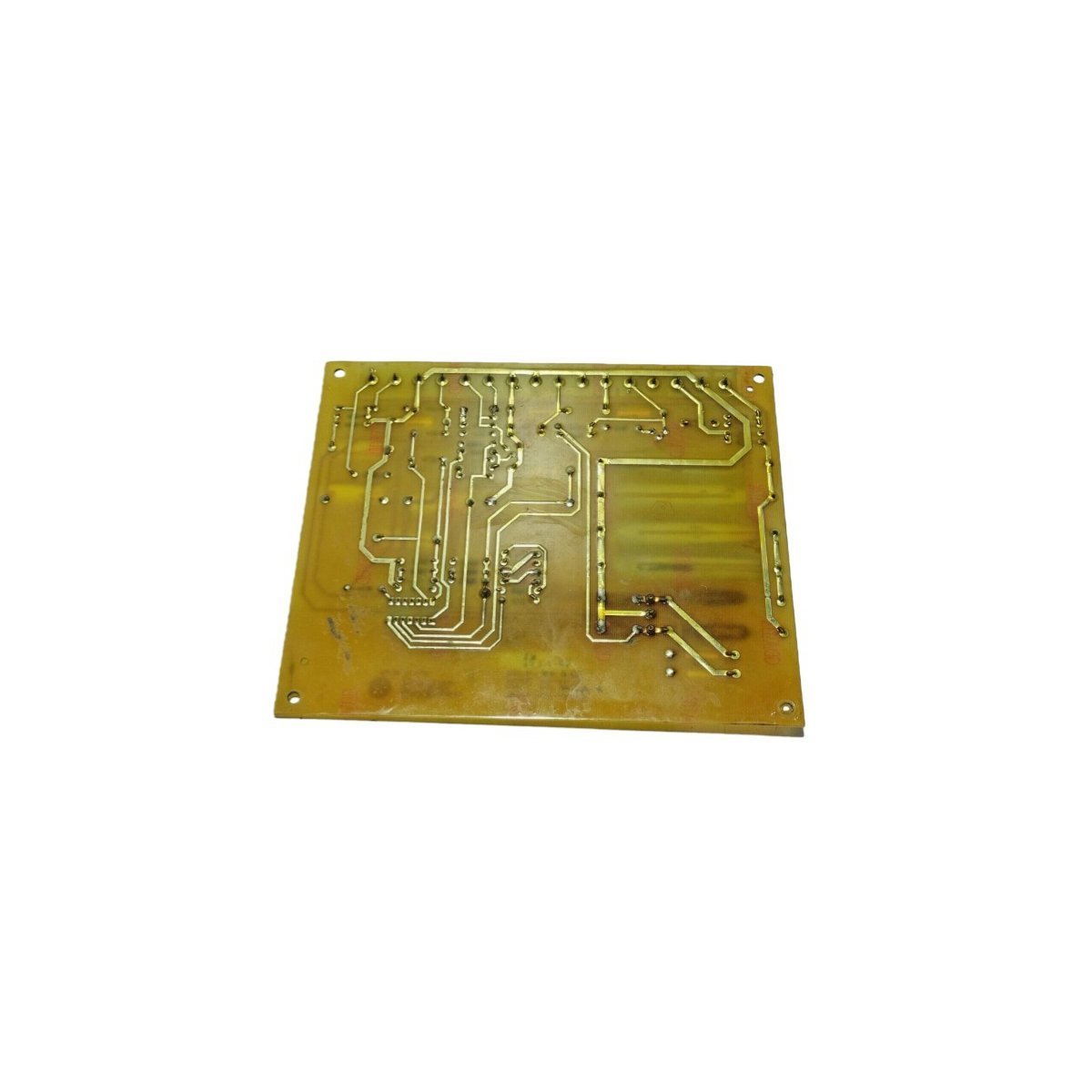

The Allen-Bradley 018-001770 is a specialized Power Limit Control Printed Circuit Board (PCB) engineered for hardware-level circuit protection within industrial automation systems. Operating at Revision C specification, this control board establishes an analytical safety layer by continuously supervising real-time electrical current and voltage thresholds. Whenever a connected load exceeds defined operational parameters, the board’s embedded circuitry actively modulates or clamps the throughput power. This proactive power limitation safeguards upstream power components and sensitive internal PLC hardware from catastrophic thermal overload or transient overcurrent conditions.

System Integration and Architecture

Because industrial networks demand consistent system uptime, this module features a highly compatible interface designed for immediate integration into native Allen-Bradley control platforms and Integrated Power Systems (IPS). The technical layout prioritizes rapid signal response times and excellent thermal dissipation to sustain accurate current monitoring in congested electrical enclosures.

Furthermore, the board includes on-board diagnostic indicators that actively assist maintenance teams during troubleshooting procedures. By signaling precise fault states, the board helps pinpoint downstream electrical anomalies quickly, which simplifies predictive maintenance routines and significantly mitigates unscheduled facility downtime.

Mechanical Integrity and Environmental Tolerances

Built to withstand severe industrial rigors, the 018-001770 utilizes ruggedized solid-state components that endure high ambient temperatures, heavy mechanical vibrations, and continuous electrical stresses. Consequently, industrial plants deploy this hardware across a variety of demanding applications, including heavy manufacturing plants, variable speed drive assemblies, and specialized processing facilities where precise, unwavering power regulation directly impacts operational asset safety.

Technical Data

• Manufacturer: Allen-Bradley (Rockwell Automation)
• Hardware Classification: Power Limit Control Board
• Unique Identifier / Model Number: 018-001770
• Hardware Revision Status: Revision C (Rev C)
• System Topology Compatibility: Programmable Logic Controller (PLC) / Integrated Power Systems
• Hardware Physical Dimensions: 3.5 cm x 13.0 cm x 14.5 cm
• Net Shipping Weight: 0.9 kg
• Network Communication Layer: Local Bus / Integrated Routing Infrastructure
• Custom Export Harmonization Code (HS CODE): 8537101190
• Product Lifecycle Status: Legacy Component (Discontinued June 30, 2016)
