Description

Product Overview

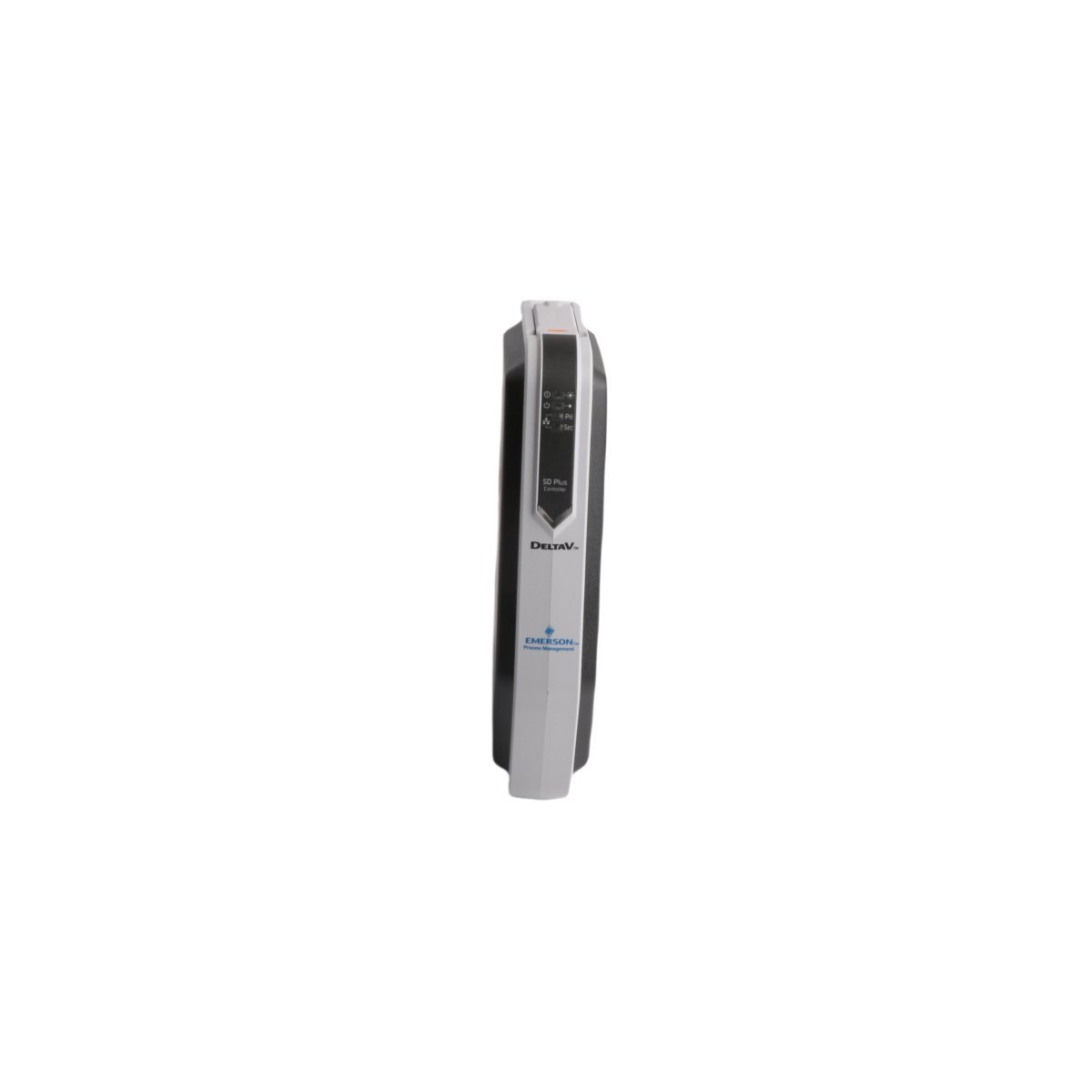

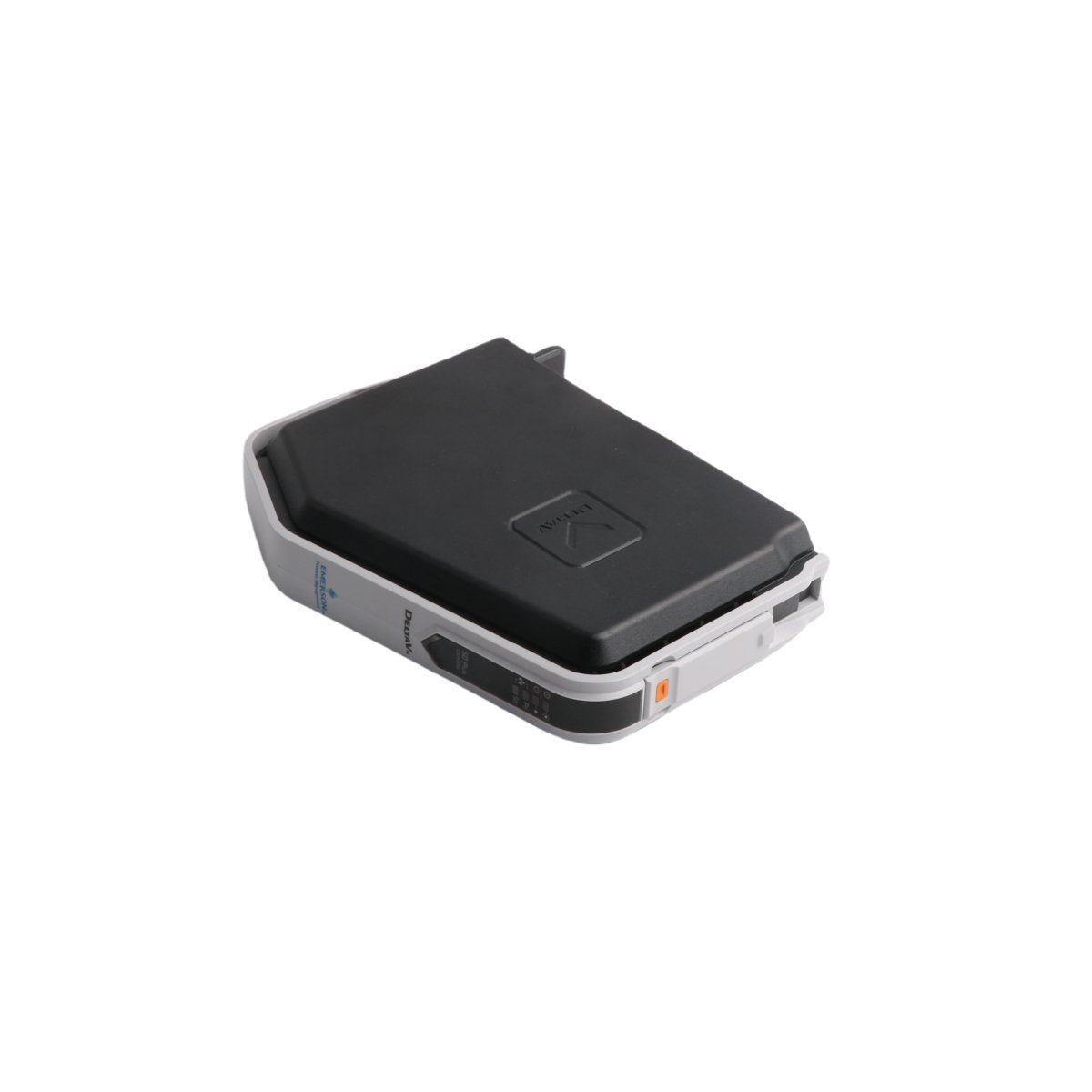

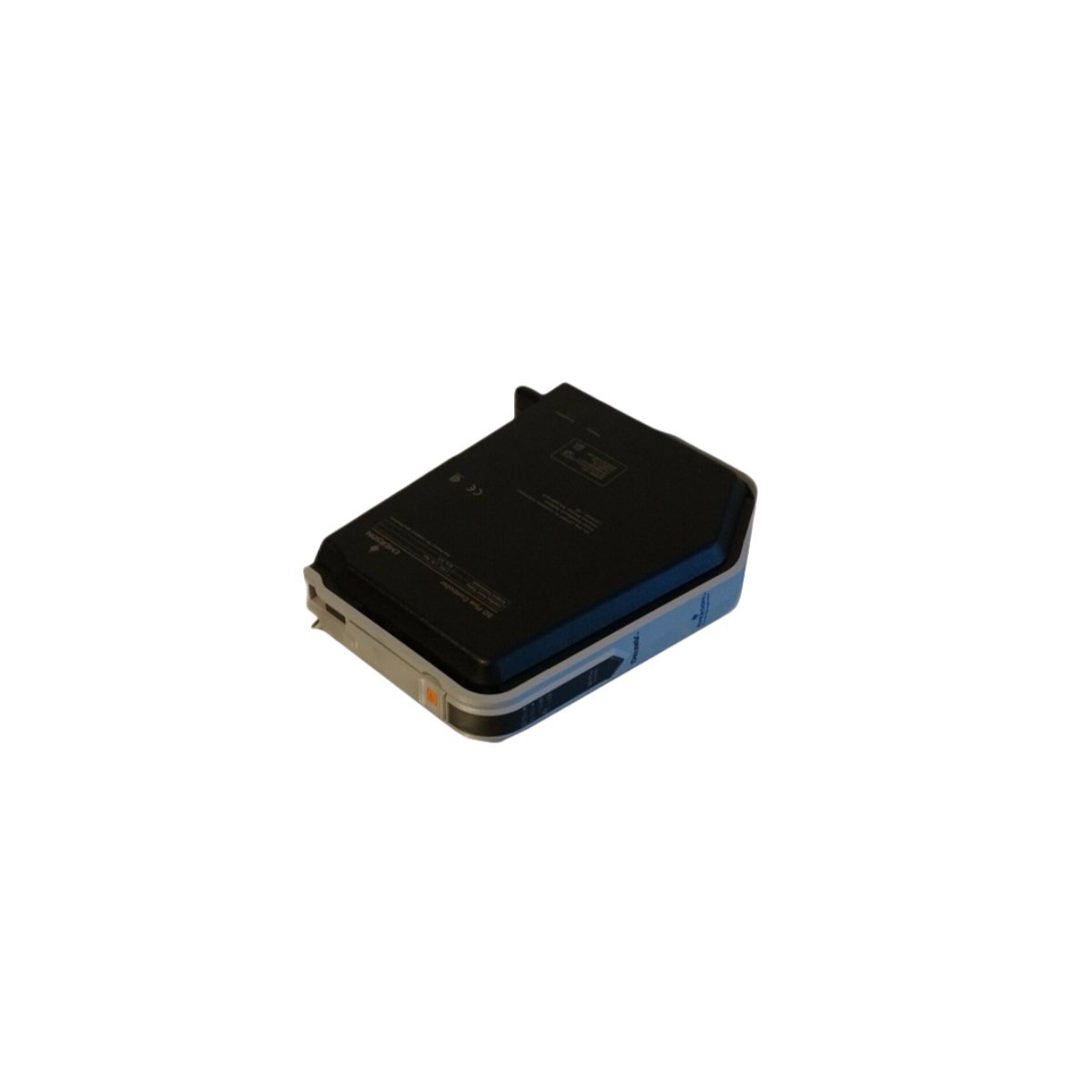

The Emerson KJ2003X1-BK1, identified by part number 12P4686X052, serves as a core processing unit within the DeltaV Distributed Control System (DCS) architecture. Engineered specifically to interface with industrial automation environments, this hardware executes complex control algorithms while managing real-time data acquisition from field instrumentation. While primarily integrated into standard plant control topologies, this platform ensures reliable execution of critical process logic by maintaining a continuous data link between input/output hardware and upper-tier supervisory networks.

Technical Characteristics and Functionality

Operationally, the unit acts as a localized data processing hub that continuously scans field inputs, computes PID loops, and updates output variables to regulate pressure, flow, and temperature parameters. The hardware design prioritizes long-term stability under continuous duty cycles, mitigating the risk of sudden processing failures in critical loops. Network communication relies on integrated Ethernet routing capability, which guarantees deterministic data transfer across the system architecture. Furthermore, the hardware layout facilitates straightforward hot-swapping and modular expansion, thereby simplifying physical installation and subsequent system upgrades during scheduled turnaround windows.

Physical Specifications and Deployment Environment

Technical Data

• Manufacturer: Emerson
• System Line: DeltaV DCS Series
• Hardware Classification: SD Plus Controller
• Engineering Part Number: 12P4686X052
• Physical Dimensions: 5.1 cm x 17.8 cm x 12.7 cm
• Net Weight: 0.3 kg
• Communication Protocol: Embedded Ethernet Routing
• Customs Tariff Code (HS CODE): 8537101190
• Lifecycle Status: Legacy Hardware (Discontinued December 31, 2018)

Industrial Applications

This controller is deployed across heavy processing industries where automated sequence control and continuous regulation are mandatory. Typical installations include petrochemical processing facilities, power generation plants, water treatment facilities, and pharmaceutical manufacturing operations. Because the unit maintains native compatibility with older DeltaV system configurations, plant engineers utilize this module as a direct replacement component to extend the operating life of existing control nests without requiring extensive software migration or rewiring.
