Description

Functional Overview

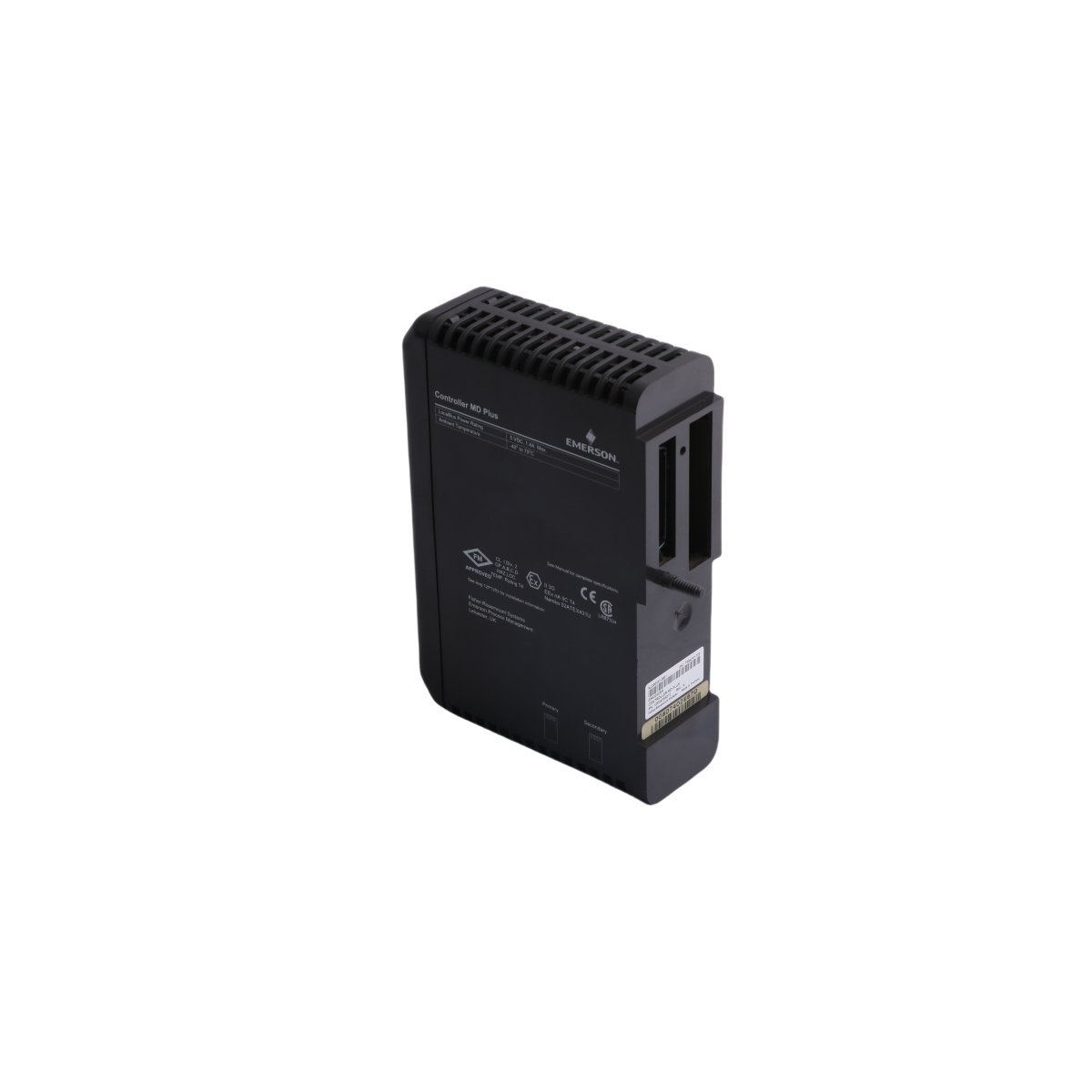

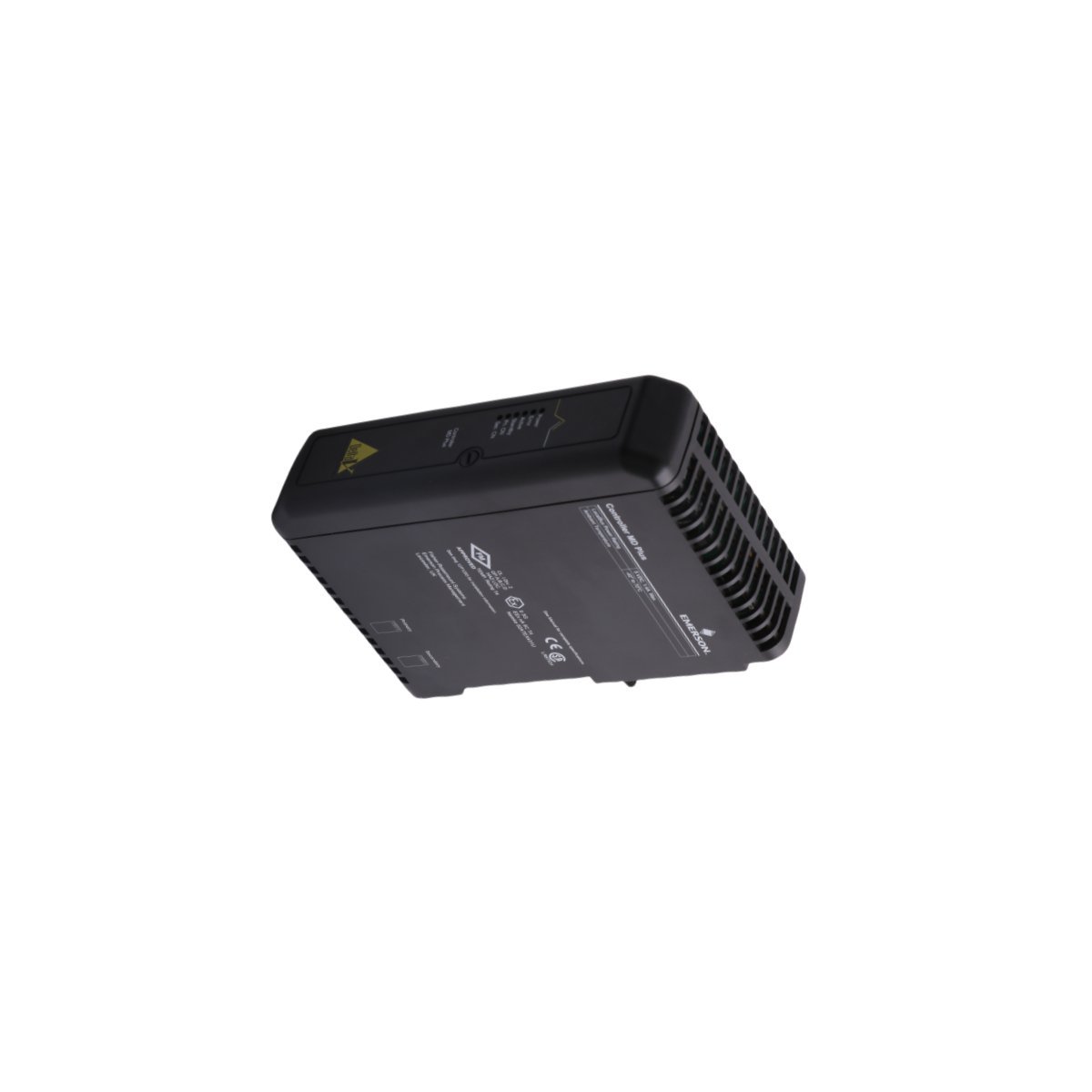

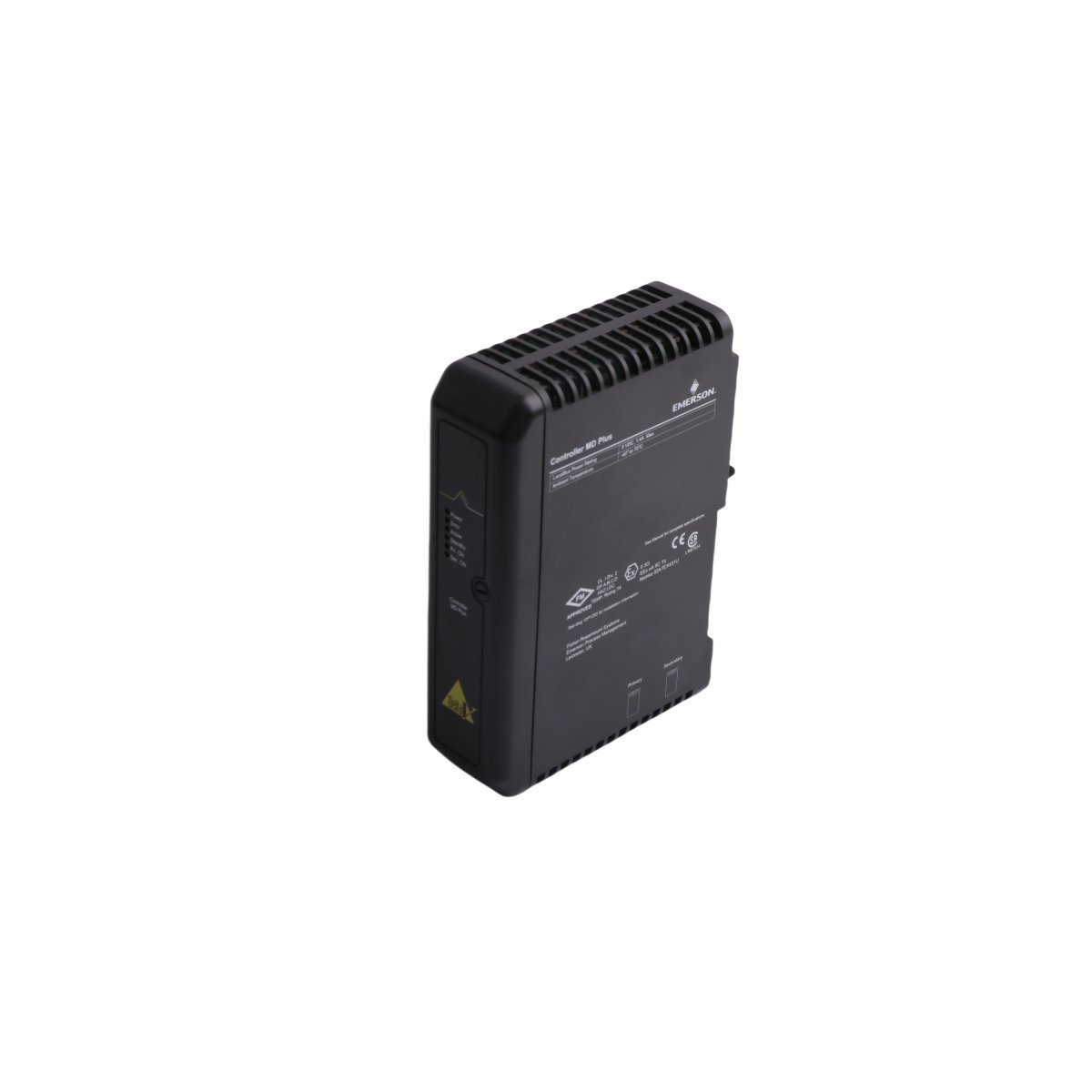

The Emerson KJ2003X1-BB1 (also identified by part numbers 12P3439X012 and VE3006) is a high-performance Distributed Control System (DCS) processing unit belonging to the DeltaV™ MD Plus Controller family. Acting as the central brain for localized process cells, this module executes advanced regulatory, batch, and logic control strategies. It compiles real-time telemetry from downstream field instruments—such as pressure transmitters, flow meters, and thermal sensors—processing raw inputs into precise control actions to automate complex industrial environments.

Architecture and Communication Capabilities

The MD Plus Controller features a powerful processing core designed to manage dense I/O configurations with low loop latency. It supports native redundancy, enabling hot-standby pairing where a secondary controller takes over control operations seamlessly if a primary hardware fault occurs.

To facilitate seamless network integration, the unit communicates across standard industrial networks using integrated routing protocols. This allows it to interface directly with higher-level plant subsystems, supervisory Human-Machine Interfaces (HMIs), and plant historians while preventing bandwidth congestion.

Diagnostics and System Reliability

Engineered to fulfill strict process safety and uptime mandates, the KJ2003X1-BB1 includes self-contained diagnostic subroutines. The processor monitors its own hardware health, memory allocation, and backplane communication integrity in real time. Field errors or hardware anomalies trigger immediate diagnostic flags within the DeltaV engineering suite, enabling predictive maintenance and troubleshooting before an issue impacts plant production.

Technical Data

Industrial Applications

The Emerson DeltaV MD Plus Controller is widely utilized in continuous-process industries where unplanned downtime causes significant financial or operational risks. Key application environments include:

• Oil & Gas Refining: Regulating catalytic cracking units, distillation columns, and custody transfer monitoring.
• Chemical Processing: Managing exothermic batch reactions, precision blending, and emergency shutdown interlocks.
• Power Generation: Coordinating boiler control systems, steam turbine parameters, and feed-water loop automation.
• Pharmaceutical Synthesis: Executing highly repeatable, strictly validated recipe sequences in sterile environments.
