Description

Product Overview

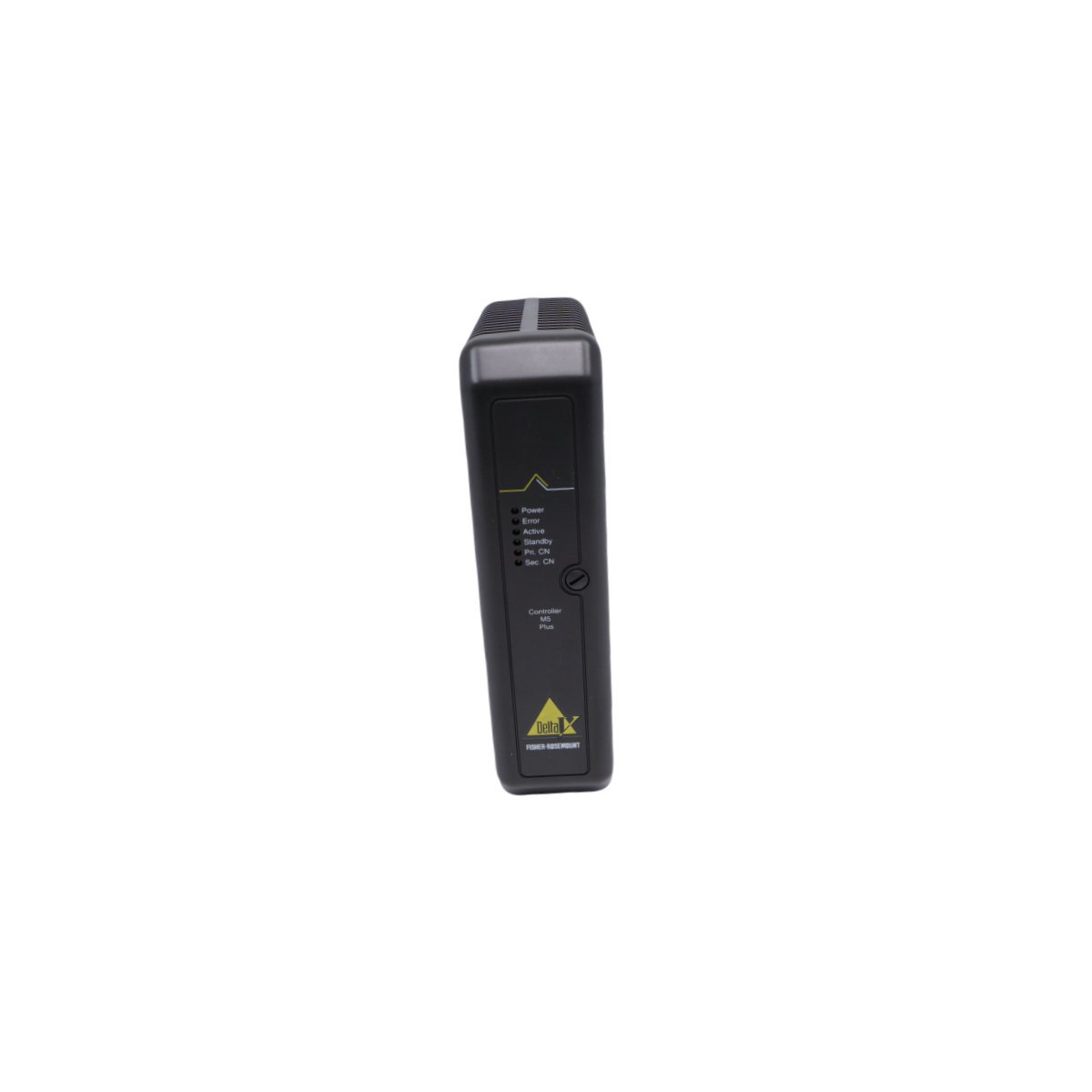

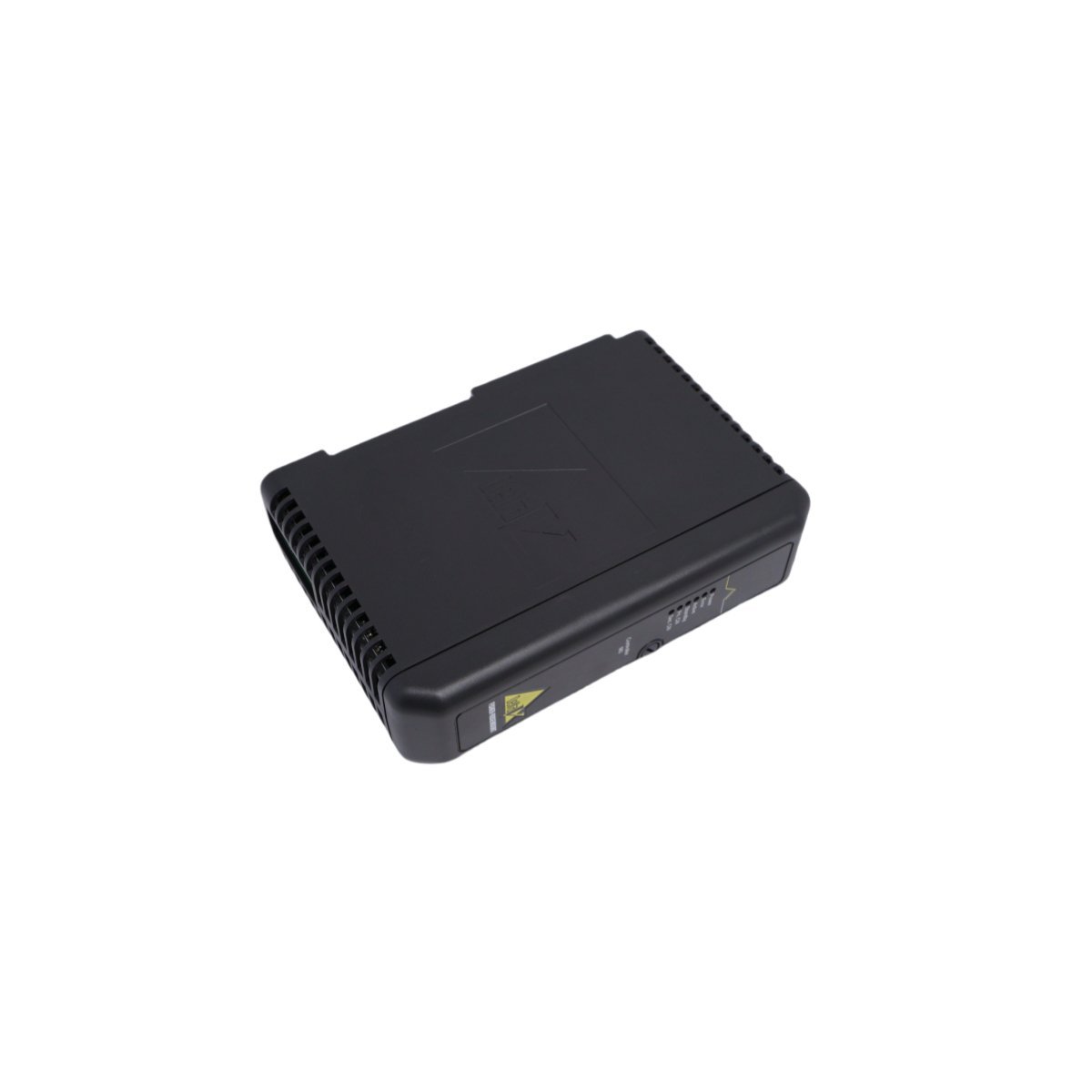

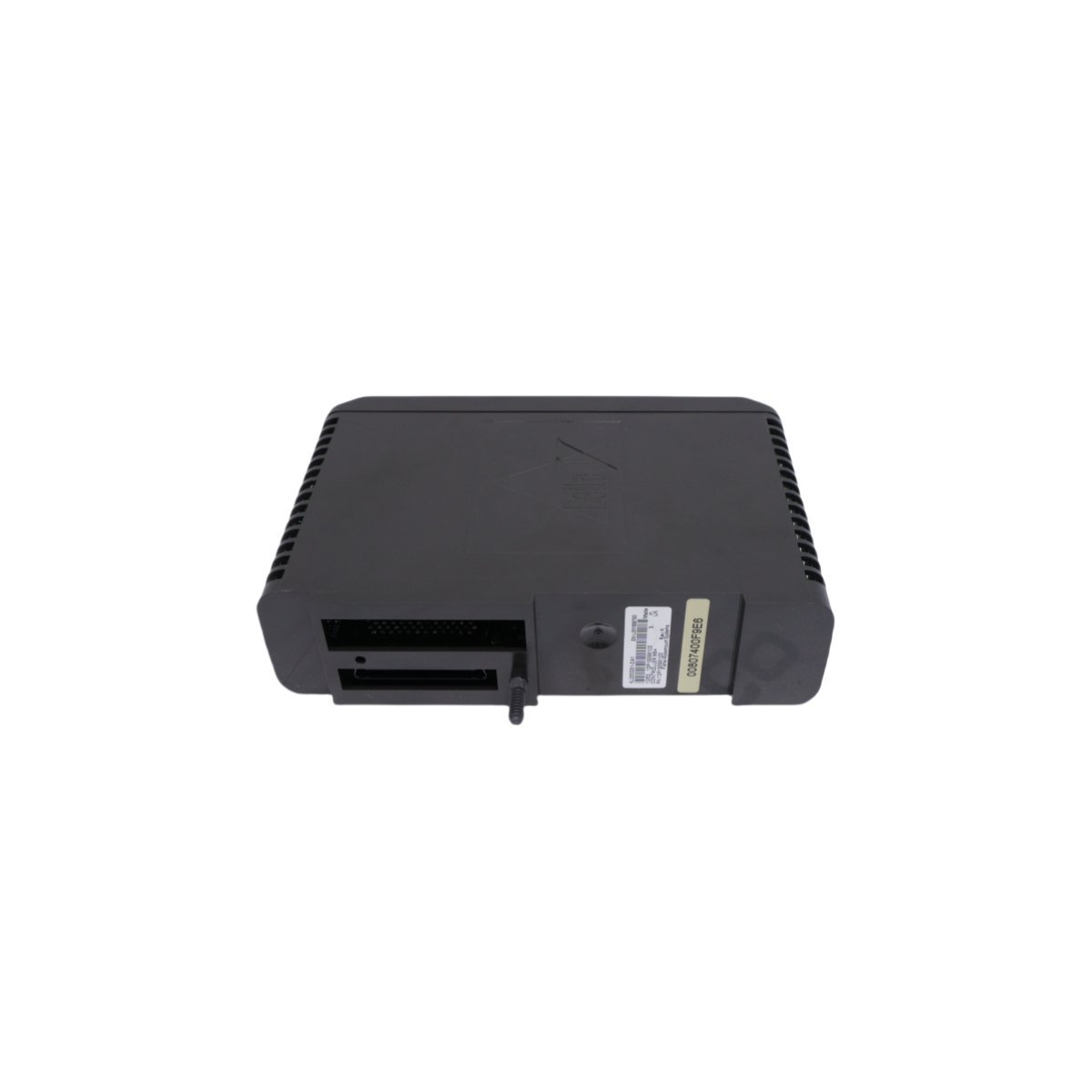

The Emerson KJ2002X1-CA1 (part numbers 12P1509X092 and VE3006) is a high-performance, fault-tolerant processing unit designed specifically for the DeltaV SIS™ process safety system and distributed control system (DCS) architectures. Serving as the central intelligence for critical automation environments, this M5+ Controller executes complex safety logic, handles high-speed data acquisition, and manages critical interlocks. It delivers precise process management and advanced diagnostics to maintain high operational efficiency while protecting personnel and equipment in heavy industrial sectors.

Advanced Capabilities and Functional Benefits

• High-Capacity I/O Scalability: Engineered with a scalable hardware architecture, this controller directly supports the orchestration and simultaneous tracking of up to 32 independent input/output modules per node.

• Multi-Protocol Communication Integration: Seamlessly bridges digital field instruments with the plant control layer by natively supporting diverse communication protocols, including HART, FOUNDATION Fieldbus, and Modbus via its integrated Ethernet backbone routing.

• Ruggedized Environmental Protection: Built to operate continuously in severe industrial conditions, it is rated for ambient environments spanning 0°C to 60°C. Featuring ISA-S71.04–1985 Class G3 conformal coating, its internal electronics are fully shielded against harsh airborne contaminants, moisture, and corrosive vapors.

• Fault-Tolerant Redundancy Architecture: Supports flexible, hot-swappable redundant pairing. In a dual-controller framework, control states sync in real time, enabling immediate, bumpless failover if an active module undergoes maintenance or encounters a hardware fault.

Technical Specifications

Industrial Applications

• Oil & Gas Process Safety Systems: Overseeing emergency shutdown (ESD) loops, fire and gas detection monitors, and critical process safety parameters on production platforms.

• High-Availability Power Generation: Managing fault-tolerant control loops in power plants requiring uncompromised controller uptime and hot-standby hardware configurations.

• Chemical and Petrochemical Processing: Processing high-speed real-time diagnostics to facilitate proactive maintenance, early fault identification, and precise chemical reaction control.

• Water & Wastewater Treatment Automation: Serving as a reliable, rugged distributed control hub across expansive utility networks exposed to challenging ambient environments.
