Description

Product Overview

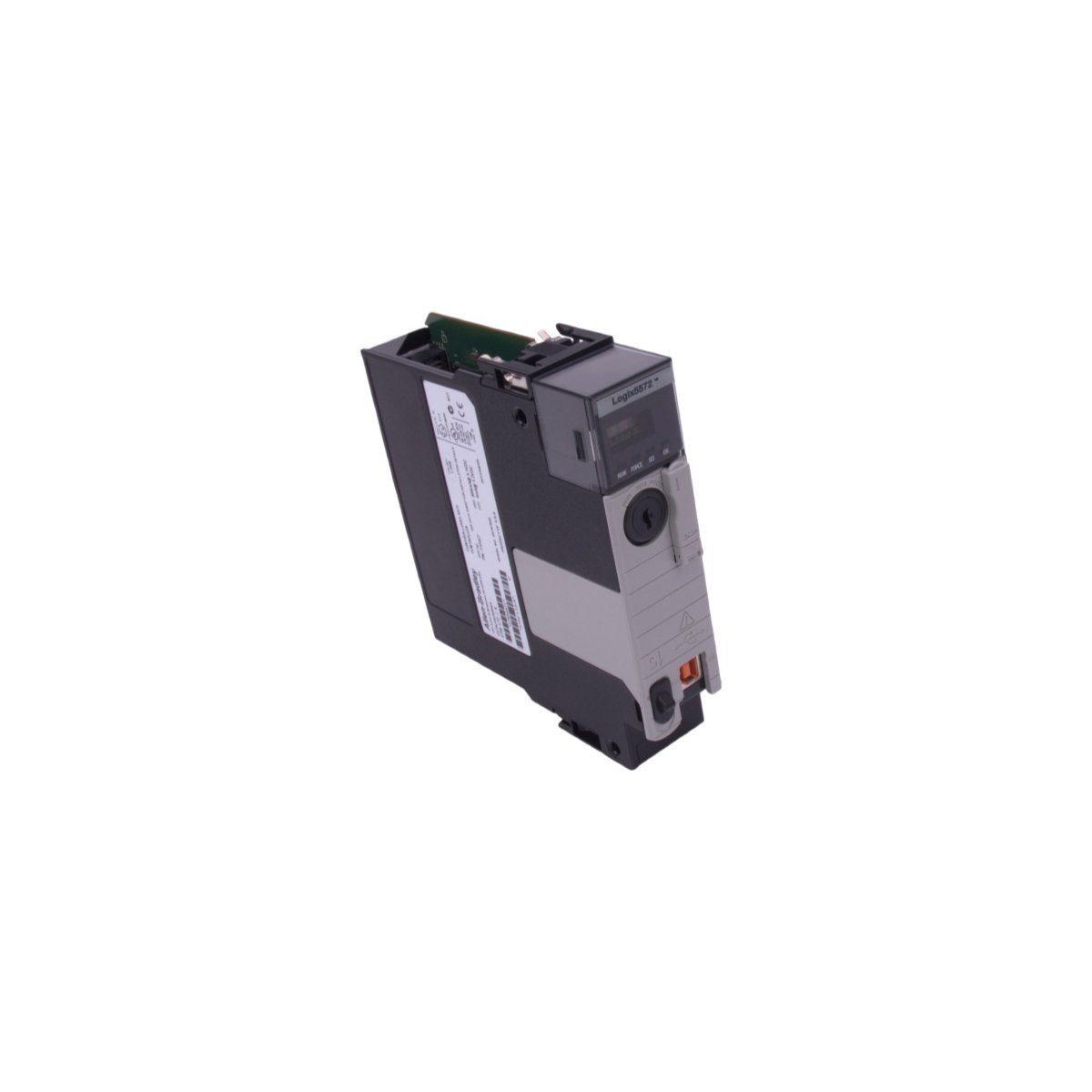

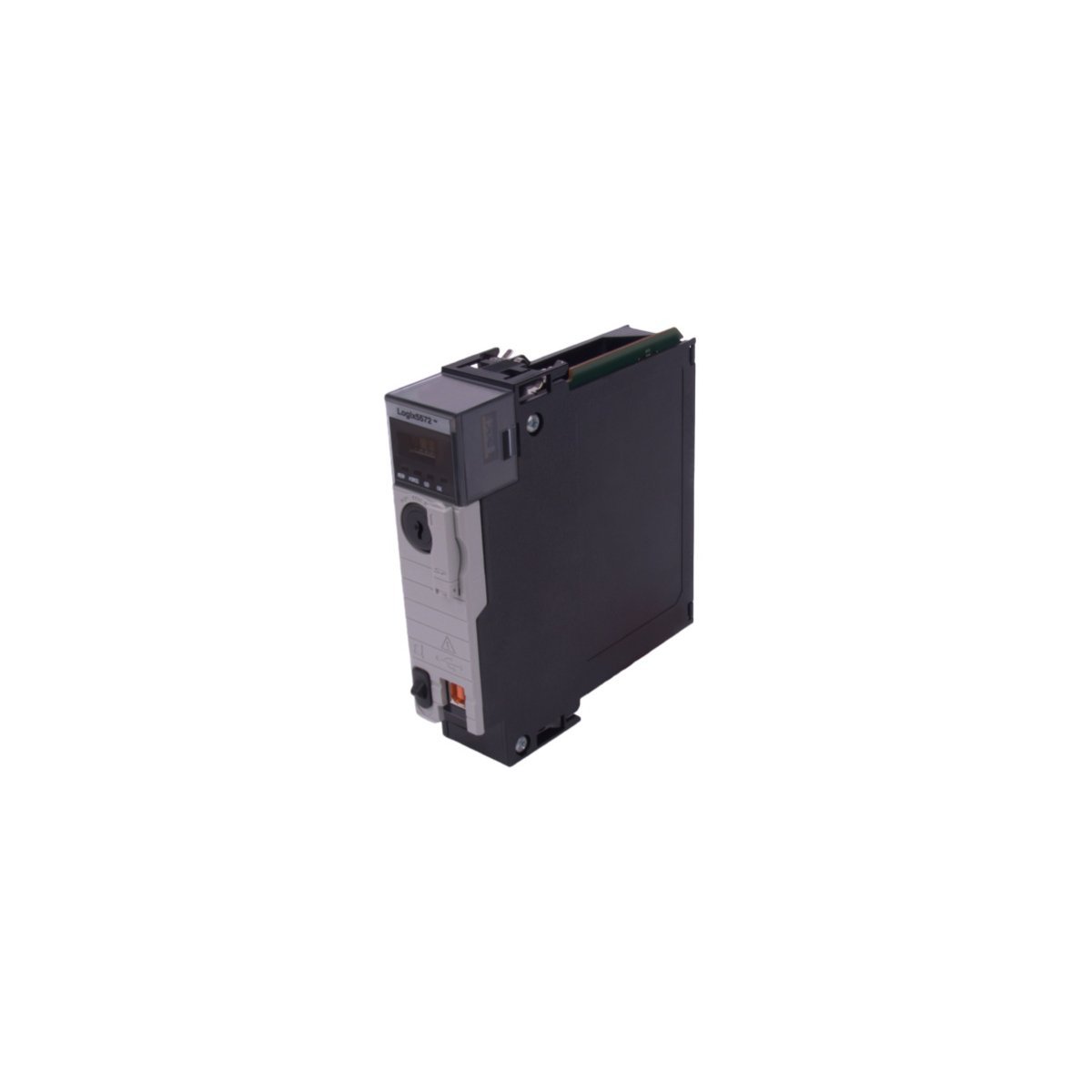

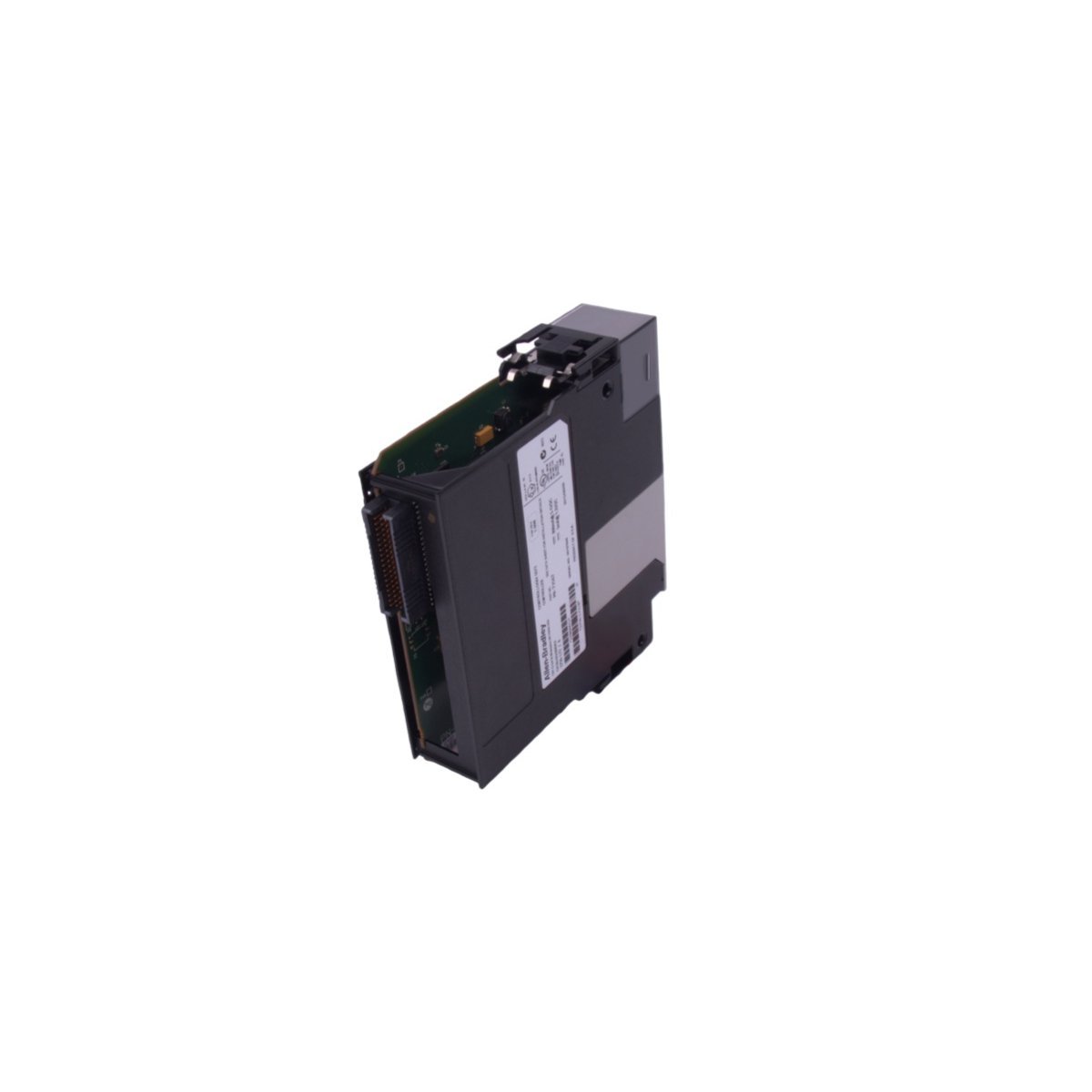

The Allen-Bradley 1756-L72 is a high-performance central processing unit belonging to the ControlLogix 5570 controller family. Manufactured by Rockwell Automation, this processor is designed to manage complex, large-scale industrial applications. It handles sophisticated discrete logic, batch processing, continuous process loops, safety tasks, and integrated motion control across a unified enterprise network infrastructure.

Core Technical Specifications

Environmental and Operating Thresholds

Built to deliver high reliability inside industrial control panels, the 1756-L72 meets the following standard operational standards:

• Operating Temperature: 0°C to 60°C (32°F to 140°F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Relative Humidity: 5% to 95% non-condensing
• Vibration and Shock: 2 g operational vibration resistance at 10 to 500 Hz; 30 g operational shock resistance
• Conformal Coating: Available via specialized sub-models (e.g., 1756-L72K) for harsh environments containing corrosive agents or moisture.

Industrial Applications and System Deployment

The 1756-L72 processor is deployed as the primary automaton brain across capital-intensive industries that require precise high-speed synchronization, including:

• Automotive Assembly Lines: Synchronizing multi-axis robotic motion arrays, transfer lines, and welding cells.
• Food & Beverage Processing: Managing precise ingredient dosing, temperature-dependent mixing profiles, and automated packaging lines.
• Water & Wastewater Treatment: Coordinating distributed remote terminal units (RTUs), chemical dosing pumps, and large-scale filtration arrays.

Operational Characteristics and Functional Advantages

• Energy Storage Module (ESM): Eliminates the need for traditional lithium batteries. The 1756-L72 uses a capacitor-based field-replaceable ESM (such as the 1756-ESMCAP) to automatically flush volatile memory into non-volatile onboard storage during a sudden power outage.
• Multi-Network Integration: Communicates smoothly across diverse topologies by pairing with chassis-based communication modules for EtherNet/IP, ControlNet, and DeviceNet. It supports up to 128 total Logix communication connections.
• Integrated Motion Capability: Supports integrated motion over EtherNet/IP, enabling control over complex kinematic profiles, servo drives, and synchronized line axes directly out of the primary programming environment.
• Hot-Swappable Chassis Architecture: Fully supports Remove and Insert Under Power (RIUP) mechanics. Field engineers can swap adjacent network or I/O modules out of the 1756 ControlLogix chassis without interrupting the processor’s active run routine.
