Description

Product Overview

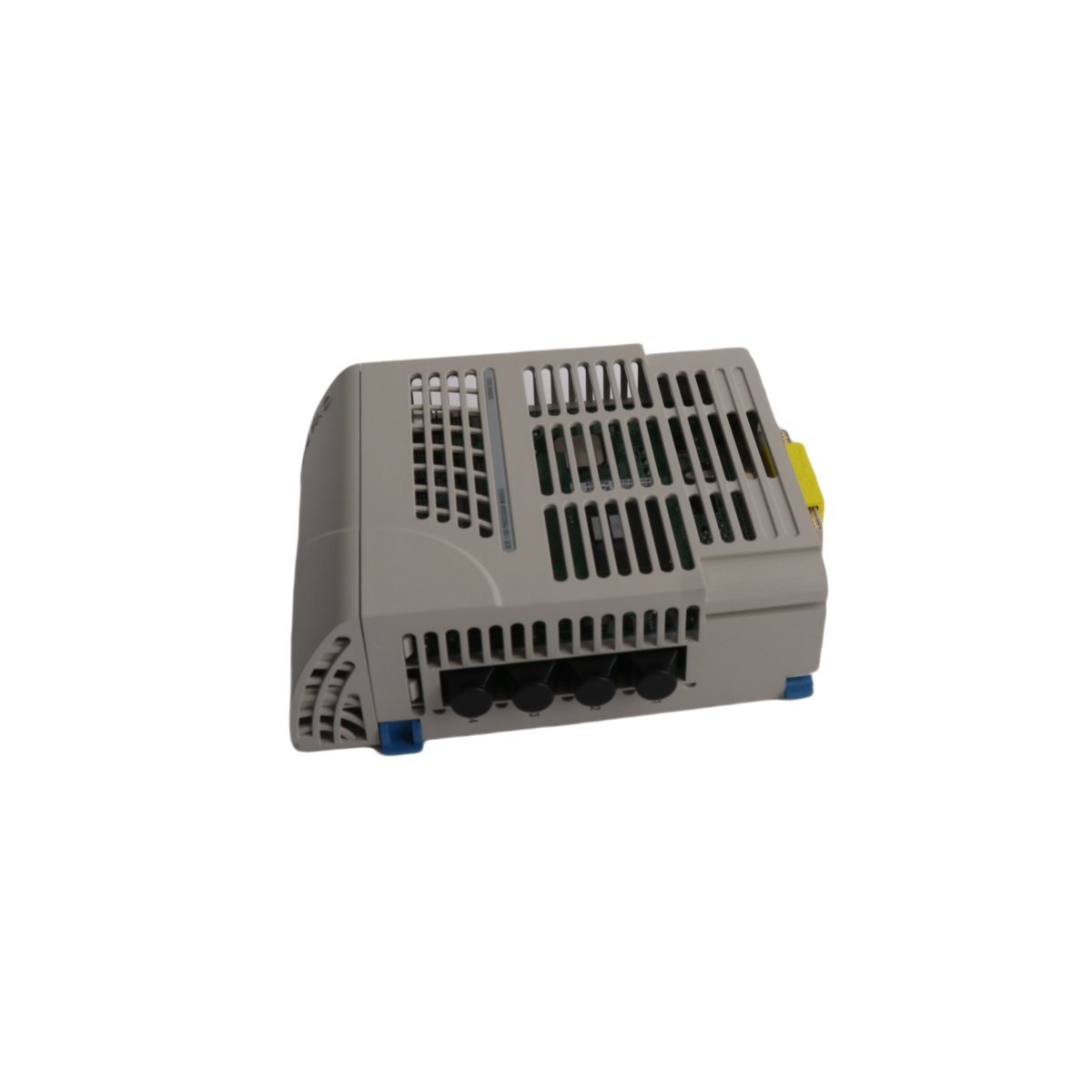

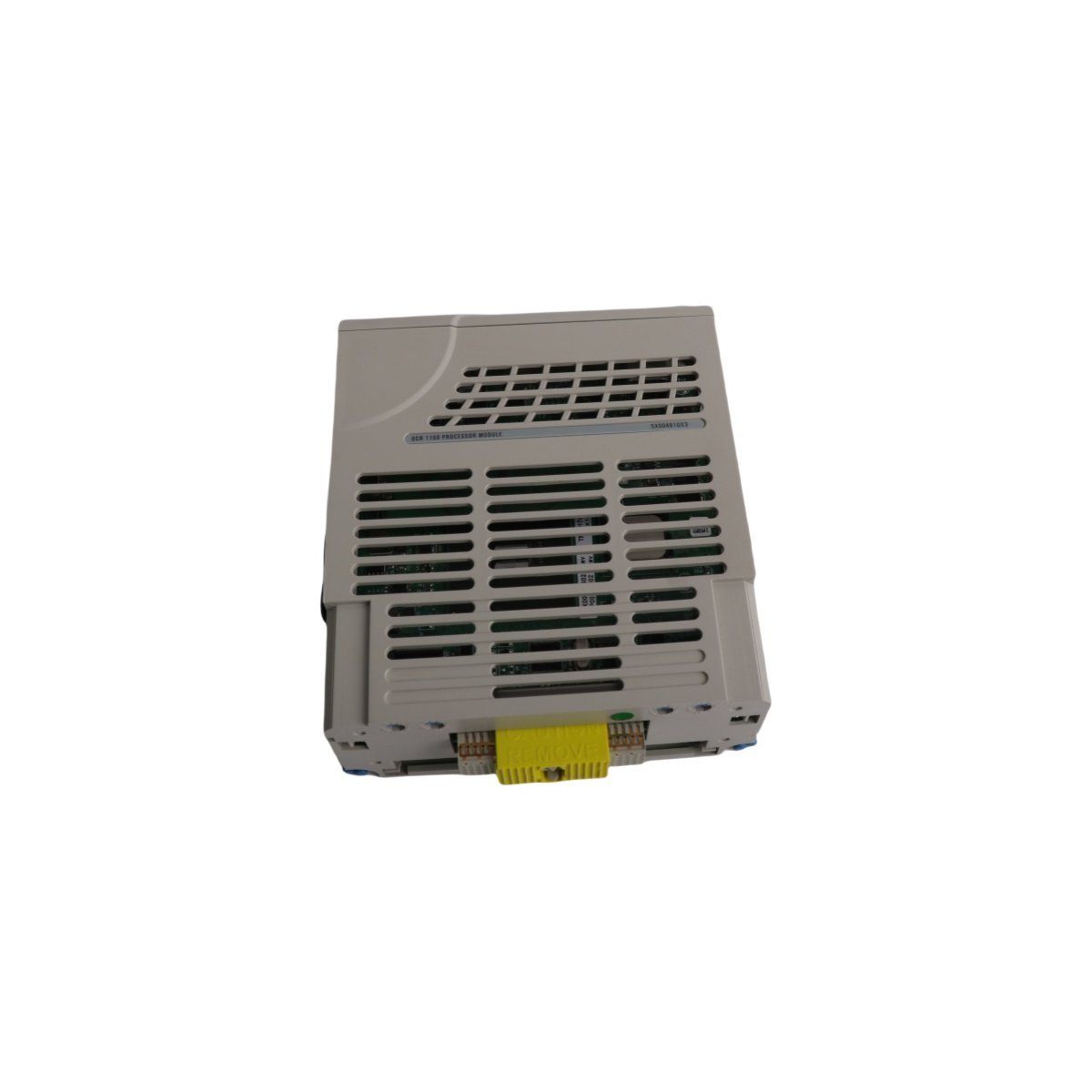

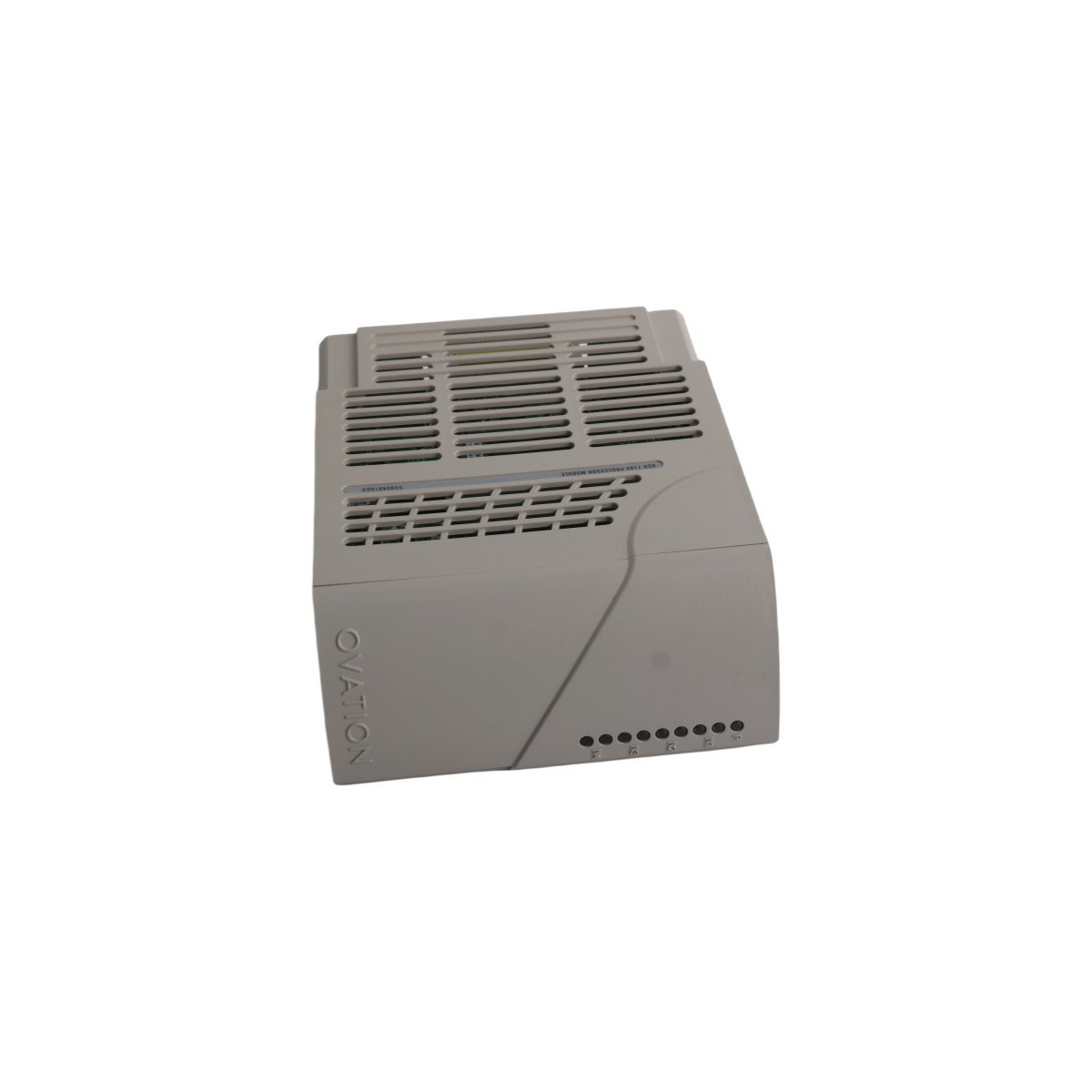

The Emerson 5X00481G03 is a high-performance Remote I/O Controller Module designed as a fundamental building block for the Emerson Ovation™ Distributed Control System (DCS). Purpose-built to handle data-heavy processing and real-time algorithmic execution, this controller expands the decentralized footprint of plant networks. It allows process operators to manage massive field-instrument networks with extreme precision, making it an essential component for critical utility, automation, and infrastructure applications.

Advanced Capabilities and Functional Benefits

• High-Speed 32-Bit Processing Architecture: At its core is a high-performance 32-bit RISC processor engineered for real-time calculation of complex PID loops and advanced process control algorithms without compromising baseline system stability.
• Substantial Memory Allocation: Equipped with 256MB RAM for seamless multitasking across concurrent control loops, combined with 64MB of Flash memory for secure firmware retention, system logs, and quick firmware hot-reloading.
• High-Density, Expandable I/O Matrix: The base module natively supports up to 128 I/O points, with modular expansion capabilities through the Ovation I/O ecosystem. It supports mixing signal profiles—including 4-20mA analog signals, digital lines, and high-speed counters—onto a universal backplane that features galvanic noise isolation and hot-swappable replacement tracking.
• Redundant Network Communications: Features dual 10/100 Mbps Ethernet routing interfaces that maintain true fail-safe redundancy. For hybrid industrial networks, it integrates an onboard RS-485 port supporting Modbus RTU, functions as a Profibus DP Master/Slave, and delivers latency-free transmission (<1ms cycle times) alongside secure AES-128 data encryption.
• Resilient Power Infrastructure: Runs on a standard 24V DC input with a wide ±10% voltage tolerance, safely absorbing industrial line fluctuations. Operating at a typical power consumption of only 15W, its power subsystem includes built-in surge suppression, reverse polarity defense, and brown-out recovery mechanics.

Technical Specifications

Industrial Applications

• Thermal and Hydro Power Generation: Executing continuous PID control algorithms across boiler loops, turbine analytics, and cooling utility arrays.
• Upstream & Downstream Oil & Gas: Acting as a localized remote telemetry unit (RTU) hub managing pipeline distribution manifolds, process separation units, and multi-tier emergency block valves.
• Water and Wastewater Facilities: Coordinating large-scale localized processing networks, chemical dosing pumps, and distributed aeration grids spanning broad physical distances.
• Smart Factory & Manufacturing Automation: Providing high-speed fault isolation and Industry 4.0 edge compatibility for enterprise predictive maintenance frameworks.
