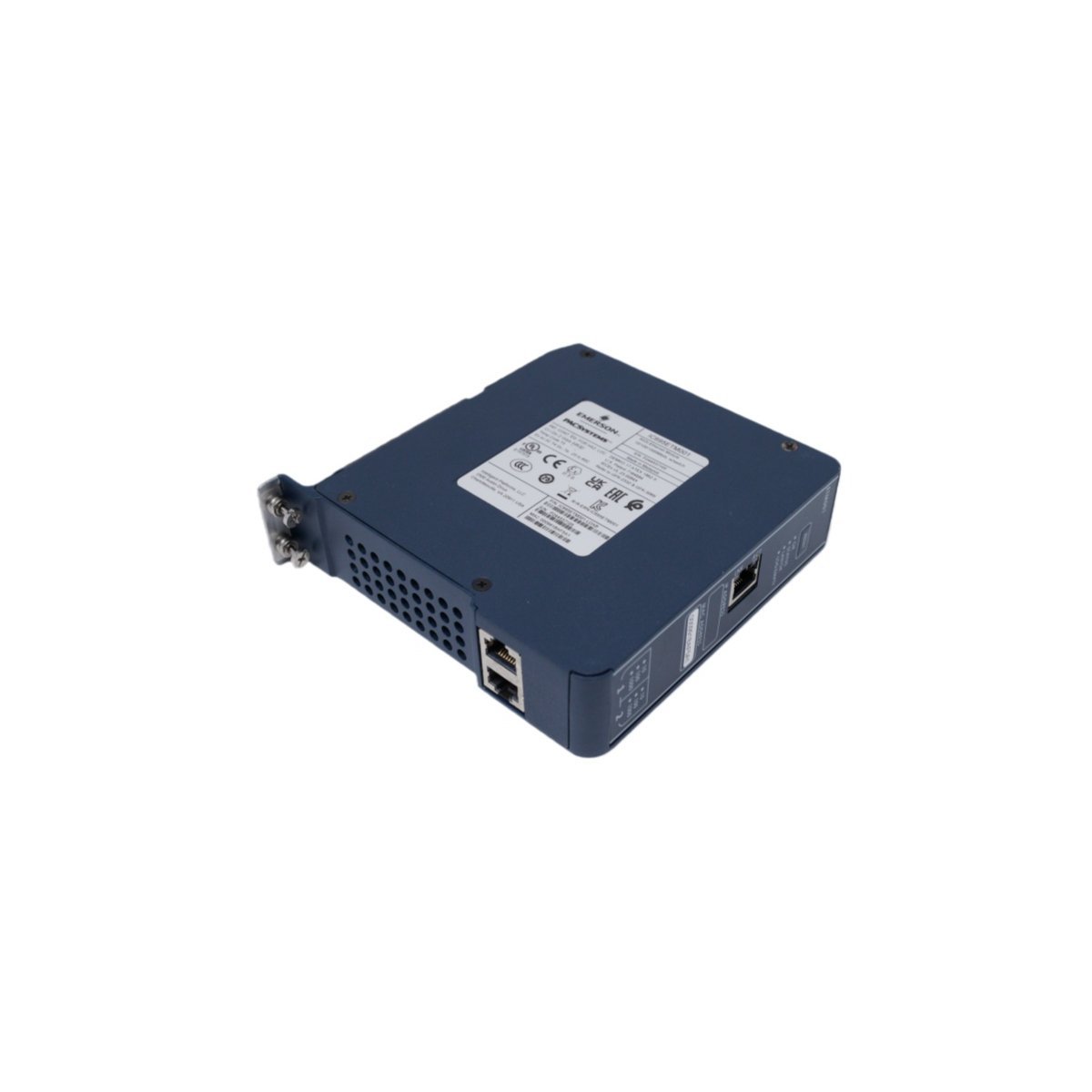

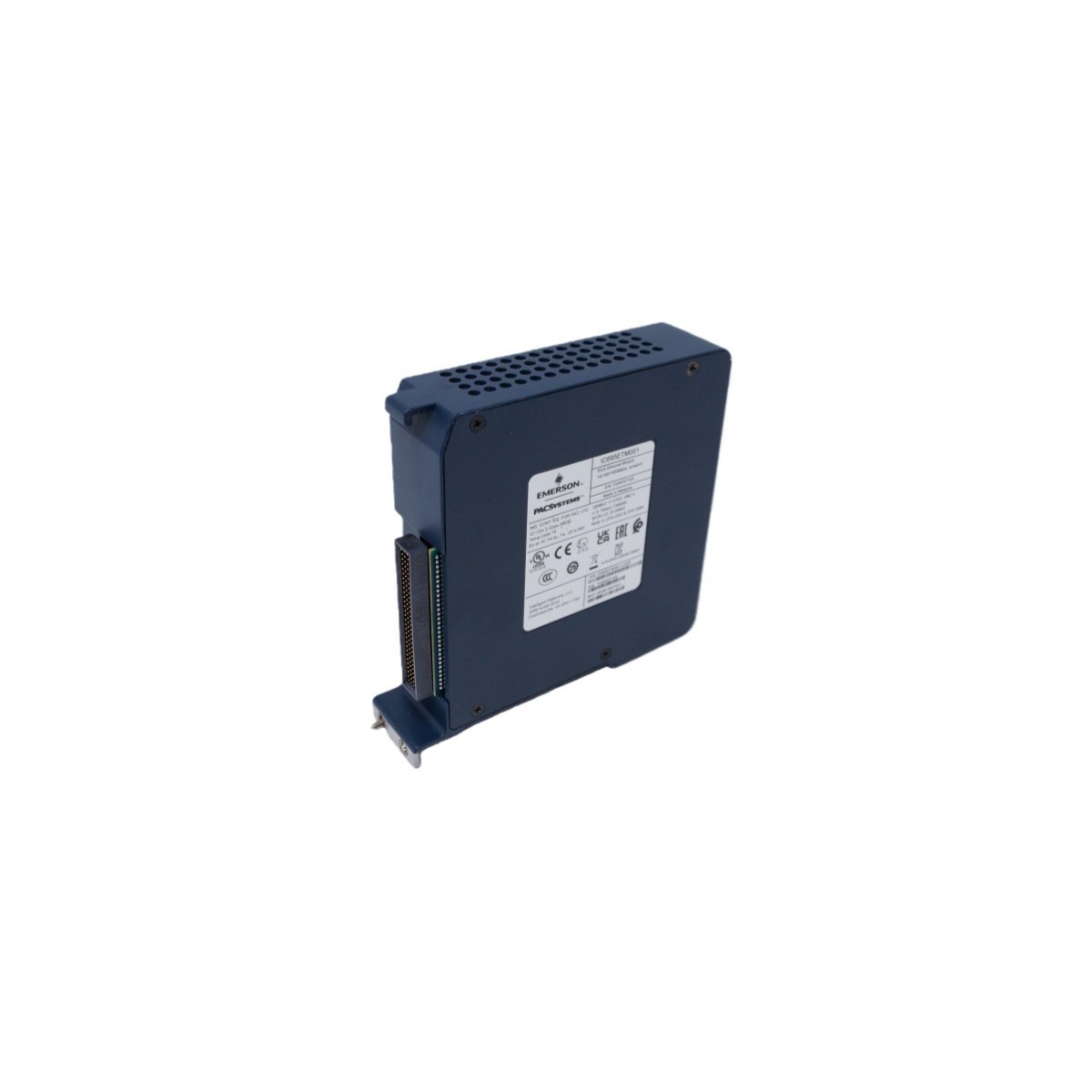

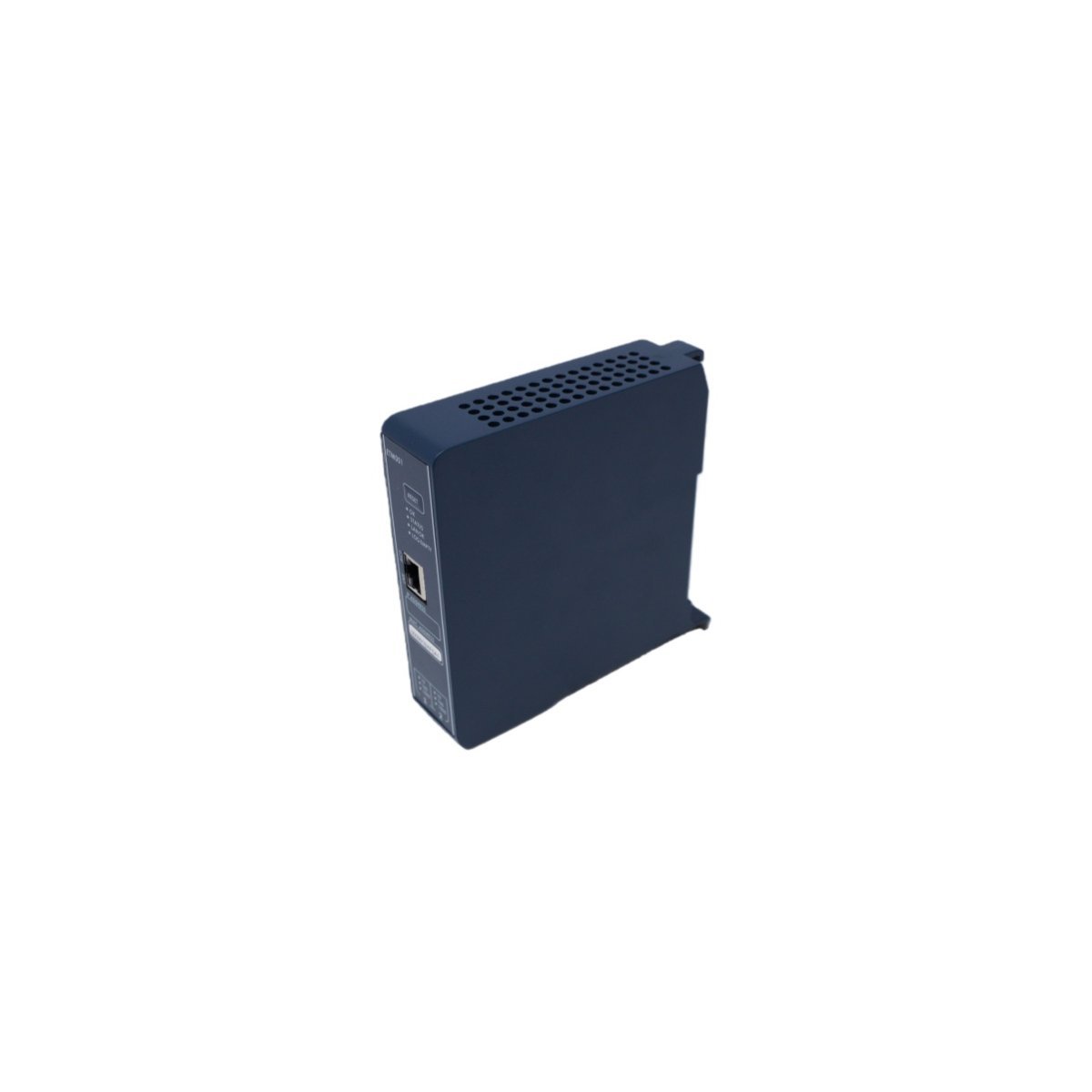

The Emerson IC695ETM001 is a high-performance communication interface for the PACSystems RX3i platform, featuring dual RJ-45 ports and multi-protocol support. It enables seamless data exchange between the RX3i controller and external industrial networks using Modbus TCP, SRTP, and EGD.

Product Description

High-Performance Industrial Connectivity

The Emerson IC695ETM001 functions as a dedicated communication gateway for the PACSystems RX3i controller series. By utilizing a powerful 200 MHz processor, this module handles intensive network traffic without taxing the main CPU. It features an integrated Ethernet switch with two 10/100 Mbps auto-sensing ports, which allows for efficient daisy-chaining of network nodes. This specialized architecture eliminates the need for external switches in many small-to-medium configurations, effectively reducing both cabling complexity and overall system costs.

Versatile Protocol Integration

Engineers utilize the IC695ETM001 to bridge the gap between various automation levels. Because it supports a wide range of industrial standards, including Modbus TCP, Ethernet Global Data (EGD), and SRTP, it integrates effortlessly with legacy GE Fanuc Series 90-30/90-70 equipment and modern HMI/SCADA software. Furthermore, the module operates on a standard TCP/IP stack, ensuring full compatibility with IEEE 802.3 networking hardware. This versatility makes it an essential component for distributed control systems (DCS) and large-scale plant monitoring.

Advanced Diagnostics and Configuration

Beyond standard data transmission, the IC695ETM001 offers sophisticated tools for system maintenance and commissioning. The module includes a dedicated RS-232 Station Manager port, which provides direct access for configuration and local troubleshooting. Meanwhile, the hardware supports high-speed data throughput and configurable baud rates ranging from 1200 to 115200 bps for its serial interface. These diagnostic capabilities empower technicians to rapidly identify network bottlenecks and verify signal integrity, ensuring maximum uptime for mission-critical automation processes.
