Description

Technical Overview

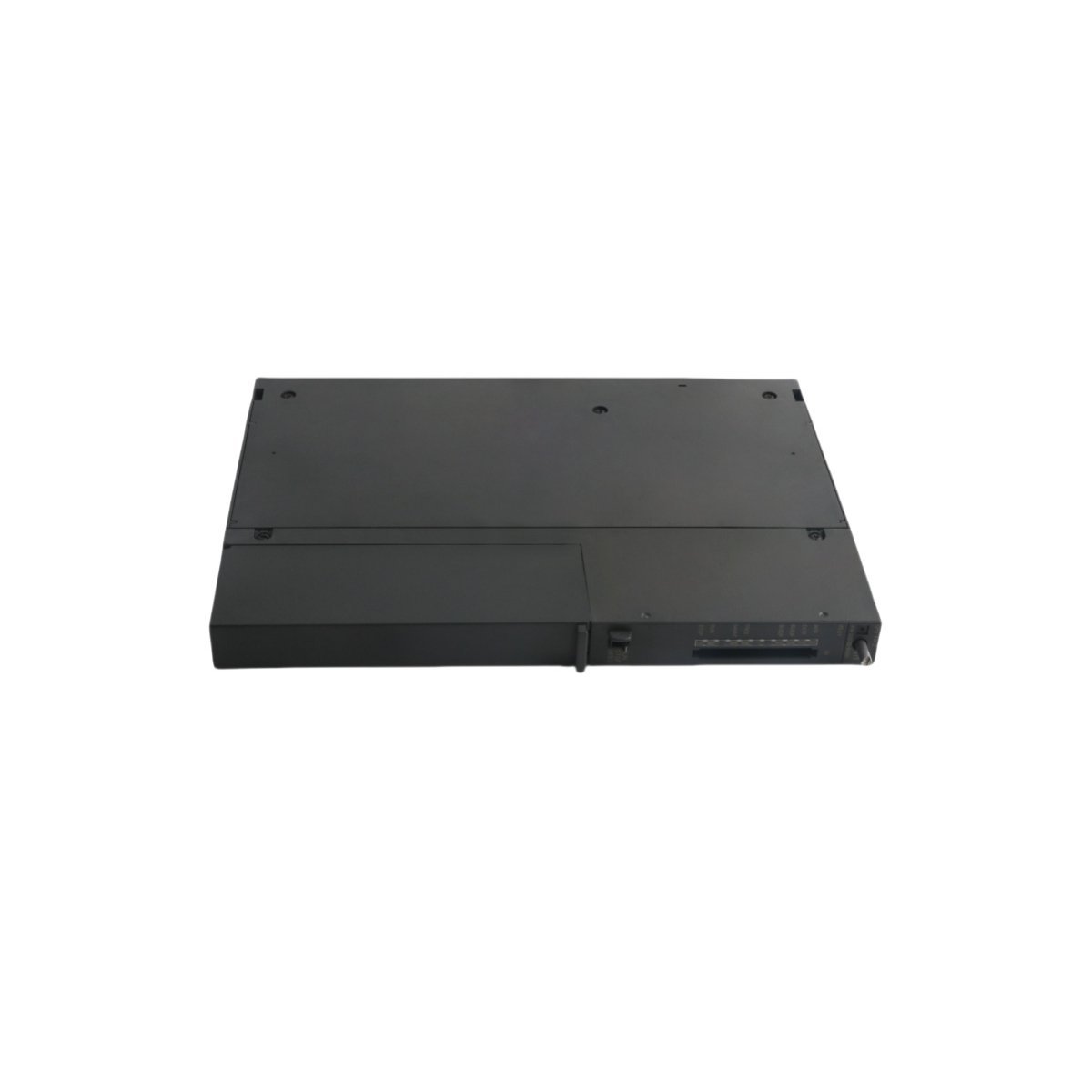

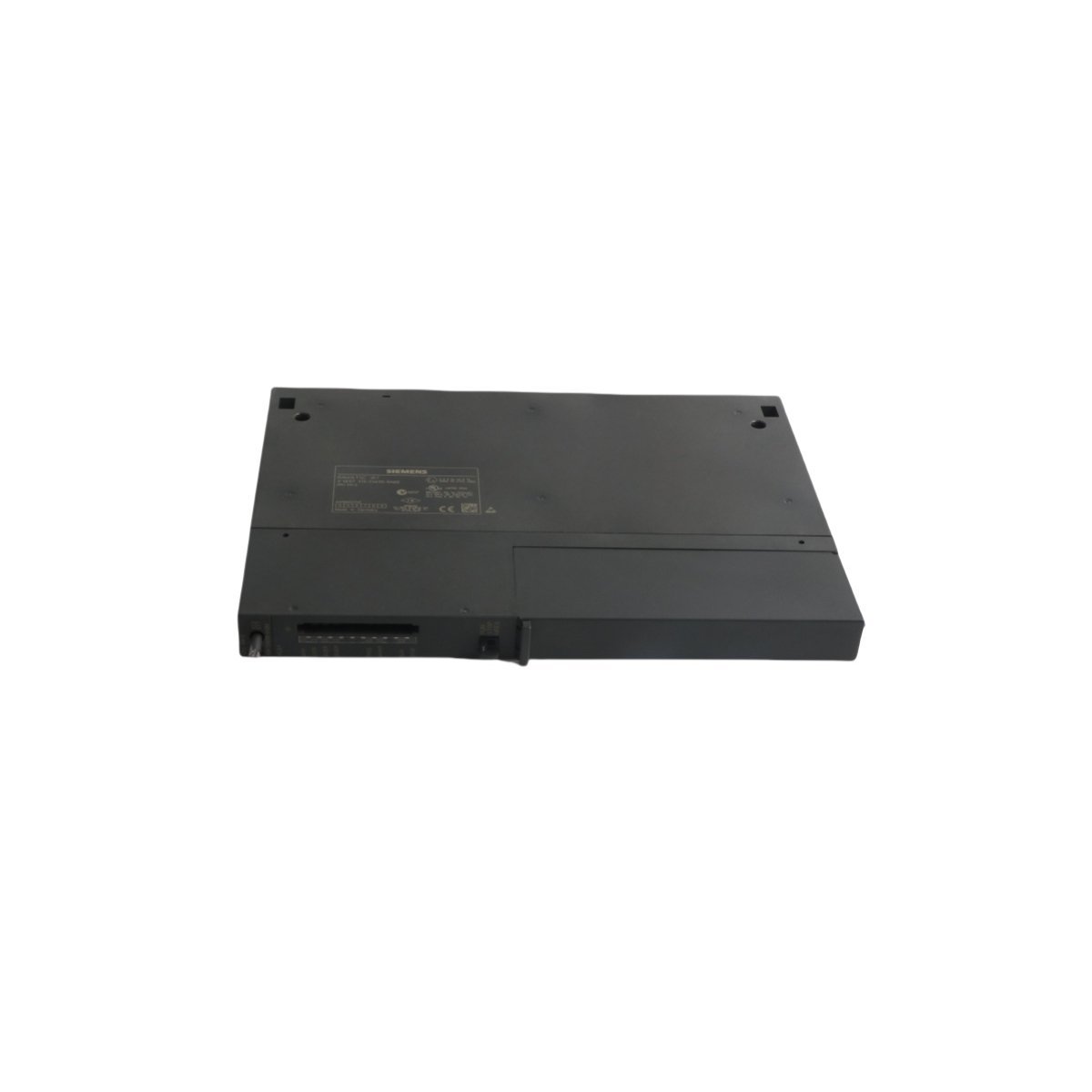

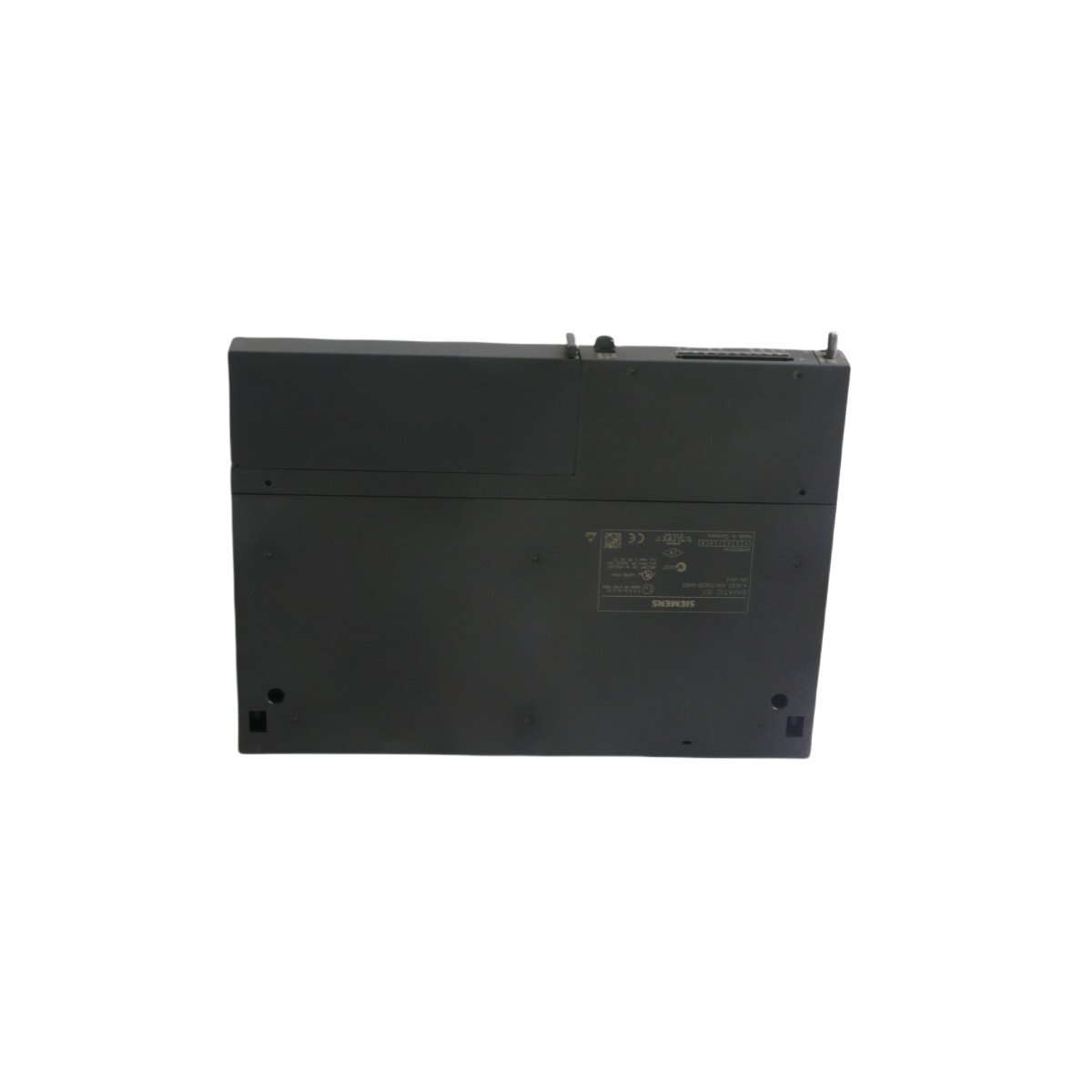

The Siemens 6ES7414-2XK05-0AB0 represents a high-performance central processing unit within the SIMATIC S7-400 product family. Siemens engineered this module to address the requirements of mid-to-large-scale industrial automation, where processing speed and robust networking define operational success. By integrating a multi-interface architecture, the CPU manages complex control tasks and facilitates extensive data exchange across various fieldbus protocols. This unit serves as the intelligence hub for distributed manufacturing systems and large-scale process control installations.

Performance Specifications

• Processor Memory: 1.6 MB total work memory
• Processing Speed: Approximately 0.1 ms per binary operation
• Integrated Interfaces: One MPI/DP port and one dedicated PROFIBUS-DP master/slave interface
• Communication Protocols: Supports S7 communication, PROFIBUS, and MPI
• Expansion Capability: Compatible with CP 443-1 (Industrial Ethernet) and CP 443-5 (PROFIBUS) modules
• Dimensions: 25 mm x 222 mm x 290 mm
• Weight: 0.7 kg

Advanced Communication Features

This processor handles sophisticated data routing with exceptional efficiency. Because it supports both one-sided (PUT/GET) and two-sided (USEND, URCV, BSEND, BRCV) communication services, the CPU enables seamless connectivity between PLC stations. Developers utilize system function blocks (SFBs) to initiate data transfers, ensuring that communication remains consistent regardless of the underlying network infrastructure, such as Industrial Ethernet or MPI. Consequently, the CPU simplifies programming for multi-network environments by offering a standardized communication interface.

Application Integration

Engineers deploy the 6ES7414-2XK05-0AB0 in environments that demand deterministic performance and reliable, long-term operation. The unit actively maintains permanent connections to external devices, ensuring that real-time data flow supports the stability of mission-critical control loops. Given its support for a wide range of peripheral communication processors, the module adapts effectively to evolving network topologies. Through its high memory capacity and rapid instruction execution, the CPU optimizes throughput in demanding automation applications.
