Description

Product Overview

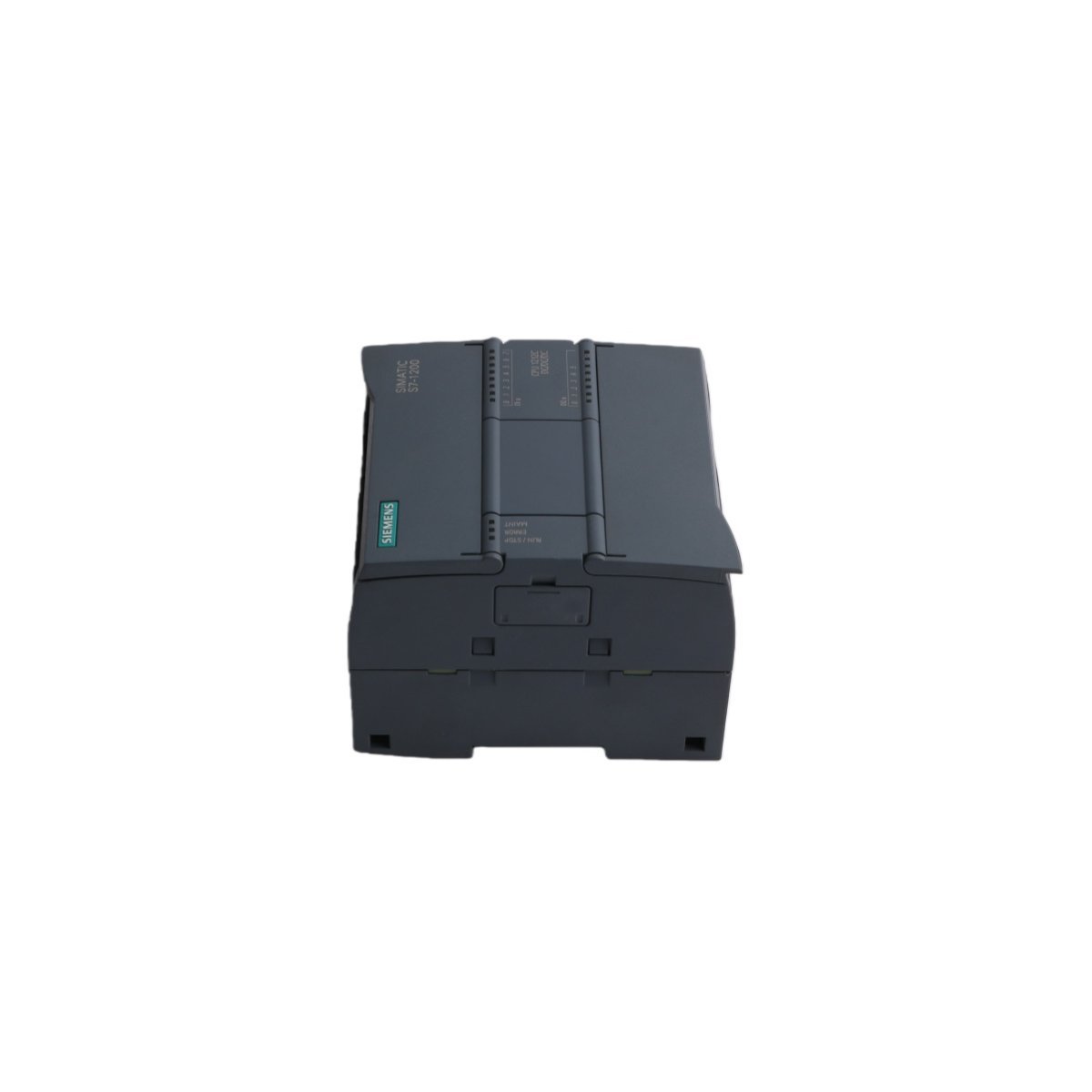

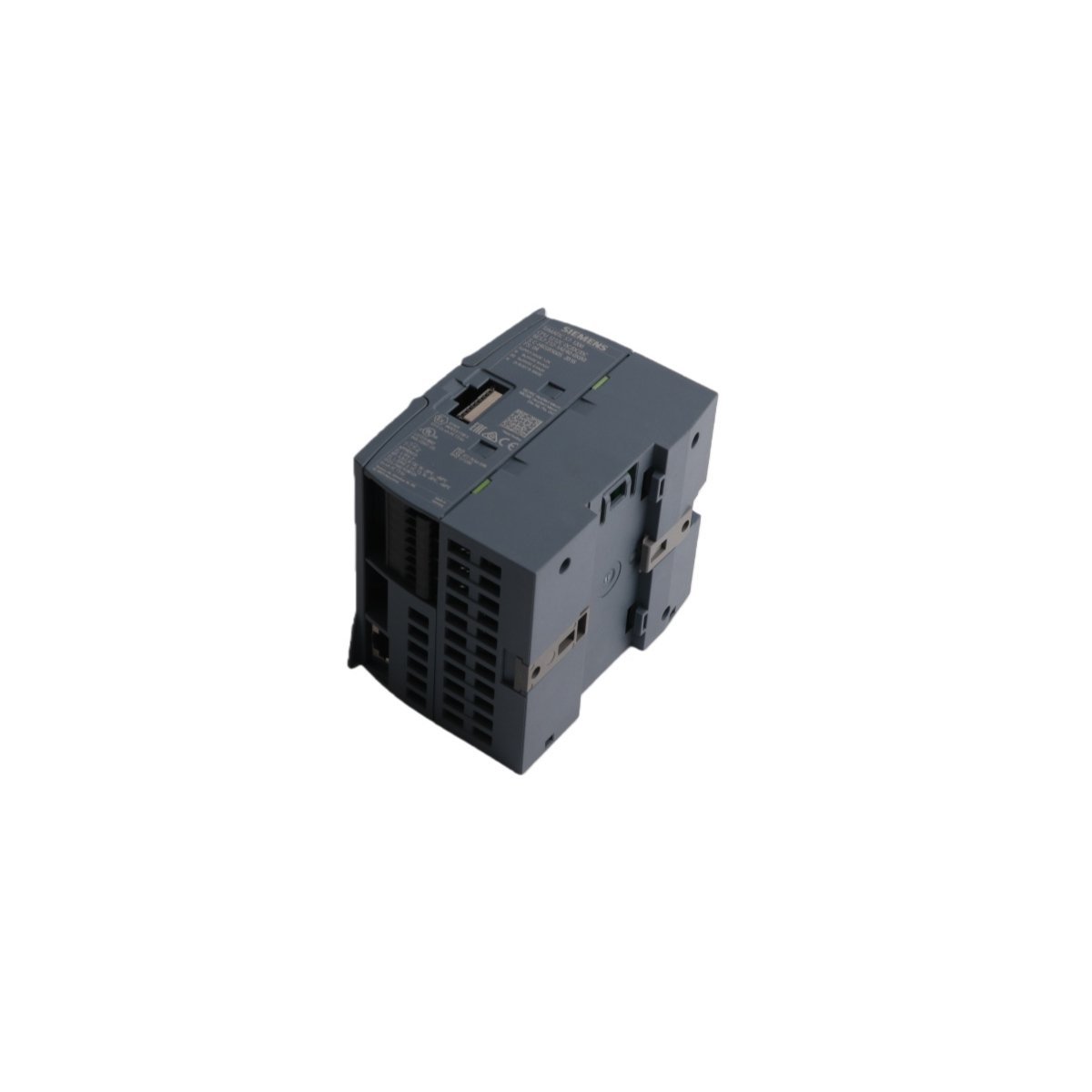

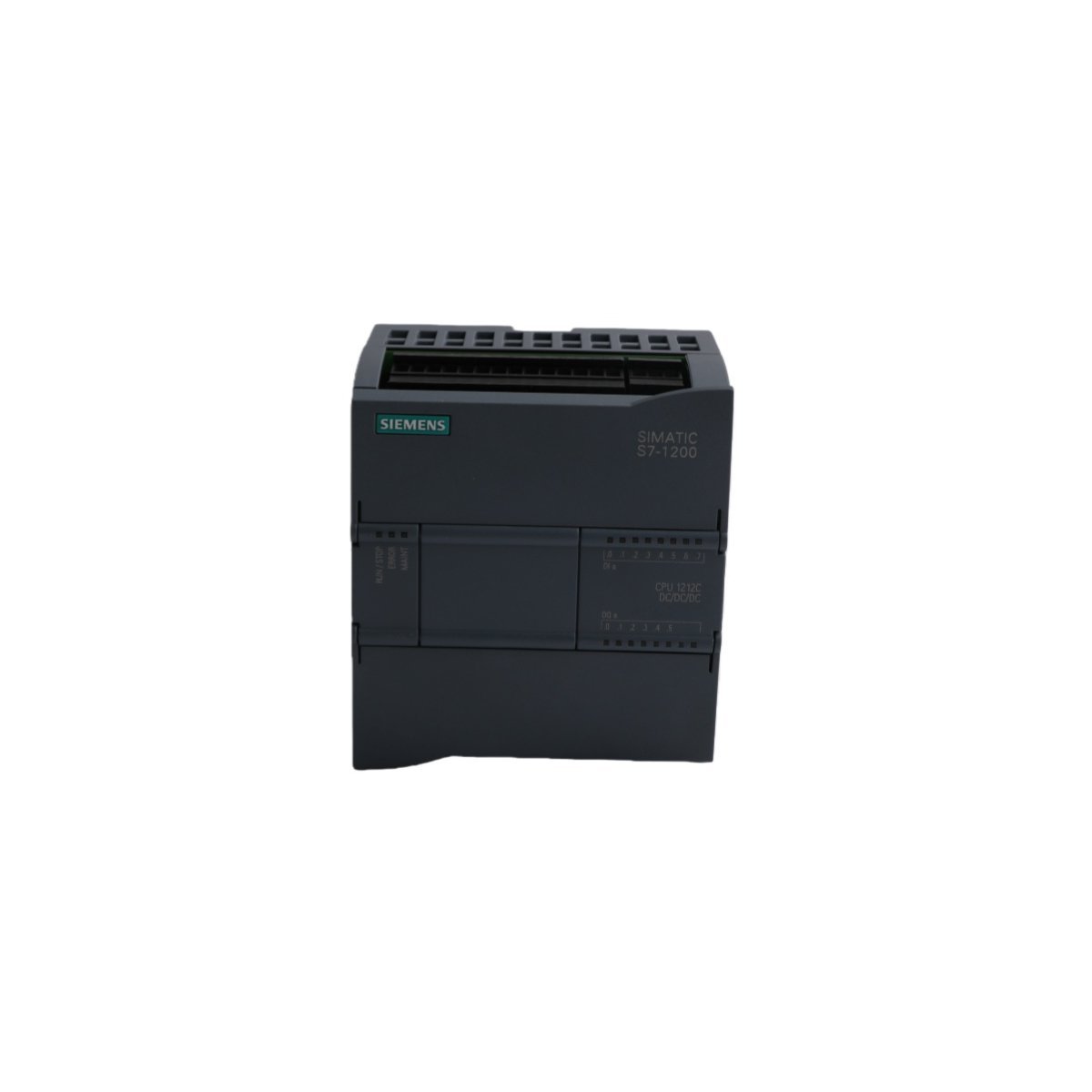

The Siemens 6ES7212-1AE40-0XB0 serves as a compact processing unit within the SIMATIC S7-1200 series. Designed to handle discrete and analog control tasks, this controller provides high performance for small-to-medium-scale automation environments. The unit operates on a 24 VDC power supply and supports versatile connectivity options, making it a reliable foundation for modern machine control architectures.

Technical Specifications

• Model Number: 6ES7212-1AE40-0XB0
• Manufacturer: Siemens
• Controller Type: CPU 1212C Compact
• Supply Voltage: 24 VDC
• Integrated Digital Inputs: 8 x 24 VDC
• Integrated Digital Outputs: 6 x 24 VDC (Transistor)
• Integrated Analog Inputs: 2 x 0–10 V
• Work Memory: 75 KB
• Mounting: DIN Rail
• Interface: PROFINET (RJ45 Ethernet)

Operational Characteristics

The CPU 1212C executes complex control logic with efficiency due to its optimized instruction set. Because the module incorporates digital and analog inputs onboard, engineers save valuable space in the control cabinet that would otherwise require additional expansion modules. Furthermore, the integrated PROFINET interface allows for seamless communication with HMI panels, variable frequency drives, and other networked industrial components.

The controller manages data cycles with precision, and its 75 KB of work memory accommodates sophisticated automation programs. Additionally, the processor supports standard programming blocks that facilitate code modularity and maintainability. Consequently, developers utilize this module to scale control strategies from basic logic to more intricate process synchronization.

Industrial Applications

Siemens engineered this controller for high-reliability applications, including material handling, packaging machinery, and light assembly lines. Its robust housing protects internal circuitry against vibrations and electromagnetic interference common in industrial settings. Moreover, the hardware architecture ensures rapid startup times and consistent signal processing, which enhances overall system responsiveness.

The 6ES7212-1AE40-0XB0 integrates effortlessly into existing S7-1200 infrastructures. Consequently, plant managers often select this model for machine retrofits or new system designs that require a balance between compact footprint and processing capability.
