Description

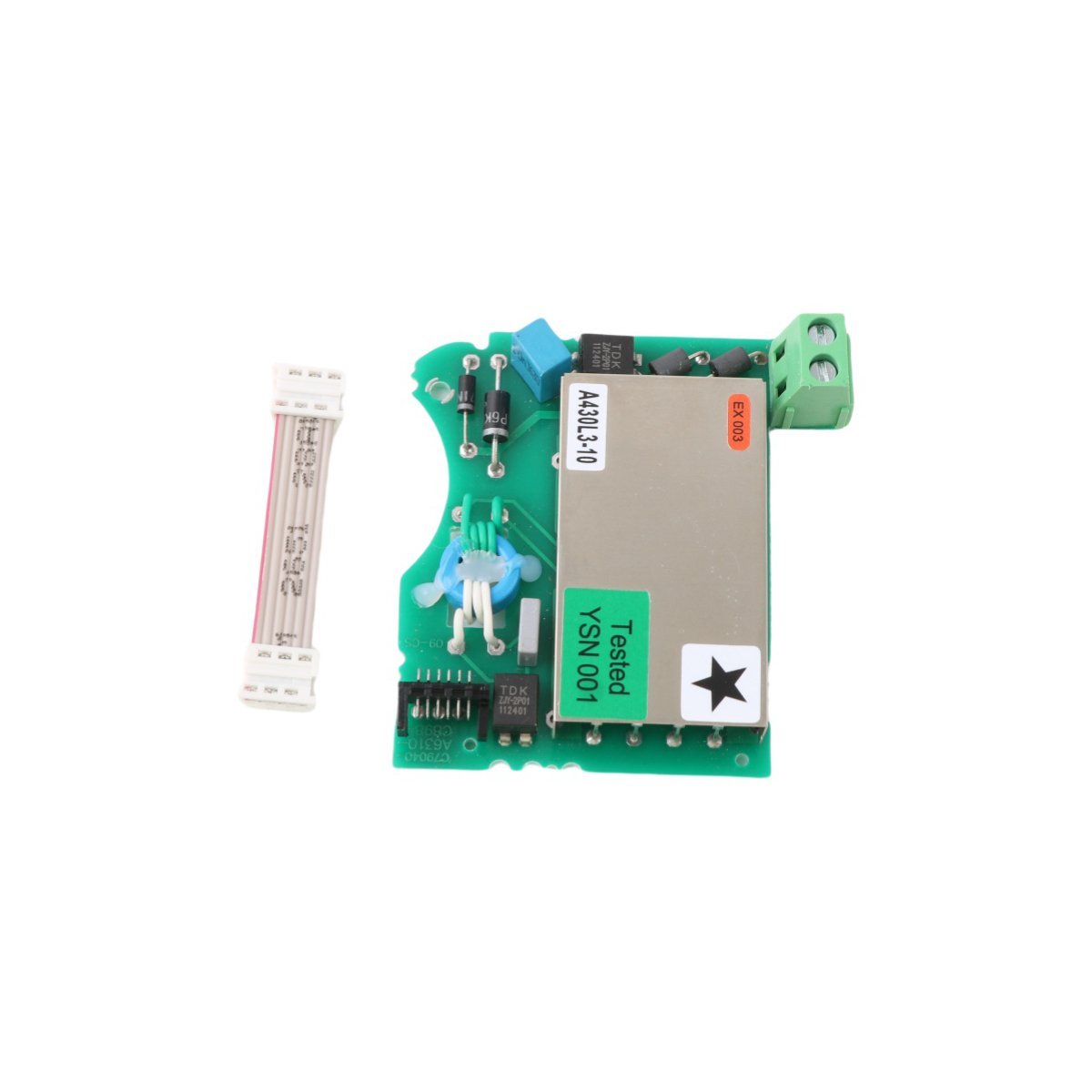

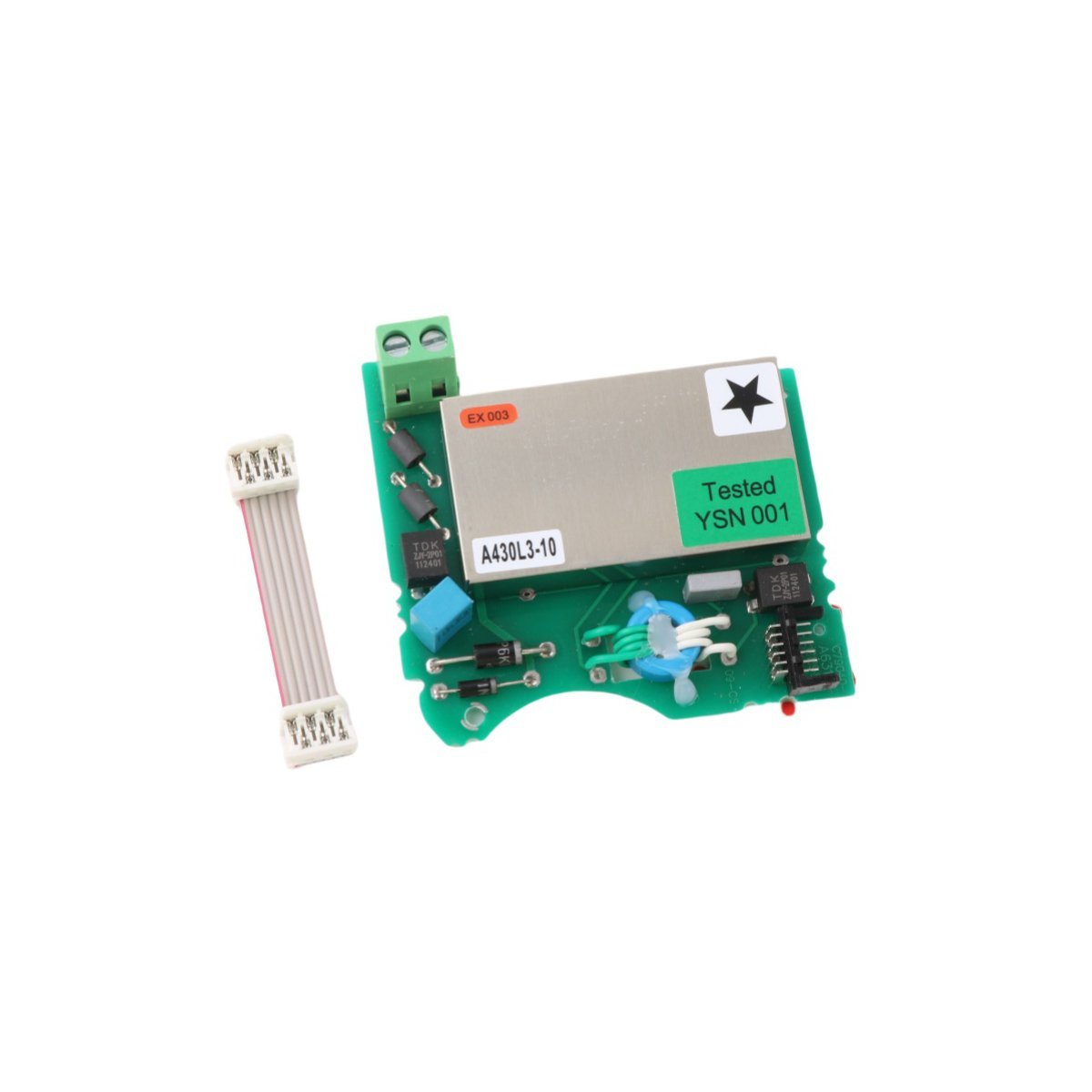

The Siemens 6DR4004-6J, also cataloged as the 6DR4004-6J Position Controller, operates as a dedicated hardware component for analog position feedback within SIPART PS2 electropneumatic positioner systems.

Hardware Specifications

Industrial Control Integration

The 6DR4004-6J facilitates seamless integration into existing control architectures by enabling deterministic transmission of valve stem position data. Furthermore, this module supports standard backplane bus communication velocity as well as ensures I/O density scaling when integrated into larger distributed control networks. Additionally, firmware flash compatibility is managed via the base SIPART PS2 unit; consequently, this allows for standardized operational updates across installed controller platforms while simultaneously maintaining system consistency. In addition to these functions, the module’s output architecture is designed to minimize latency, thereby ensuring that feedback loops remain synchronized with the primary process control variables.

Frequently Asked Questions (FAQ)

Q: Does the 6DR4004-6J module require external power supply?

A: No. The module is loop-powered by the 4-20 mA signal circuit, drawing its operational current directly from the connected feedback loop.

Q: Can this module be hot-swapped while the SIPART PS2 is in operation?

A: Hot-swapping is not supported. The positioner must be isolated and disconnected from the power supply before installing or removing the module to ensure electrical safety and prevent internal component damage.

Q: How is the signal calibrated after installation?

A: Calibration is performed through the main SIPART PS2 interface. The module provides a proportional 4-20 mA output relative to the valve stroke, which must be mapped during the positioner initialization routine.

Field Installation Guidelines

• Ensure the host SIPART PS2 positioner is de-energized before beginning installation.
• Verify the internal mounting slot is free of debris and contaminants.
• Align the module connector pins precisely with the positioner motherboard receptacle to avoid terminal bending.
• Secure the module using the provided fastening screws, ensuring proper contact for ground continuity.
• Shielded twisted-pair cabling is recommended for the 4-20 mA feedback loop to maintain signal integrity against electromagnetic interference (EMI).
• Tighten cable glands to the specified torque to maintain ingress protection (IP) ratings of the housing.
