Description

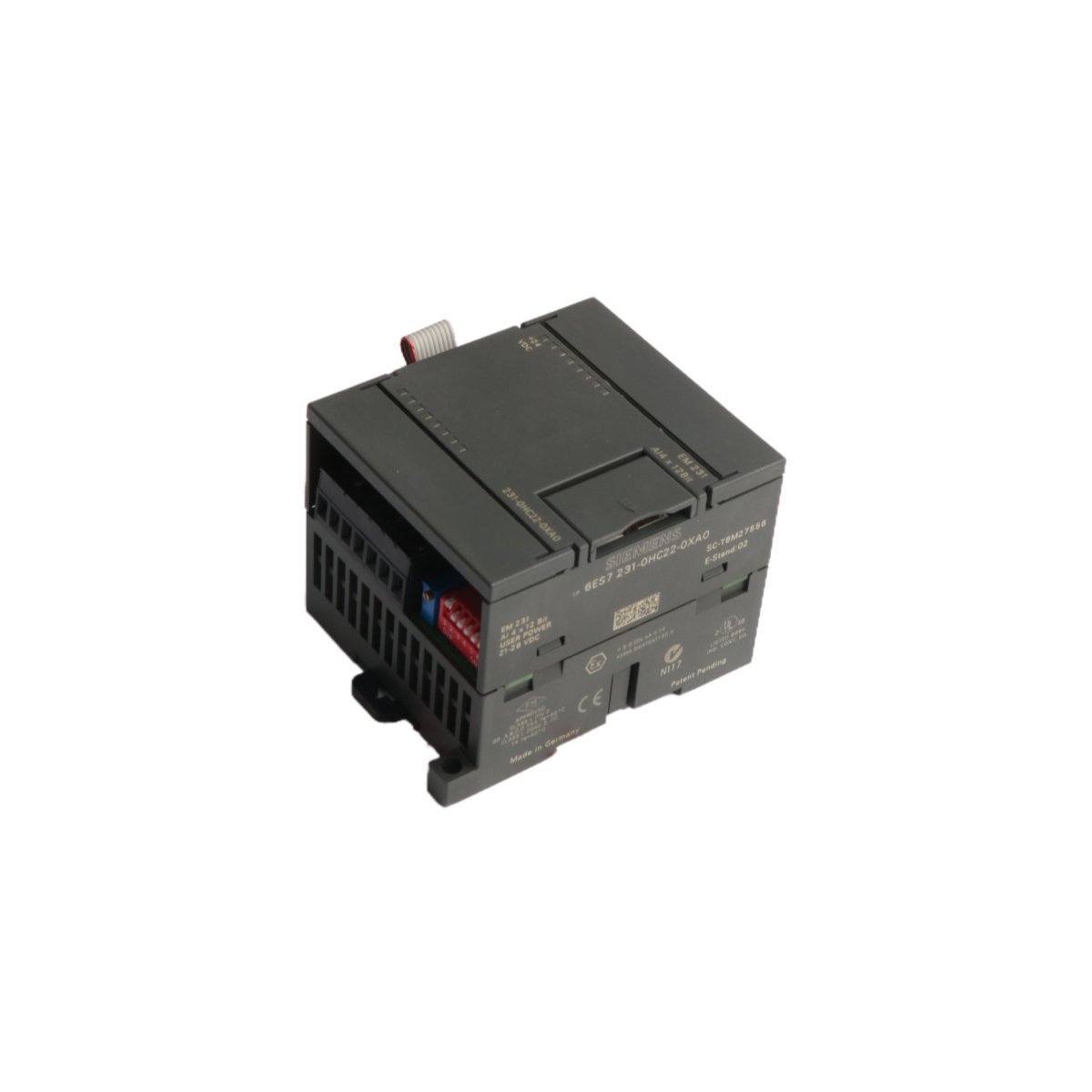

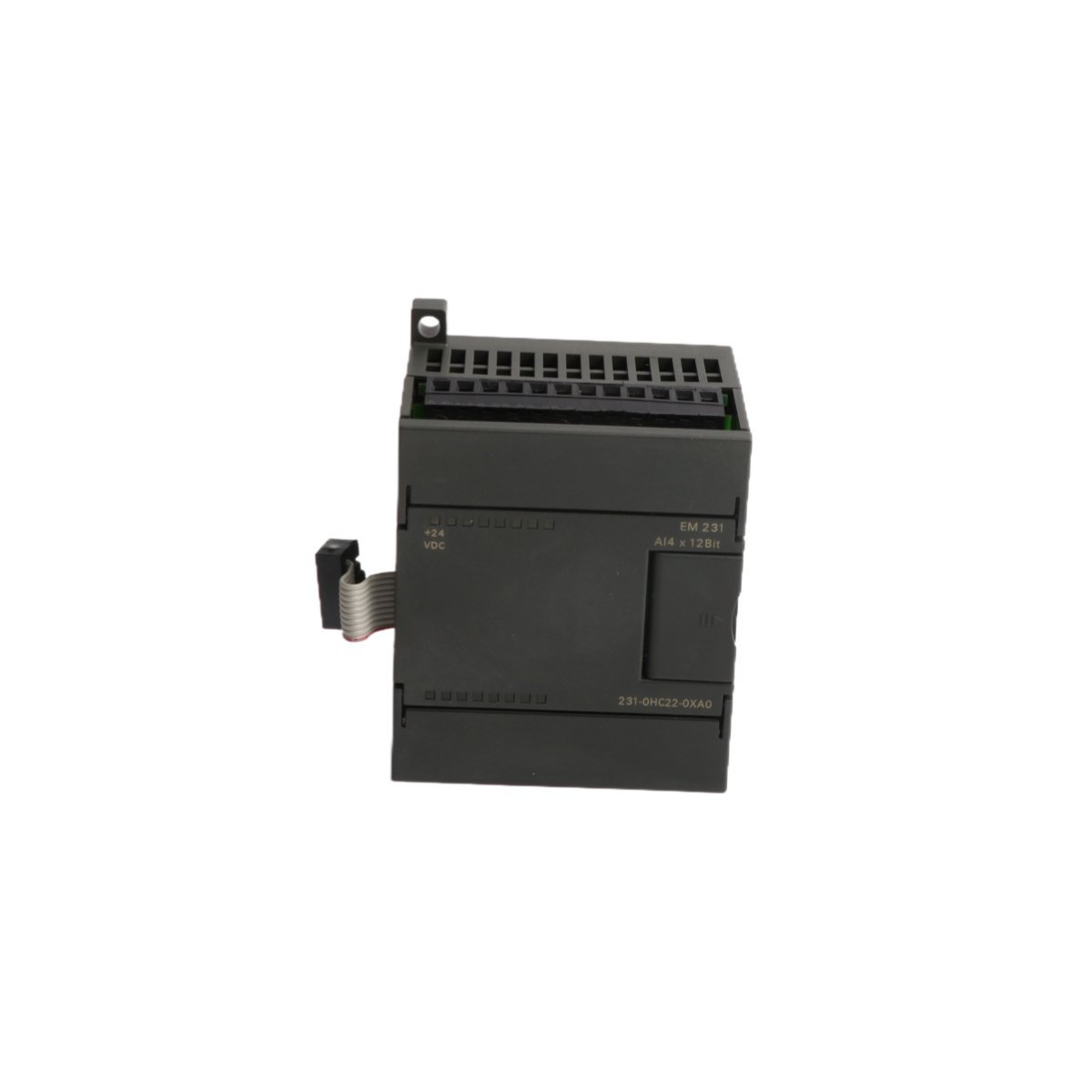

The Siemens 6ES7231-0HC22-0XA0 expansion module provides specialized analog-to-digital conversion for SIMATIC S7-200 control systems. This EM 231 unit features four high-speed analog input channels. It converts continuous signals from field sensors into digital values for the CPU. Consequently, engineers can monitor variables like temperature, pressure, and flow with high accuracy. The module bridges the gap between physical process variables and digital logic controllers.

The device architecture supports seamless integration with S7-22X series CPUs via the standard bus connector. Furthermore, the internal circuitry provides galvanic isolation to protect the central processing unit from field disturbances. This design ensures stable data acquisition in electrically noisy industrial environments. The module maintains a high signal-to-noise ratio for sensitive measurement tasks.

Core Technical Parameters

Operational Features and Configuration

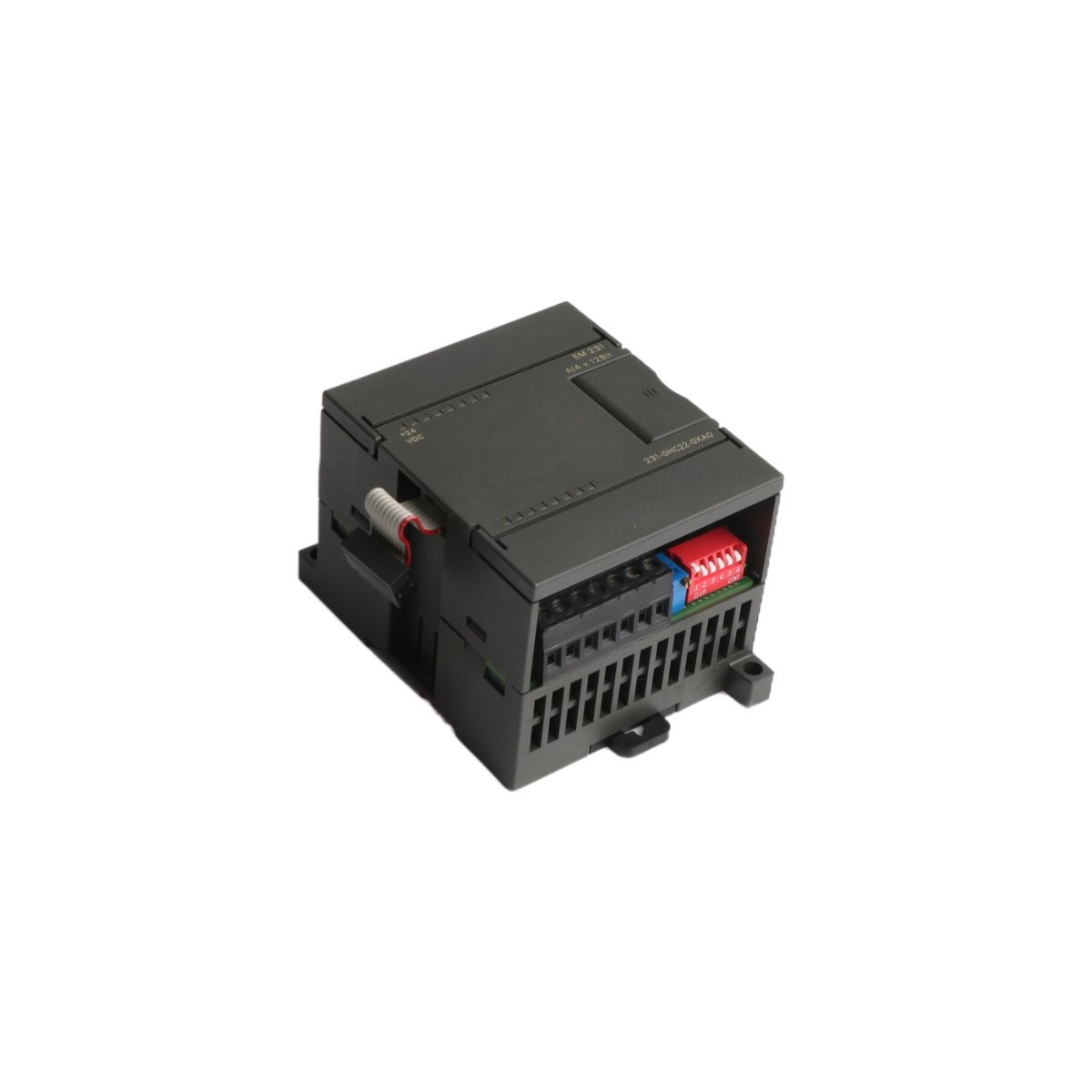

Users configure the input ranges easily through physical DIP switches located on the module housing. This hardware-level setting allows for rapid deployment without complex software overhead. Additionally, the unit features an integrated status LED to indicate power and diagnostic health. The conversion time remains extremely low to support fast-acting process control loops.

The 6ES7231-0HC22-0XA0 utilizes a compact housing that minimizes footprint in crowded control cabinets. Moreover, the terminal blocks offer secure screw-type connections for various wire gauges. This ensures long-term vibration resistance on the factory floor. The module effectively handles signal fluctuations to deliver a smoothed digital output to the PLC.

Industrial Applications

• Monitoring environmental conditions in HVAC control systems.
• Reading pressure transducer data in hydraulic power units.
• Capturing flow rate signals in chemical processing plants.
• Integrating level sensors for industrial tank management.
• General data logging in manufacturing automation cells.
