Description

Functional Overview

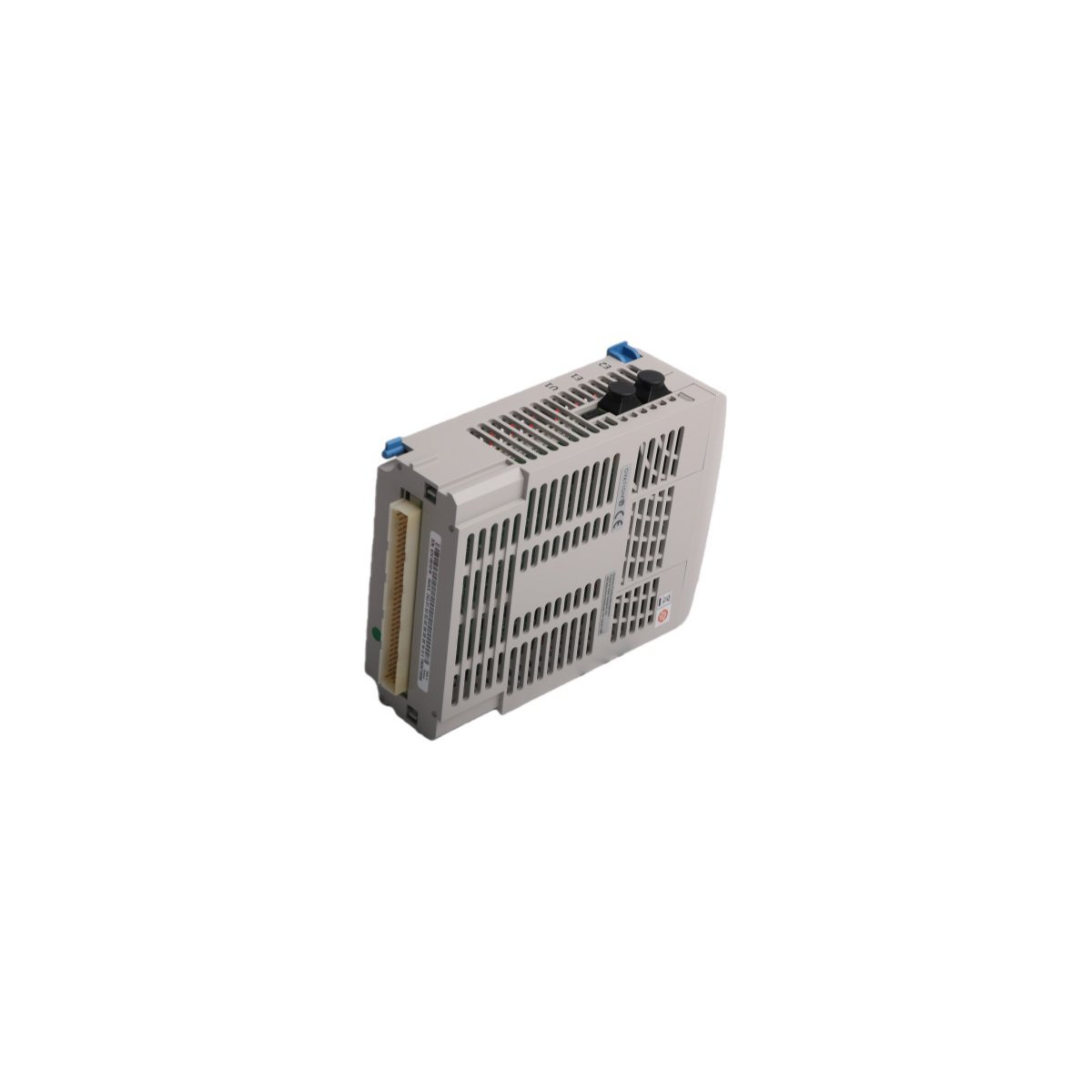

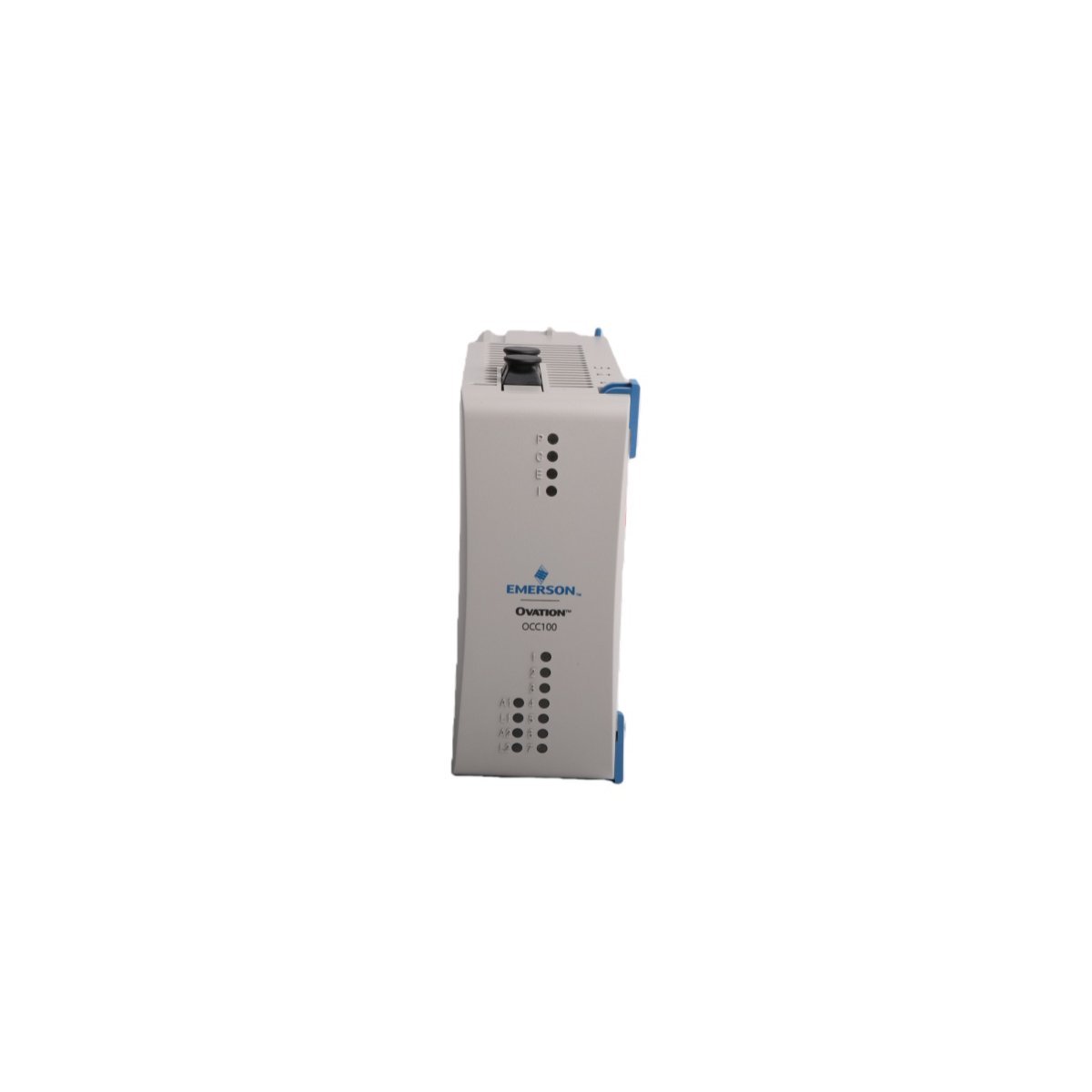

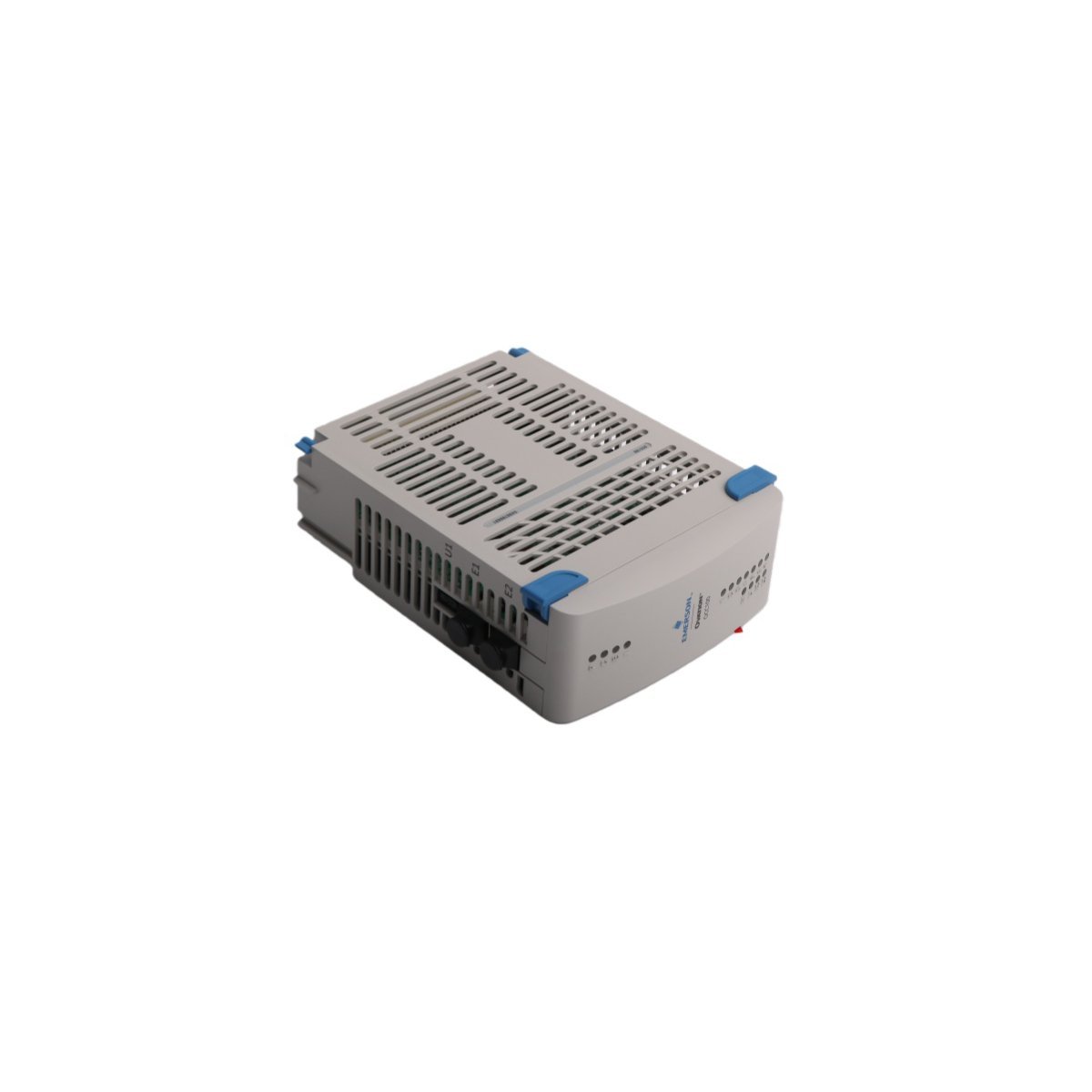

The Emerson 5X00790G01 is a high-fidelity Analog Input Module engineered for integration within the Emerson Ovation Distributed Control System (DCS). As a critical component of the system’s data acquisition infrastructure, this module actively interfaces with a wide array of field instruments to receive continuous analog signals, such as temperature, pressure, and flow rates. Consequently, it converts these physical variables into precise digital data, thereby enabling the control system to execute accurate monitoring and regulation of industrial processes.

Furthermore, the module is designed to deliver robust performance in complex industrial environments, where signal integrity is paramount for operational stability. Since the Ovation system requires high-accuracy inputs for decision-making, this unit actively performs essential functions including sensor diagnostics, alarm processing, and linearization of raw data into engineering units. Additionally, the module supports advanced system capabilities such as sequence of events (SOE) processing and special logic execution, facilitating sophisticated control strategies. By providing a reliable interface between field devices and the central controller, the 5X00790G01 empowers engineers to maintain strict control over critical process variables, significantly enhancing overall system efficiency and safety.

Technical Specifications
