Description

Functional Overview

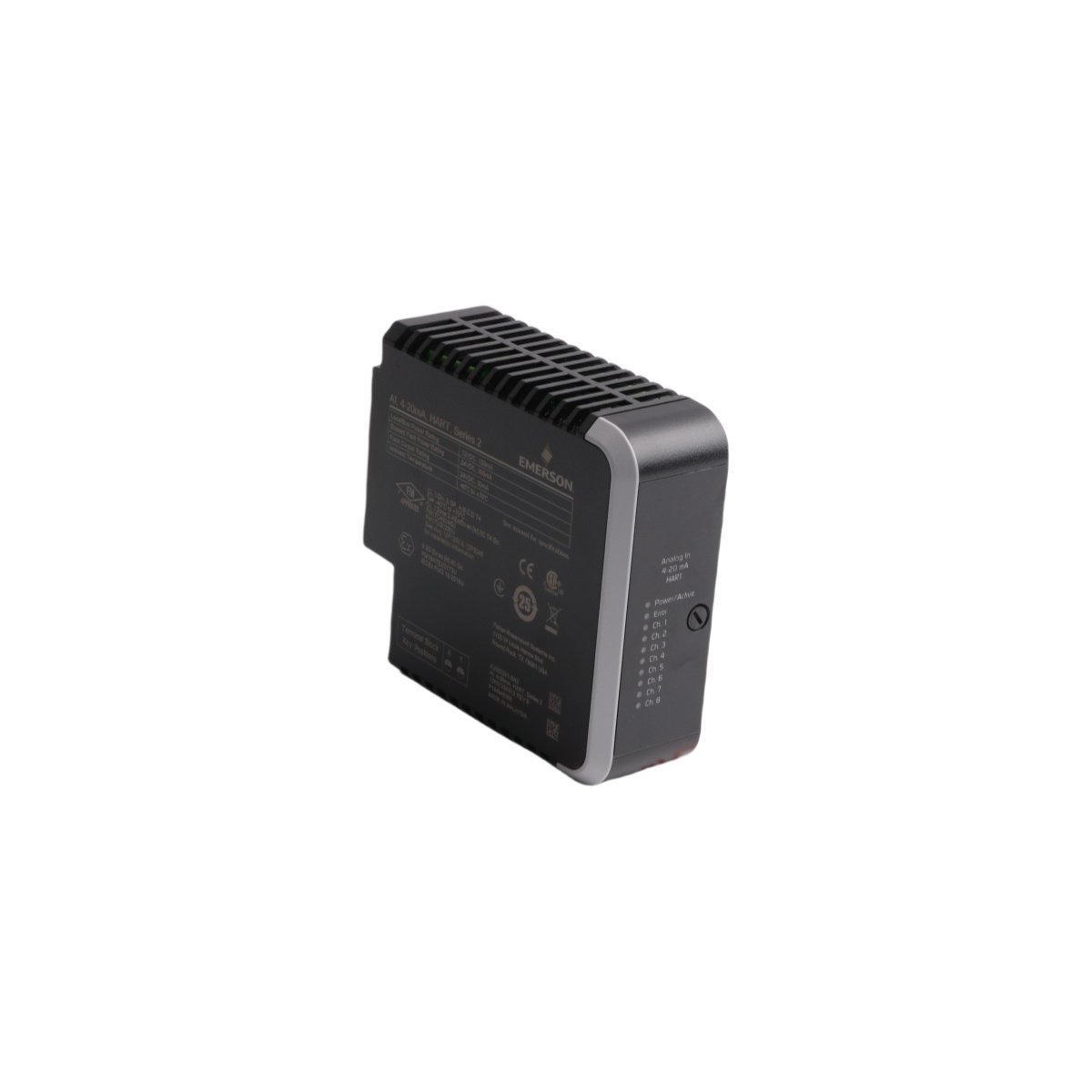

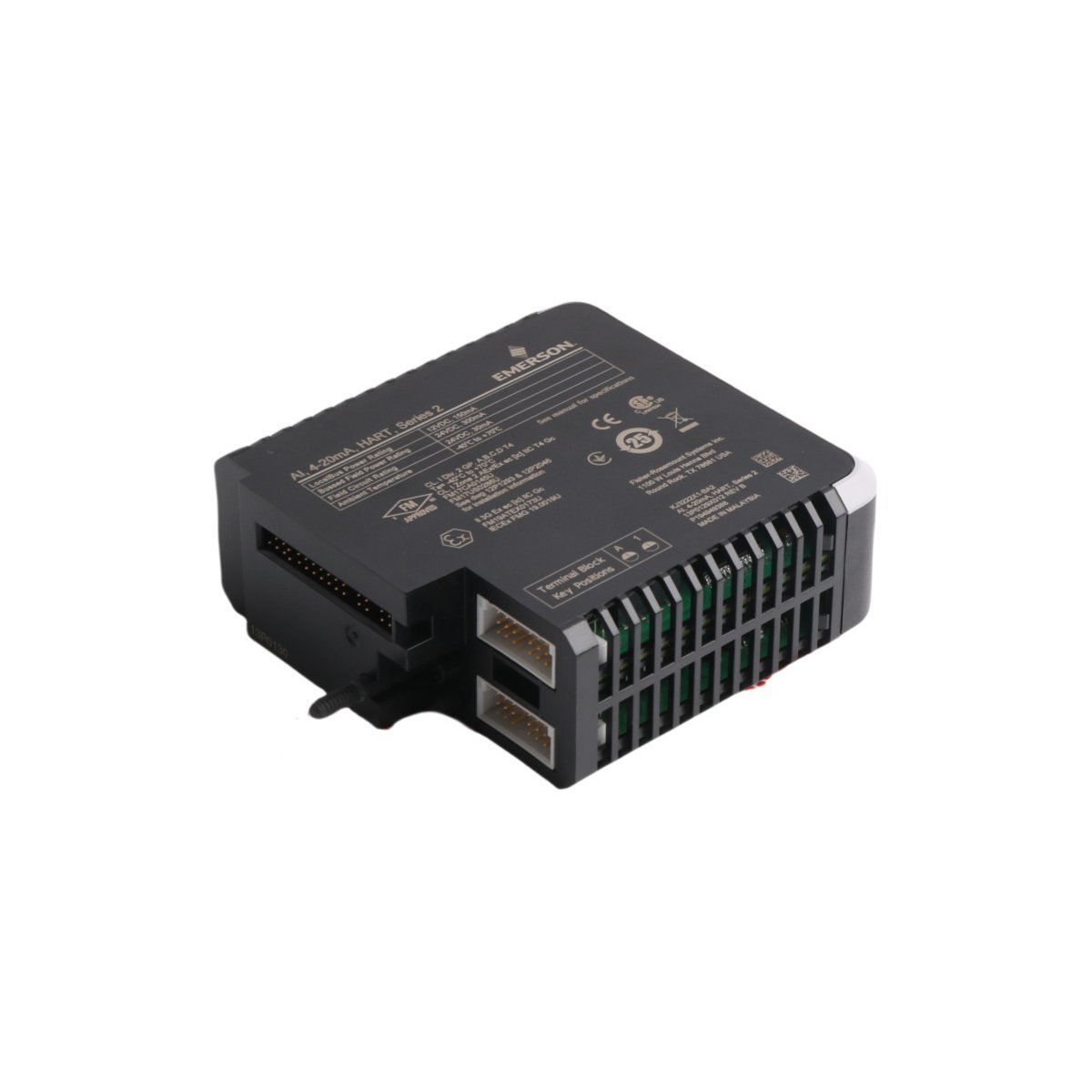

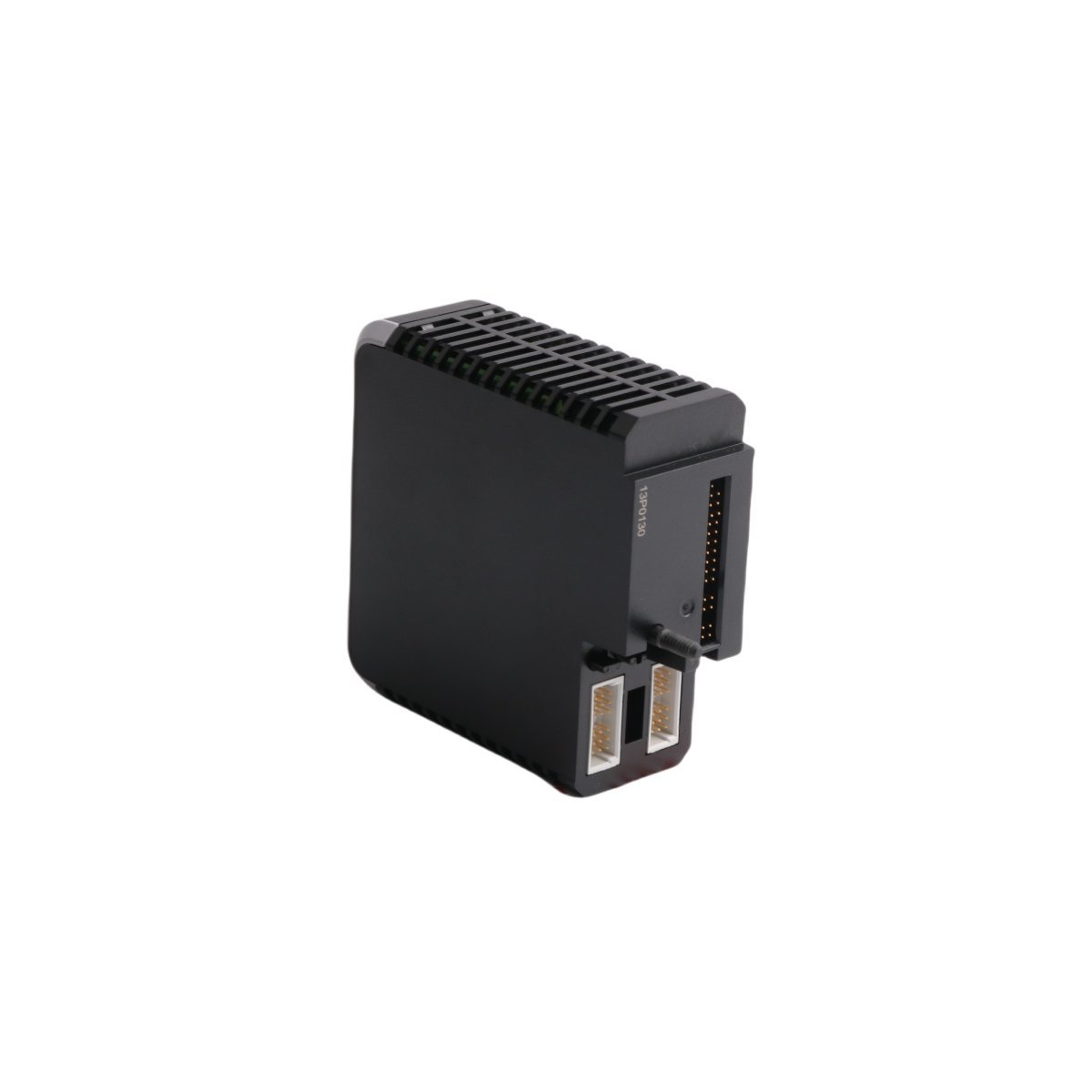

The Emerson KJ3222X1-BA2 (engineering part number 13P0129X012) is a high-reliability Analog Input module designed for the DeltaV™ Distributed Control System (DCS) and DeltaV SIS (Safety Instrumented System) architectures. Operating as a Series 2 Traditional I/O card, this module specializes in processing eight channels of 4–20 mA analog signals from field instrumentation such as pressure transmitters, temperature sensors, and flow meters.

Equipped with HART® (Highway Addressable Remote Transducer) protocol pass-through capabilities, the card routes primary process variables directly to control algorithms while extracting advanced asset diagnostics from intelligent field devices for maintenance systems.

Redundant Architecture and Emergency Control

For mission-critical industrial loops, the KJ3222X1-BA2 is deployed in redundant pairs to eliminate single points of system failure. Two identical modules insert into a redundant terminal base that acts as an intelligent arbitrated backplane. The module’s internal circuitry continuously communicates its health status over the local bus.

This switchover uses a make-before-break contact framework, ensuring the 4–20 mA loops never experience an open circuit, step-change, or dropped telemetry packets during the transition.

Rugged Environmental Resistance and Protection

The module is engineered for severe process field environments like offshore oil platforms, chemical plants, and refineries. Its physical components are fortified against mechanical and chemical degradation:

• Thermal Endurance: Capable of sustained operation inside non-climate-controlled marshaling cabinets over a wide temperature envelope ranging from -40°C to +70°C.
• Shock and Vibration Isolation: Internal structural reinforcing shields surface-mount components against continuous 1 mm kinetic vibrations and sudden 10g physical impacts.

Technical Data

Key Applications

The combination of dual-card redundancy, HART device intelligence, and G3 chemical resistance makes the KJ3222X1-BA2 an industry standard for several high-availability processing tasks:

• Petrochemical Refining Processing: Monitoring critical temperature profiles and head pressures on distillation columns where unplanned shutdowns pose major safety hazards.
• Power Plant Boiler Instrumentation: Managing draft pressures, fuel valve positions, and feedwater loops requiring constant system visibility.
• Offshore Oil & Gas Extraction: Processing raw oil line pressure metrics directly in ocean environments susceptible to high humidity and salt corrosion.
• Continuous Chemical Batching: Controlling reactant flow rates where precise analog signal resolution is essential to maintain product chemical specifications.
