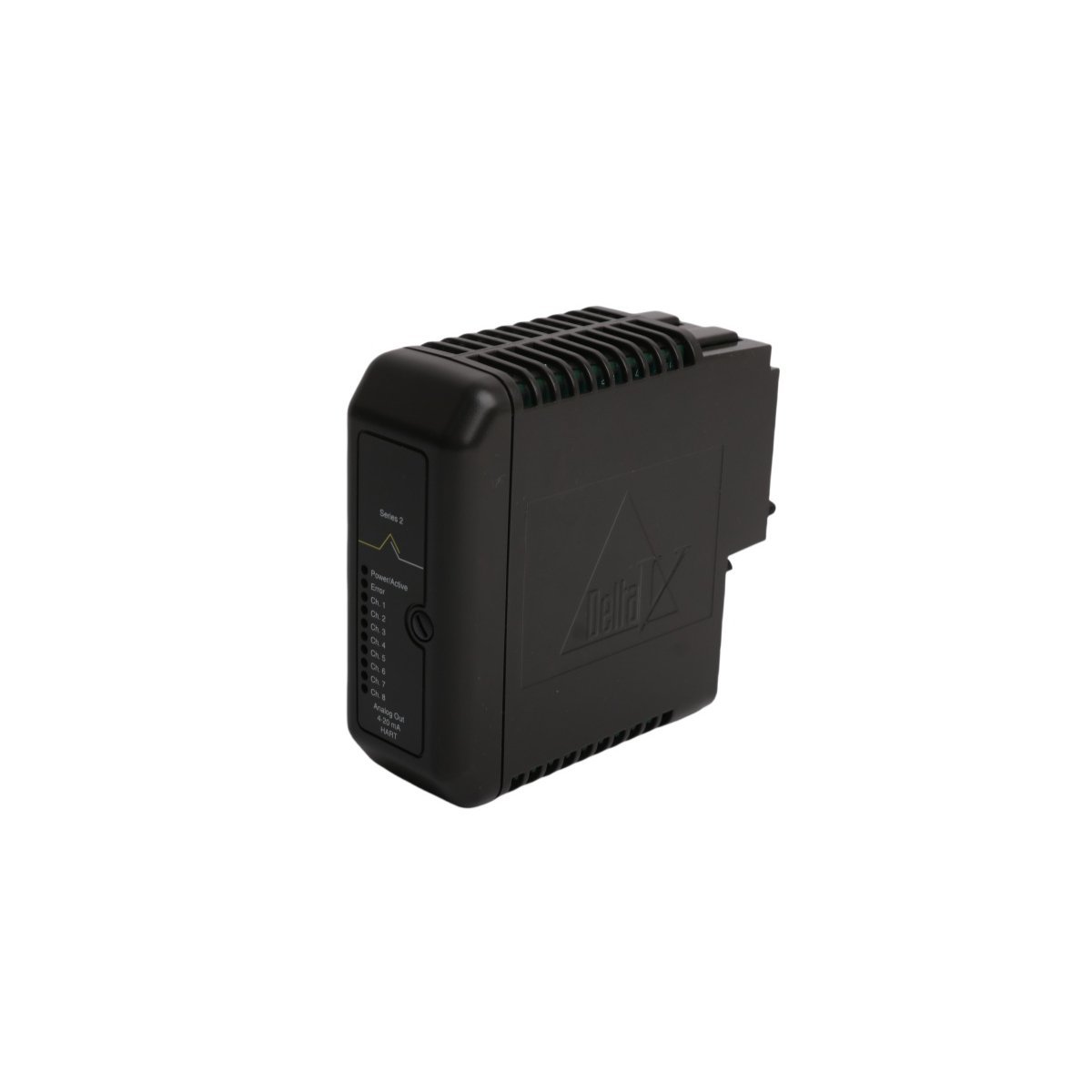

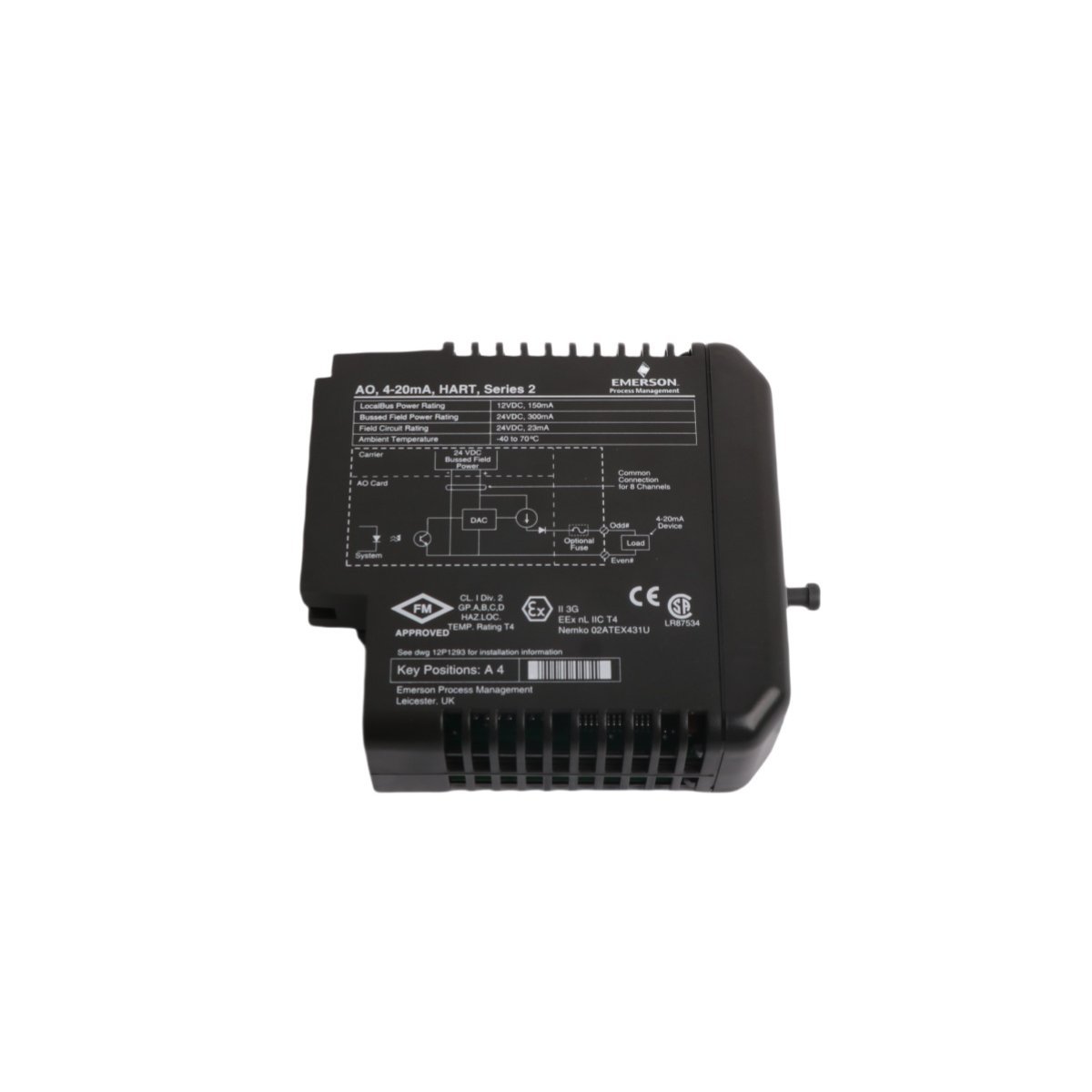

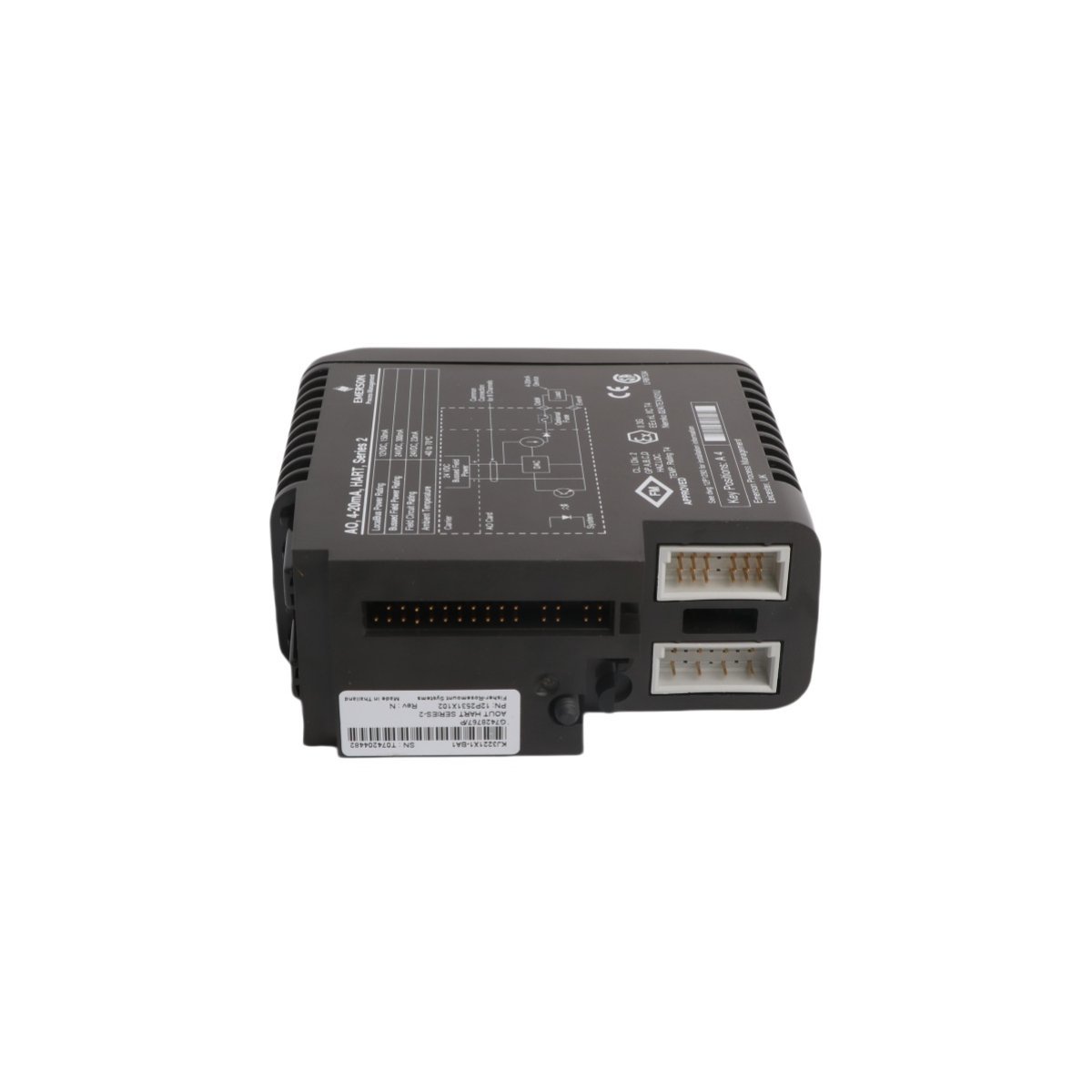

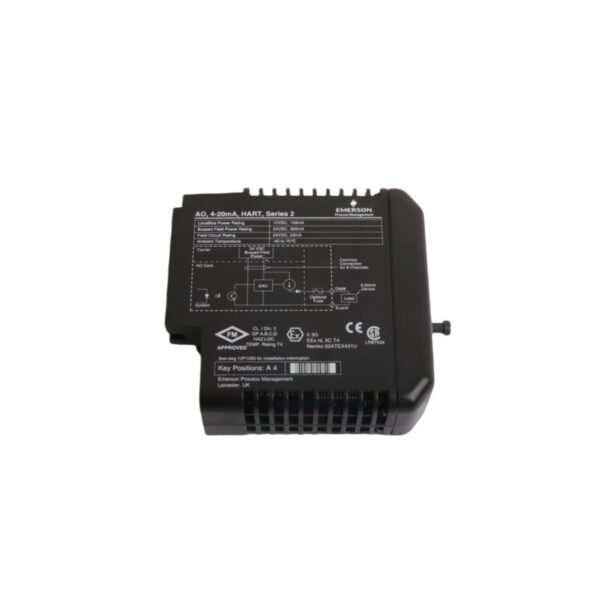

Emerson DeltaV KJ3222X1-BK1 Analog Input Module (12P4705X032 / SE4003S2B1)
The Emerson DeltaV KJ3222X1-BK1 (12P4705X032 / SE4003S2B1) is an 8-channel analog input module designed for M-series DCS subsystems. Operating on a nominal 24VDC supply, it processes 4-20mA signals with high-resolution 24-bit accuracy and supports integrated HART digital communication for advanced field device diagnostics.
Description
Product Overview
The Emerson DeltaV KJ3222X1-BK1 is a high-performance, 8-channel analog input module engineered for seamless integration within the DeltaV Distributed Control System (DCS) M-series I/O subsystem. This industrial-grade component provides precise signal acquisition from field instruments, converting continuous physical variables into accurate digital data for real-time process monitoring. Designed to maintain system stability in demanding environments, the module supports advanced data processing and instrument diagnostics, making it a critical asset for complex automation frameworks.
Advanced Capabilities and Functional Benefits
- High-Precision Signal Acquisition: The module features an advanced 24-bit analog-to-digital converter that delivers exceptional measurement accuracy. This high resolution ensures that minute fluctuations in field variables are captured and processed without data loss.
- HART Communication Support: Beyond standard analog signal processing, the unit facilitates Highway Addressable Remote Transducer (HART) digital communication. This capability allows control systems to extract secondary variables, device configuration profiles, and predictive maintenance diagnostics directly from smart field transmitters.
- Exceptional Thermal Stability: Built to withstand volatile industrial climates, the module utilizes low-drift internal components that sustain precise calibration across a wide temperature spectrum.
- Robust Hardware Design: The physical assembly incorporates a durable architecture resilient against mechanical vibrations and high relative humidity. Additionally, a detachable terminal block simplifies hot-swapping procedures and routine field maintenance without disturbing permanent wiring networks.
Technical Specifications
| Parameter | Specification Details |
|---|---|
| Manufacturer | Emerson |
| Series | DeltaV M-series I/O Subsystem |
| Model Code | KJ3222X1-BK1 |
| Part / Order Numbers | 12P4705X032 / SE4003S2B1 |
| Module Classification | Analog Input Card with HART |
| Channel Capacity | 8 Independent Channels |
| Nominal Input Ranges | 4 to 20 mA DC / 0 to 20 mA DC |
| Extended Overrange Limits | -1 mA to +25 mA DC |
| Input Impedance | ≤ 250 Ω |
| Analog-to-Digital Resolution | 24-bit |
| Measurement Accuracy | ±0.05% of span at 25°C |
| Temperature Drift | ±0.005% of span per °C |
| Nominal Supply Voltage | 24 VDC |
| Operating Temperature Range | -40°C to +70°C |
| Relative Humidity Limits | 5% to 95%, non-condensing |
| Field Wiring Compatibility | 12 to 22 AWG |
| Physical Dimensions | 10.0 x 7.0 x 5.0 cm |
| Net Product Weight | 0.2 kg |
Industrial Applications
- Petrochemical and Refining: Monitoring line pressure, fluid flow rates, and vessel levels via hazardous-area transmitters.
- Power Generation: Tracking steam pressures, turbine temperatures, and critical cooling loop parameters.
- Chemical Manufacturing: Managing precise ingredient dosing and reactor conditions through continuous feedback loops.
- Water and Wastewater Treatment: Regulating pump station metrics, pH sensors, and tank level indicators across distributed networks.
Additional information
| Weight | 0.2 kg |
|---|---|
| Country of Origin | USA |
| Dimension | 10 x 7 x 5 cm |
