Description

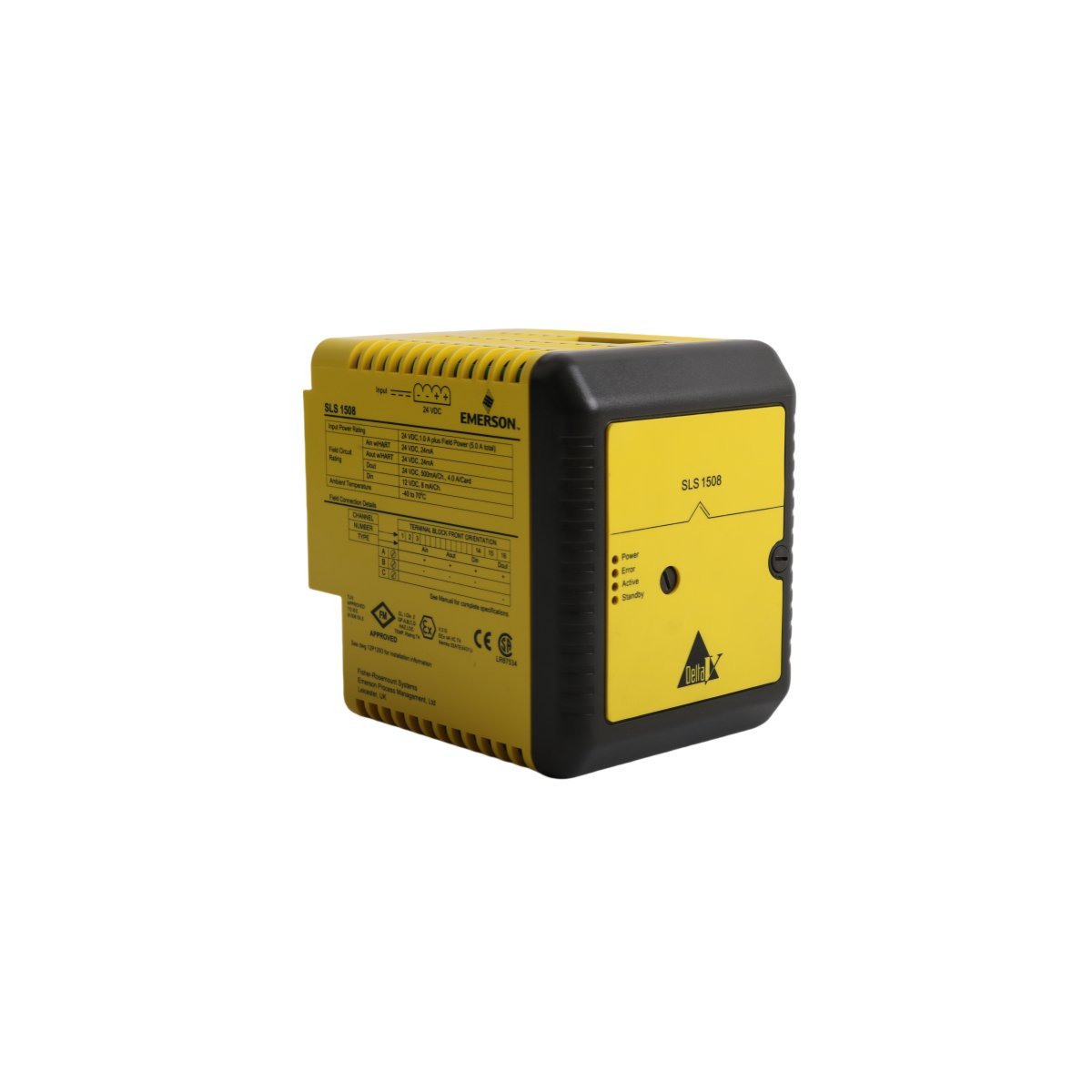

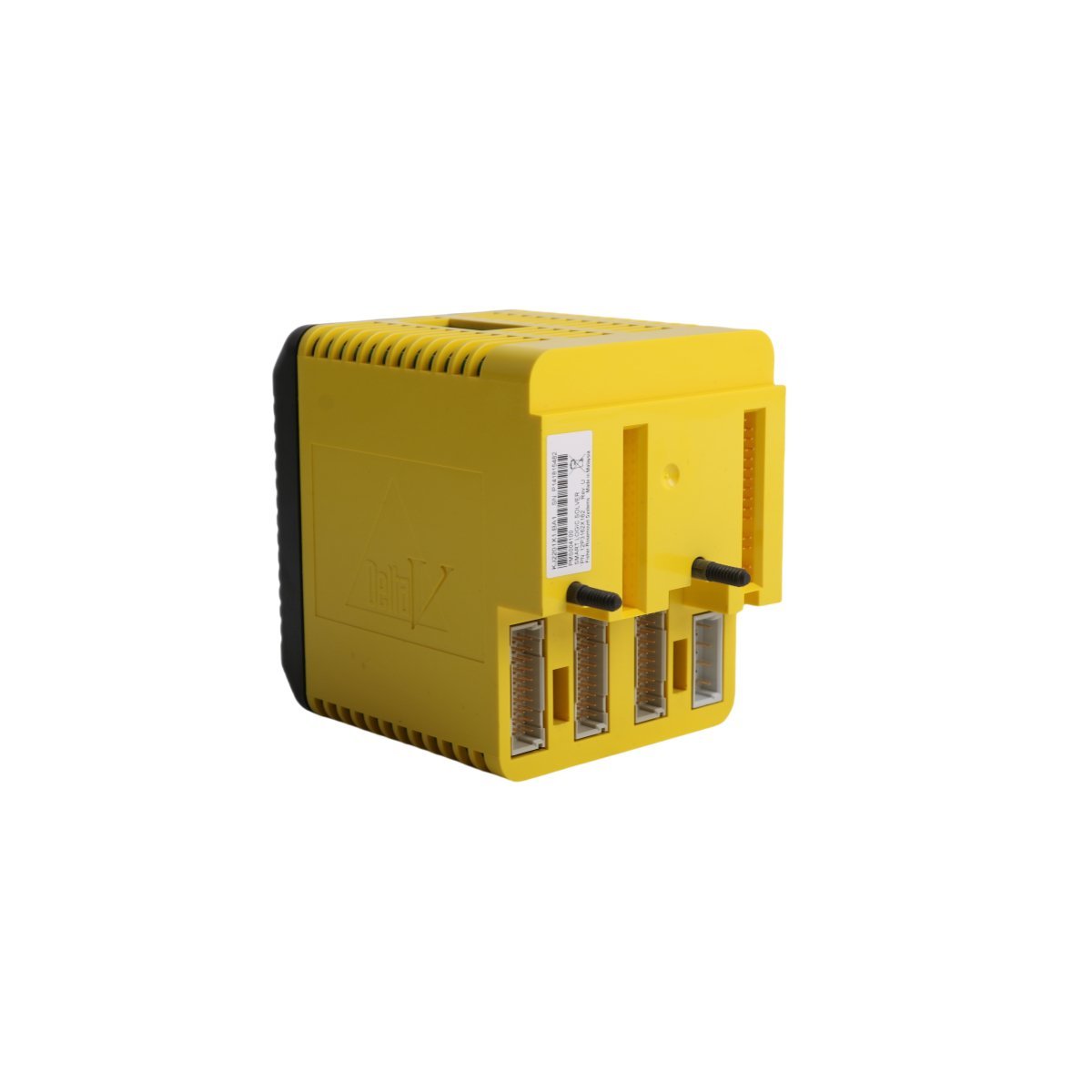

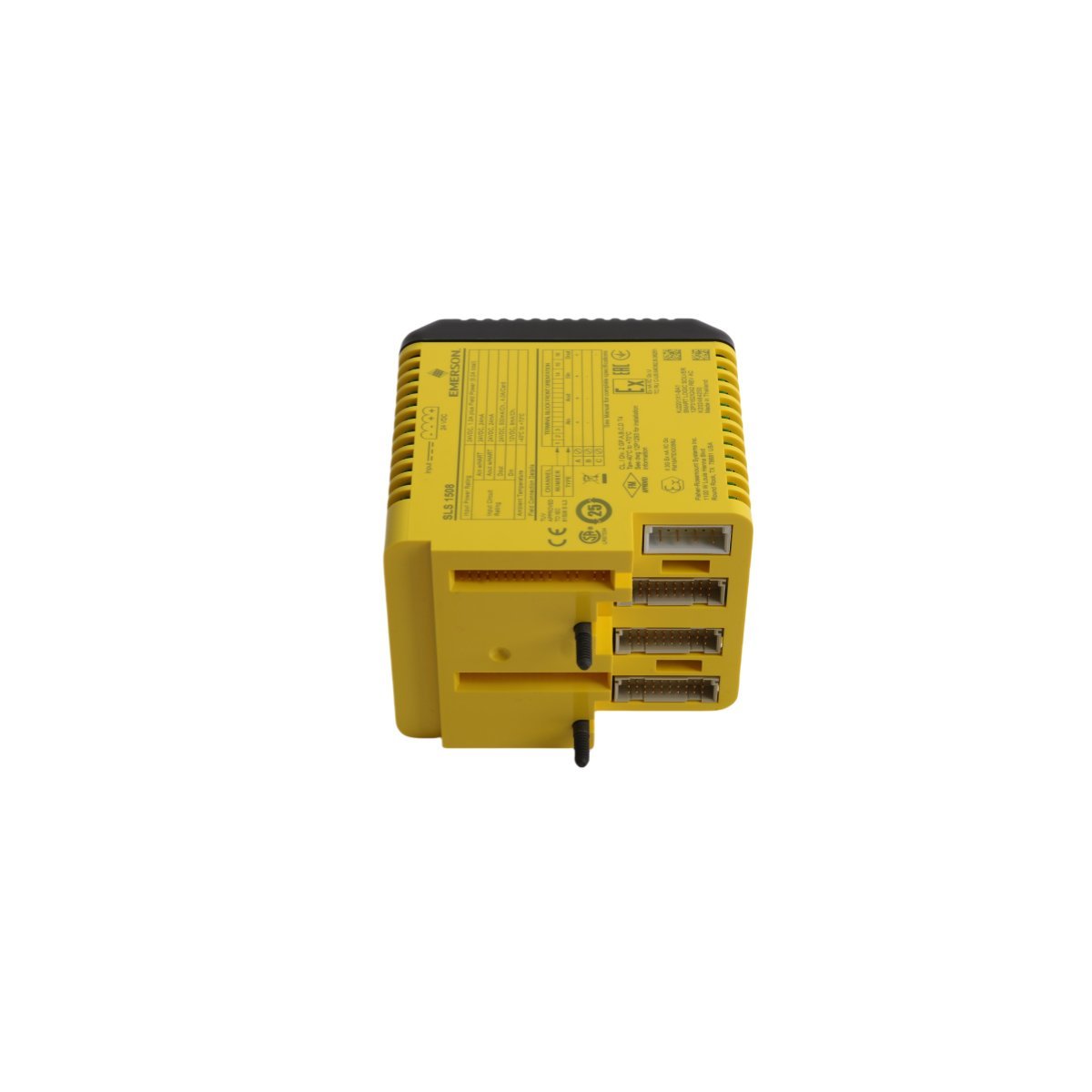

The Emerson KJ2201X1-BA1 serves as a foundational component for the DeltaV SIS™ process safety system. This Smart Logic Solver (SLS1508) handles critical analog input signals with integrated HART communication capabilities. It monitors essential process variables like pressure, temperature, and flow with high precision. Furthermore, the module executes safety logic to protect personnel and industrial assets. This hardware ensures that safety loops respond correctly during emergency conditions.

This SLS1508 module supports redundant configurations to maximize system availability. It continuously performs self-diagnostics to identify internal hardware faults immediately. Consequently, plant operators can maintain high safety integrity levels (SIL) within their facilities. The smart logic solver also facilitates remote device diagnostics through its HART interface. This functionality allows for better instrument health tracking without interrupting the process.

Technical Specifications and Overview

• Manufacturer: Emerson
• Model Number: KJ2201X1-BA1
• Part Number: 12P3162C092
• Series Identifier: SLS1508 / VS3202
• Module Type: Analog Input HART Logic Solver
• System Compatibility: DeltaV SIS™ Safety System
• Dimensions: 4.4 cm x 10.8 cm x 12.7 cm
• Net Weight: 0.2 kg
• HS Code: 8537101190
• Origin: United States

Advanced Safety Logic and Communication

Emerson builds the KJ2201X1-BA1 for seamless integration into distributed control environments. The module utilizes a dedicated safety bus for high-speed data exchange between solvers. Additionally, its rugged internal architecture withstands the electrical noise typical in manufacturing plants. This design maintains signal purity even in high-interference zones.

The SLS1508 logic solver simplifies the complexity of safety instrumented functions (SIF). It offers a user-friendly interface for rapid configuration and testing. Moreover, the hardware design allows for hot-swapping during active operations. This feature prevents total system shutdowns during routine maintenance or module upgrades. By using this logic solver, industries achieve a balance between safety and productivity.
