Description

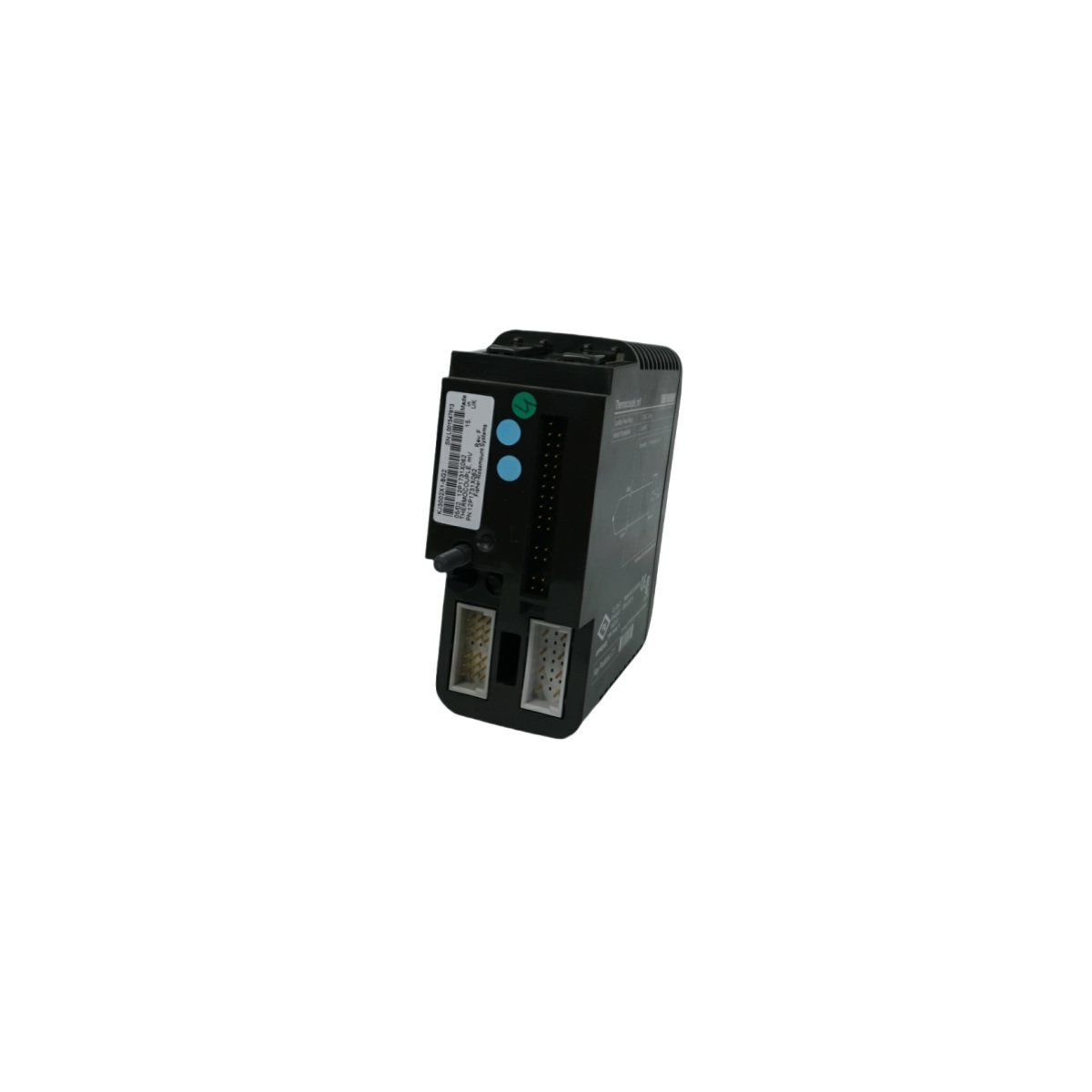

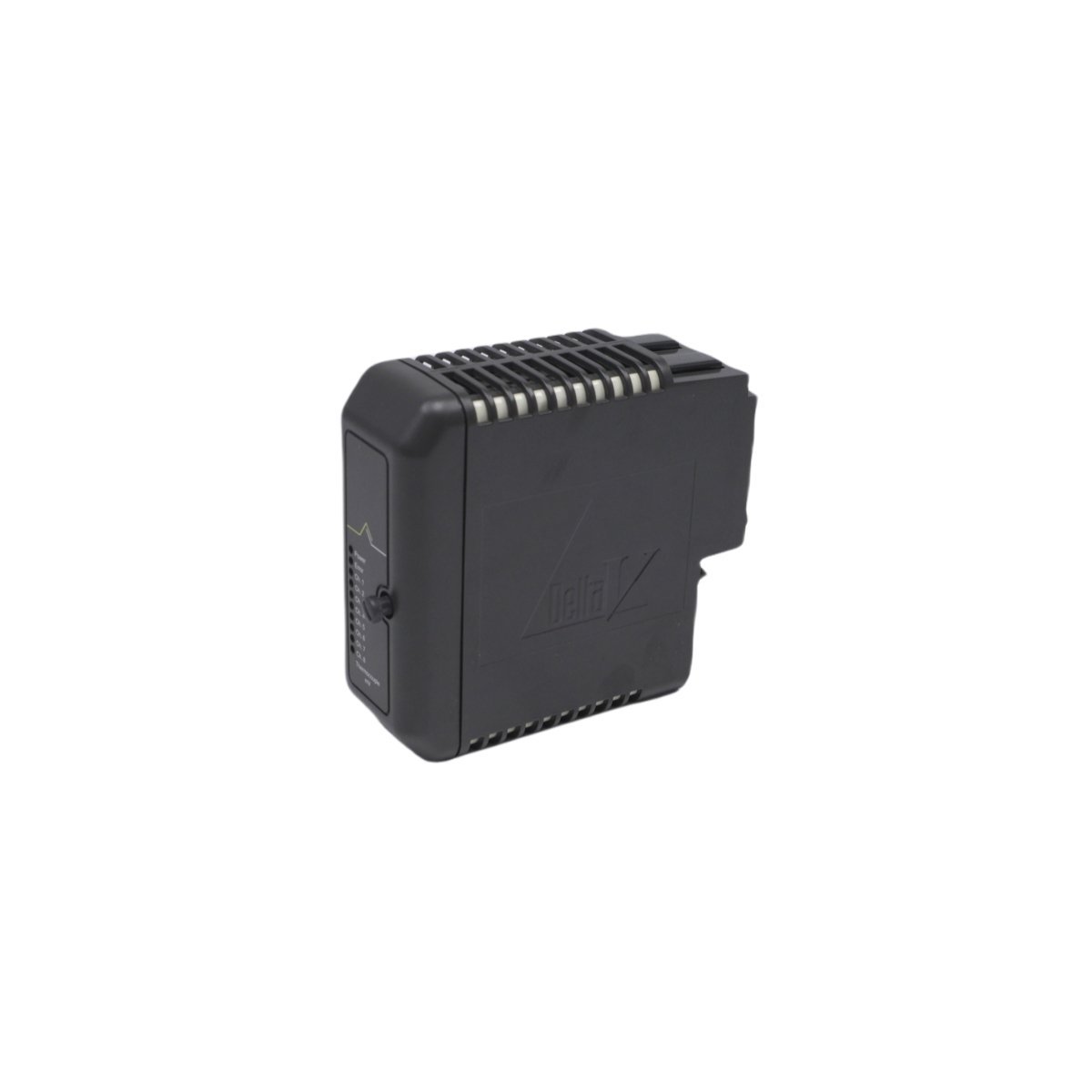

The Emerson KJ3002X1-BG2 provides high-fidelity signal conversion for the DeltaV™ M-series I/O subsystem. This analog input module functions as a critical bridge between field instrumentation and the central controller. It converts continuous physical variables into precise digital data for process analysis. Furthermore, the 12P1731X062 hardware supports low-level signal processing, including millivolt and thermocouple inputs. This versatility allows engineers to monitor thermal fluctuations with exceptional accuracy. Consequently, the module improves the overall responsiveness of the distributed control system.

This hardware features a rugged, modular design for simplified cabinet installation. It effectively filters electrical noise to maintain signal integrity in crowded industrial environments. Additionally, the KJ3002X1-BG2 supports redundant configurations to prevent unplanned system shutdowns. This redundancy ensures that critical process data remains available during hardware maintenance. The module also performs continuous internal diagnostics to detect circuit failures early. Because of these protective features, the module serves as a cornerstone for stable automation.

Key Technical Specifications

• Manufacturer: Emerson
• Model Code: KJ3002X1-BG2
• Order Number: 12P1731X062
• Module Category: Analog Input / Thermocouple MV Card
• System Compatibility: DeltaV™ M-series DCS
• Net Weight: 0.2 kg
• Hardware Dimensions: 4.3 cm x 12.5 cm x 10.5 cm
• Country of Origin: USA
• Harmonized Code: 8537101190

Industrial Resilience and Scalability

Emerson builds the 12P1731X062 to withstand the harsh conditions of modern production facilities. The module remains operational despite significant mechanical vibrations or electromagnetic interference. Moreover, the hot-swappable architecture permits hardware replacements without interrupting the live process. This capability significantly lowers the mean time to repair (MTTR) for maintenance teams. The module also scales easily to accommodate expanding plant requirements. Users can add more I/O points by simply snapping new modules onto the carrier.

Integration with DeltaV software simplifies the calibration and commissioning of field sensors. The system automatically handles linearization for various thermocouple types. This automation reduces manual configuration errors during plant startup. Furthermore, the module facilitates real-time data logging for compliance and safety audits. Industries like petrochemical processing and power generation rely on this hardware for long-term stability. It provides the reliable performance necessary for managing high-risk industrial cycles.

Target Applications

The KJ3002X1-BG2 module excels in diverse high-precision automation roles. Primary use cases include:

• Monitoring reactor temperatures in chemical processing plants
• Capturing millivolt signals from specialized analytical sensors
• Managing furnace and boiler temperature profiles
• Tracking cryogenic storage conditions in LNG facilities
• Providing high-accuracy feedback for turbine control systems
