Description

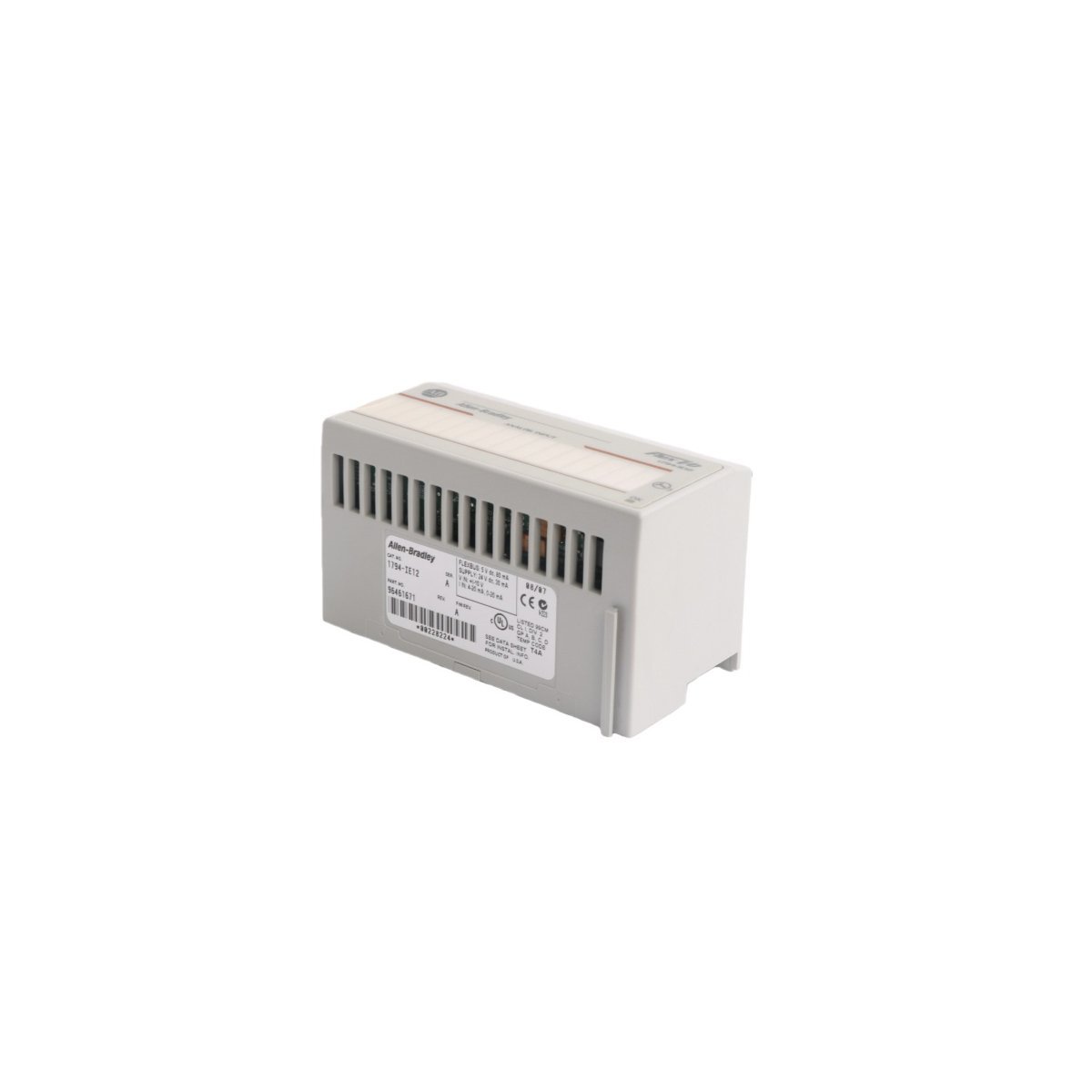

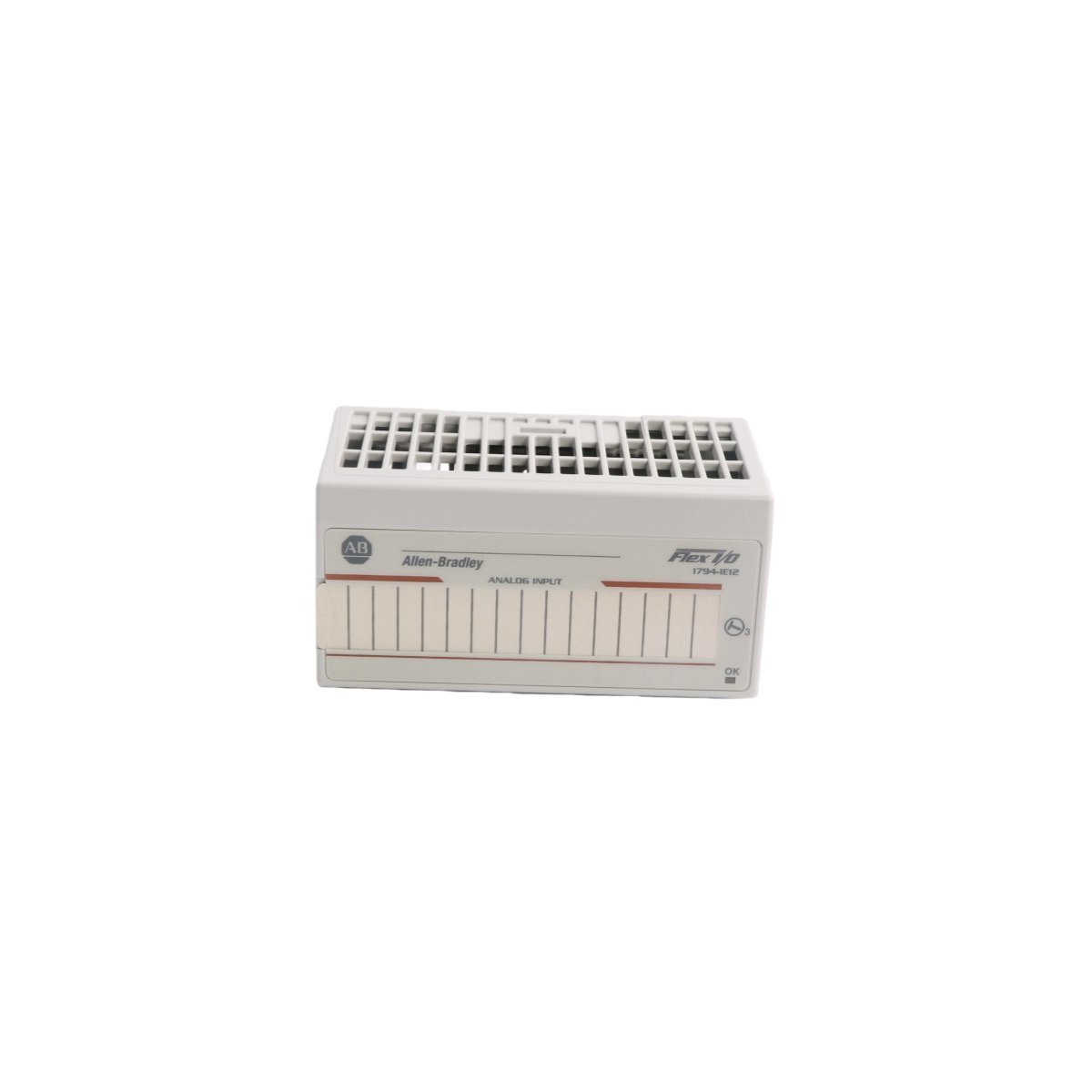

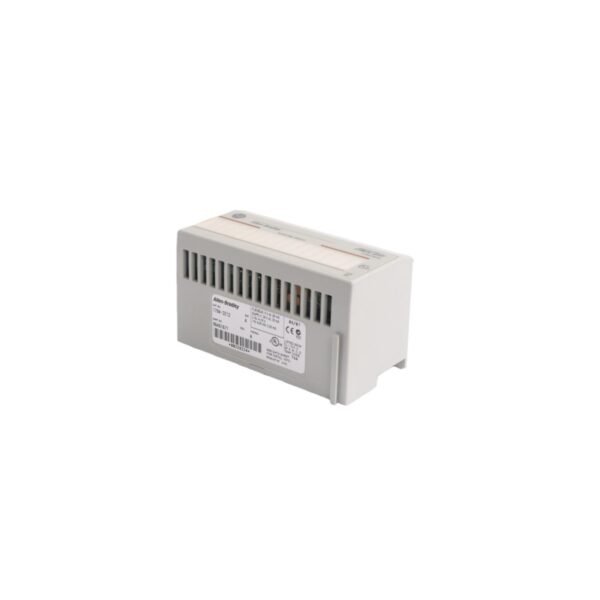

The Allen-Bradley 1794-IE12 provides high-density analog signal acquisition for distributed FLEX I/O systems. This module converts various field signals into digital data for PLC processing. It features twelve single-ended input channels within a space-saving footprint. Consequently, it effectively supports complex process control applications requiring high channel counts.

Primary Technical Specifications

Advanced Signal Conversion and Accuracy

The 1794-IE12 utilizes advanced successive approximation technology for precise data conversion. This method delivers 16-bit resolution for superior measurement granularity. Furthermore, the hardware maintains high accuracy across both current and voltage modes. The module provides a resolution of 320 μV per count for voltage signals. It also offers 0.641 μA per count for current measurements.

Hardware Installation and Compatibility

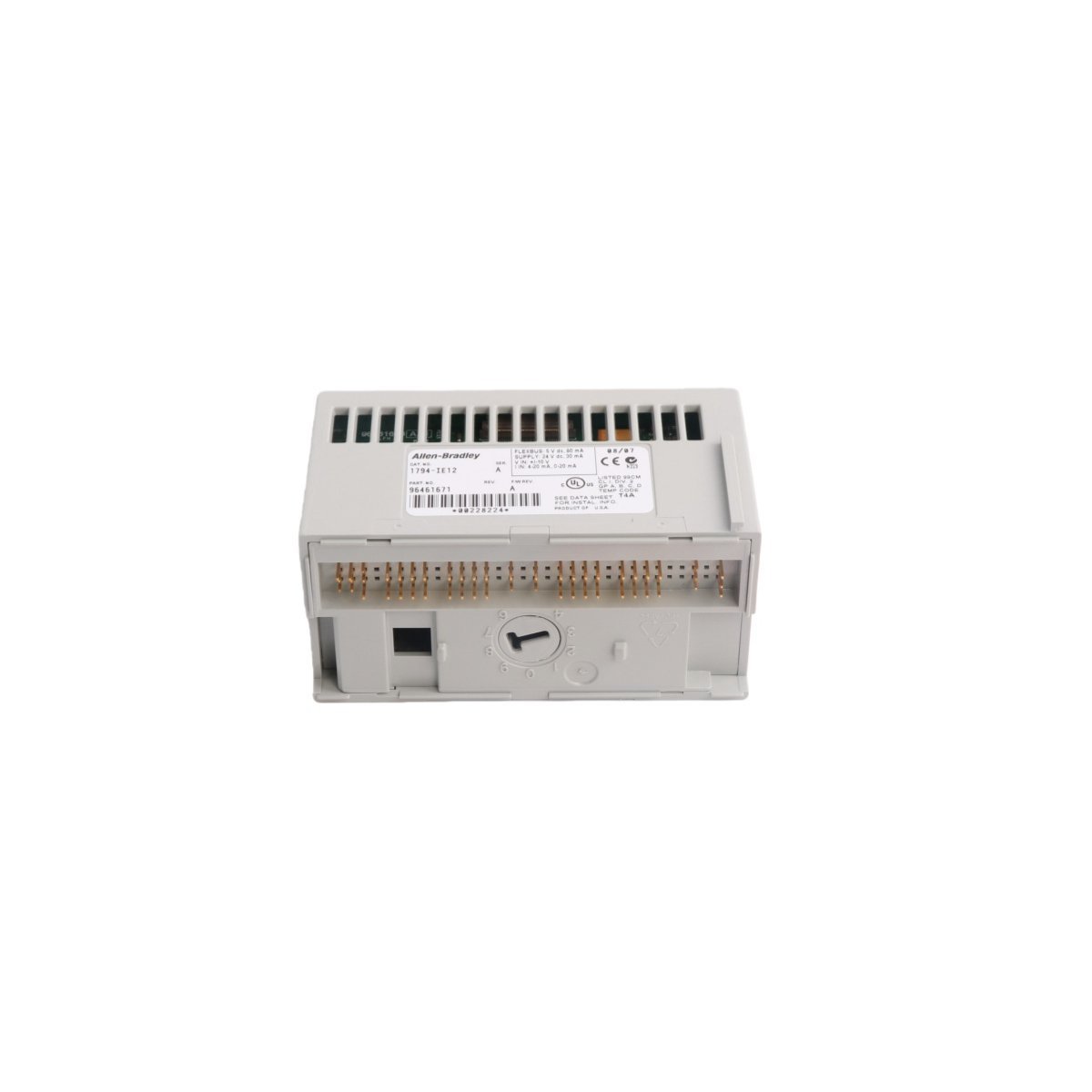

This module installs directly onto compatible FLEX I/O terminal bases. It utilizes a position 3 keyswitch to ensure correct alignment during setup. This mechanical design allows users to swap modules without removing field wiring. Therefore, maintenance teams can minimize system downtime during repairs or upgrades.

The module also features rugged environmental protection for factory floor use. It withstands operational vibrations of 5g and mechanical shocks up to 30g. Additionally, the internal circuitry protects against continuous input overloads up to 30 volts. This durability ensures long-term reliability in manufacturing and infrastructure environments.

Integrated Power Management

The unit operates efficiently using external 24V DC power sources. It manages power consumption effectively while supporting twelve active channels. Furthermore, the module facilitates flexible conversion rates for critical monitoring tasks. Standard sampling occurs every 8.0 milliseconds across all twelve inputs simultaneously. This rapid update rate supports real-time process adjustments in demanding industrial scenarios.
