Description

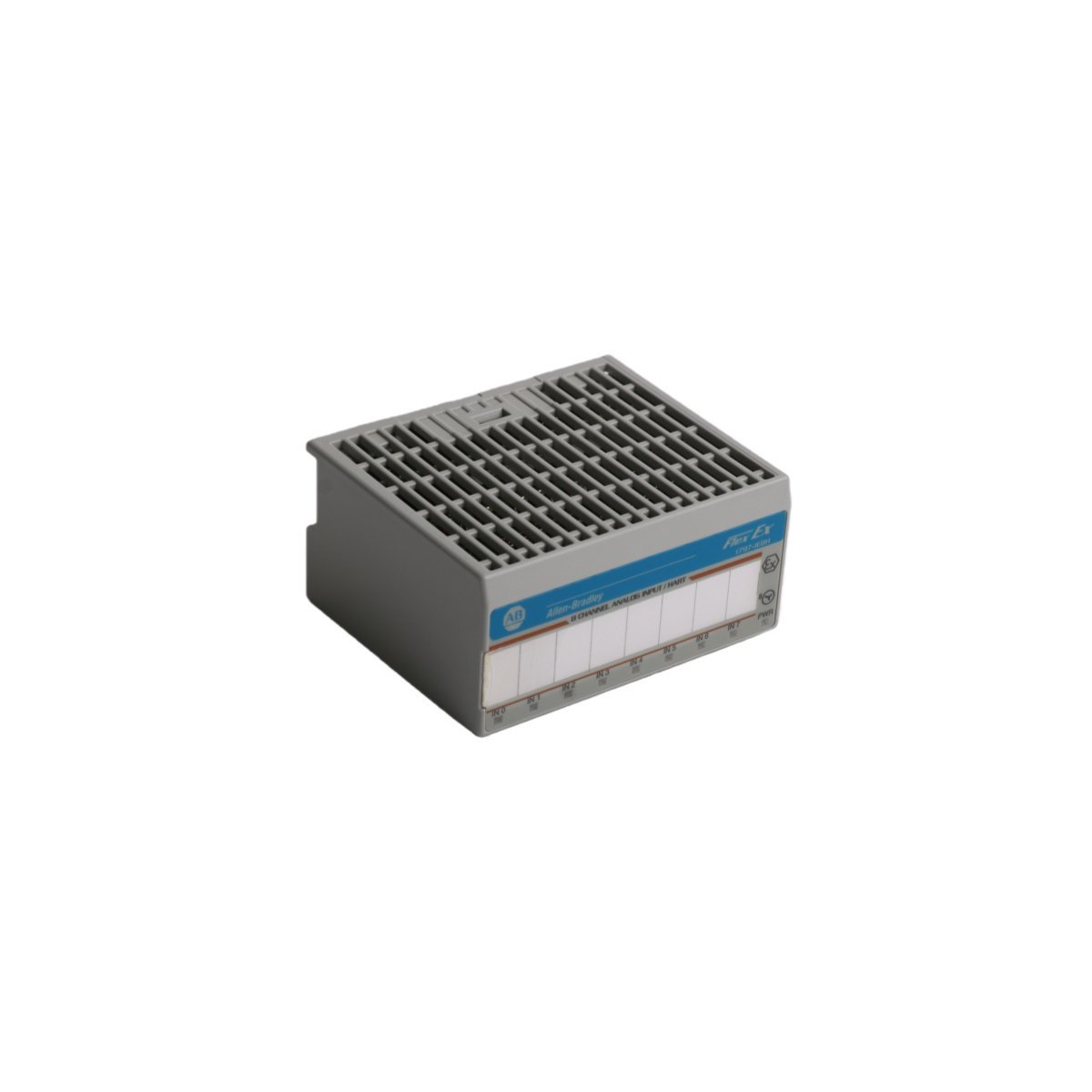

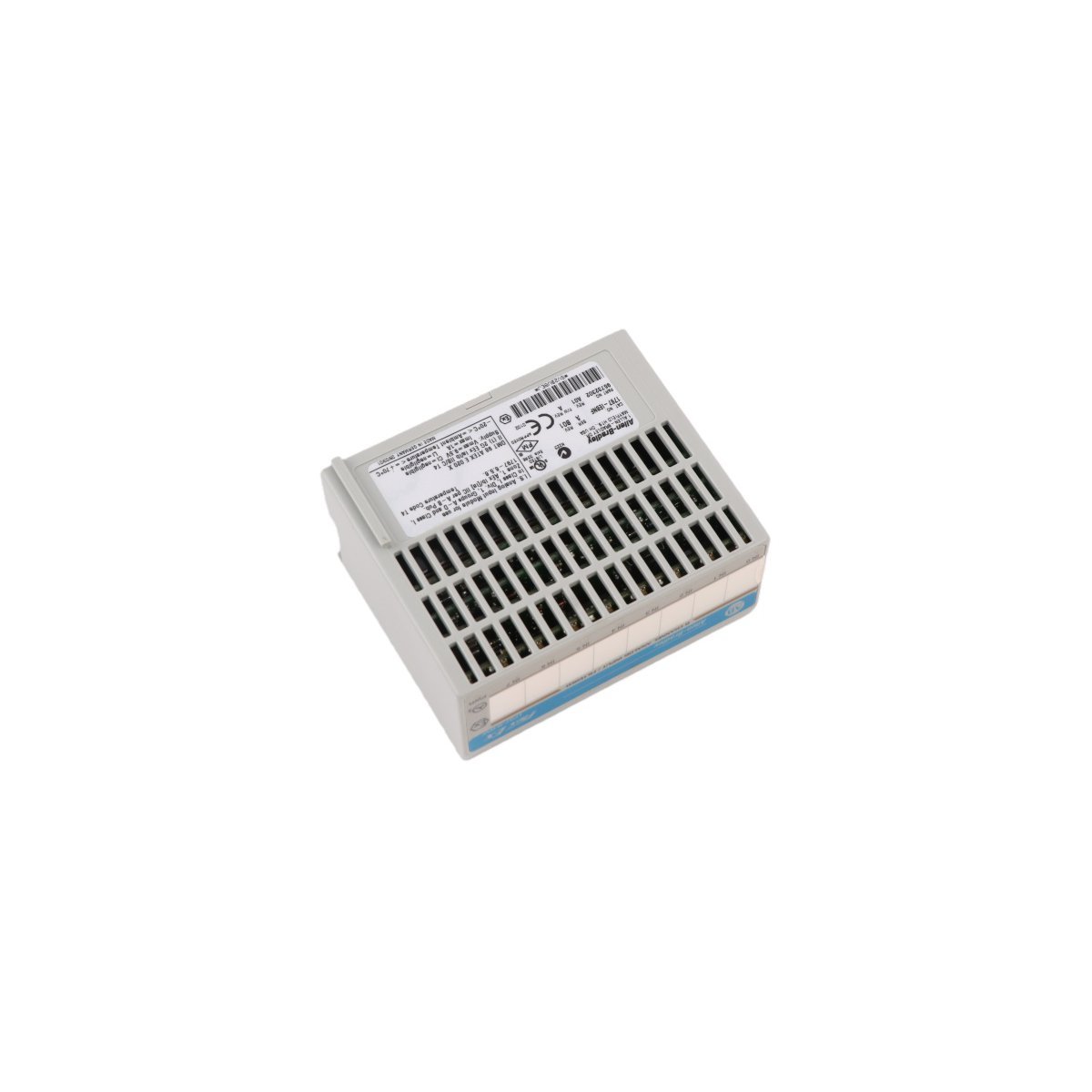

The Allen-Bradley 1797-IE8 serves as a specialized analog interface for the FLEX Ex I/O family. This module specifically targets industrial environments with explosive atmospheres. It carries critical certifications including Ex ia and Class I, Division 1. Consequently, engineers can safely deploy this hardware in high-risk zones without additional protection. The module ensures personnel safety while maintaining continuous process signal acquisition. It provides a secure bridge between hazardous field locations and the control room.

High-Precision Signal Conversion

Measurement accuracy remains a core strength of the 1797-IE8 current input module. Each of the eight channels delivers 16-bit resolution for superior data granularity. The unit accepts standard 4-20 mA current loops from various industrial sensors. Furthermore, it achieves a high accuracy rating of 0.1% under room temperature conditions. This precision allows the PLC to detect minute changes in process variables. Such performance is essential for monitoring sensitive pressure, flow, and level applications.

Proactive System Diagnostics

Maintenance teams benefit from the advanced diagnostic capabilities built into the 1797-IE8. The module automatically identifies common electrical faults at the field device level. It detects wire breakages and signal saturation through under-range and over-range monitoring. These features allow operators to address wiring issues before they cause system failures. Moreover, the status indicators provide immediate feedback during troubleshooting sessions. This functionality significantly improves the overall reliability of the automation network.

Technical Specifications

Robust Industrial Architecture

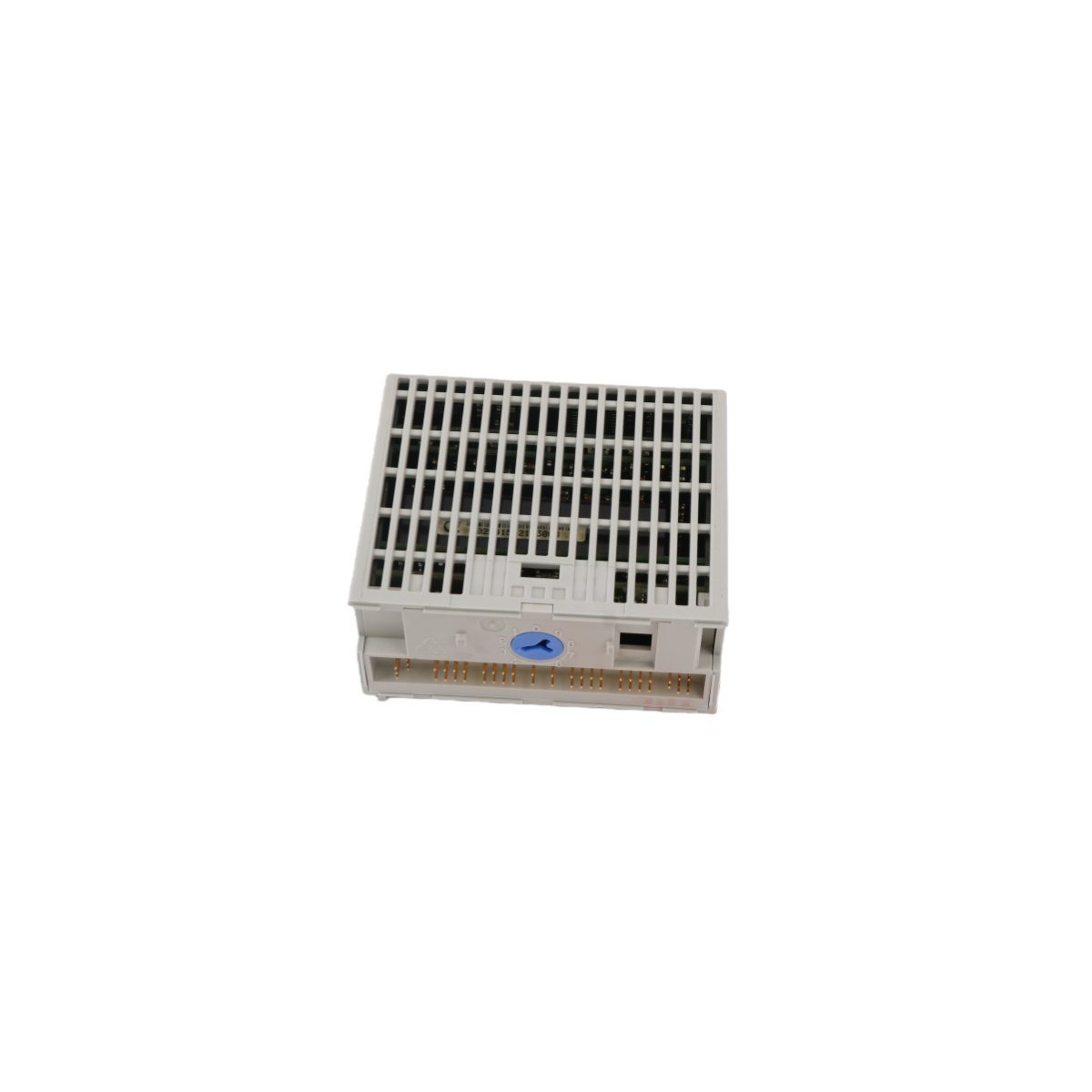

The mechanical design of the 1797-IE8 facilitates rapid integration into modular FLEX Ex systems. It requires a compatible terminal base for secure electrical connections and mounting. Furthermore, the module supports hot-swapping under power within hazardous areas. This minimizes interruption to the wider control system during hardware updates. Its compact form factor saves valuable space within explosion-proof enclosures. Ultimately, the 1797-IE8 offers a dependable solution for the most challenging industrial monitoring tasks.
