Description

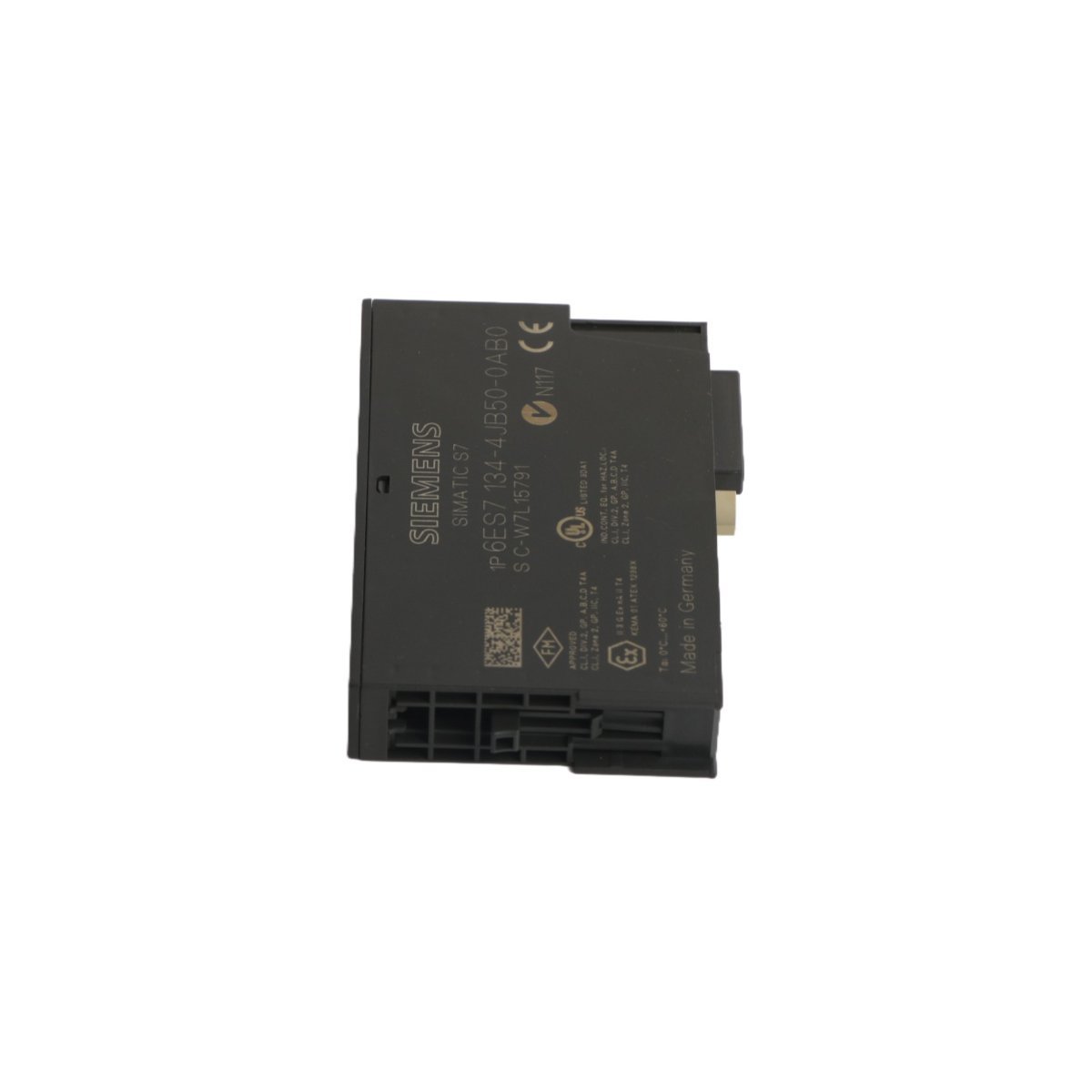

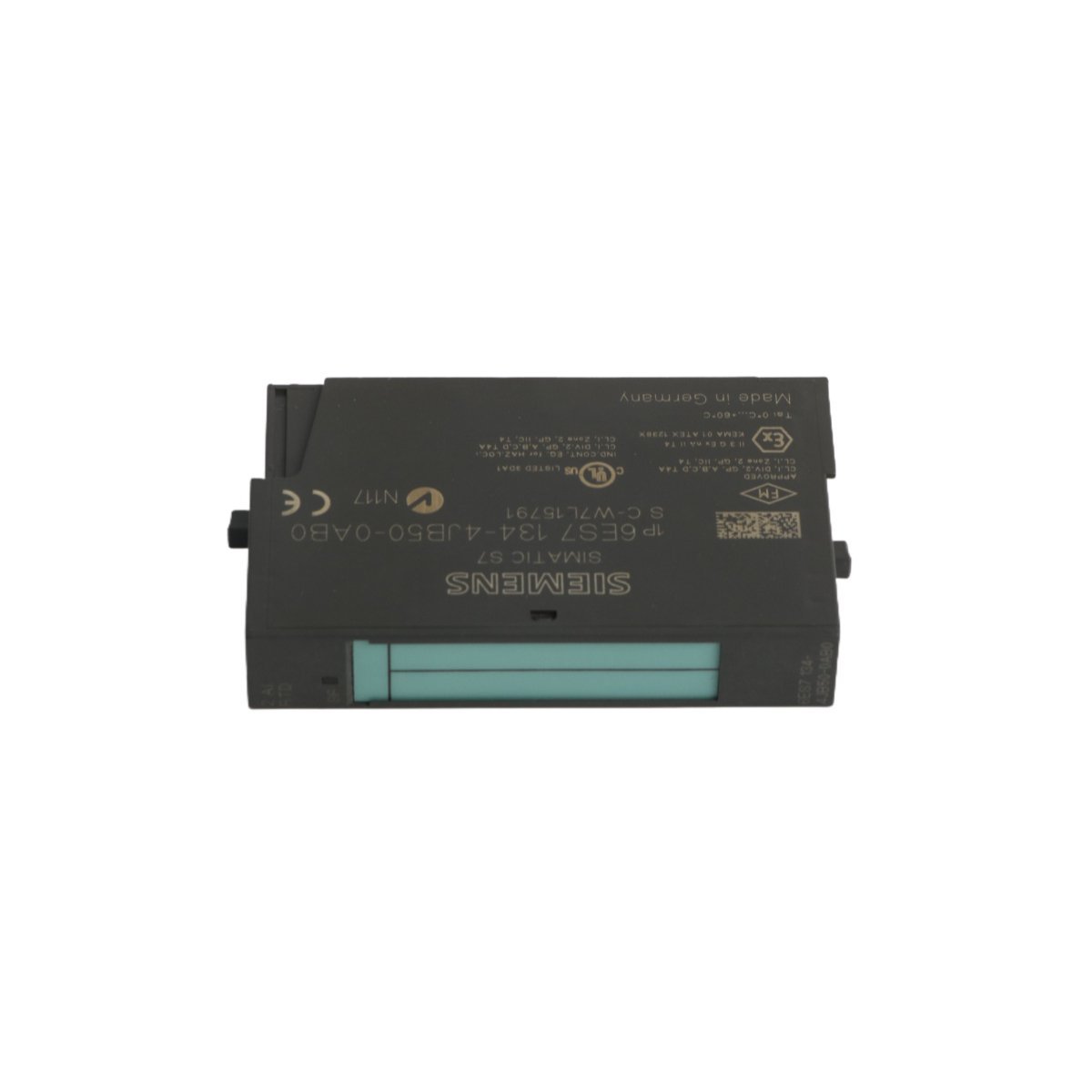

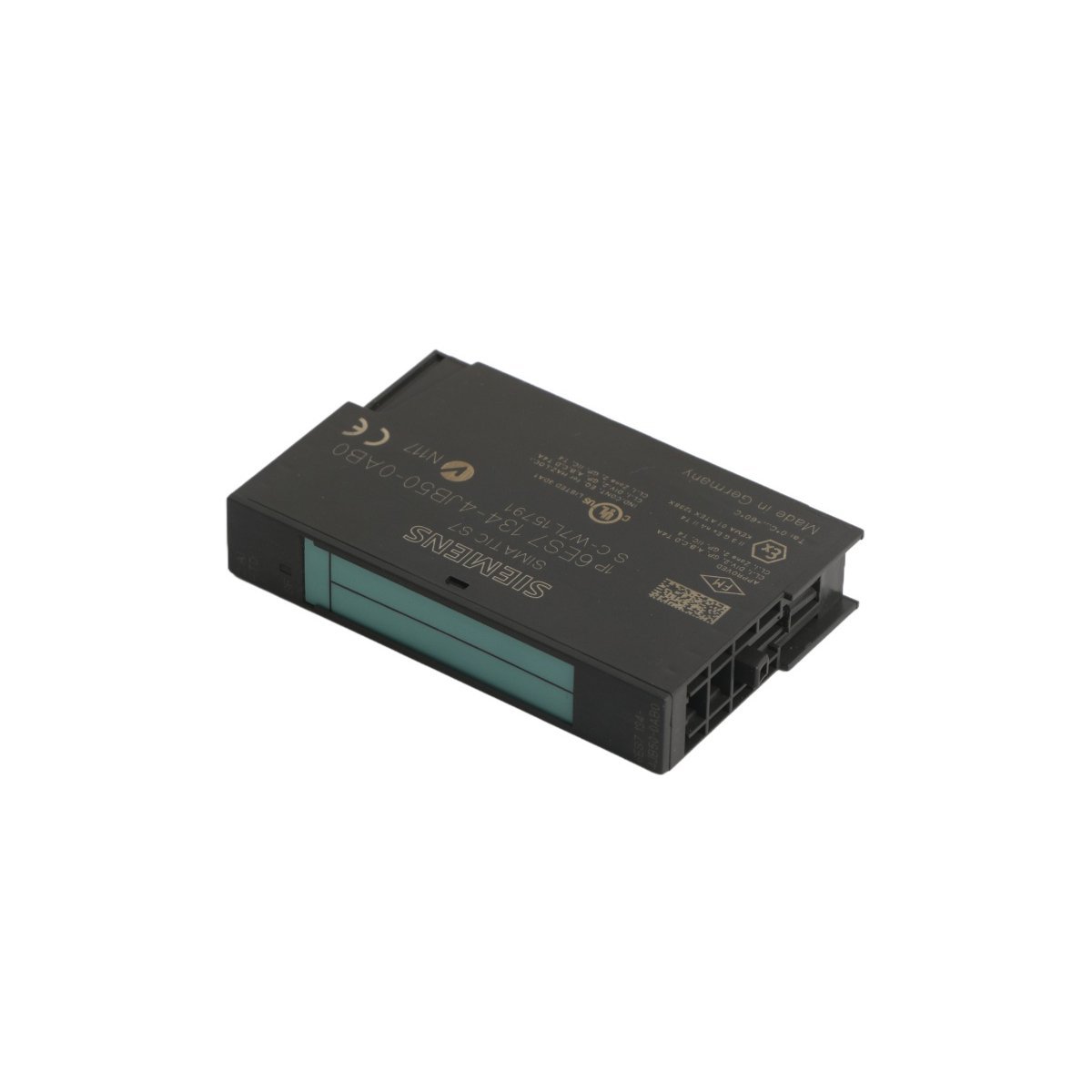

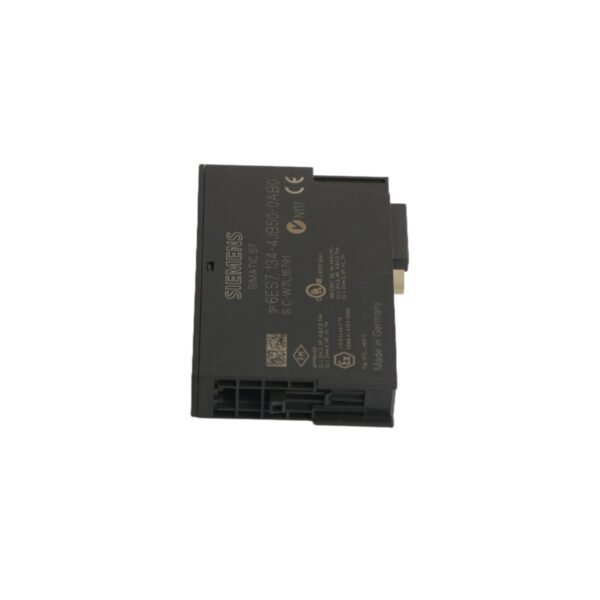

The Siemens 6ES7134-4JB50-0AB0 is a specialized 2-channel analog input module for the ET 200S station. This electronics module specifically handles Resistance Temperature Detectors (RTD). It provides a high resolution of 15 bits plus a sign bit. Consequently, the unit delivers extreme accuracy for sensitive thermal monitoring tasks. The 15mm width allows for dense packing on the terminal rail. This design maximizes available space within the control cabinet.

This module supports a variety of standard resistance sensors. Users can connect Pt100 and Ni100 sensors in both standard and climatic ranges. Furthermore, the hardware accepts pure resistance measurements up to 600 Ohms. The integrated diagnostic SF LED alerts operators to group faults immediately. This feature significantly reduces troubleshooting time during system outages.

Technical Specifications and Capabilities

Advanced Hardware Characteristics

• Internal conversion follows the integrating principle to suppress high-frequency interference.
• The module supports 2-wire, 3-wire, and 4-wire sensor connection types.
• Onboard filtering helps maintain signal integrity in electrically noisy environments.
• Hot-swapping capabilities allow module replacement without stopping the entire station.
• Galvanic isolation exists between the backplane bus and the load voltage.
• Configuration happens easily via STEP 7 or the TIA Portal software environment.

Versatile Industrial Applications

Engineers deploy this module in sectors requiring strict temperature regulation. For example, food processing plants use it to monitor pasteurization temperatures. Chemical facilities rely on its high resolution for volatile reaction monitoring. Additionally, the unit serves HVAC systems for precise climate control in large buildings. Its small footprint makes it perfect for decentralized control boxes on machinery. Maintenance professionals often select this as a reliable spare for legacy ET 200S systems.
