Description

Product Overview

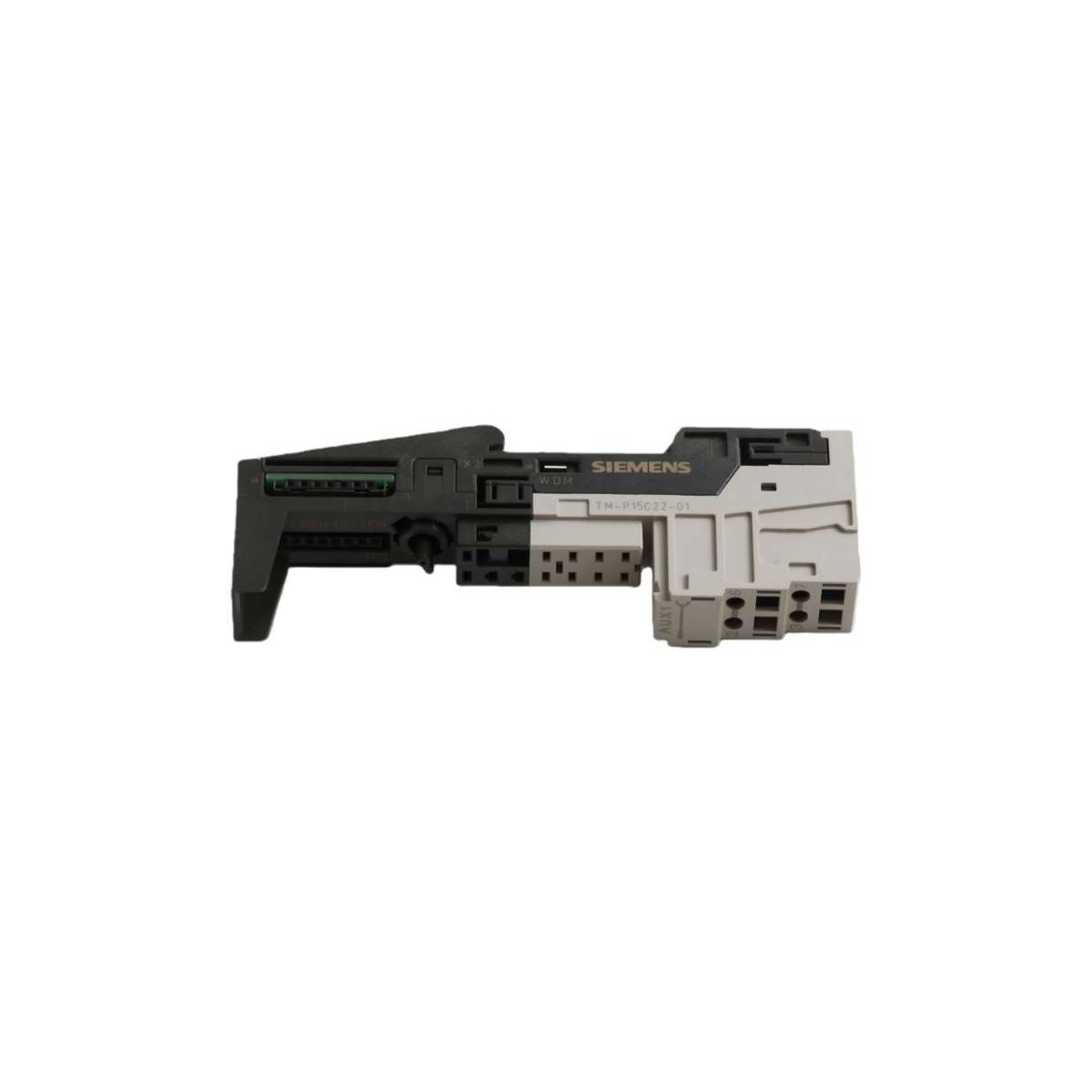

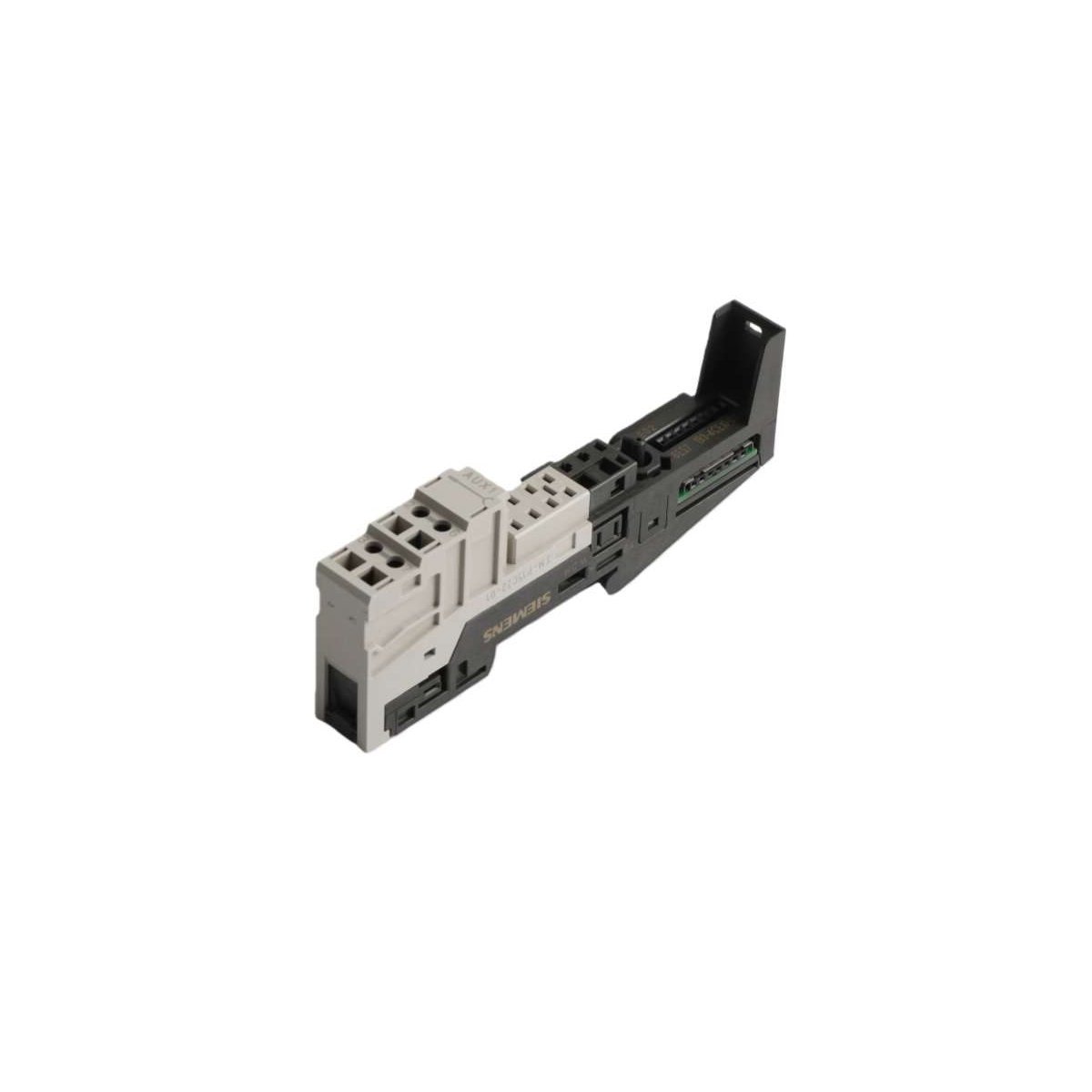

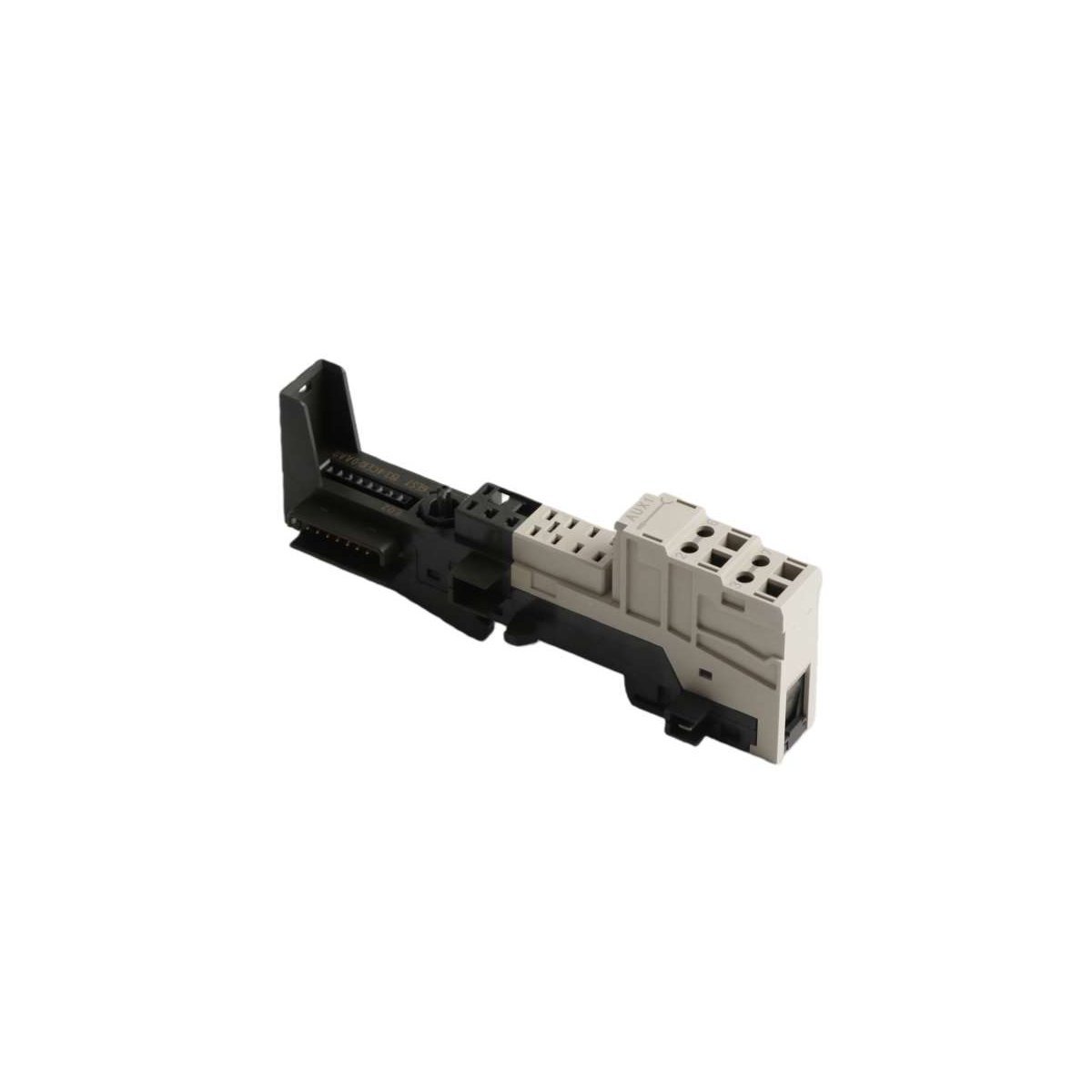

The Siemens 6ES7193-4CE10-0AA0 functions as a fundamental architectural component for the SIMATIC ET 200S distributed I/O system. Specifically, this TM-P15S23-A1 terminal module provides the essential mechanical and electrical housing required for power modules. By establishing a secure connection point on the DIN rail, the unit enables reliable energy distribution across the internal backplane bus. Consequently, it serves as the backbone for power management within modular control cabinets, ensuring that downstream I/O modules receive consistent voltage.

Core Functionality and Technical Advantages

This terminal module significantly streamlines the wiring process while simultaneously maintaining high signal integrity. It features a specialized internal bus connection that automatically continues the voltage potential to adjacent modules. As a result, engineers can eliminate redundant manual daisy-chaining, which reduces both material costs and potential points of failure. Furthermore, the unit supports the “Hot Swapping” capability of the ET 200S system. Therefore, operators can replace electronic power modules under load without interrupting the operation of the entire station.

• Spring-Loaded Terminals: The unit utilizes advanced Push-In technology to ensure vibration-proof connections and rapid, tool-free installation.
• Integrated Shielding: The design incorporates a dedicated connection for the functional earth (PE), providing effective electromagnetic compatibility (EMC) for sensitive electronics.
• Standardized Geometry: A compact 15mm width enables high-density mounting, which effectively maximizes available space within the enclosure.
• Potential Distribution: It manages the distribution of supply voltage (up to 24V DC or 230V AC) across the terminal bus with high efficiency.

Installation and System Integration

Because the 6ES7193-4CE10-0AA0 adopts a modular “base and module” architecture, technicians first mount the terminal block to the DIN rail before snapping the power module into place. This separation of the permanent wiring base from the electronic components facilitates easier troubleshooting and faster maintenance cycles. In addition to its structural benefits, the terminal block includes clear labeling areas and color-coded contact points. These visual aids specifically assist in preventing wiring errors during the high-pressure commissioning phase. Consequently, this component remains a critical asset for building robust, scalable PLC infrastructures in various industrial sectors.

Technical Specifications

• Manufacturer: Siemens
• Order Number: 6ES7193-4CE10-0AA0
• Product Series: SIMATIC ET 200S
• Module Type: TM-P15S23-A1 Terminal Module
• Connection Method: Spring-loaded (Push-In) terminals
• Number of Terminals: 2 x 3 process terminals plus internal bus contacts
• Dimensions: 15 mm x 81 mm x 52 mm (W x H x D)
• Weight: 0.040 kg
• Origin: Germany
