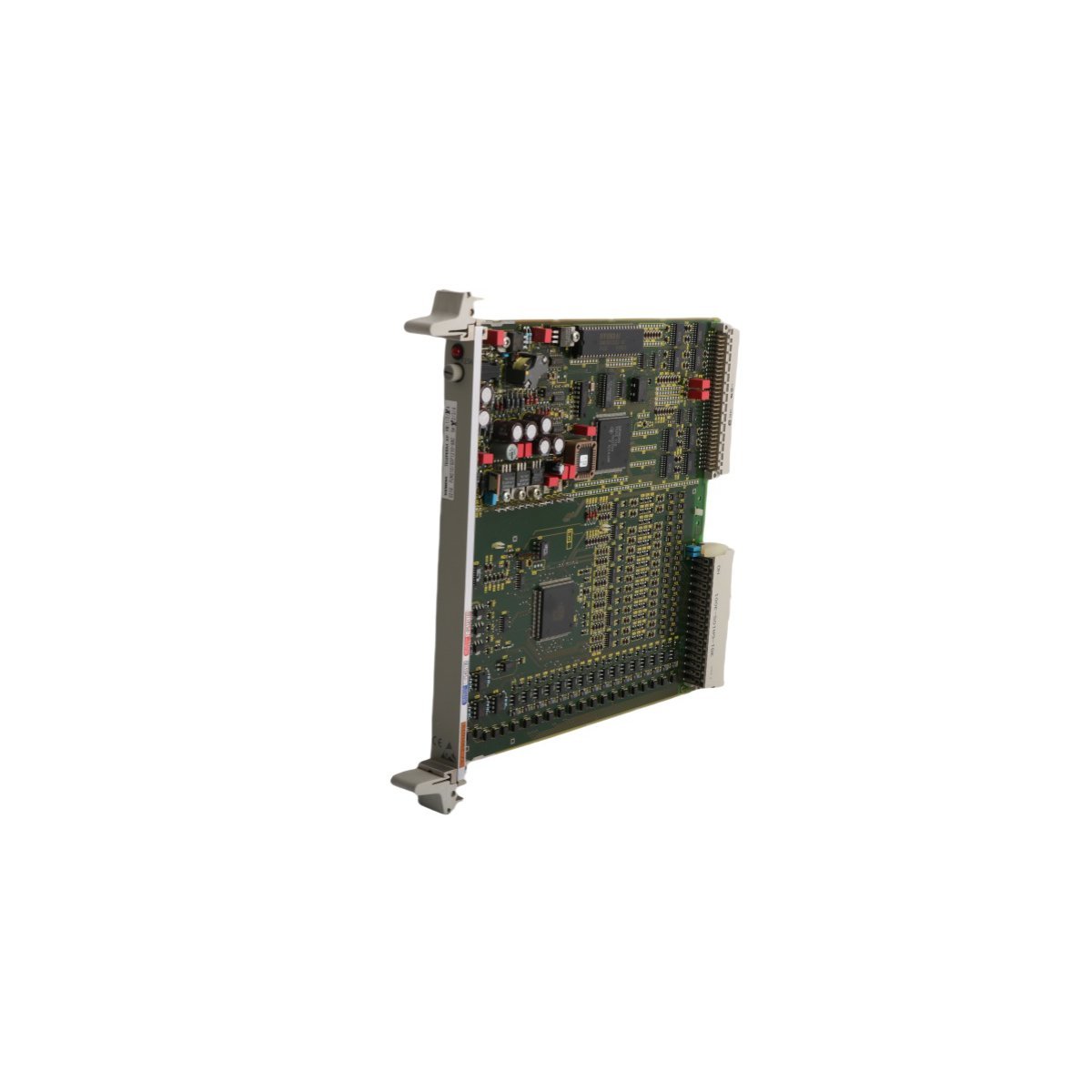

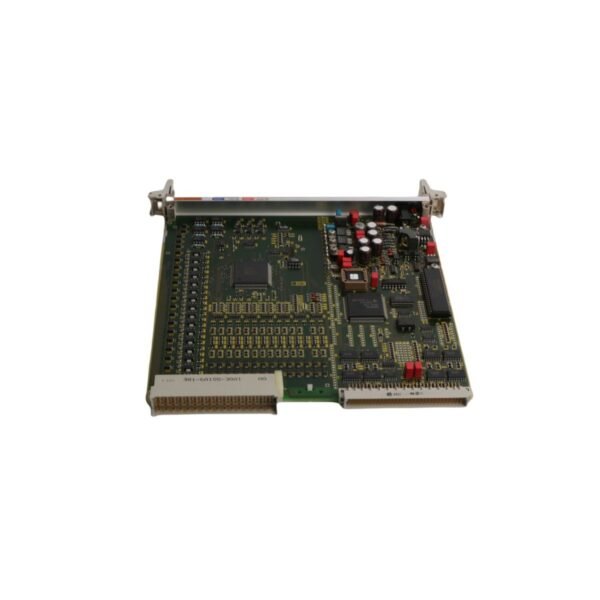

Siemens FUM210 Binary Module 6DP1210-8BC PLC Signal Conditioner
The Siemens 6DP1210-8BC (FUM210) is a robust binary I/O module for TELEPERM XP systems. It features 28 inputs, 16 outputs, and 14 SPDT contacts, providing high-speed signal recording and 24V DC sensor supply for advanced industrial automation and drive control monitoring.
Description
Product Overview
The Siemens 6DP1210-8BC, also known as the FUM210, is a high-performance binary signal processing module belonging to the TELEPERM XP series. This component is specifically engineered to handle high-speed binary signal acquisition and precise drive control monitoring. By integrating sensor conditioning and rapid signal recording, the module ensures seamless data flow between field devices and the central processing unit in complex industrial automation architectures.
Key Technical Characteristics
- Channel Density: Features 28 discrete binary input channels and 16 binary output channels for high-density I/O management.
- Integrated Power Supply: Provides a dedicated 24V DC output to power connected sensors directly from the module.
- Relay Capability: Includes 14 SPDT (Single-Pole Double-Throw) changeover contacts, offering versatile switching options for various load types.
- Signal Processing: Optimized for encoder preparation and the recording of high-frequency binary signals.
- Environmental Resilience: Designed to operate in temperatures ranging from 0°C to 60°C with a non-condensing humidity tolerance of up to 95%.
- Mechanical Profile: Compact form factor weighing 0.4 kg, facilitating straightforward installation in standard PLC racks.
Operational Applications
This module is primarily utilized in power generation and large-scale manufacturing environments where TELEPERM XP control systems are deployed. It excels in monitoring drive states and synchronizing fast binary inputs that require immediate processing for safety or logic control. Furthermore, its ability to condition sensor signals makes it an essential bridge for field instruments requiring stable 24V DC excitation.
Technical Specifications
- Manufacturer: Siemens
- Part Number: 6DP1210-8BC
- Designation: FUM210 Binary Module
- Input Channels: 28 Binary Inputs
- Output Channels: 16 Binary Outputs
- Switching Contacts: 14 SPDT Relay Contacts
- Supply Voltage: 24V DC
- Origin: Germany
- Dimensions: 2.1 x 26.5 x 26.4 cm
- Weight: 0.4 kg
Additional information
| Weight | 0.4 kg |
|---|---|
| Country of Origin | Germany |
| Dimension | 2.1 x 26.5 x 26.4 cm |
