Description

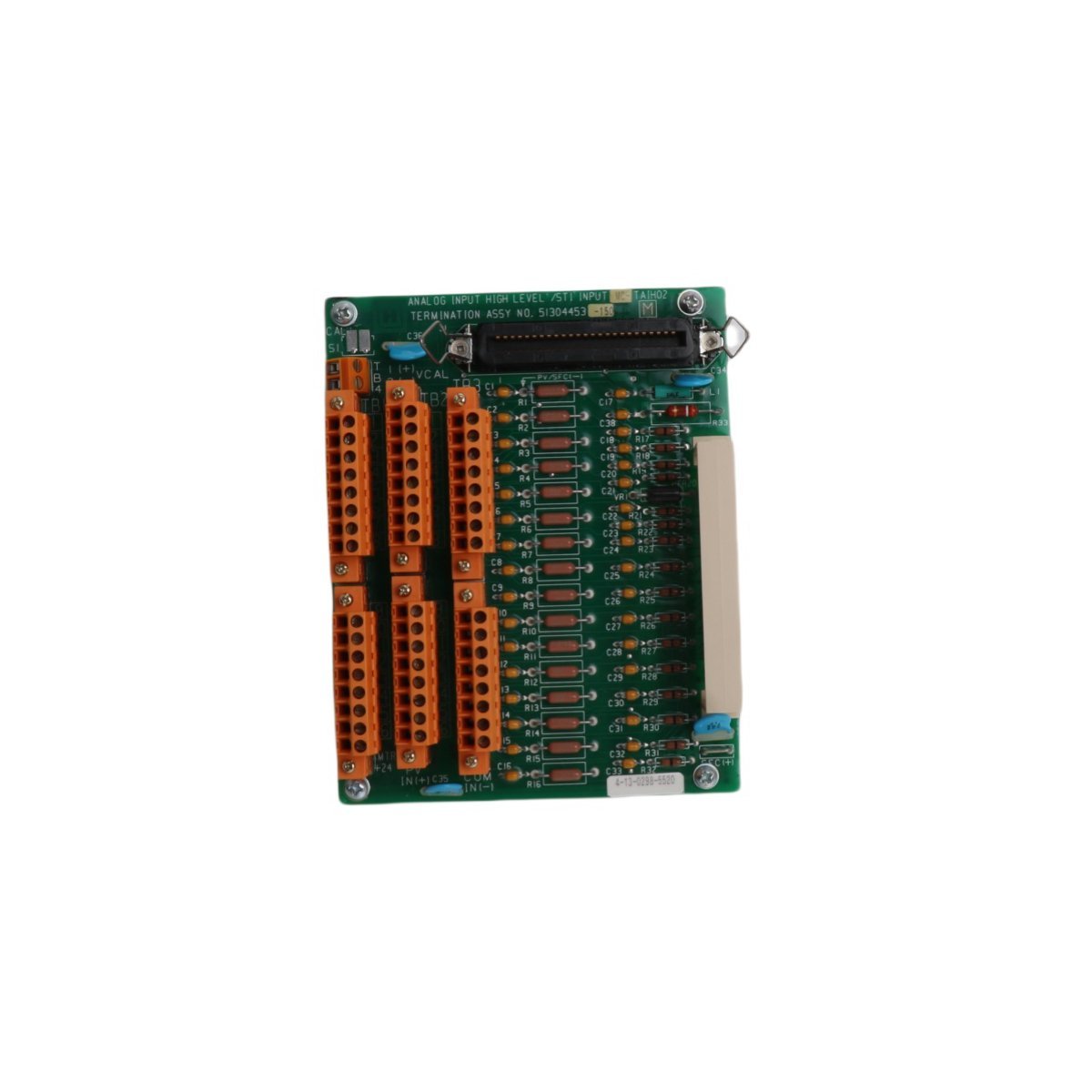

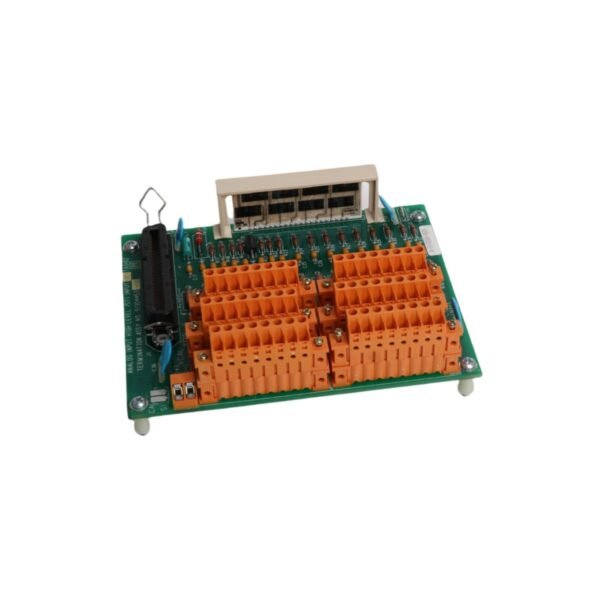

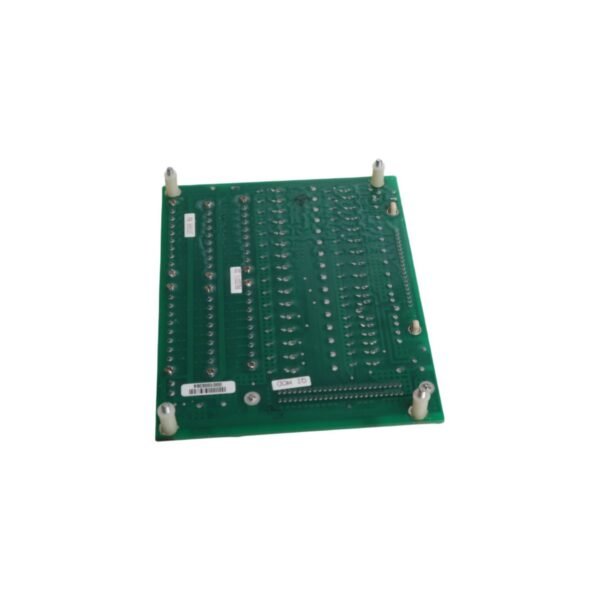

Configured for high-precision signal processing in distributed control systems, the Honeywell MC-TAIH02 51304453-150 (MC-TAIH02 Analog Input/STI FTA Module) provides direct physical and electrical execution of field-to-controller signal conversion.

Hardware Specifications

Process Control & Connectivity

This module supports the 4-20 mA HART loop protocol, facilitating bi-directional digital communication with field-mounted smart instrumentation. The hardware incorporates channel-to-channel isolation to suppress common-mode noise and prevent ground potential differences from affecting measurement accuracy. Furthermore, integrated cold junction compensation (CJC) circuitry provides high-fidelity thermal data acquisition when utilizing thermocouple-based input loops.

Frequently Asked Questions

Q: Does the MC-TAIH02 support online removal and insertion (hot-swap)?

A: The module is designed for replacement in energized system environments, provided the local I/O assembly supports hot-swapping and the specific controller firmware version enables active slot monitoring.

Q: How should the shield grounding be managed on the terminal board?

A: Shields must be terminated to a clean, low-impedance ground point at the FTA level to minimize electromagnetic interference (EMI) impact on the input signal integrity.

Field Installation Guidelines

• Static Discharge Prevention: Before physically handling the module, prioritize the protection of internal circuitry by utilizing an ESD-safe wrist strap; furthermore, ensure this strap is connected to a verified ground point to neutralize potential electrostatic discharge.
• Backplane Alignment: During the insertion process, carefully align the module with the MU-T series chassis backplane guides. Consequently, apply firm, even pressure to ensure the primary and secondary connectors engage correctly without mechanical binding.
• Shielding and Grounding: To maintain signal integrity, ensure all incoming cabling is appropriately shielded; in addition, verify that these shields are grounded according to site-specific standards to effectively minimize the impact of electromagnetic interference (EMI) on the loop performance.
• Firmware Verification: Finally, prior to proceeding with the commissioning phase, you must verify the module firmware version via the Engineering Workstation (EWS). Ultimately, this validation step is necessary to ensure strict alignment with the site-wide DCS software version, thereby preventing potential communication lockout.
