Description

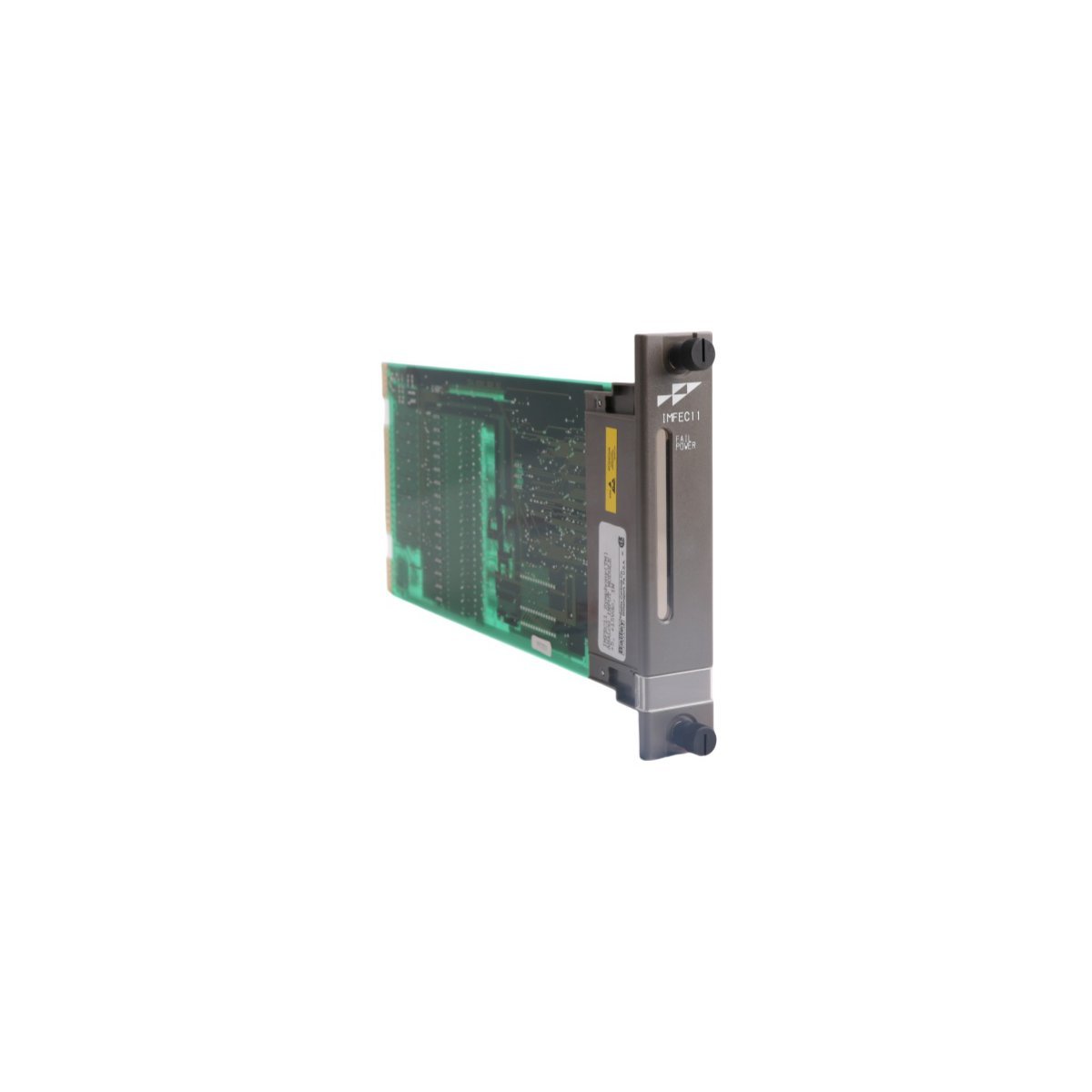

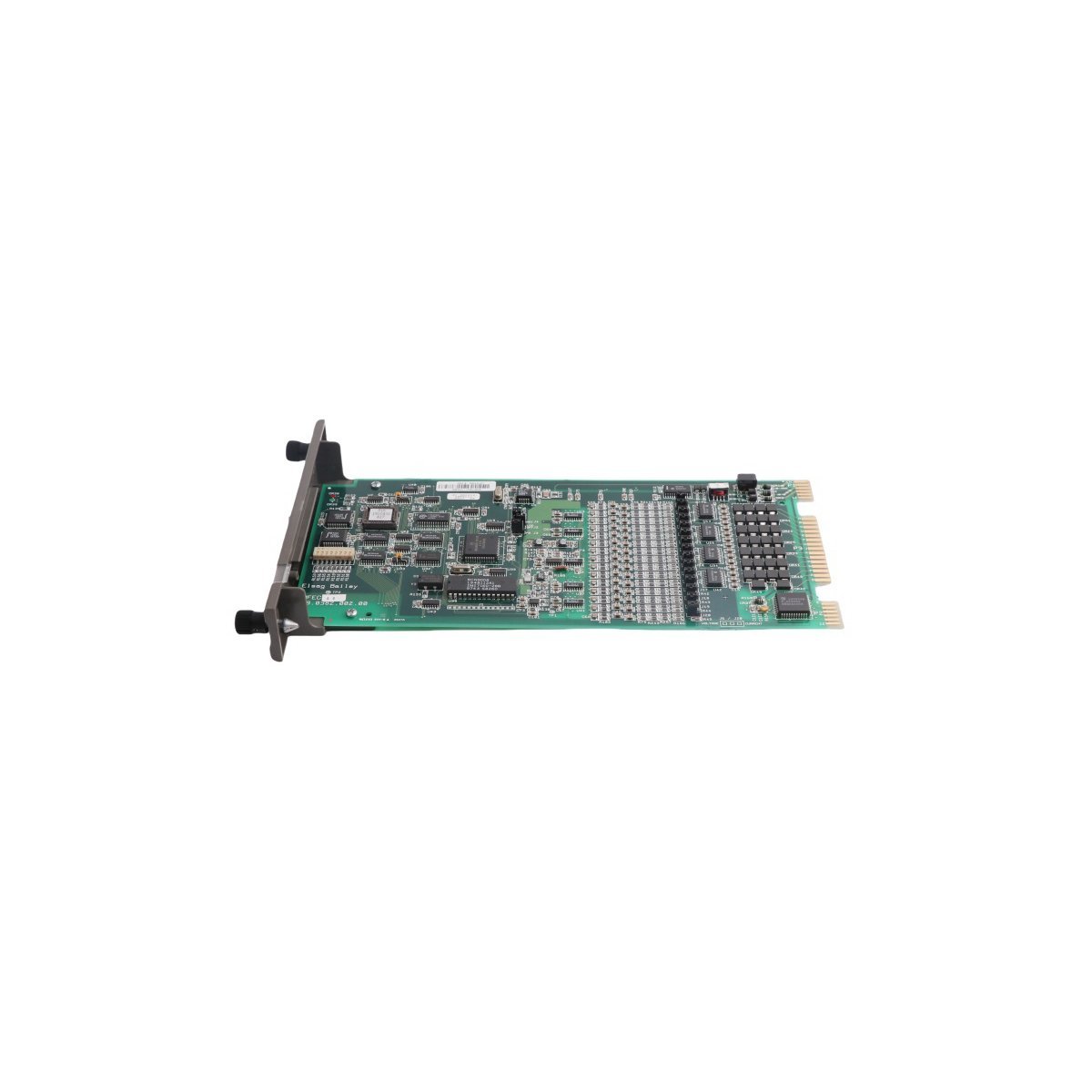

The ABB IMFEC11, also cataloged as the IMFEC11 Analog Input FSK Slave Module, operates as a dedicated hardware component for frequency shift keying (FSK) signal acquisition within Harmony Rack (HR) Series DCS platforms.

Hardware Specifications

Industrial Control and Communication Connectivity

Regarding the operational architecture, the IMFEC11 module utilizes deterministic network protocols to manage data exchange across distributed control system environments. Furthermore, its firmware supports flash compatibility; consequently, this ensures seamless integration with existing HR Series backplane bus communication velocities. Simultaneously, the internal architecture facilitates high-density I/O scaling, which allows the module to interface directly with field instrumentation. In addition to this capability, the design maintains the necessary timing precision required for critical DCS loop execution. Finally, as a measure of structural integrity, channel-to-channel isolation is maintained; therefore, the module effectively protects against common-mode noise interference in industrial electrical environments.

Frequently Asked Questions

Q: Does the IMFEC11 support hot-swapping while the Harmony Rack is under power?

A: No, the module requires the removal of backplane power to prevent potential data bus contention or electrical transients during the seating or unseating of the module.

Q: How is the FSK signal routed to the module?

A: The input signal should be wired to the designated terminal assignments on the corresponding I/O termination unit. Consequently, ensure that shielded twisted-pair cabling is utilized and grounded at the rack common point to prevent EMI interference.

Field Installation Guidelines

• Shielding and Grounding: Terminate instrument cable shields only at the specified control system common ground terminal. In order to prevent ground loops, avoid grounding at field junction boxes.
• Wiring Separation: Route signal cables in dedicated conduits separate from high-voltage power lines. Specifically, maintain segregation from variable frequency drive (VFD) output circuits to minimize crosstalk.
• Physical Mounting: Ensure the module is fully seated into the rack slot, and subsequently, confirm the mechanical locking mechanism is engaged. Finally, verify that the backplane connector pins are free from debris or oxidation before applying power.
