Description

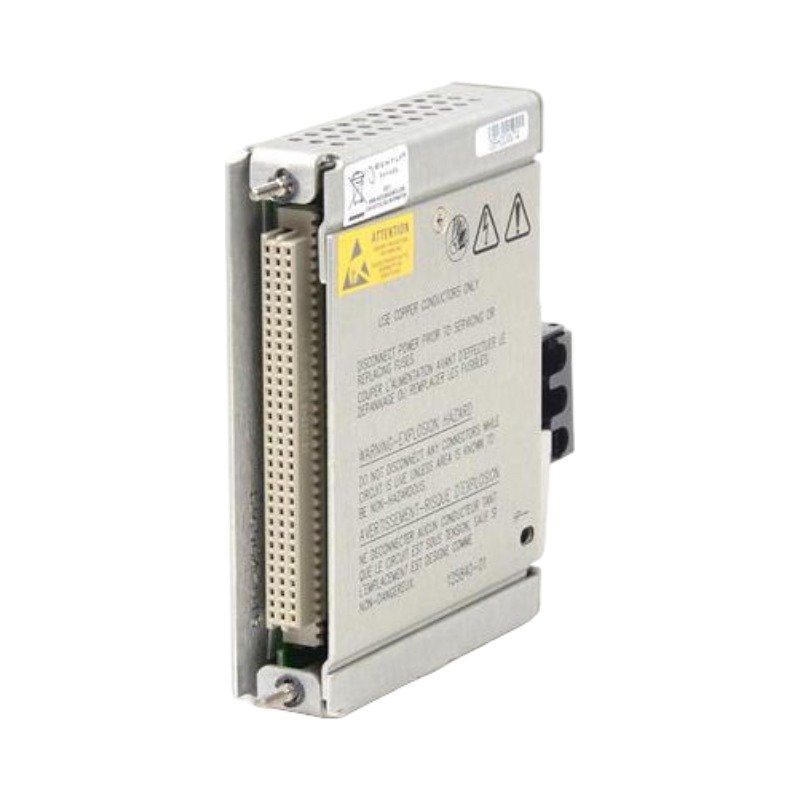

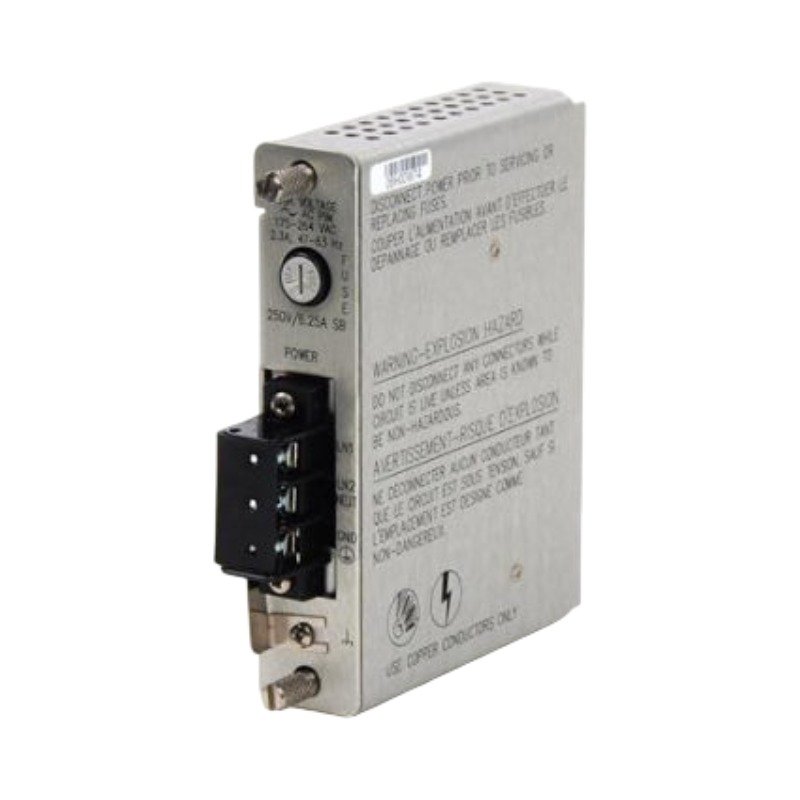

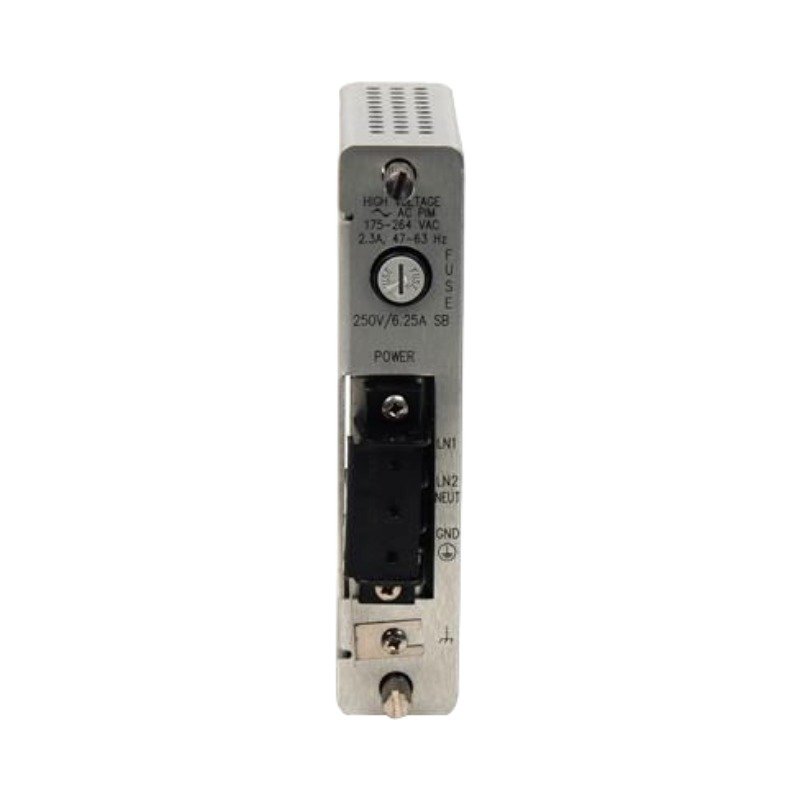

The Bently Nevada 3500/15 125840-01, also cataloged as the 125840-01 High Voltage AC Power Input Module (PIM), operates as a dedicated hardware component for power distribution within 3500 Machinery Protection System platforms. This half-height interface intercepts external utility line voltages and routes them safely into the main power supply filtration and regulation circuit boards.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

The input module interfaces with primary electrical lines to secure stable power delivery for sensitive measurement cards, ensuring uninterrupted eddy-current probe scaling accuracy across the system rack. Active overvoltage protection circuits monitor input parameters constantly, safeguarding the rack backplane against electrical surges that disrupt gap voltage validation (-10 VDC targets) routines. By cleaning input power fluctuations, the module prevents grid-induced harmonics from degrading the fine data paths required to analyze rotor dynamics waveforms. Integrated terminal grounding points work in tandem with the physical chassis layout to enforce cross-talk suppression between high-density analog monitoring channels.

Frequently Asked Questions

Q: What operational response occurs if the external line parameters experience an overvoltage spike exceeding the rated 250 VAC RMS?

A: An overvoltage condition forces the integrated fast-acting protection fuse (Part Number 01720025) on the power input board to open, instantly disconnecting the high-voltage lines from the internal rack backplane.

Q: Can this high-voltage input module be paired with a low-voltage DC power supply inside the same 3500 chassis?

A: No, the 125840-01 module matches the mechanical pinouts and voltage thresholds of the high-voltage AC version of the 3500/15 power supply module exclusively. It does not line up with low-voltage AC or any DC supply variants.

Field Installation Guidelines

• Slot Restrictions: Slide the half-height module assembly into the dedicated power infrastructure slots situated exclusively on the far-left side of the 3500 rack frame.
• Fuse Verification: Inspect the status of the integrated protection fuse before screwing the faceplate down. Ensure replacements match the original 3.15 A slow-blow rating identically.
• Terminal Screws: Tighten all power terminal connection block screws to a torque metric of 0.5 Nm to prevent high-resistance connection points under heavy current draw.
