Description

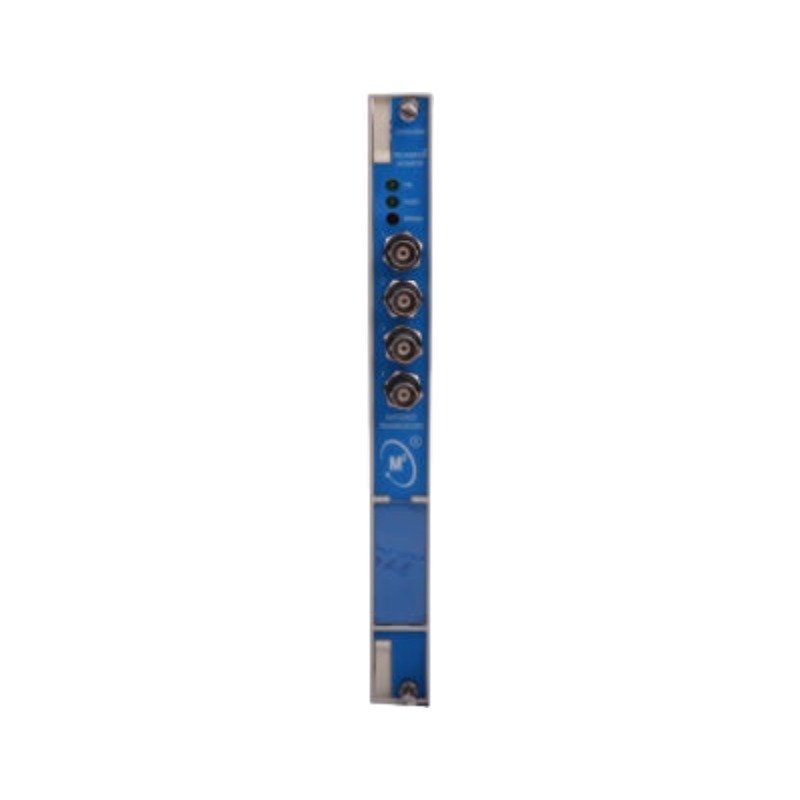

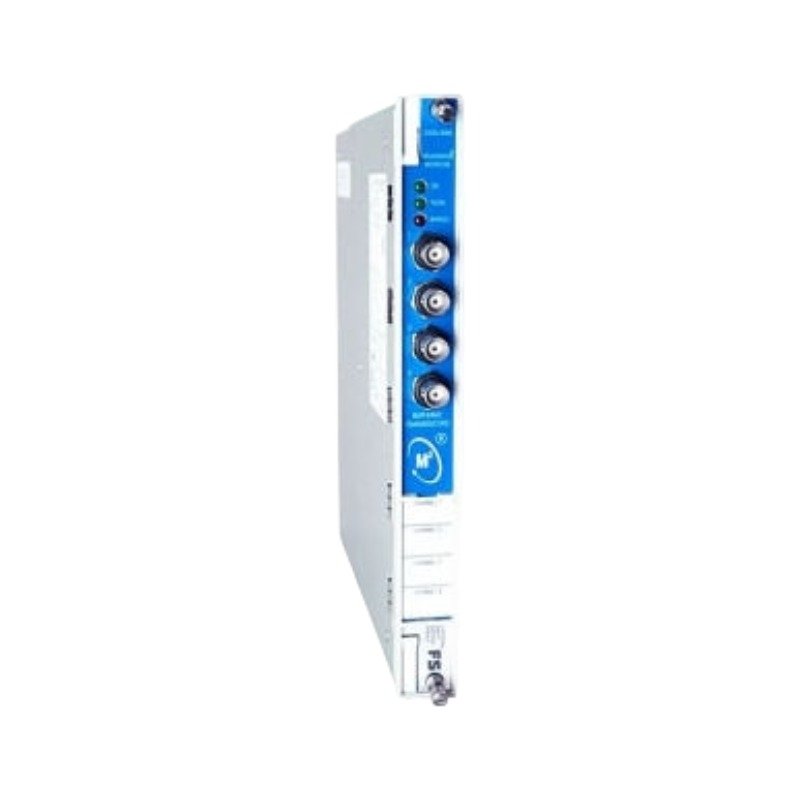

The Bently Nevada 176449-05, also cataloged as the 3500/64M Dynamic Pressure Monitor, operates as a dedicated hardware component for machinery protection within the Bently Nevada 3500 Monitoring System platform. This single-slot, four-channel module accepts input processing from high-temperature pressure transducers to execute continuous condition analysis. The module targets specific acoustic and combustion instabilities, translating dynamic fluctuations into precise tracking indicators to protect critical turbine machinery.

Hardware Specifications

Machinery Monitoring and Eddy-Current Probe Scaling

The dynamic pressure monitor processes inputs from high-temperature sensors to track rapid pressure pulsations inside gas turbine combustors. While proximity loops in the same rack rely on eddy-current probe scaling and -10 VDC targets for gap voltage validation, the 176449-05 conditions voltage variations representing dynamic fluid and gas pressures. Internal hardware paths ensure robust cross-talk suppression between high-frequency pressure sensor lines and surrounding rotor dynamics cards. This structural isolation prevents induction noise from corrupting the bandpass tracking parameters, sustaining clean signals across the 3500 backplane network.

Frequently Asked Questions

Q: What function do the front panel LED indicators provide on the 176449-05 module faceplate?

A: The module incorporates OK, TX/RX, and Bypass LEDs. The OK LED denotes hardware status, TX/RX tracks active serial backplane bus communication velocity, and Bypass signals that an active alarm inhibition state is executing.

Q: Can this dynamic pressure monitor module be swapped while the remaining 3500 rack is powered?

A: Yes. The hardware configuration supports hot-swap installation procedures. However, removal of the main monitor card disrupts the specific execution of its four localized protection loops, meaning appropriate safety bypasses must be active at the system level before removal.

Field Installation Guidelines

• Slot Alignment: Slide the main circuit board along the dedicated chassis guide rails of the 3500 rack until the rear connector seats firmly into the backplane mating block.
• Chassis Fastening: Tighten the two integrated thumb screws located on the module front panel to ensure solid grounding against the rack frame and prevent vibrational displacement.
• I/O Matching: Always pair the 176449-05 spare monitor card with a compatible 140471-02 dynamic pressure I/O module installed in the corresponding rear chassis position.
• Signal Shielding: Ensure field transducer cable shields run continuously to the external termination block, maintaining full isolation from localized structural conduit paths.
