Description

Technical Overview

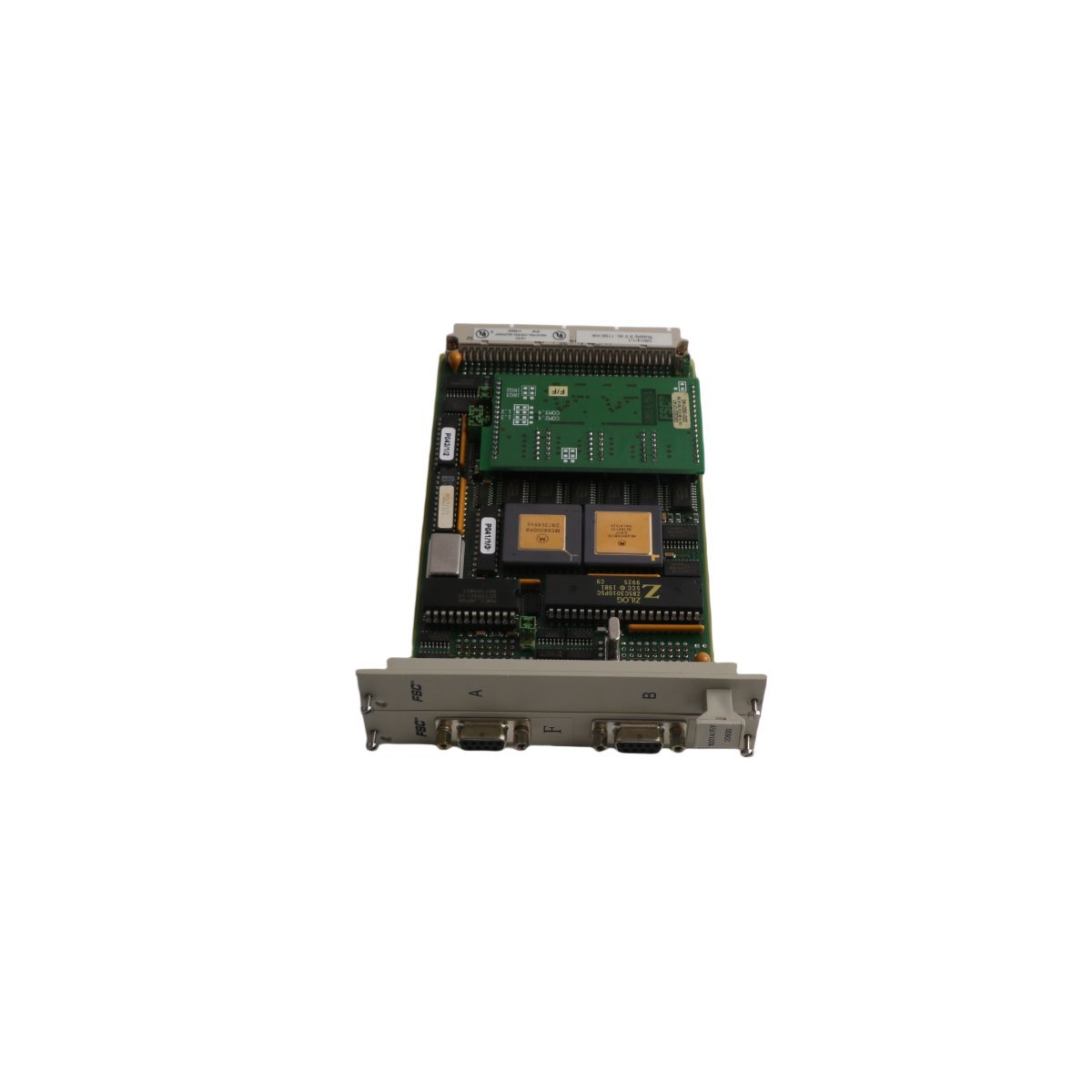

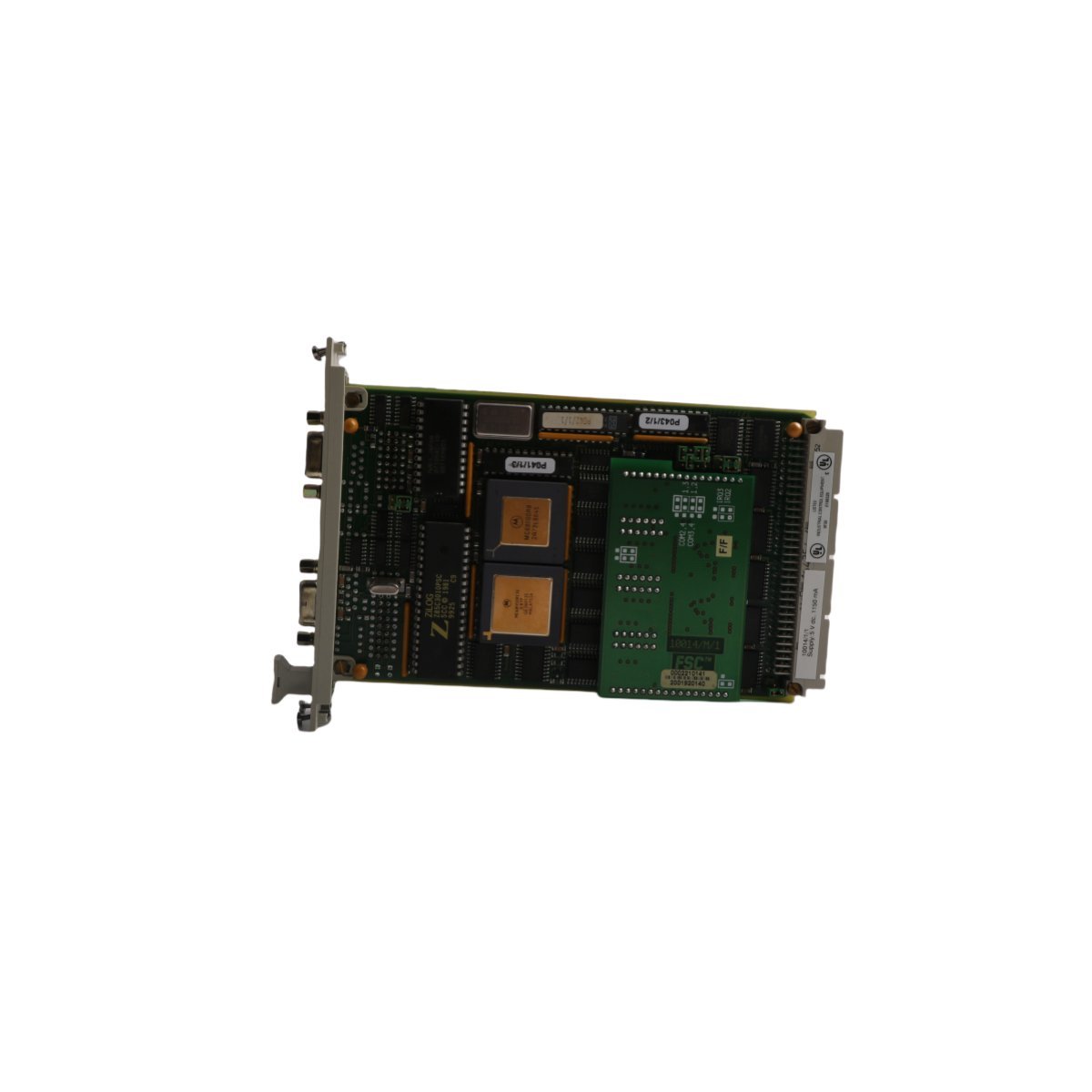

The Honeywell 10014/F/F functions as a critical Dual Port Module within the Fail Safe Control (FSC) system architecture. This module facilitates high-speed data transmission and redundant communication paths between safety controllers and external networks. By providing two independent communication ports, the 10014/F/F ensures that the safety system maintains connectivity even if a single cable or port fails. This hardware remains essential for complex Distributed Control System (DCS) environments where synchronized data exchange and system-wide coordination dictate operational success.

Key Technical Specifications

• Manufacturer: Honeywell
• Model Identifier: 10014/F/F
• Equipment Category: Dual Port Communication Module
• System Compatibility: Honeywell FSC (Fail Safe Control)
• Physical Dimensions: 4.0 x 18.5 x 12.8 cm
• Net Weight: 0.36 kg

Functional Performance and Connectivity

The 10014/F/F module actively manages signal routing to optimize the efficiency of the industrial network. Because it integrates directly into the FSC rack, the board supports seamless interfacing with Ethernet routers and other diagnostic tools. This connectivity allows for real-time monitoring of safety-critical variables, which enables operators to preemptively address network latencies. Furthermore, the robust circuit design handles high-frequency data packets without compromising the integrity of the safety loop, ensuring that timing-sensitive commands reach their destination reliably.

Applications and Industrial Reliability

Industrial facilities primarily deploy the Honeywell 10014/F/F in sectors such as petrochemical processing, power generation, and heavy manufacturing. These environments require dependable automation solutions that can withstand continuous duty cycles. To support these demands, the module features advanced onboard diagnostics that simplify troubleshooting and accelerate repair times. Consequently, the board significantly reduces the risk of unexpected system outages. Even though Honeywell officially discontinued the series in late 2018, this module continues to serve as a vital replacement part for maintaining the safety integrity levels (SIL) of existing legacy installations.
