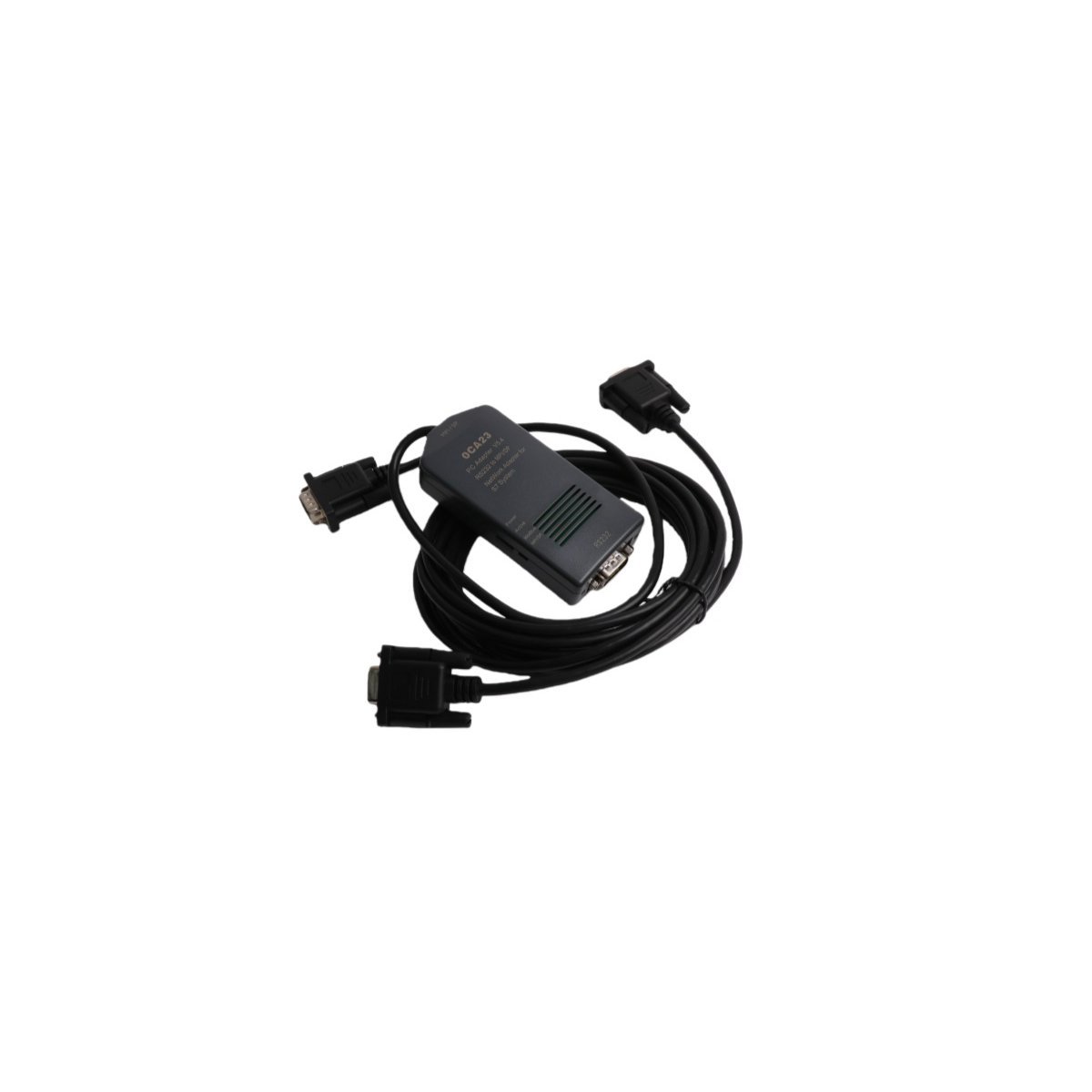

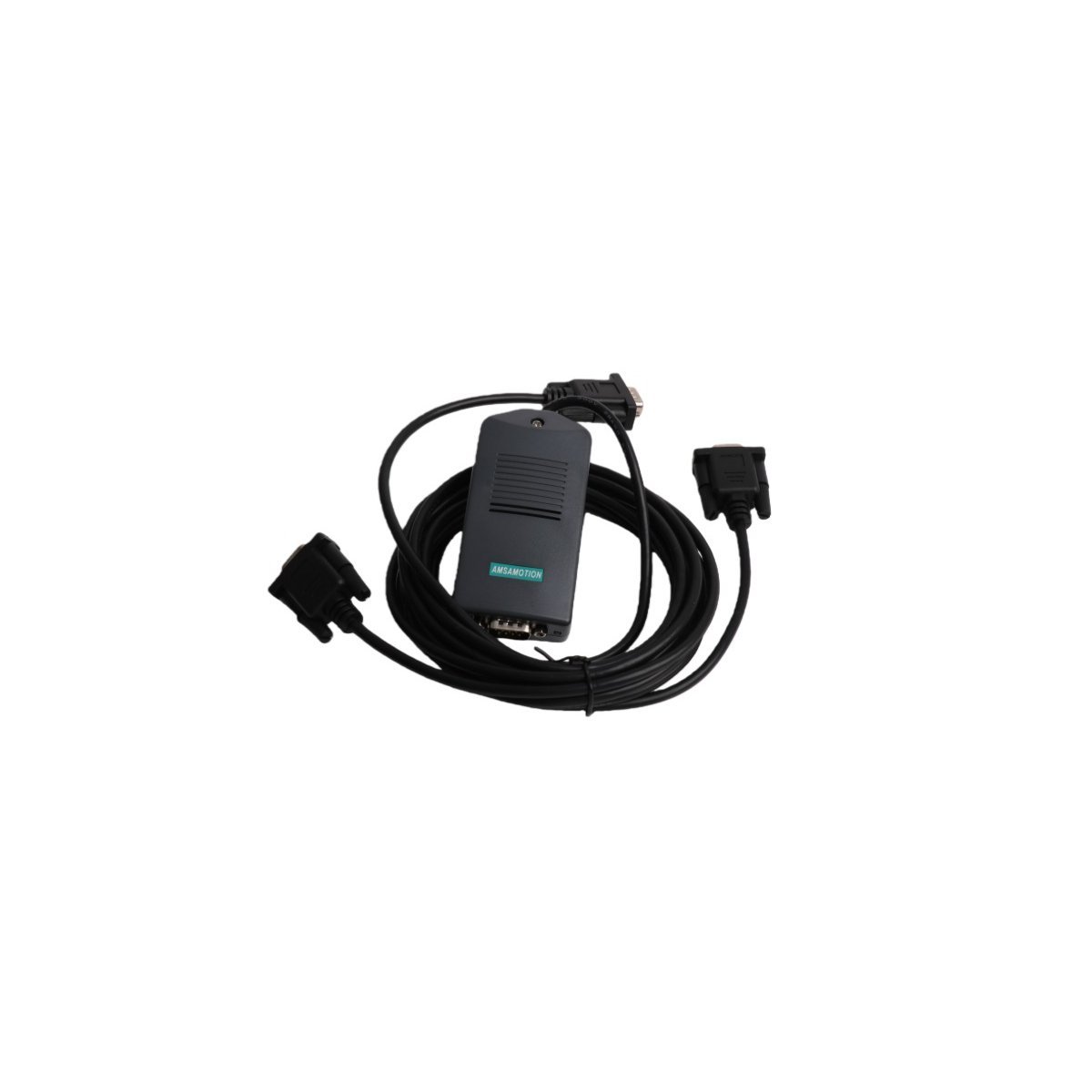

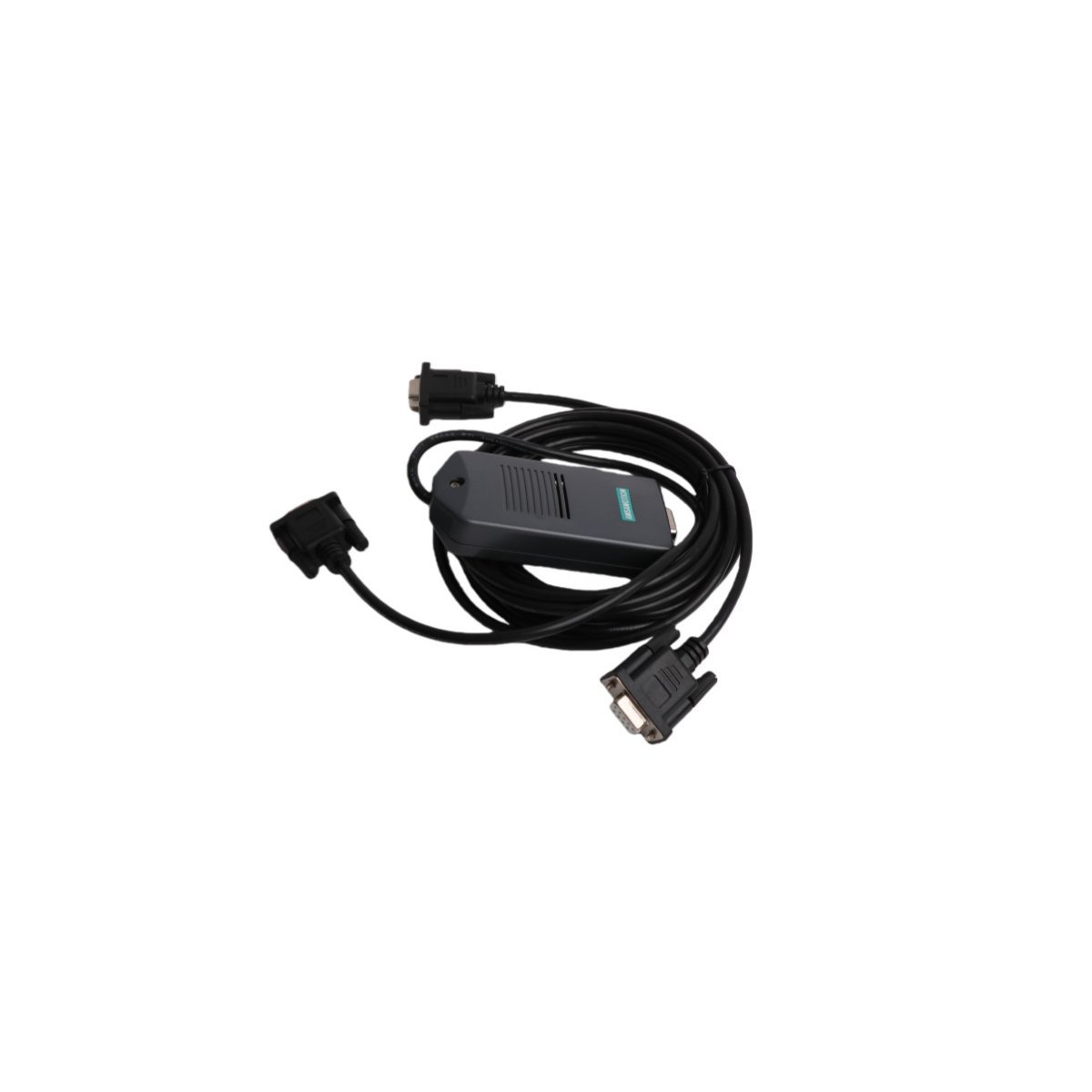

Siemens SIMATIC S7 6ES7972-0CA23-0XA0 PC Adapter V5.1 Communication Interface
The Siemens 6ES7972-0CA23-0XA0 is a professional PC Adapter V5.1 designed to link RS232 programming ports to SIMATIC S7-300/400 MPI and DP networks. It supports both direct local connections and remote modem access, making it essential for PLC programming and industrial diagnostics.
Description
Product Overview
The Siemens 6ES7972-0CA23-0XA0 serves as a critical communication bridge between industrial computing hardware and SIMATIC S7 automation systems. This PC Adapter V5.1 facilitates the connection of notebooks or desktop PCs to S7-300, S7-400, C7, and M7 controllers via their native MPI/DP interfaces. By converting RS232 serial signals into the RS485 physical layer required by industrial networks, this adapter enables engineers to perform programming, configuration, and diagnostics without the need for specialized internal PC expansion cards.
Technical Capabilities and Performance
- Interface Conversion: Converts standard RS232 COM port signals to RS485 for seamless PLC network integration.
- Variable Transmission Rates: Features manual baud rate adjustment for direct local connections, ensuring optimal data synchronization.
- Remote Access Support: Integrates fully with TeleService software to allow modem-based remote maintenance and troubleshooting.
- Engineering Compatibility: Supports the complete suite of Siemens engineering tools, including STEP 7, for project management and real-time monitoring.
- Galvanic Isolation: Incorporates robust electrical isolation to protect connected programming devices from industrial electrical noise and surges.
- Plug-and-Play Portability: Offers a compact design optimized for mobile service applications and field-level maintenance.
Industrial Applications
Automation professionals utilize the 6ES7972-0CA23-0XA0 primarily for field-service tasks and workshop-based PLC programming. Because it establishes a reliable link through standard serial ports, technicians can easily monitor logic execution or modify parameters on-site. Furthermore, the adapter acts as a gateway for remote diagnostic sessions, which significantly reduces the need for physical travel to remote industrial sites. Consequently, it has become an indispensable tool for maintaining system uptime across diverse manufacturing and processing sectors.
Technical Specifications
- Manufacturer: Siemens
- Order Number: 6ES7972-0CA23-0XA0
- Product Series: SIMATIC S7 / PC Adapter V5.1
- Interface Type: RS232 to MPI/DP (RS485)
- Compatible Systems: S7-300, S7-400, C7, M7
- Dimensions: 2.5 cm x 5.1 cm x 83.8 cm (incl. cable)
- Net Weight: 0.95 kg
- Country of Origin: Germany
Additional information
| Weight | 0.95 kg |
|---|---|
| Country of Origin | Germany |
| Dimension | 2.5 cm x 5.1 cm x 83.8 cm |
