Product Overview

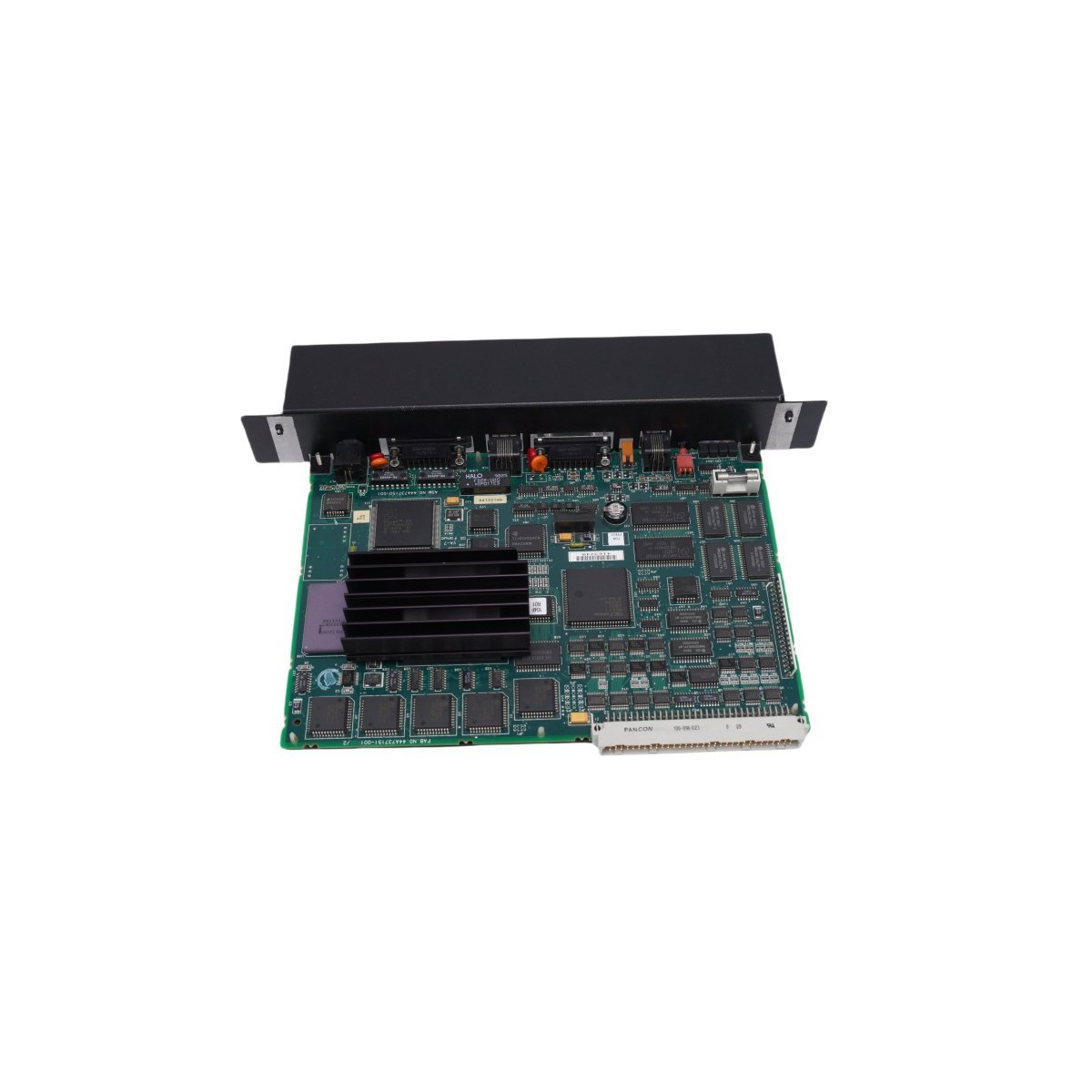

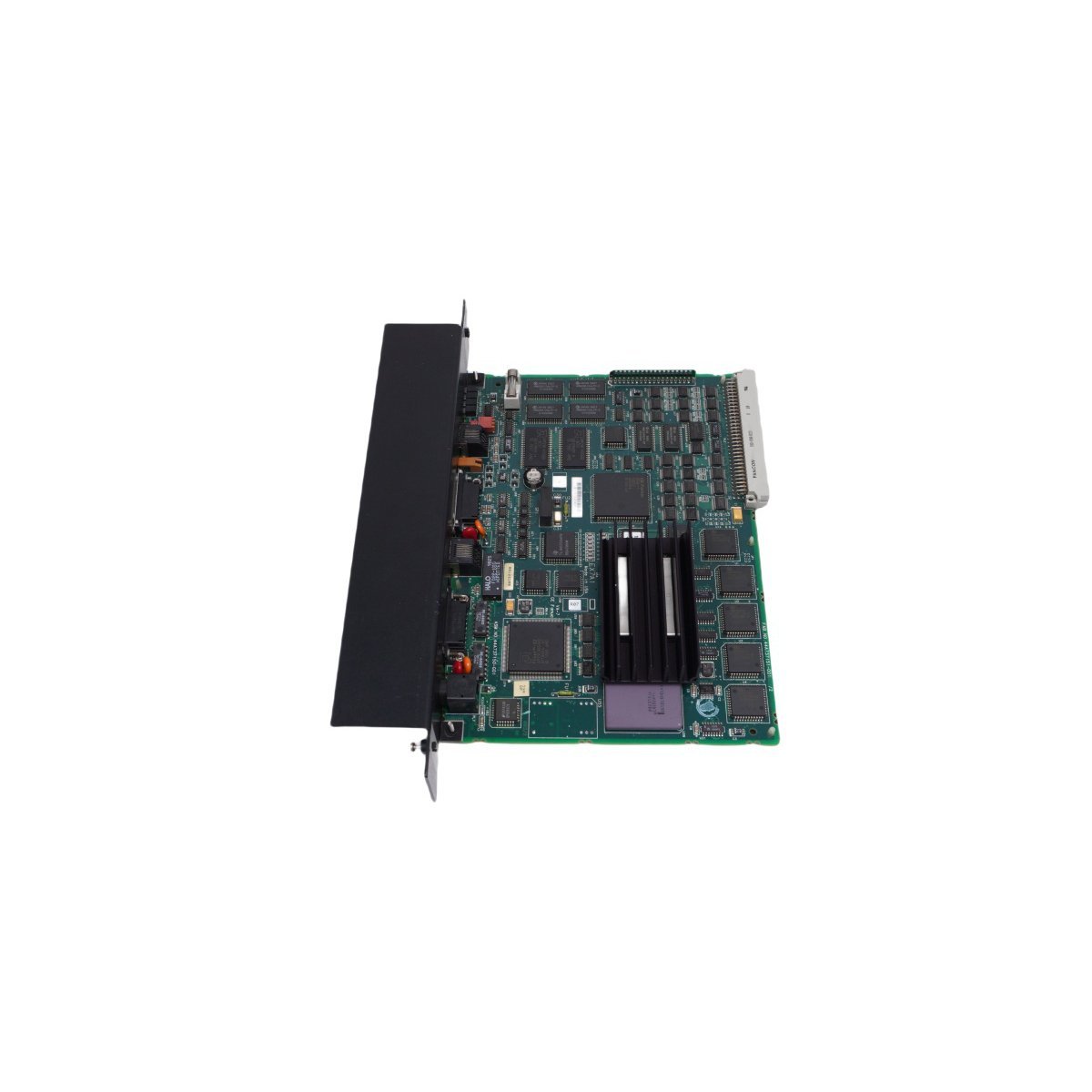

The GE Fanuc IC697CMM742 functions as a robust Ethernet interface module tailored for the Series 90-70 programmable logic controller (PLC) platform. By providing a high-speed communication gateway, this module allows industrial controllers to integrate seamlessly into local area networks. It facilitates complex data exchange between the PLC and external devices, including SCADA systems, human-machine interfaces (HMIs), and remote monitoring workstations, thereby enhancing the overall operational visibility of automated processes.

Technical Specifications

• Model Number: IC697CMM742
• Manufacturer: GE Fanuc (Emerson)
• Series Compatibility: Series 90-70 PLC
• Product Type: Ethernet Communication Module

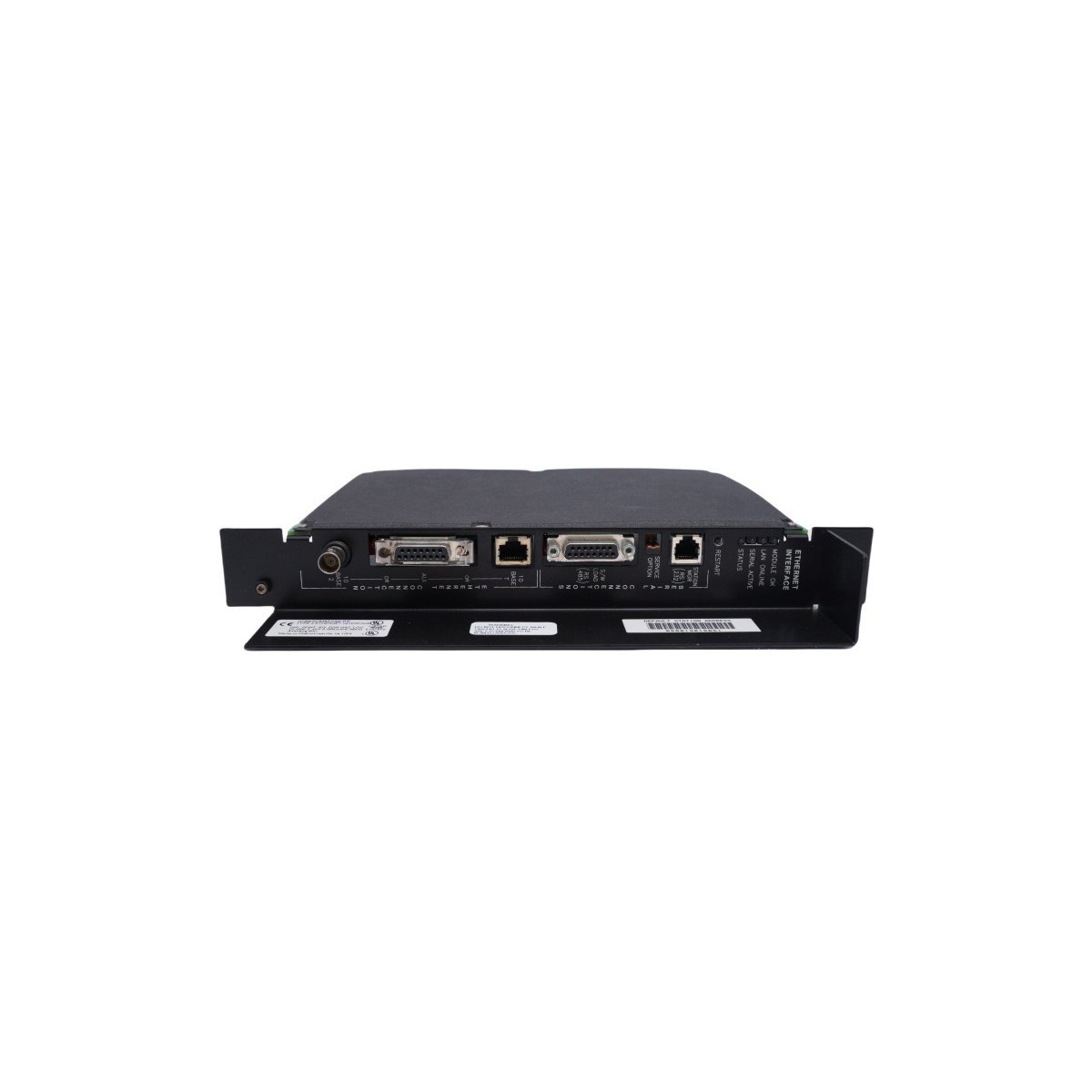

• Network Connectivity: AUI, 10BaseT, and 10Base2
• Serial Interfaces: RS-232 and RS-485 ports
• Operating Temperature: 0°C to +55°C
• Rack Scalability: Supports up to four modules per CPU rack
• Weight: 0.8 kg
• Dimensions: 4 cm x 21.8 cm x 29.1 cm

Operational Capabilities and Integration

Engineers deploy the IC697CMM742 to implement sophisticated communication protocols, including Ethernet Global Data (EGD) and TCP/IP via Service Request Transfer Protocol (SRTP). Because the module supports both configuration-based and logic-based data exchanges, it provides significant flexibility for diverse industrial control requirements. The hardware also integrates serial connectivity options, ensuring that legacy equipment communicates effectively alongside modern network-enabled devices.

Furthermore, the module includes dedicated diagnostic LED indicators—such as Module OK, LAN Online, and Serial Active—which enable maintenance personnel to perform rapid system troubleshooting. To ensure sustained reliability during field operations, the module features a physical reset button for quick communication reinitialization and a replaceable fuse specifically designed for the AUI transceiver port. By utilizing this scalable solution, technicians manage complex network loads and maintain high levels of system throughput across critical industrial facilities.
