Description

Network Integration and Operational Utility

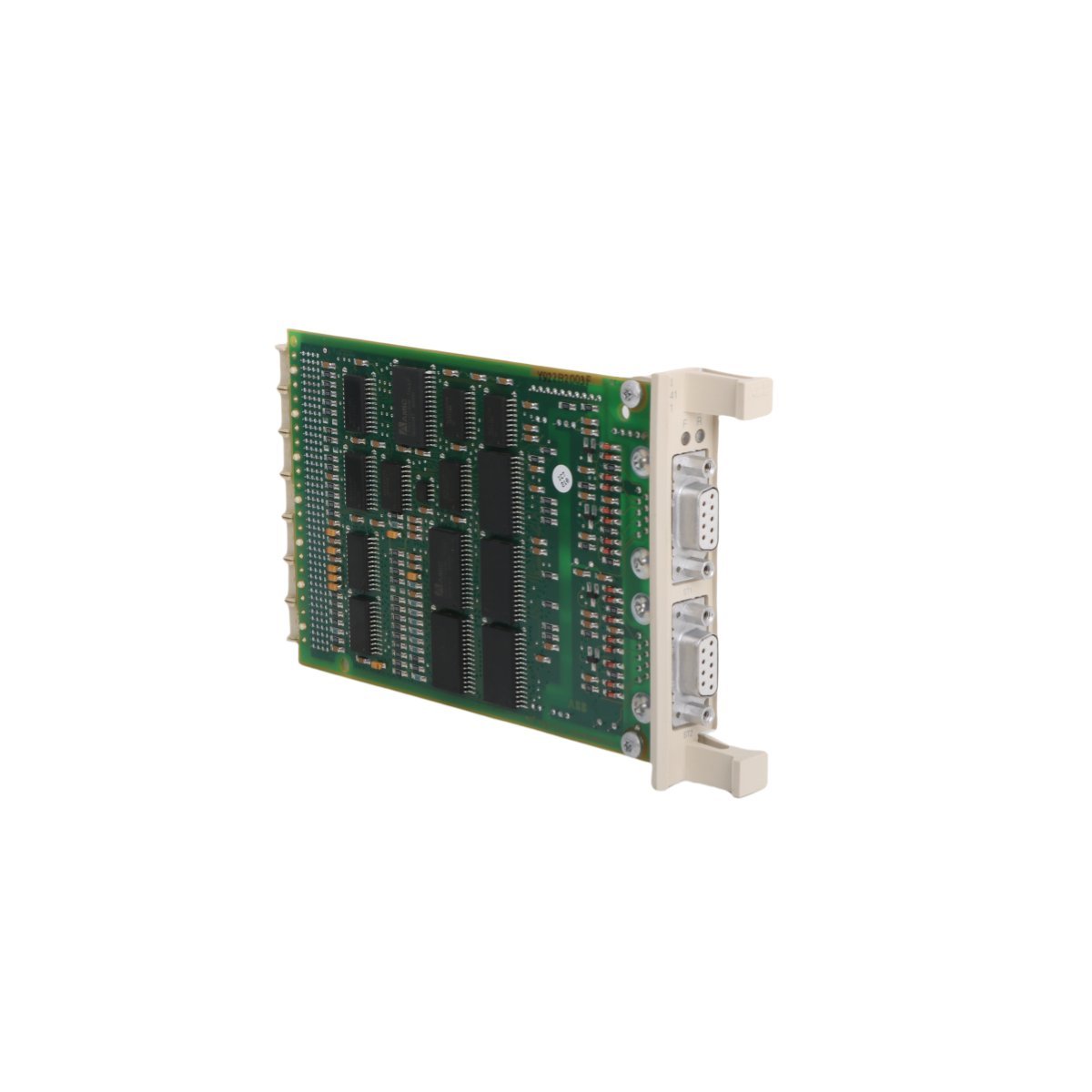

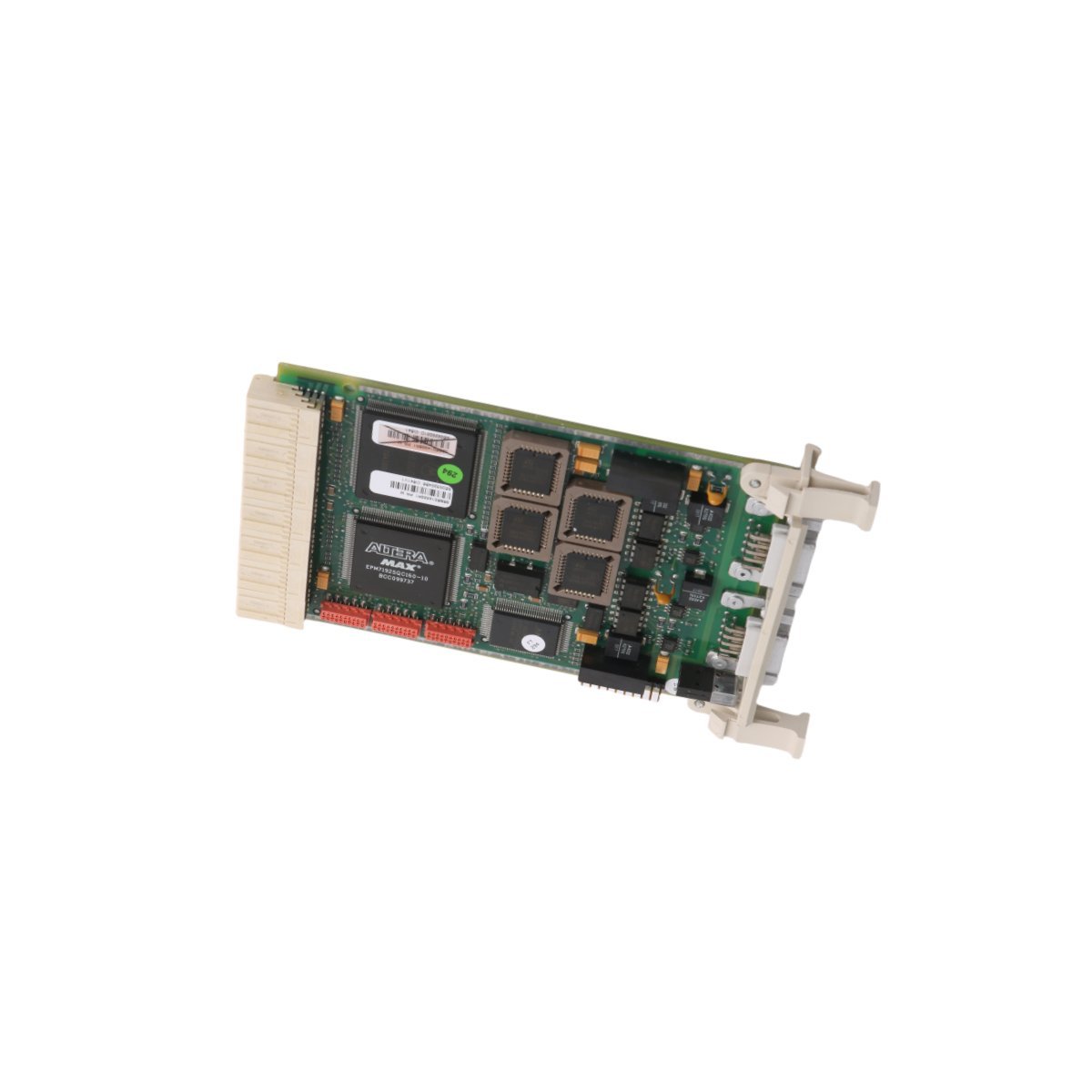

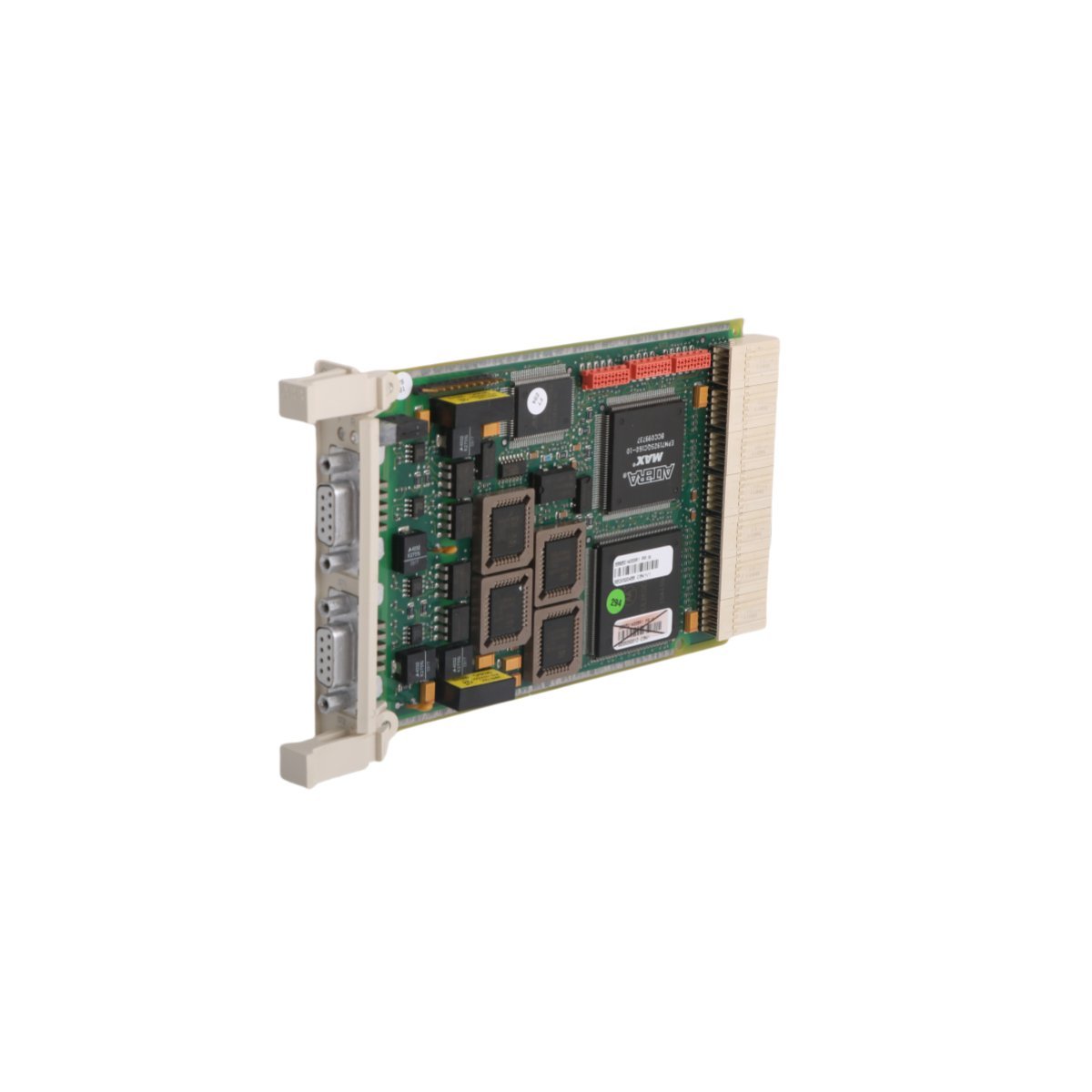

The ABB CI541V1 (3BSE014666R1) serves as a high-performance Profibus DP communication submodule primarily designed for the AC500 PLC and Distributed Control System (DCS) environments. In particular, this module actively facilitates the exchange of process data between central controllers and decentralized field devices, such as remote I/O, sensors, and variable speed drives. By functioning as a dedicated communication bridge, the CI541V1 ensures that automation architectures maintain high data throughput while simultaneously offloading processing tasks from the primary CPU.

Enhanced System Reliability and Redundancy

In addition to standard communication tasks, the 3BSE014666R1 architecture specifically supports dual redundant bus configurations to prevent system failure in mission-critical applications. Because this interface submodule manages data flow with high precision, it significantly minimizes signal latency and eliminates transmission errors during peak operational cycles. Furthermore, the module includes advanced internal diagnostics that allow operators to monitor network health in real-time. Consequently, maintenance teams can identify cable breaks or node failures instantly. In this way, the system maximizes uptime and effectively reduces unplanned maintenance costs. Moreover, the inclusion of these diagnostic tools ensures that potential bottlenecks are addressed before they impact production.

Technical Construction and Deployment

Regarding its physical implementation, ABB optimizes the CI541V1 for rapid deployment within industrial cabinets by utilizing a slim 2cm width profile that conserves valuable rail space. Beyond its physical dimensions, the hardware integrates seamlessly with standard Profibus DP master and slave configurations, which allows for versatile scaling of industrial networks. At the same time, the module features a robust housing manufactured in Sweden, specifically designed to withstand the electrical noise and vibration common in power plant settings. Ultimately, this interface submodule provides a secure and scalable solution for industries that require continuous, deterministic communication across their automation landscape. As a result, it remains a preferred choice for high-reliability infrastructure projects.

Core Technical Specifications

• Brand: ABB
• Model: CI541V1
• Part Number: 3BSE014666R1
• Communication Protocol: Profibus DP
• Product Range: AC500 Series / DCS Submodule
• Data Architecture: Supports Dual Redundancy
• Physical Dimensions: 2 x 17 x 10.1 cm
• Unit Weight: 0.16 kg
• Country of Origin: Sweden
