Description

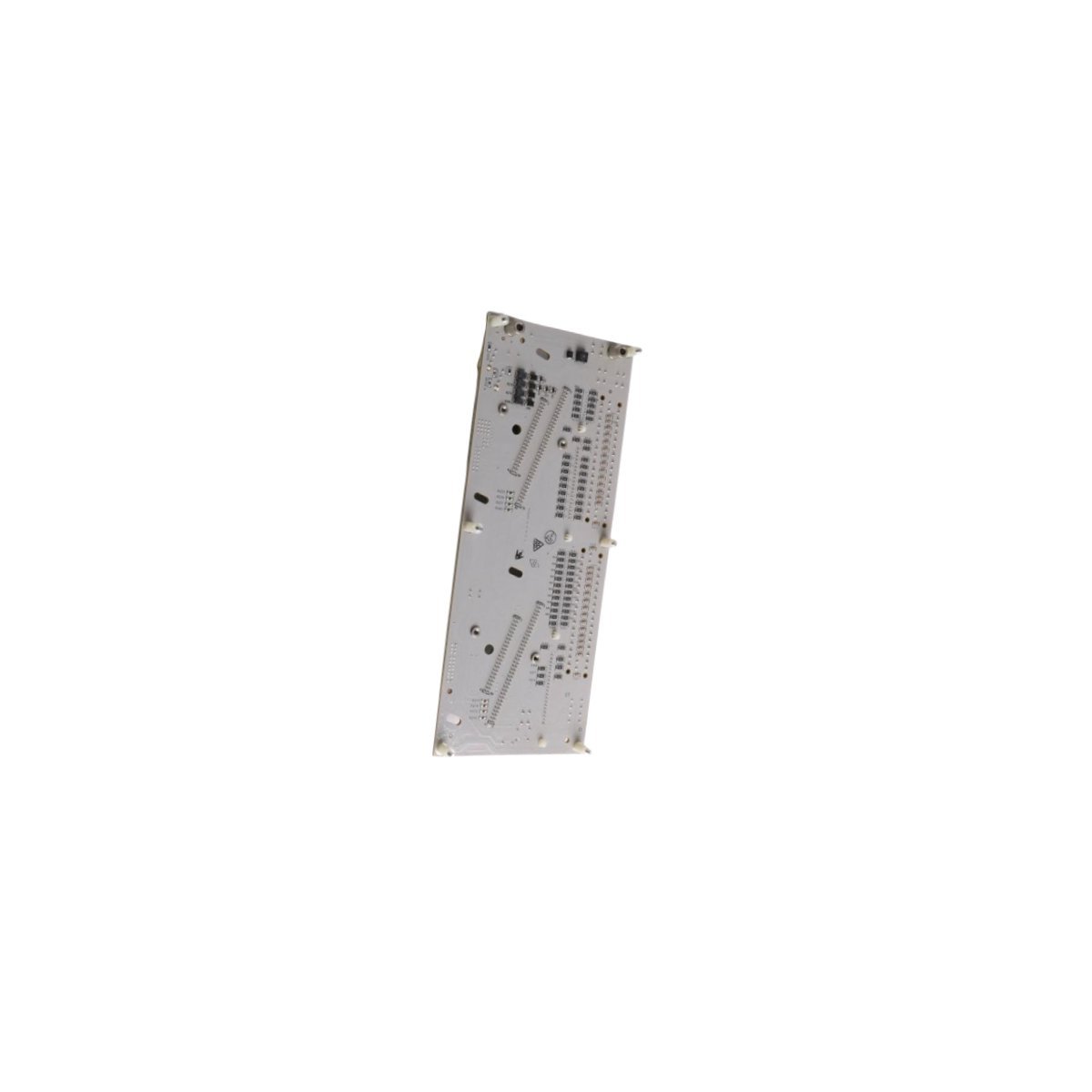

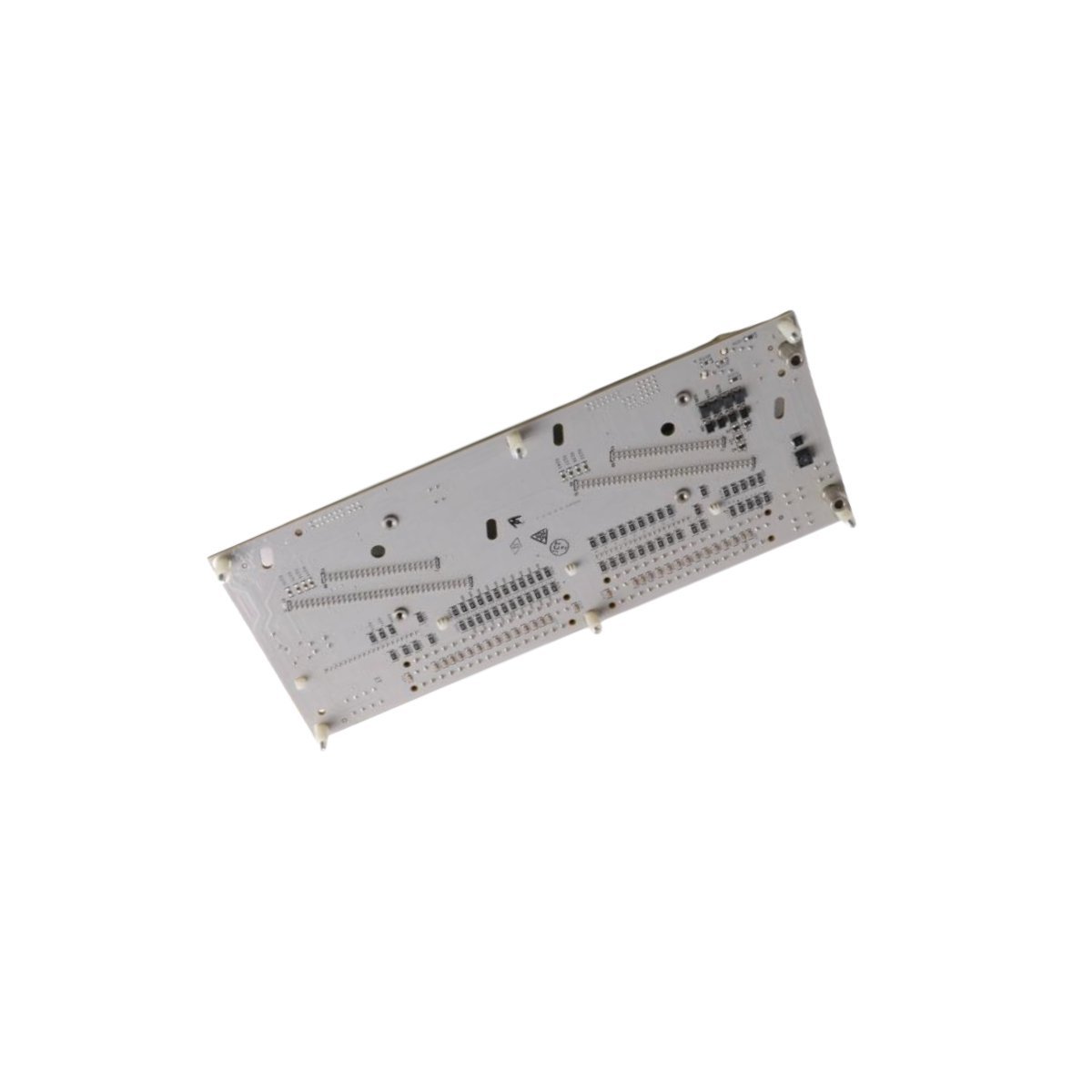

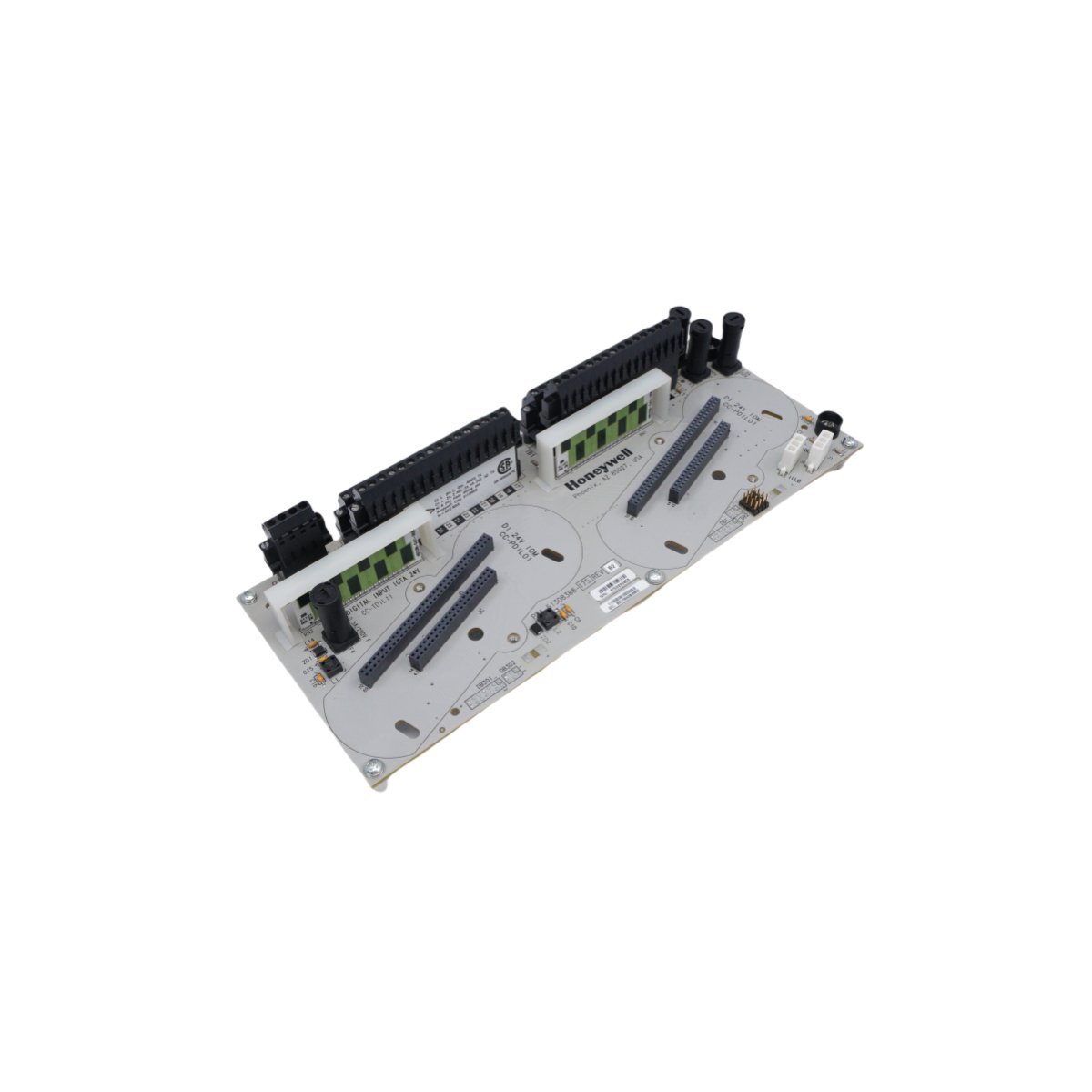

The Honeywell CC-TDIL11 51308388-175, also cataloged as the CC-TDIL11 Digital Input IOTA 24V Model, operates as a dedicated hardware component for field contact signal conditioning and 24 VDC binary status acquisition within Experion PKS C300 and safety system platforms.

Hardware Specifications

Process Control and DCS Interface Characteristics

• Integrates galvanically isolated field terminal points to support 24 VDC discrete field contact monitoring.
• Compatible with 4-20 mA HART loop protocol carrier structures for hybrid field instrumentation routing within DCS cabinets.
• Provides robust channel-to-channel isolation across all discrete field wiring circuits to prevent ground loops and surge coupling.
• Incorporates cold junction compensation (CJC) path layout support when paired with specialized thermal sensing I/O modules across process buses.

Frequently Asked Questions

Q: What is the primary function of the CC-TDIL11 IOTA board in the C300 controller assembly?

A: The IOTA serves as the physical termination assembly, routing field dry-contact and powered 24 VDC discrete signals directly to the associated digital input I/O module.

Q: Can field wiring be landed directly on the 51308388-175 terminal blocks?

A: Yes, field conductors wire directly into the screw or spring-clamp terminal blocks built into the IOTA board structure.

Field Installation Guidelines

• Mount the IOTA board securely onto standard DIN rail or enclosure backplates, ensuring proper physical engagement of earth ground clips.
• Maintain a minimum separation distance of 50 mm between 24 VDC field signal wiring and high-voltage AC power distribution lines.
• Verify that field drain wires and cable shields terminate at the system ground bar to ensure noise immunity across discrete signal channels.
