Description

Product Overview

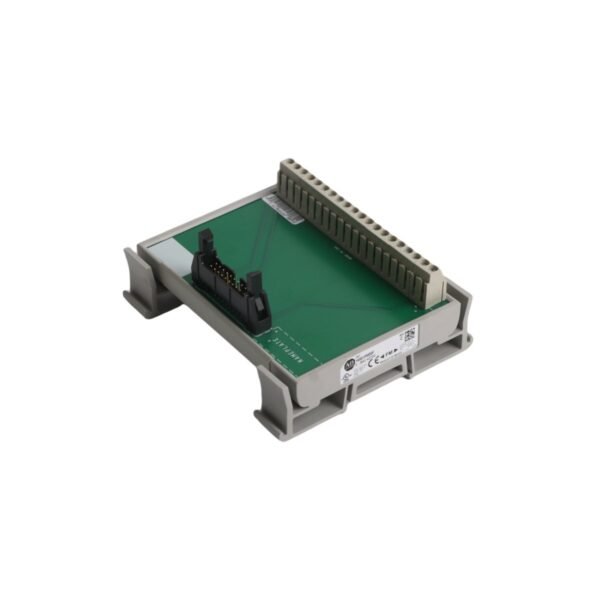

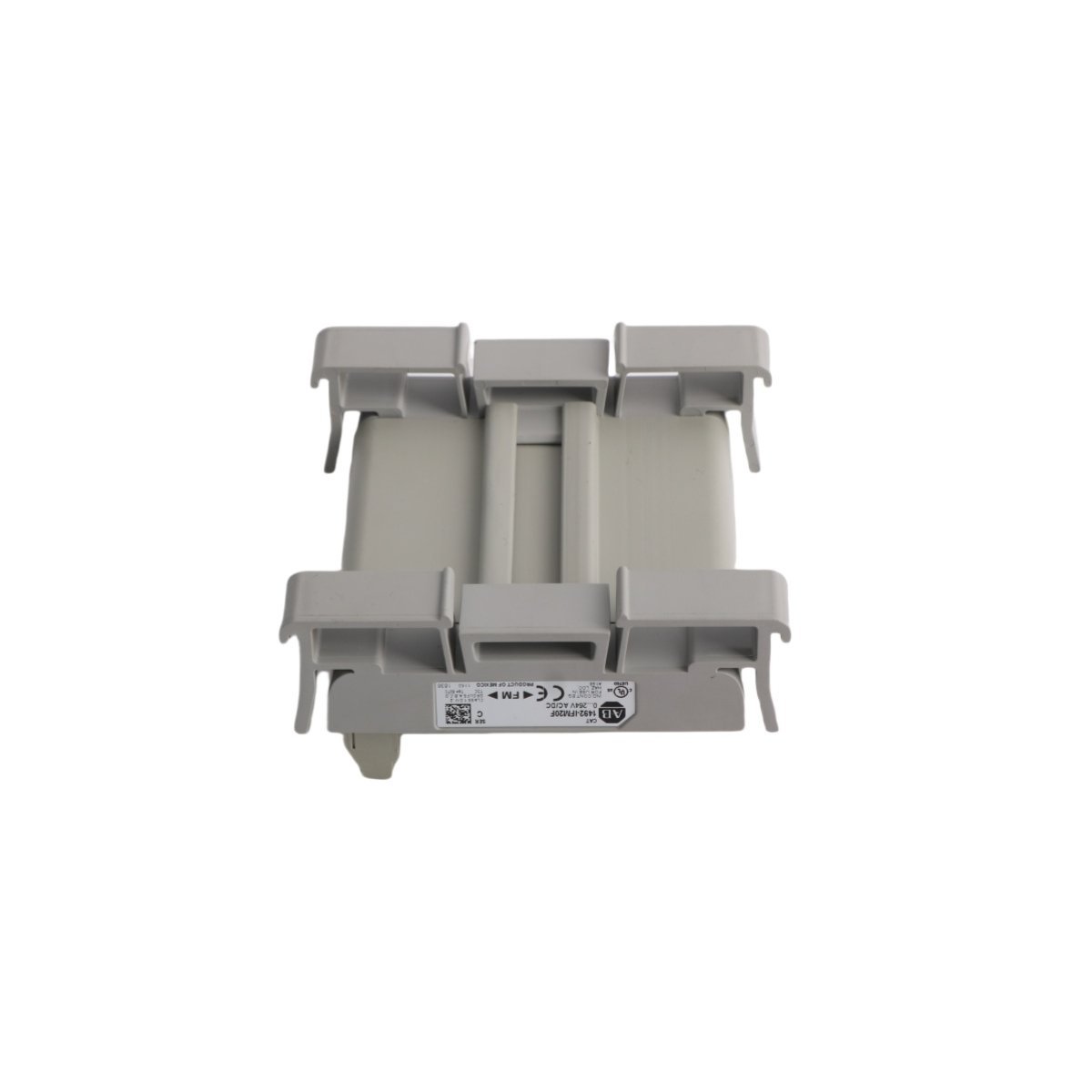

The Allen-Bradley 1492-IFM20F-F120A-2 serves as a high-performance digital interface module designed to streamline the connection between field devices and PLC I/O modules. This termination assembly integrates circuit protection and signal distribution into a single, compact footprint. By utilizing a feed-through architecture, the module simplifies complex panel wiring while providing individual point fusing. The inclusion of 120V AC/DC blown fuse indicators ensures that maintenance personnel can identify and rectify circuit failures immediately, minimizing system downtime in critical industrial environments.

Technical Specifications and Capabilities

• Manufacturer: Rockwell Automation / Allen-Bradley
• Component Type: Fused Digital Interface Module (IFM)
• Circuit Protection: 20 Points with 5 x 20mm fuse clips
• Status Indication: 120V AC/DC Blown Fuse LED indicators
• Voltage Range: 12-24V DC operating voltage (nominal)
• Current Rating: 3mA per point at 24V DC
• Isolation Rating: 250V AC circuit-to-circuit isolation
• Power Distribution: Two isolated groups of 10 terminals for flexible sourcing
• Physical Dimensions: 7.6 x 7.6 x 12.7 cm
• Mounting: Standard DIN rail compatibility
• Weight: 0.2 kg

Functional Applications

Engineers typically implement the 1492-IFM20F-F120A-2 in automated control systems where high-density I/O management and overcurrent protection are mandatory. Because the module features a group-isolated power bus, it allows different input groups to operate from separate power supplies or voltage potentials. Furthermore, the finger-safe terminal design enhances workplace safety by preventing accidental contact with energized circuits. This module is particularly effective in large-scale PLC architectures where organized cable management and rapid diagnostic capabilities are essential for operational efficiency.
