Description

Product Overview

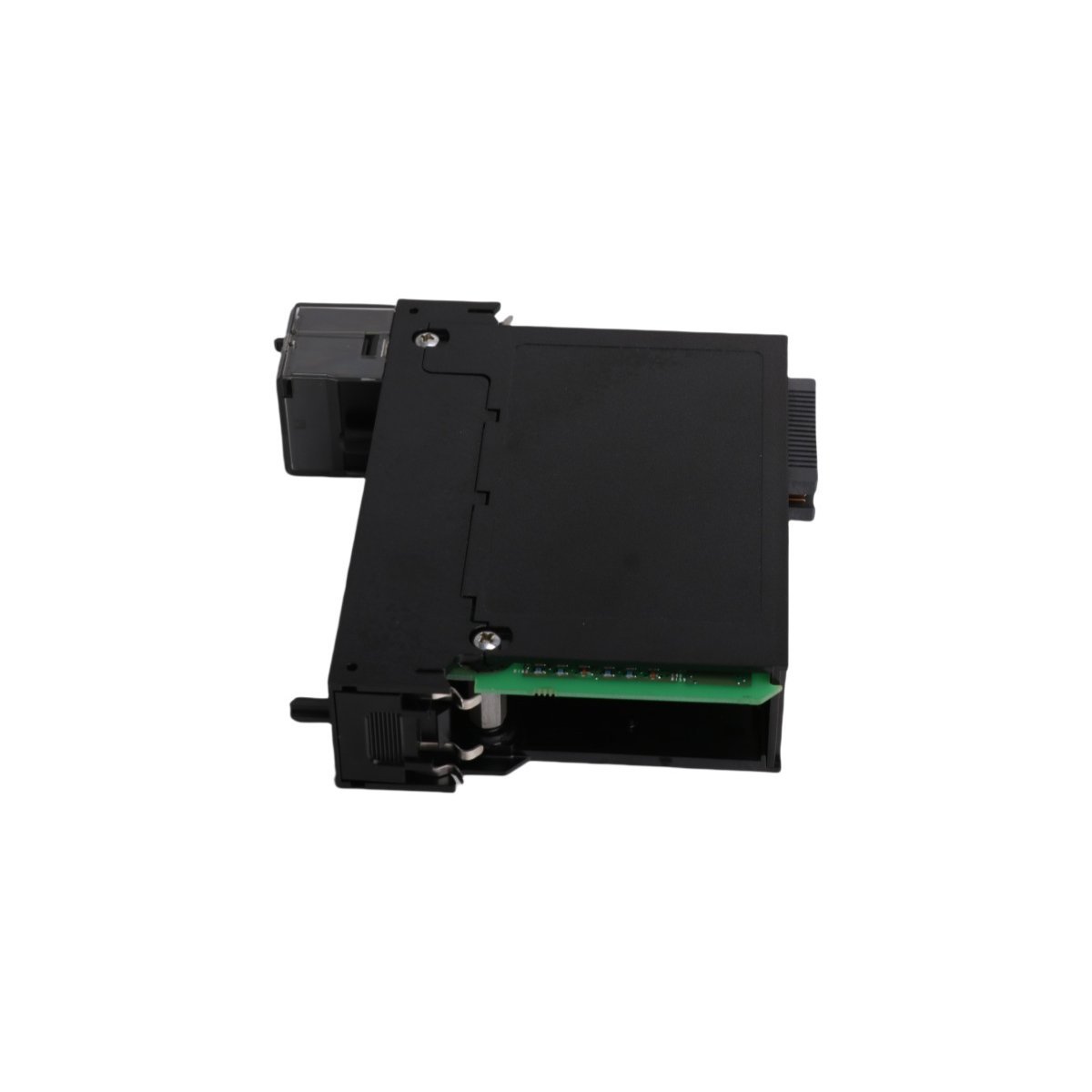

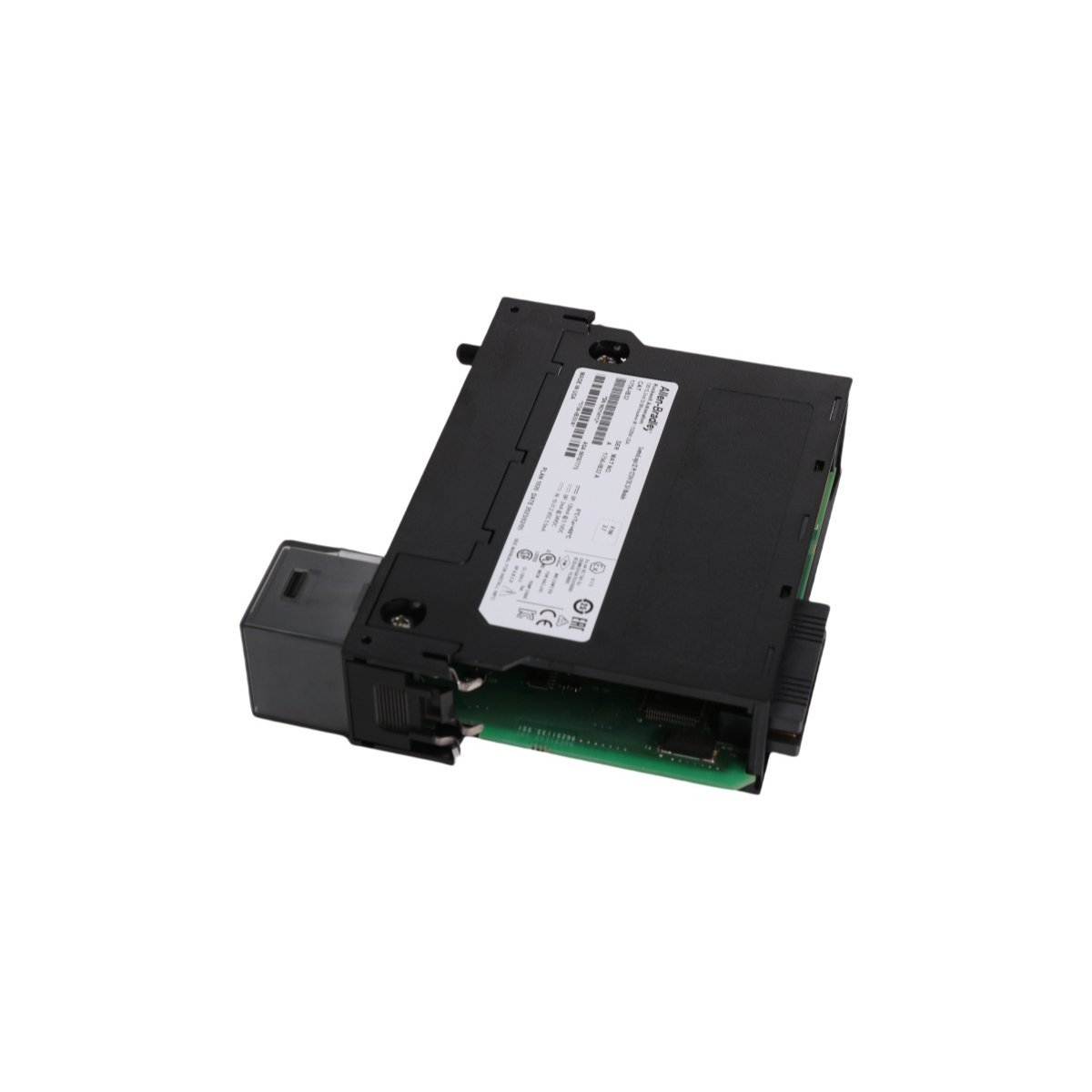

The Allen Bradley 1756-IB32 serves as a cornerstone for high-density signal processing within the Rockwell Automation ControlLogix ecosystem. This module provides 32 discrete input points, allowing engineers to interface a vast array of field devices—such as limit switches, proximity sensors, and push buttons—directly with the PLC backplane. By utilizing a sinking input configuration, the module effectively monitors 12V or 24V DC logic states across industrial networks. Furthermore, the 1756-IB32 integrates seamlessly into any standard ControlLogix chassis, supporting both local and remote I/O configurations via EtherNet/IP or ControlNet communication bridges.

Technical Capabilities and Signal Processing

To ensure data integrity in electrically volatile environments, the 1756-IB32 incorporates advanced hardware filtering and optical isolation. This architecture mitigates the impact of electromagnetic interference (EMI) and contact bounce, which are common challenges in heavy manufacturing. Moreover, the module features electronic keying to prevent accidental insertion into an incorrectly configured slot, thereby protecting the hardware from potential voltage mismatches. Each of the 32 channels includes a dedicated LED status indicator on the front panel, which significantly simplifies troubleshooting and loop verification during commissioning. Transitioning between various input filter times—ranging from 0ms to 18ms—allows users to customize the module’s responsiveness based on specific sensor characteristics.

Industrial Applications and Reliability

• High-speed packaging lines requiring dense sensor integration.
• Conveyor synchronization and sortation systems in logistics centers.
• Machine tool monitoring and discrete safety interlocking.
• General-purpose process automation in automotive and food/beverage plants.

Technical Specifications

• Manufacturer: Allen Bradley (Rockwell Automation)
• Model Number: 1756-IB32
• Series: ControlLogix
• Input Points: 32 (grouped in two sets of 16)
• Operating Voltage: 12/24V DC Sinking (10-31.2V DC range)
• Input Delay: User-configurable (Hardware + Software filter)
• Backplane Current: 165mA at 5.1V / 2mA at 24V
• Isolation Voltage: 250V (continuous)
• Weight: 0.3 kg
• Dimensions: 23.3 cm x 18.2 cm x 5.3 cm
• HS Code: 8537101190
