Description

Brief Product Description

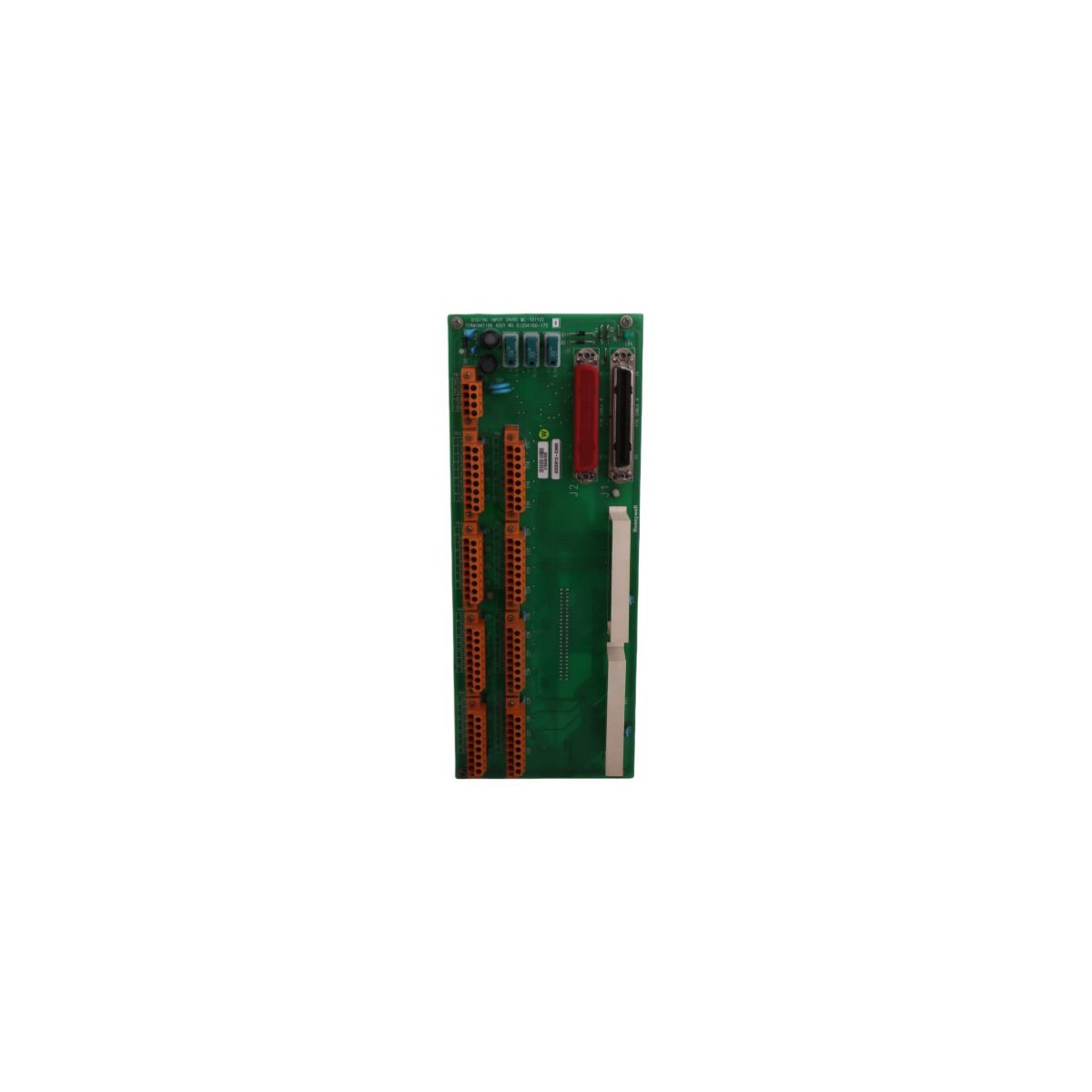

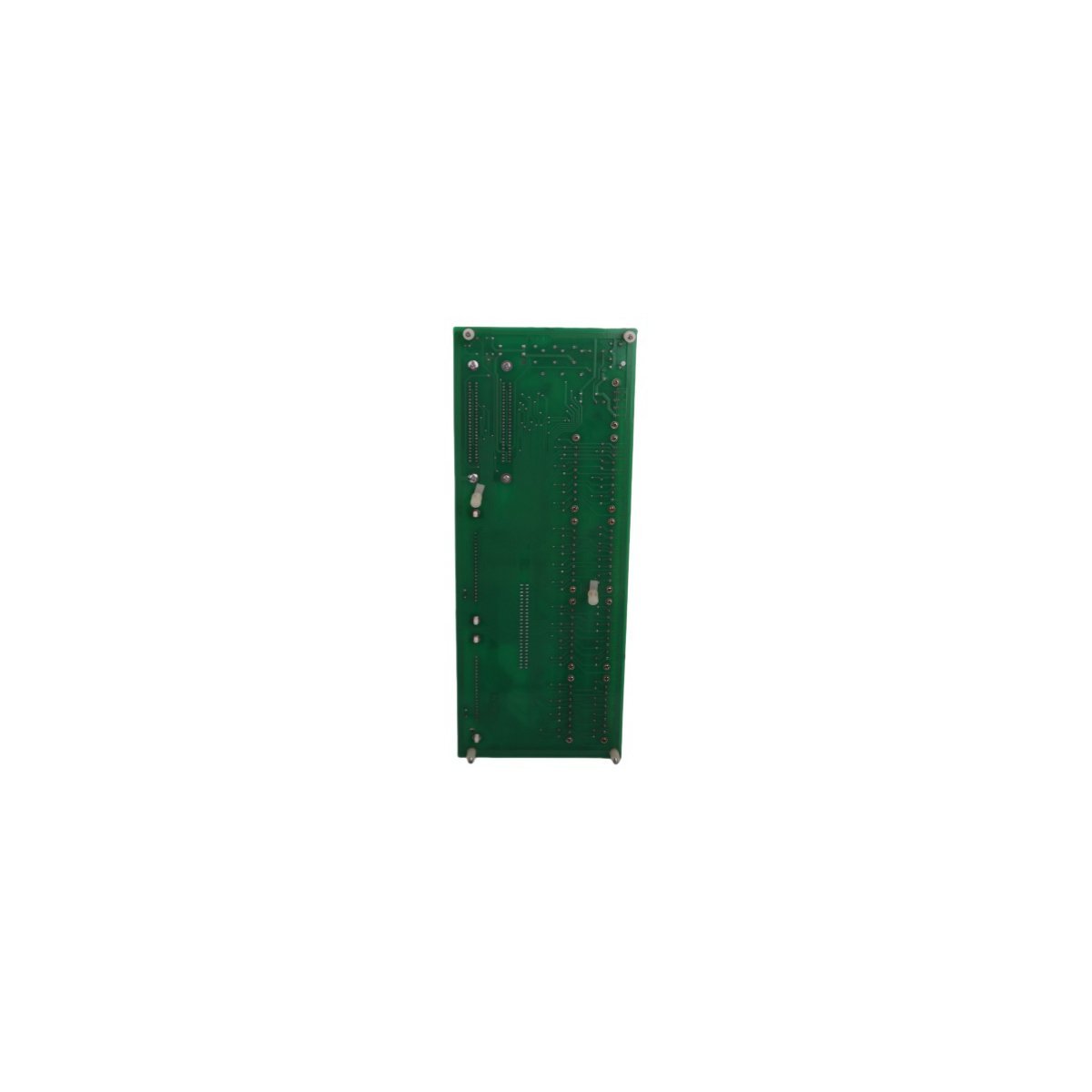

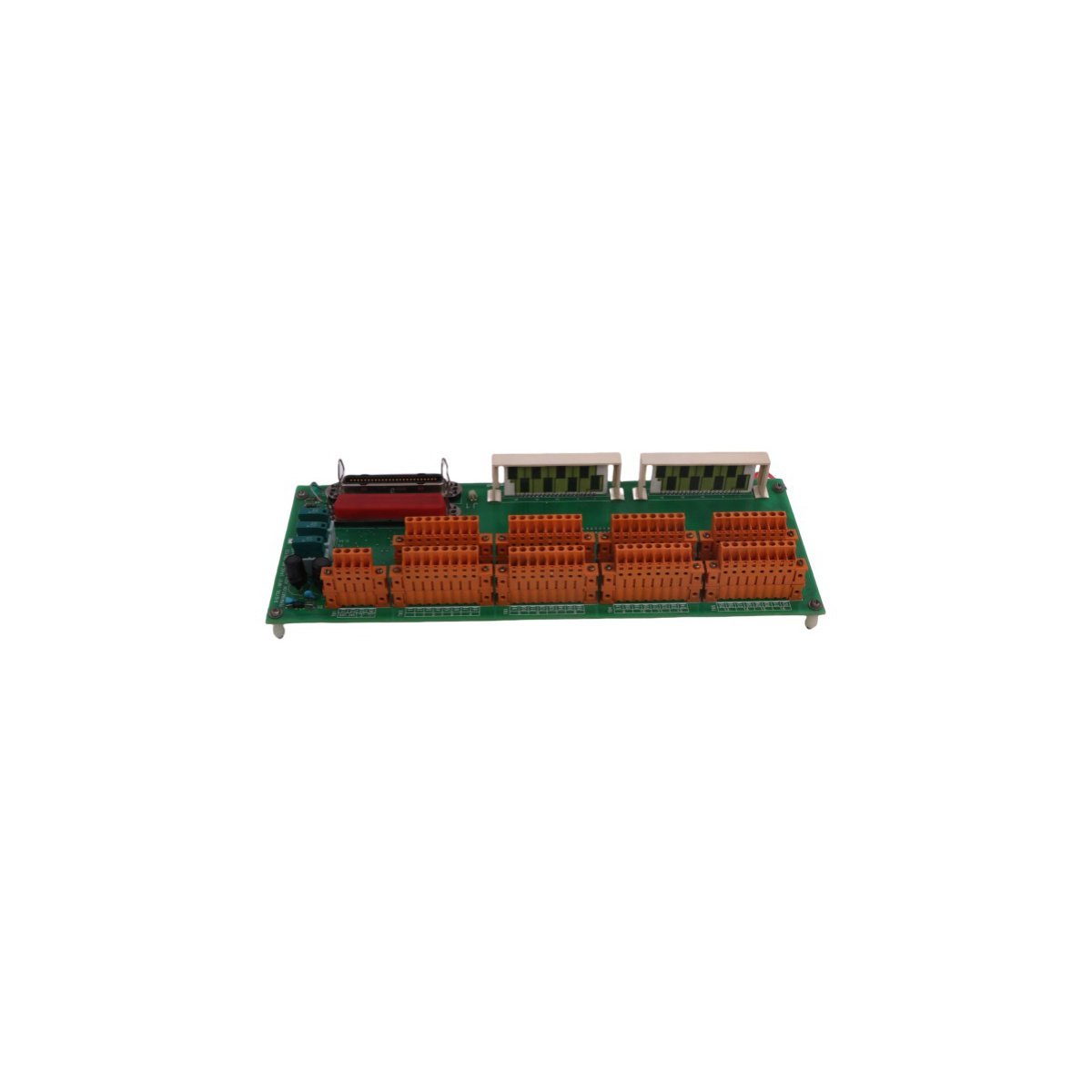

The Honeywell MC-TDIY22 (51204160-175) is a high-reliability Digital Input Field Termination Assembly (FTA) designed for the TDC 3000 and Experion PKS control systems. It provides the essential physical and electrical interface between field sensors and the system’s input processors.

Product Description

The MC-TDIY22 functions as a primary connection point within Honeywell Process Manager (PM) or Advanced Process Manager (APM) architectures. This Field Termination Assembly facilitates the secure wiring of discrete field devices, such as switches and contacts, directly to the Distributed Control System (DCS). By isolating and organizing incoming signals, the unit protects the sensitive internal electronics of the I/O modules from field-side electrical interference.

Operational Interface and Compatibility

This termination assembly specifically manages 24VDC digital signals, typically supporting 32 input channels. It operates within a voltage window of 15 to 30 Vdc, ensuring it remains compatible with standard industrial power supplies and sensor arrays. Because the MC-TDIY22 belongs to the MU-T series, it integrates perfectly into standard Honeywell cabinets, utilizing standard cables to connect to High-Level Process Manager (HLPM) or similar I/O processors.

Performance in Industrial Environments

Engineers utilize the MC-TDIY22 in demanding sectors such as oil and gas, chemical processing, and power generation. The board’s robust design allows it to maintain signal integrity despite the presence of vibration and thermal fluctuations common in plant environments. Furthermore, the layout of the assembly simplifies maintenance by providing clear terminal labeling and accessible testing points, which significantly reduces the time required for loop checks and troubleshooting during commissioning.

Key Technical Characteristics

• Signal Type: Designed exclusively for discrete (Digital) input signals.
• Voltage Range: Supports a wide operational input of 15-30 Vdc.
• System Integration: Compatible with Honeywell TDC 3000, TPS, and Experion PKS systems.
• Mounting: Designed for standard FTA mounting channels within industrial enclosures.
• Wiring Efficiency: Features heavy-duty screw terminals for secure field cable retention.
• Protection: Includes onboard components to mitigate field-side transients and noise.
