Description

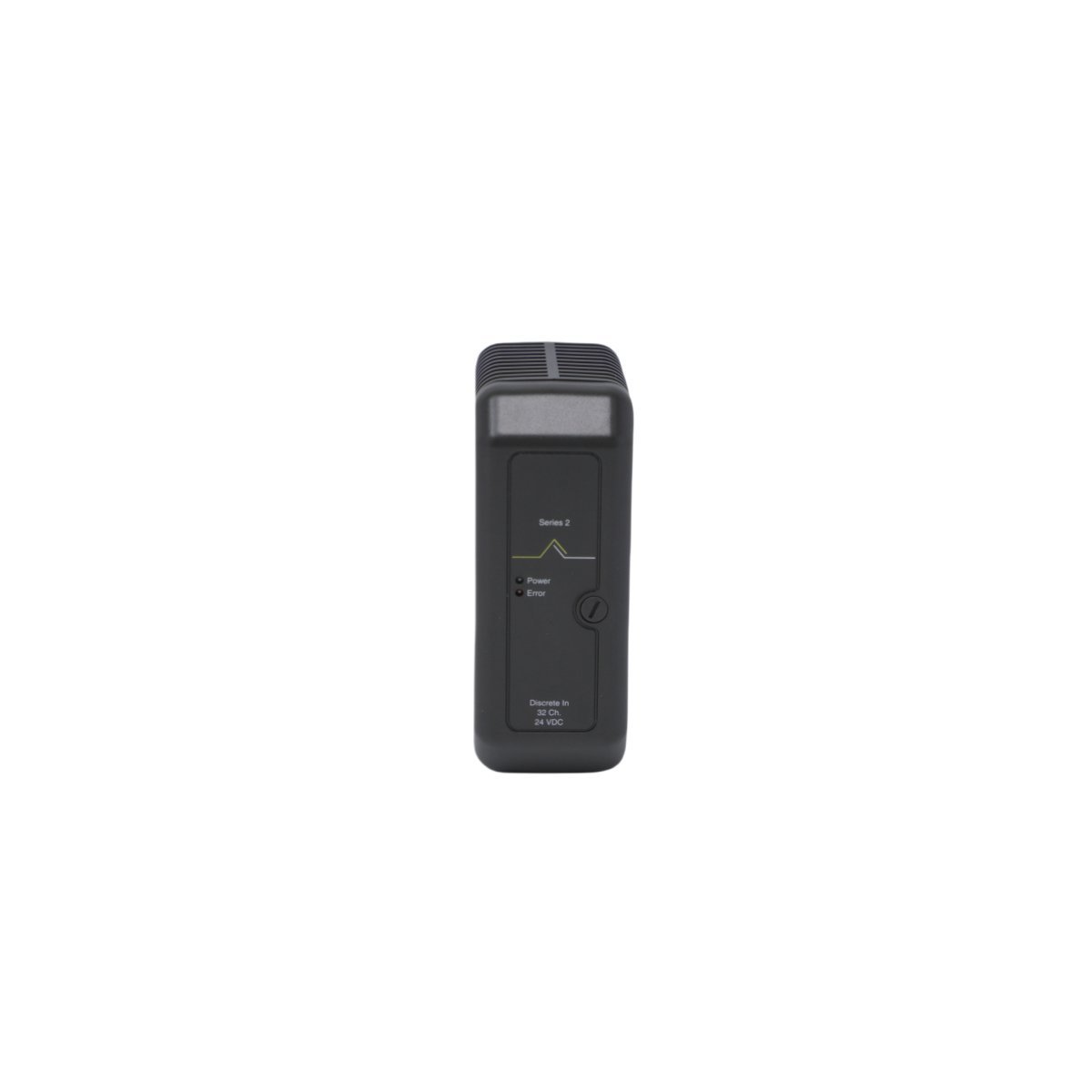

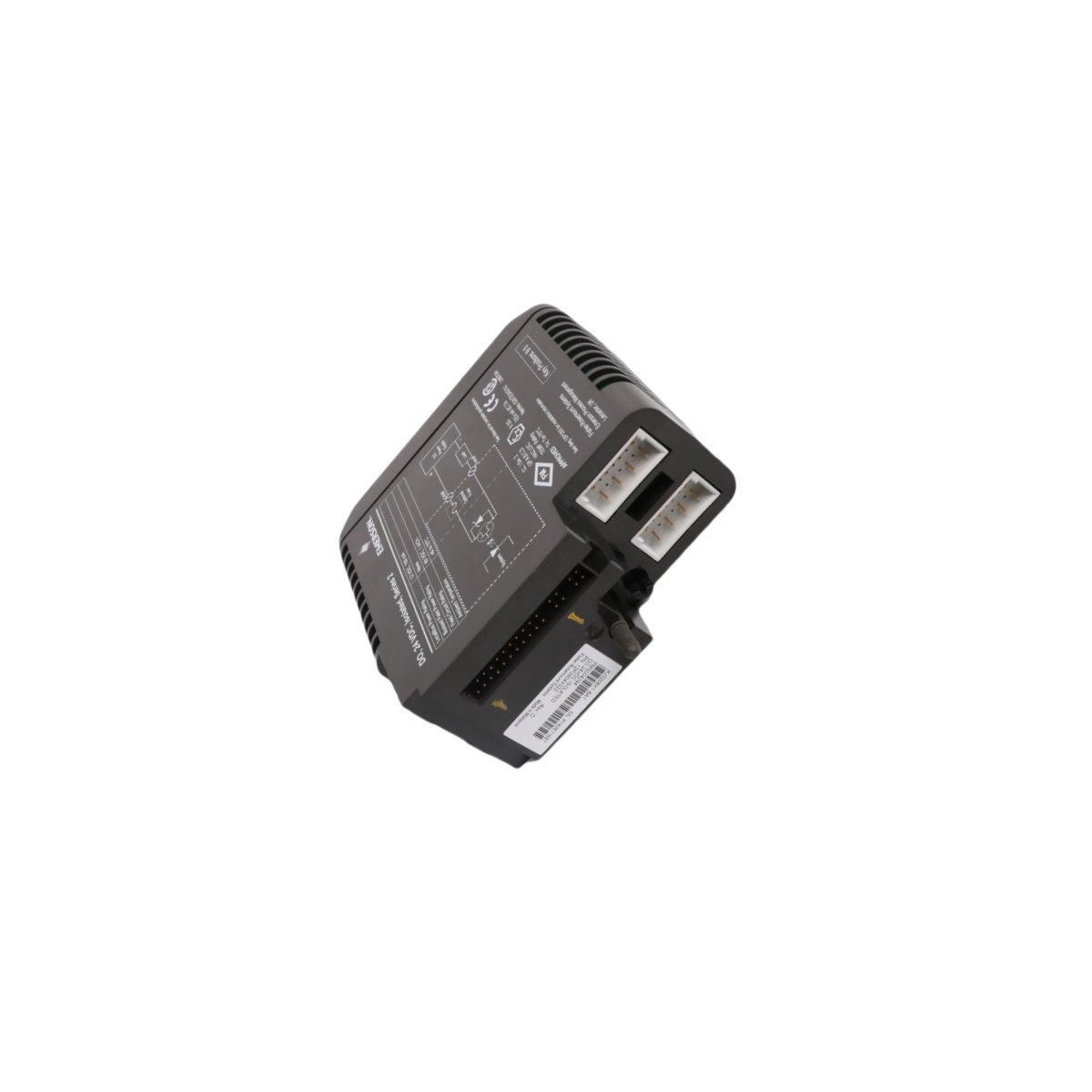

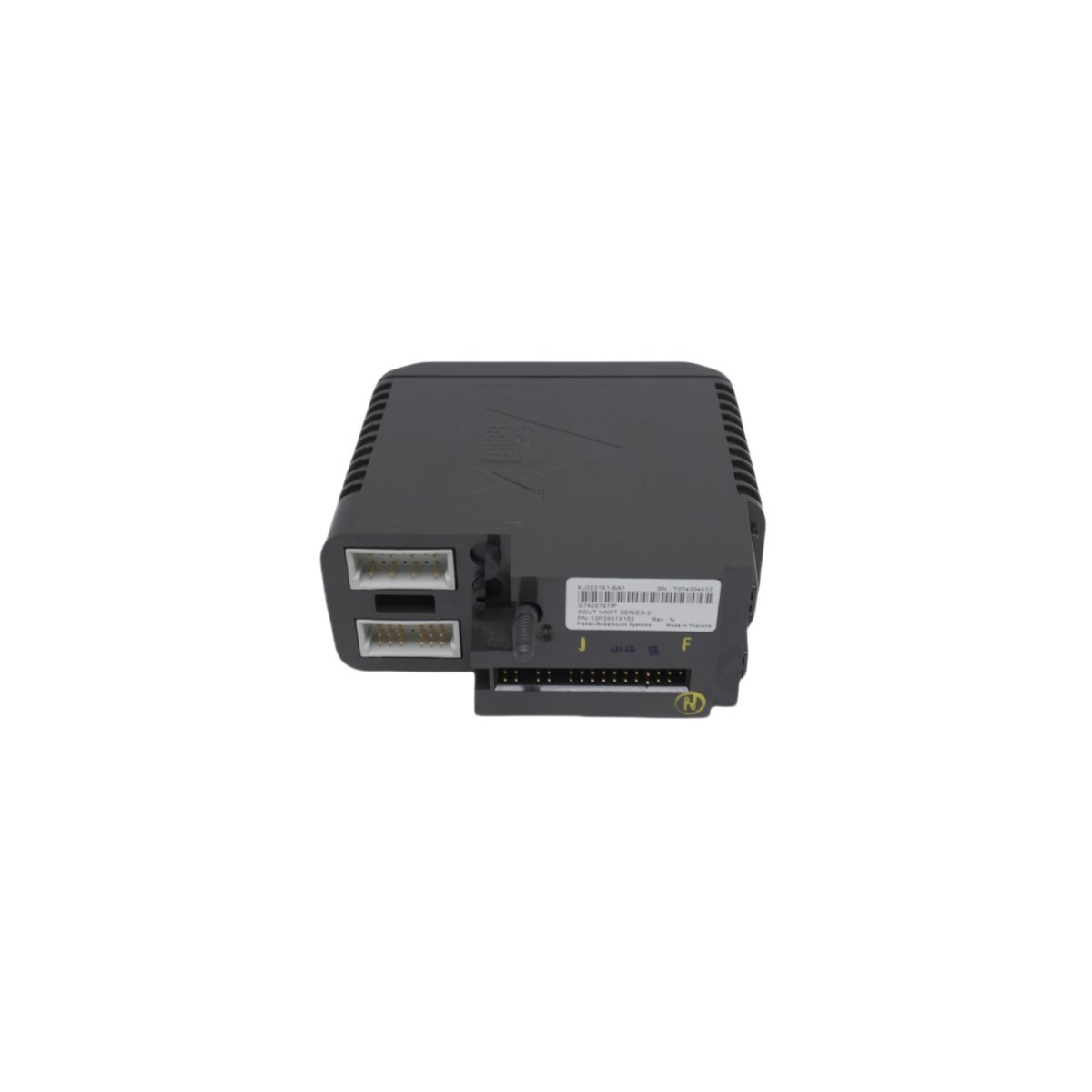

The Emerson KJ3203X1-BA1 12P3270X042 VE4001S2T2B4, also cataloged as the KJ3203X1-BA1 Discrete Input Module, operates as a dedicated hardware component for binary status acquisition and field signal conditioning within DeltaV M-series I/O Subsystem architectures.

Suffix Breakdown & Model Matrix

• KJ3203X1-BA1: Base assembly part number designating the discrete input circuit board architecture.
• 12P3270X042: Hardware component revision and sub-assembly manufacturing identifier.
• VE4001S2T2B4: System-level order code specifying the M-series card structure and carrier interface option.

Hardware Specifications

Process Control & Channel Isolation Characteristics

• Integrates channel-to-channel isolation parameters to isolate individual field loops and protect backplane logic circuitry against differential transients.
• Accommodates 4-20 mA HART loop protocol pass-through and field bus power routing via dedicated I/O carrier termination blocks.
• Provides internal cold junction compensation (CJC) processing pathways when co-located with analog thermocouple and process transmitter networks.

Frequently Asked Questions

Q: Can the KJ3203X1-BA1 module be installed or replaced while the DeltaV I/O carrier is energized?

A: Yes, the card supports hot-swappable installation on active DeltaV 2-wide and 8-wide I/O carriers without interrupting power or backplane communications to adjacent channels.

Q: What field sensing mechanism does this module use for state detection?

A: The card evaluates discrete dry contact closure states using a 24 VDC internal wetting supply and current-limiting detection loops across all input channels.

Field Installation Guidelines

• Secure the module vertically onto the designated DeltaV M-series I/O carrier slot until the locking levers snap fully into position.
• Connect field wiring shields directly to the designated carrier grounding bar, maintaining a single-point earth connection.
• Maintain a minimum separation distance of 50 mm between 24 VDC signal cables and high-voltage AC power distribution lines within the enclosure wire ways.
• Verify terminal block keying prior to inserting the card to prevent pin bending or mis-mating against non-compatible carrier slots.
