Description

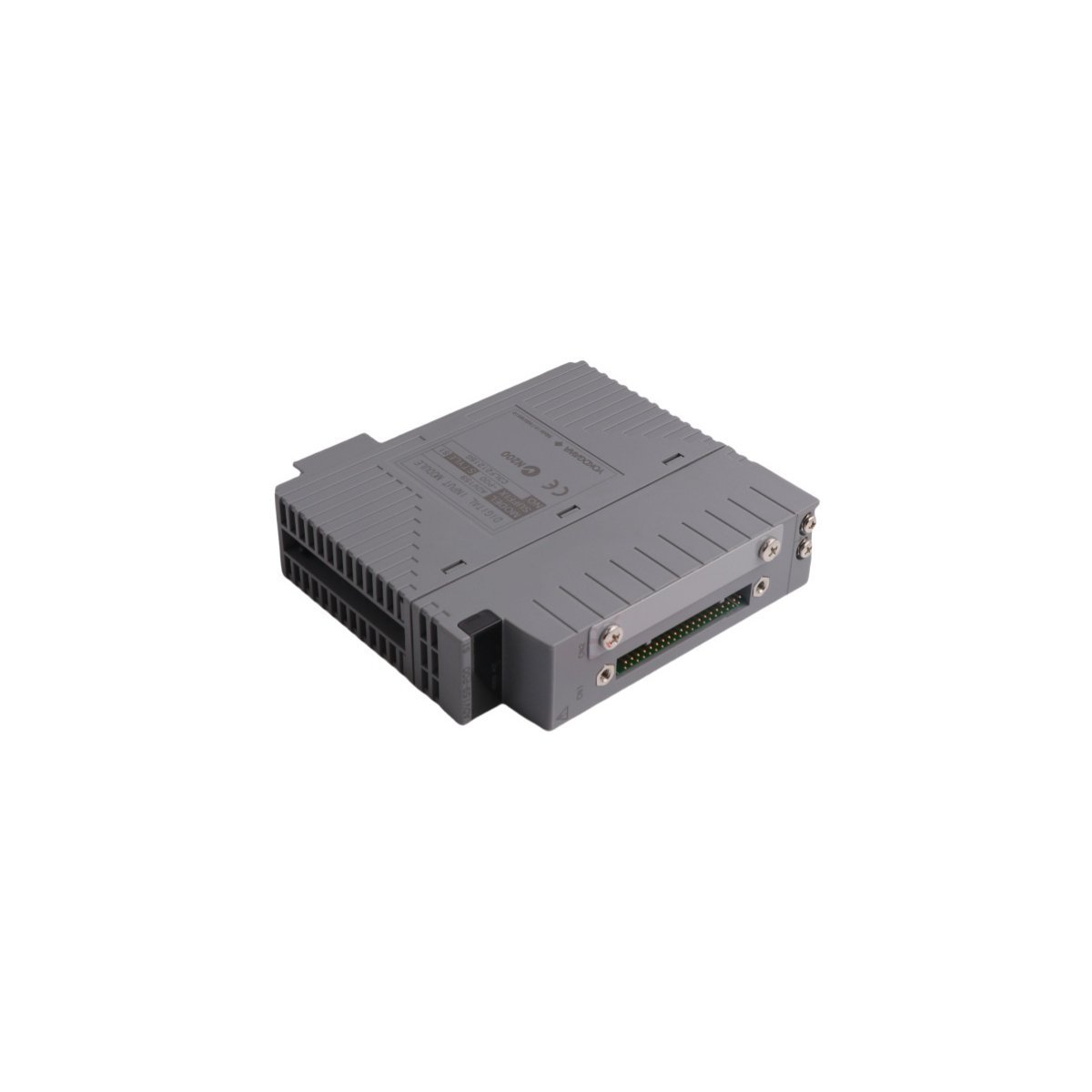

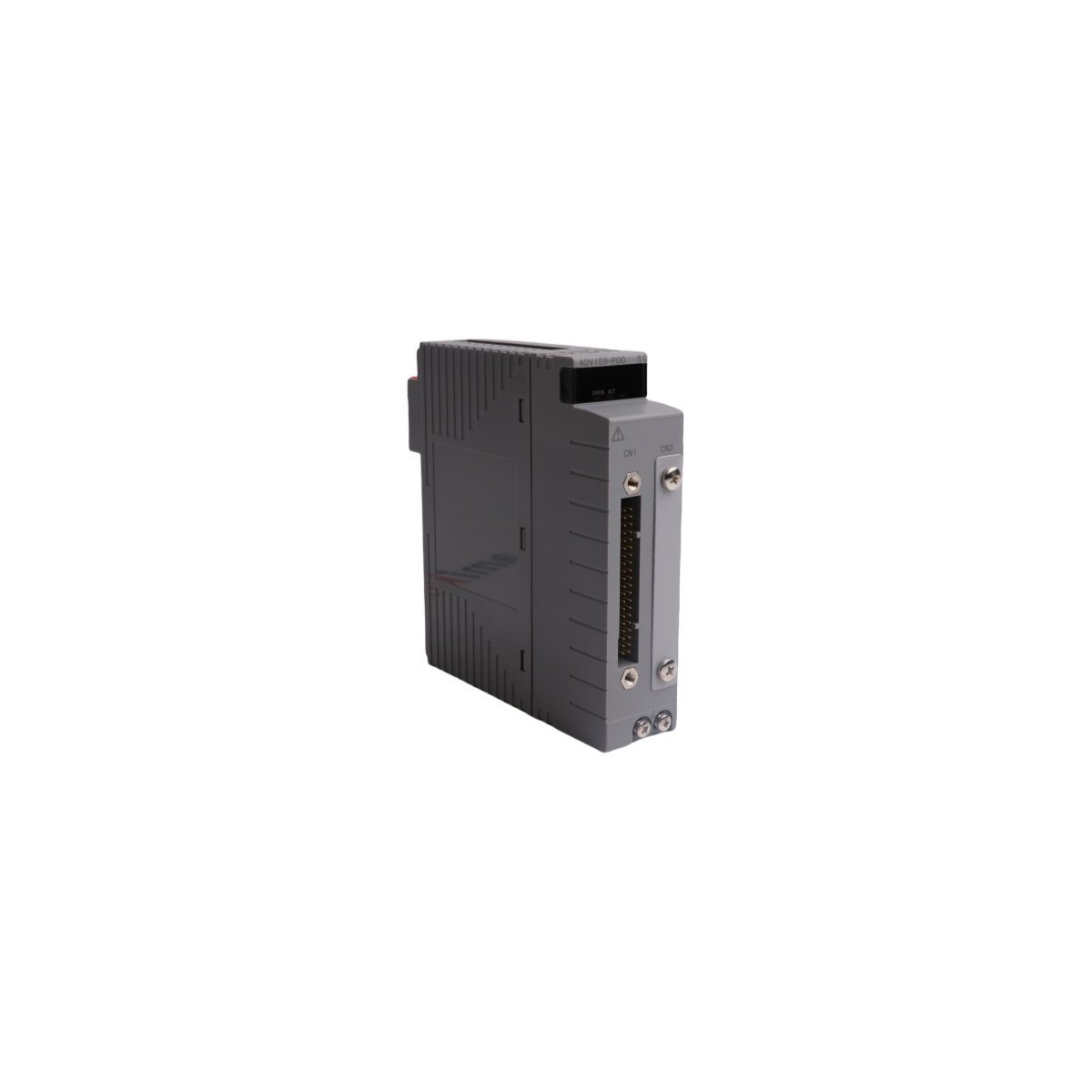

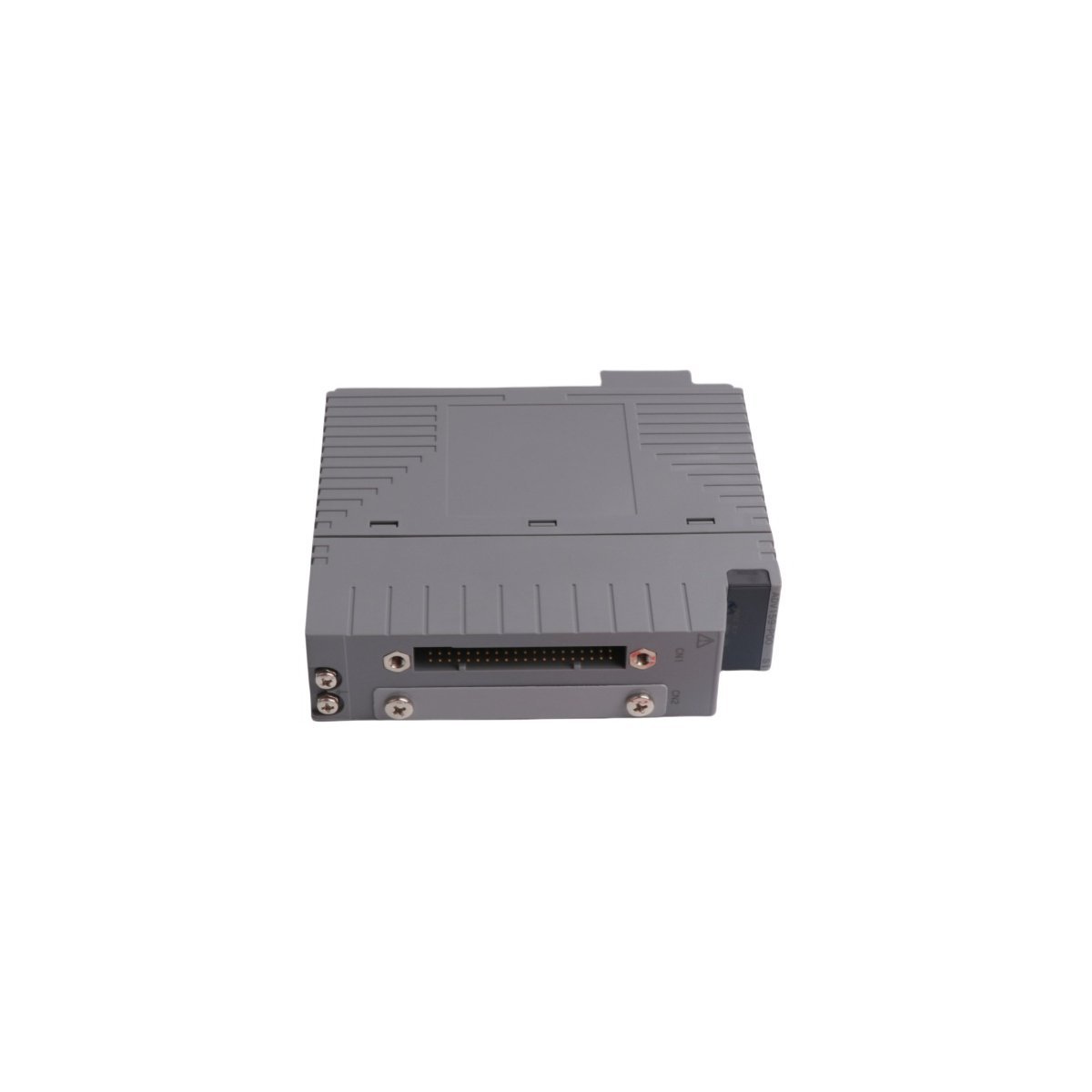

The Yokogawa ADV159-P00 acts as a high-density interface for discrete signal processing within the CENTUM VP architecture. This module features 32 isolated channels to capture status data from field equipment. It efficiently monitors contact closures and voltage states from various industrial sensors. Consequently, the unit provides the essential feedback required for automated decision-making. Its robust electrical isolation prevents external noise from affecting the internal system bus. This makes it an ideal choice for large-scale manufacturing and process plants.

Performance stability remains a core priority for the ADV159-P00 hardware. The module utilizes high-quality components to ensure accurate signal detection in volatile environments. Furthermore, its internal circuitry filters out electrical transients to prevent false triggers. This ensures that the DCS receives only clean and reliable status information. The hardware excels in high-speed applications where input response time is critical for safety.

Technical Specifications and Parameters

• Manufacturer: Yokogawa Electric Corporation
• Model Number: ADV159-P00
• Module Type: Digital Input (DI)
• Number of Channels: 32, isolated
• Input Signal: 24 V DC (contact or voltage)
• System Platform: CENTUM VP / CS 3000
• Module Bus: FIO (Field Interface I/O)
• Redundancy: Supports dual-redundant configuration
• Weight: 0.28 kg
• Casing Dimensions: 3.2 x 12 x 13 cm
• Safety Standards: CE and UL compliant
• Origin: Japan

Advanced Reliability and Redundancy

The ADV159-P00 supports dual-redundant configurations to maximize system availability. This feature allows a secondary module to take over immediately if the primary unit fails. Therefore, critical processes continue to operate without interruption or data loss. This capability proves vital for mission-critical infrastructure like power plants and refineries. Additionally, the hot-swap design allows for module replacement while the system remains powered.

Beyond its safety features, the module offers a compact physical footprint. This design allows engineers to install more I/O points in limited cabinet spaces. Moreover, the front panel includes clear status LEDs for each of the 32 channels. These indicators simplify onsite maintenance by showing the real-time state of field connections. Such transparency reduces the time required for loop testing and fault diagnosis.

Integration and Environmental Durability

Seamless integration into the Yokogawa FIO bus ensures rapid communication with the controller. The module provides comprehensive diagnostic data regarding its own operational health. Furthermore, it operates reliably across a wide range of industrial temperatures. Its rugged construction resists the vibration and humidity common in heavy industrial settings. This durability results in a long service life and a low cost of ownership.
