Description

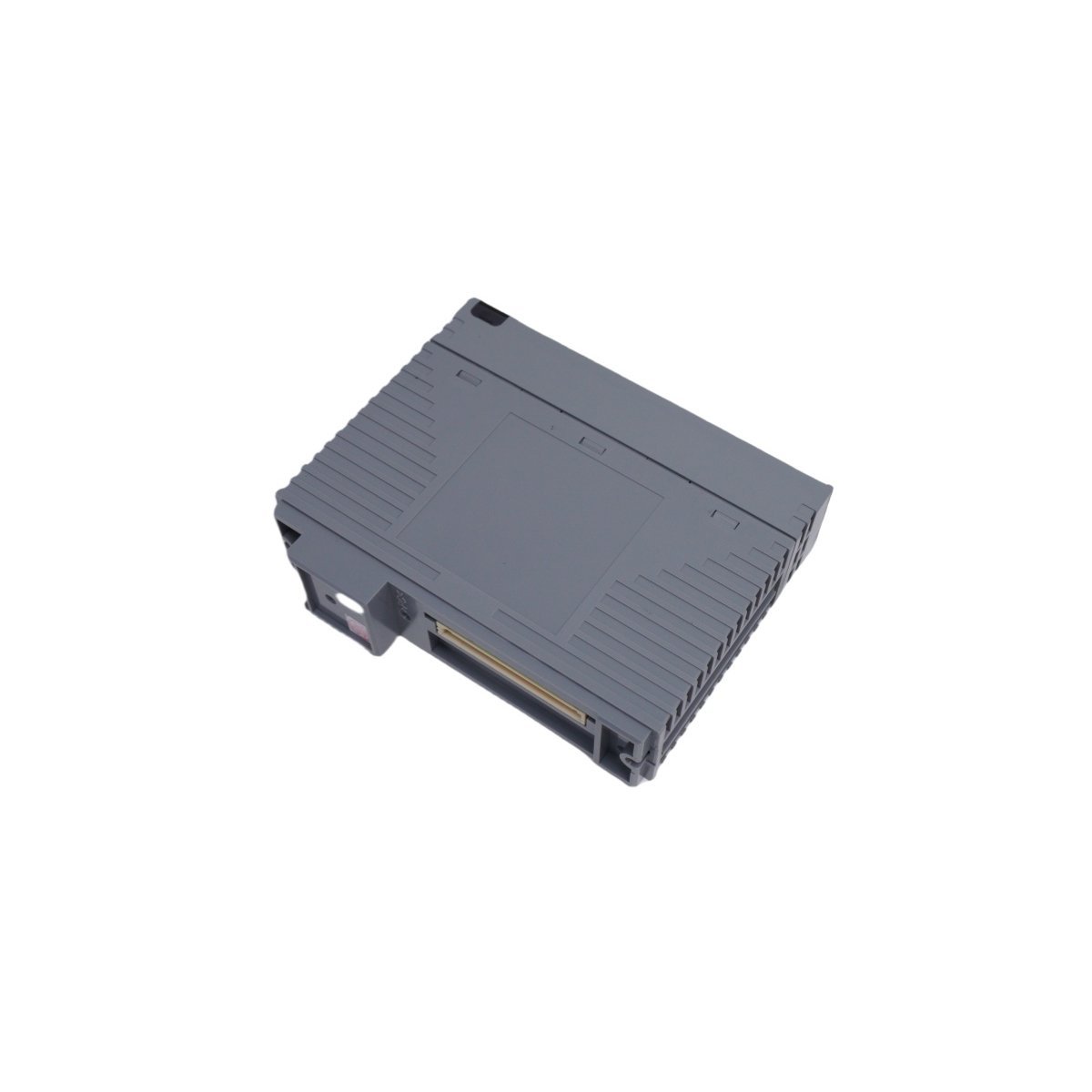

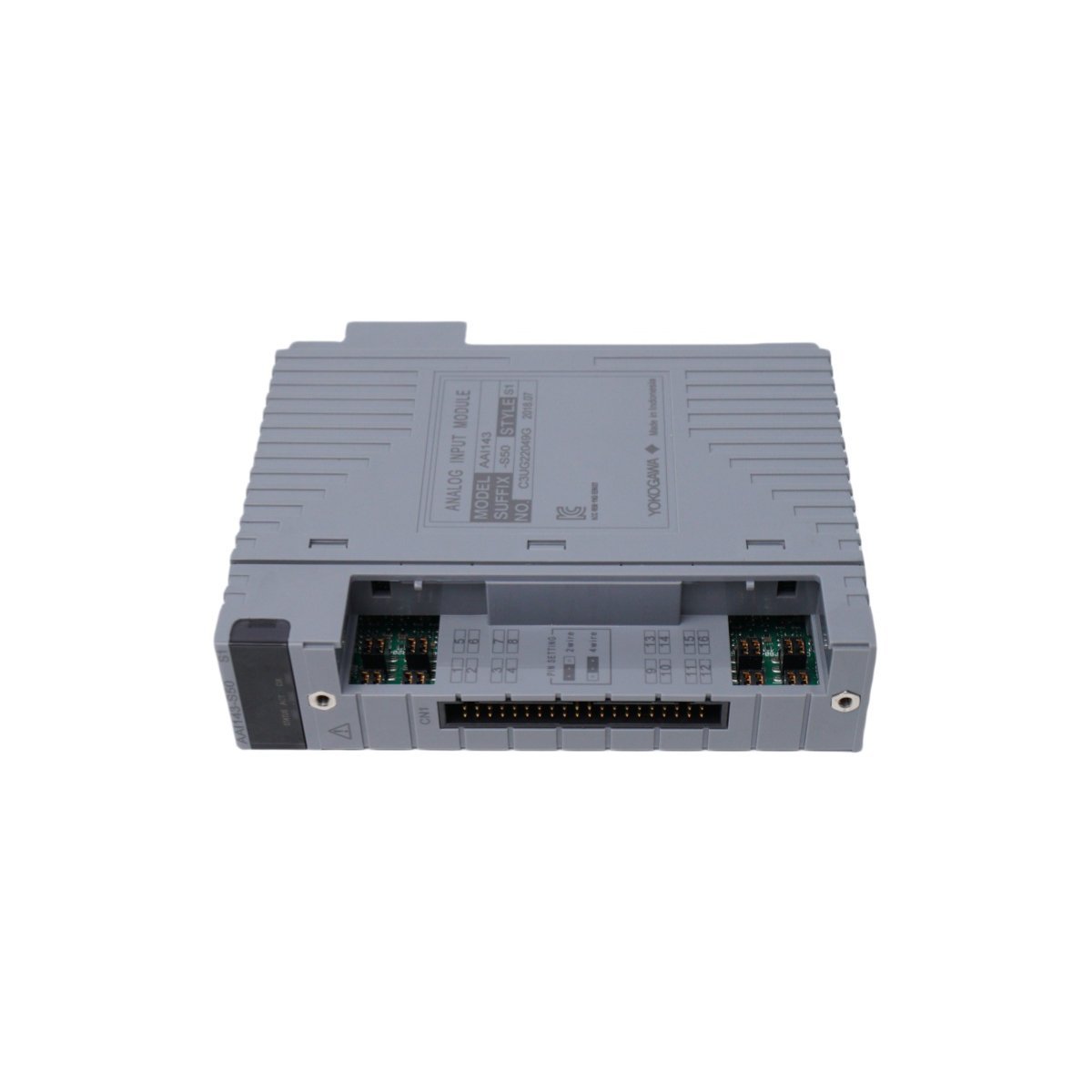

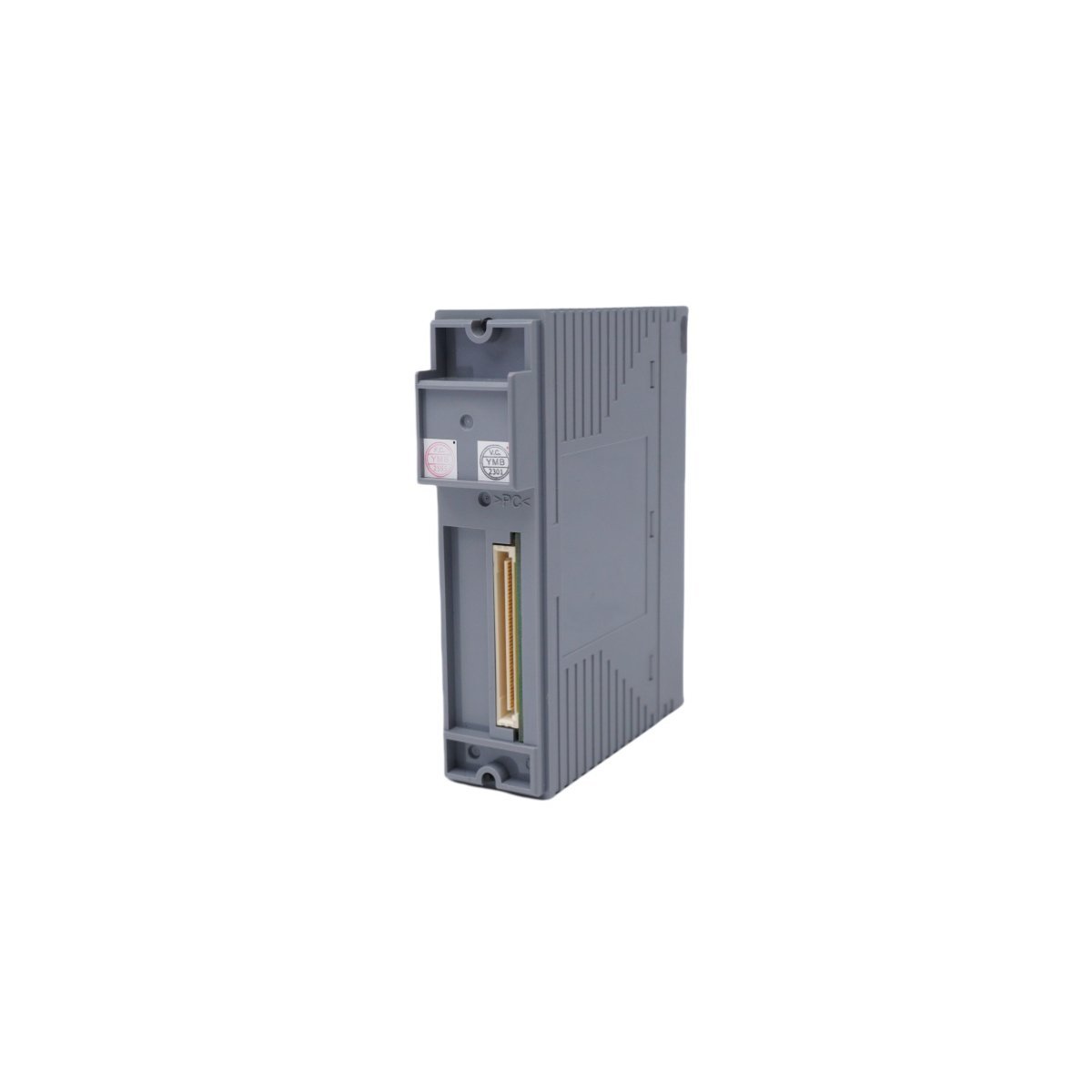

The Yokogawa AAI143-S50, also cataloged as the AAI143 Current Input Module, operates as a dedicated hardware component for high-density analog signal acquisition within CENTUM VP Distributed Control System (DCS) platforms.

Suffix Breakdown & Model Matrix

• AAI143: Base model for 16-channel analog current input.
• -S50: Configuration suffix denoting standard analog input specifications with HART communication support and non-explosion-proof physical interface.

Hardware Specifications

Process Control and DCS Connectivity

The AAI143-S50 module integrates seamlessly into the CENTUM VP architecture. Specifically, it leverages the 4-20 mA HART loop protocol to facilitate bidirectional data exchange. Furthermore, the module architecture features robust channel-to-channel isolation, which effectively mitigates common-mode noise and ground loop currents within the analog signal path. Consequently, this advanced circuitry enables the simultaneous transmission of critical process variables and smart device diagnostics. Ultimately, this design facilitates comprehensive, maintenance-oriented asset management without interrupting the primary control loop.

Frequently Asked Questions (FAQ)

Q: Does the AAI143-S50 module support hot-swapping during normal system operation?

A: Yes, the module is designed for hot-swapping within the CENTUM VP field control unit (FCU), allowing for replacement without de-energizing the entire backplane bus.

Q: How does the module handle HART communication latency?

A: The module processes HART signals in parallel with the 4-20 mA loop current; data update rates for digital HART variables are determined by the field device polling cycle and the DCS communication scan interval.

Q: Is external power required for the field loop?

A: The AAI143-S50 generally relies on the DCS backplane for internal module power, while the loop power for the 4-20 mA field devices is typically supplied via an external distribution terminal block or a dedicated power interface module in the cabinet.

Field Installation Guidelines

• Mounting: Ensure the module is fully seated into the designated backplane slot. Secure the module using the integrated locking mechanism to maintain electrical contact integrity.
• Shielding: For 4-20 mA loops, use shielded twisted-pair instrumentation cable. Terminate the cable shield at the cabinet ground bar to minimize electromagnetic interference (EMI).
• Wiring: Maintain separation between analog signal wiring and high-voltage AC power lines to prevent signal induction.
• Environmental: Ensure the installation environment remains within -20 deg C to 70 deg C and prevents direct exposure to corrosive gases or conductive dust accumulation.
