Description

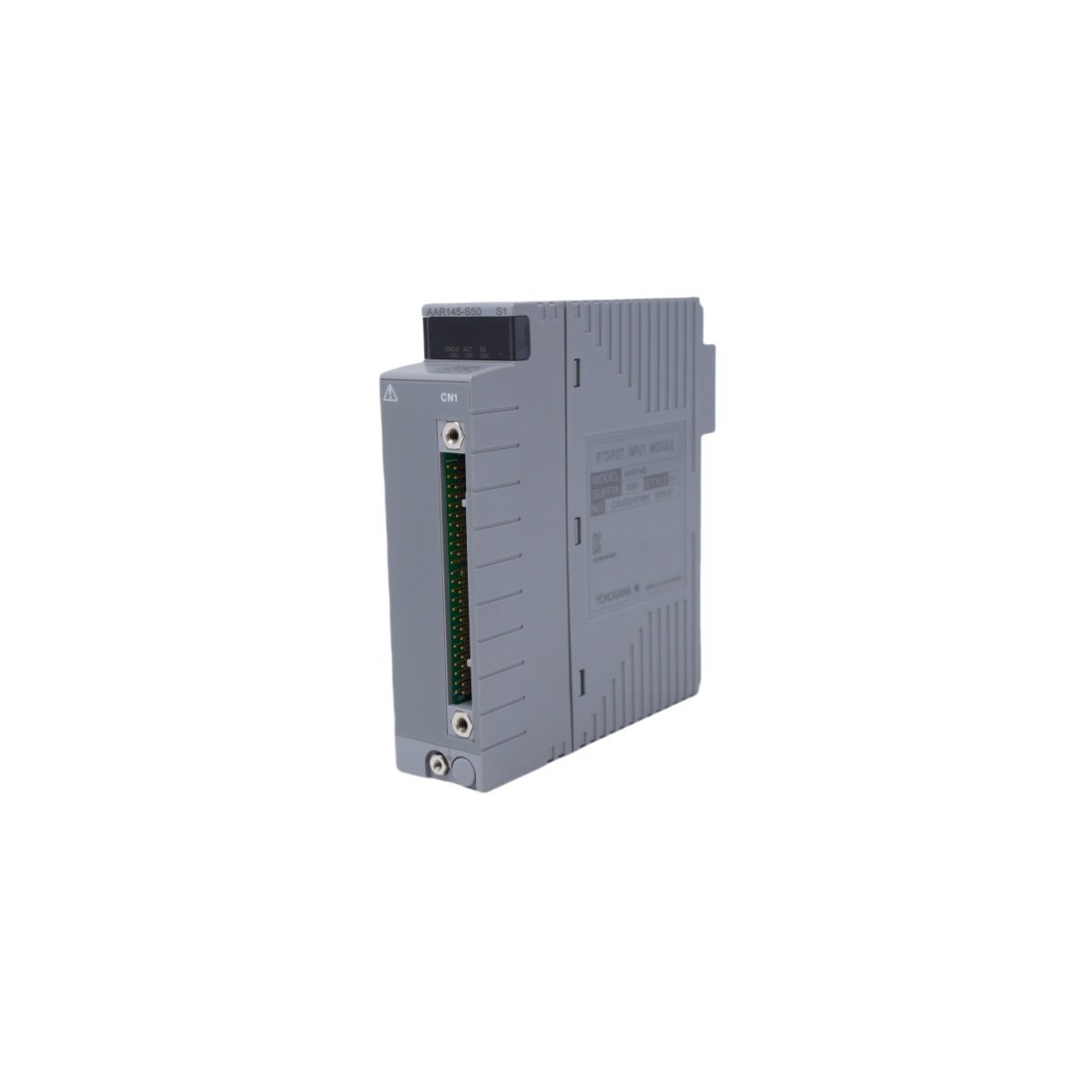

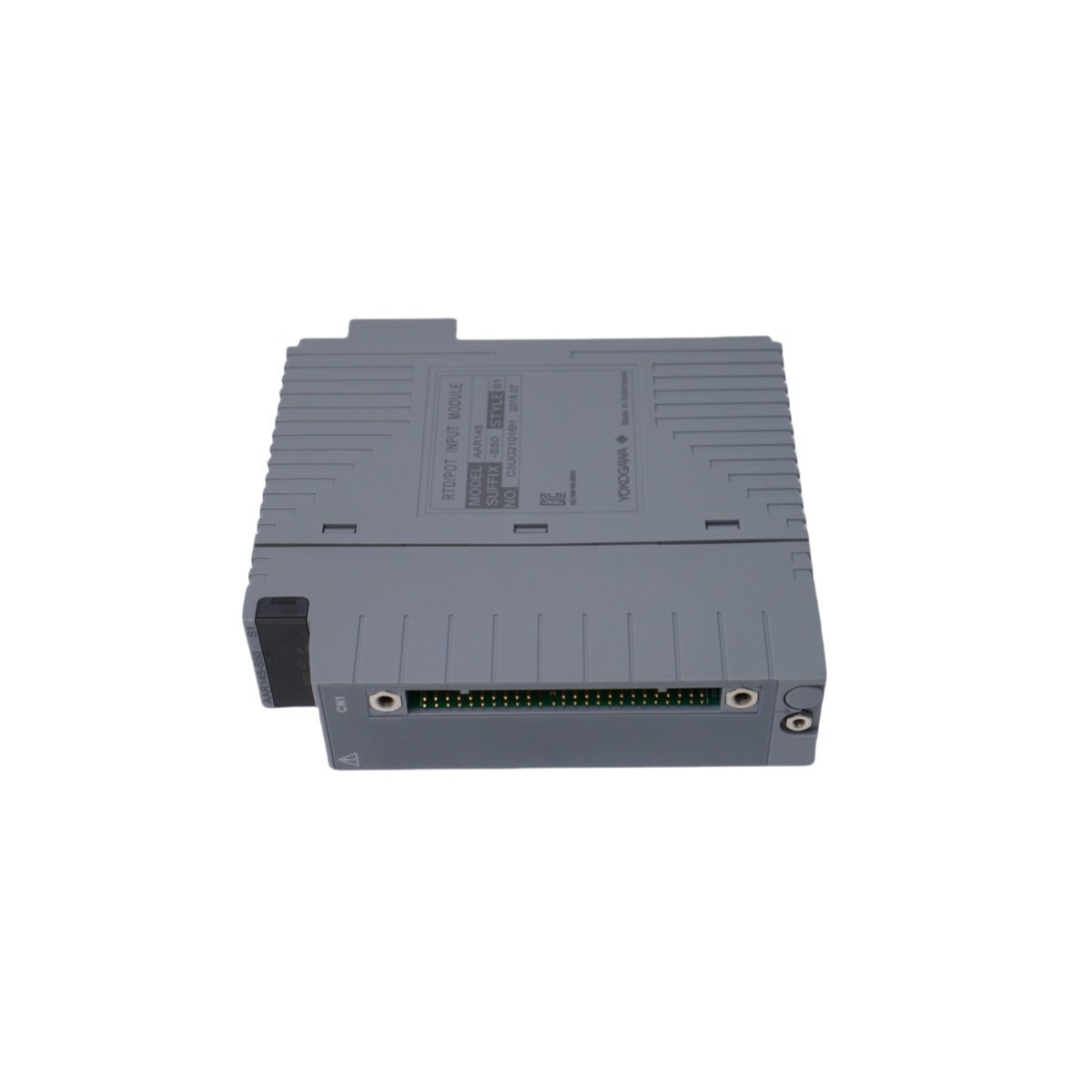

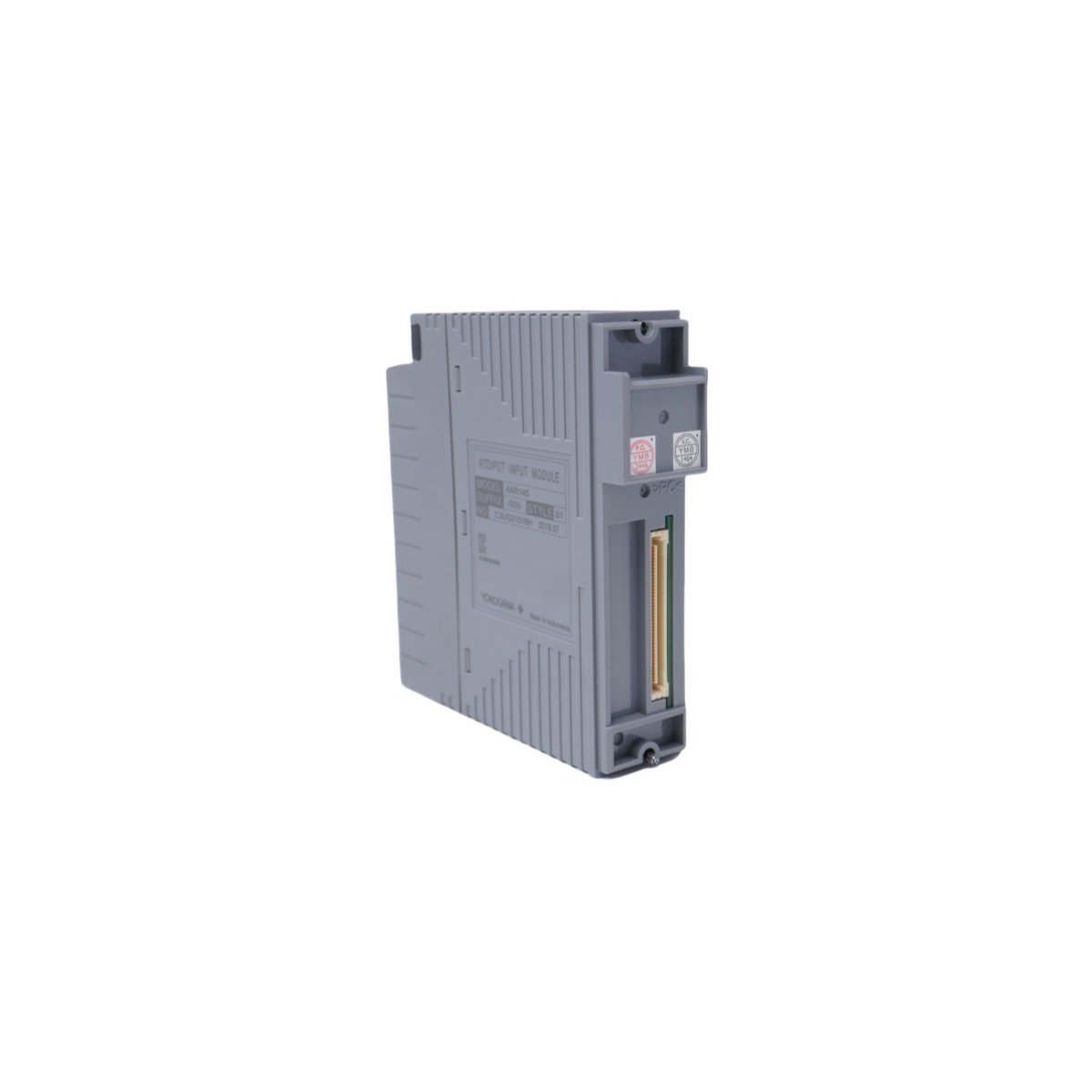

Configured for high-precision temperature signal acquisition in industrial DCS environments, the Yokogawa AAR145-S50 (AAR145-S50 TC/RTD Input Module) provides direct physical electrical interface for thermocouple, RTD, and potentiometer sensors.

Hardware Specifications

DCS Process Control Features

The AAR145-S50 employs dedicated cold junction compensation (CJC) circuits to maintain temperature measurement accuracy across all thermocouple input channels. Each input circuit utilizes channel-to-channel isolation to suppress common-mode noise and prevent ground loop interference in complex distributed control architectures. The module supports high-speed signal sampling suitable for real-time process monitoring, ensuring data integrity for downstream control logic and alarm processing within the DCS network.

Frequently Asked Questions (FAQ)

Q: Does this module support hot-swapping under power?

A: The AAR145-S50 is designed for hot-swap operations, provided the system cabinet backplane architecture is configured for segment-level power isolation to prevent bus communication disruptions during removal or insertion.

Q: How should redundant configurations be managed for this module?

A: For dual-redundant setups, utilize the native DCS redundancy protocols to synchronize data scanning between the primary and standby modules, ensuring that fail-over occurs within the predefined scan cycle limit.

Q: Is external calibration required for the RTD input channels?

A: The module performs continuous self-diagnostics; however, periodic verification of the lead-wire resistance compensation is required to maintain accuracy, especially when using long cable runs from the RTD sensor to the input terminal.

Field Installation Guidelines

• Prior to mounting, ensure the installation environment is free of conductive dust and moisture to prevent PCB short-circuiting.
• Subsequently, verify that the thermocouple type and RTD resistance settings align with the DCS software configuration to prevent measurement offset.
• Furthermore, use shielded cables for all field-side inputs, ensuring the shield is grounded at a single point to mitigate electromagnetic interference.
• In addition, route field input wiring through dedicated cable trays separated from high-voltage power lines by at least 300 mm.
• Finally, confirm that all terminal block screws are tightened to a torque of 0.5 Nm to ensure vibration-resistant contact.
