Description

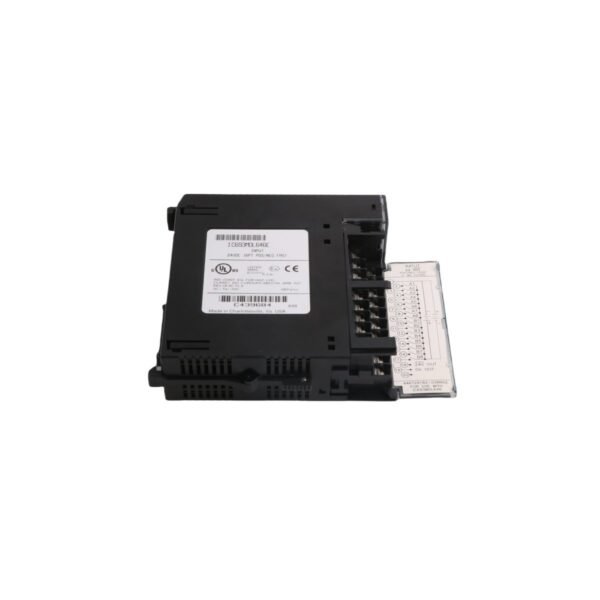

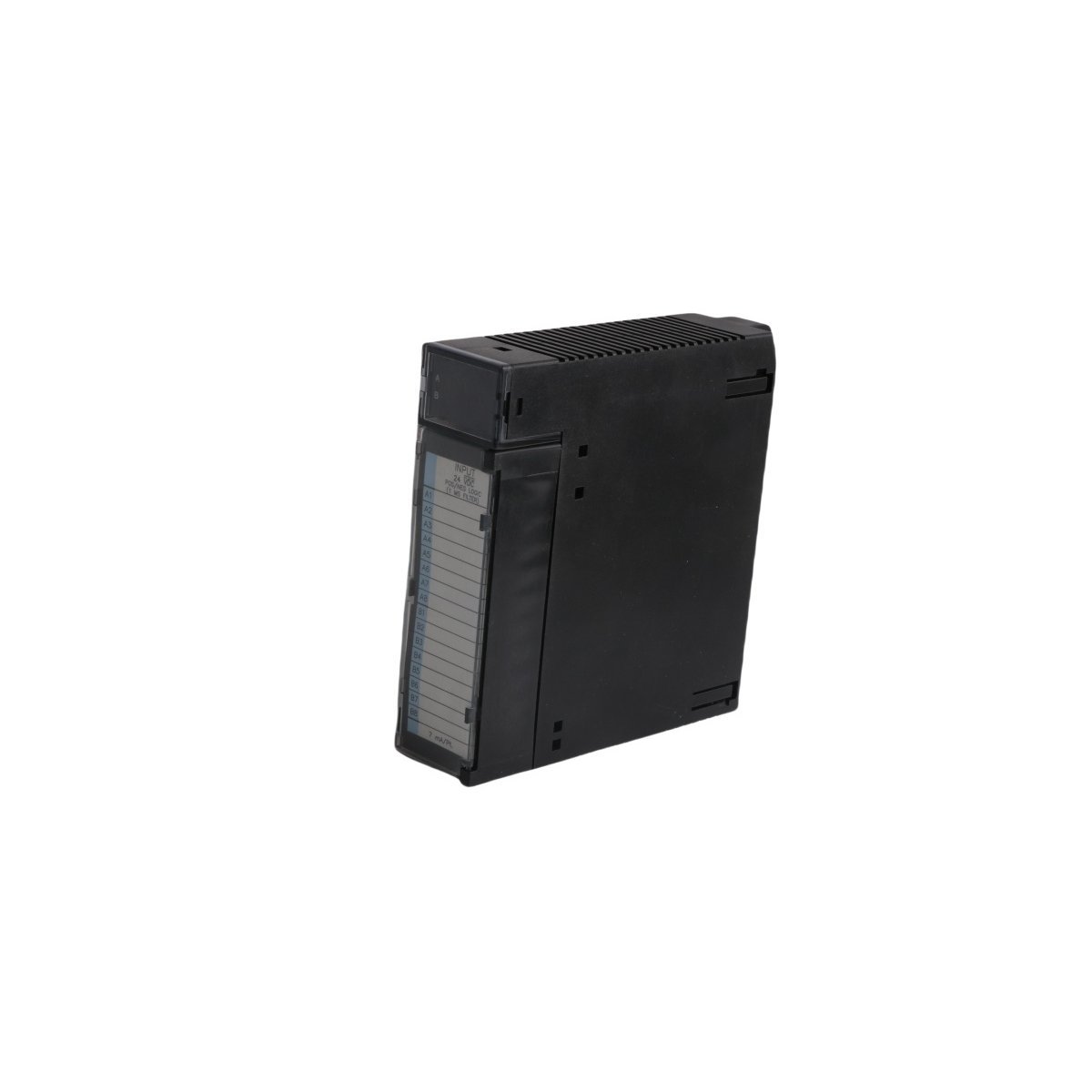

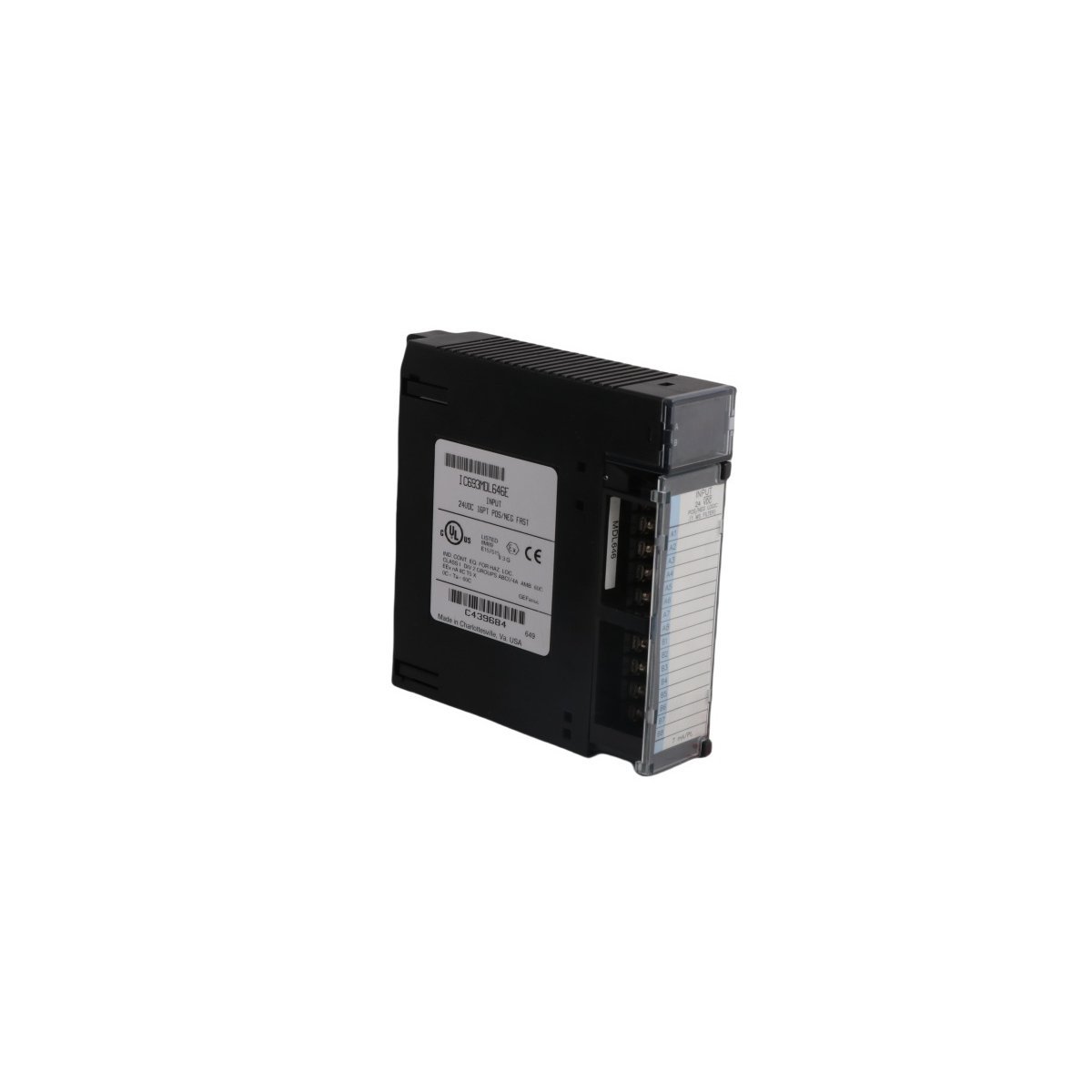

Configured for high-speed discrete signal processing in PACSystems RX3i and Series 90-30 PLC platforms, the GE IC693MDL646 (IC693MDL646 Digital I/O Module) provides direct physical electrical execution for 16-channel 24 VDC input monitoring.

Hardware Specifications

PLC System Communication and Backplane Integration

• The module interfaces directly with the PLC backplane bus to facilitate deterministic data exchange between field sensors and the central processing unit (CPU).

• The system manages firmware flash compatibility through the host rack configuration, which enables the controller to verify module presence and channel status during the power-up initialization sequence.

• The module maintains precise I/O density scaling through its 16-channel grouping, as it reports all state changes to the CPU within a consistent 1 ms scan window.

• Users determine logic compatibility (positive or negative) by configuring the external wiring at the common terminal, which ensures seamless integration with diverse field device architectures.

Frequently Asked Questions

Q: Does the IC693MDL646 support hot-swapping while the rack is under power?

A: No, the module is not designed for hot-swapping. The rack power must be de-energized before inserting or removing the module to prevent damage to the backplane connectors and internal logic circuitry.

Q: How is the logic configuration (positive vs. negative) selected for this module?

A: The input logic is determined by the external wiring of the common terminal relative to the field device power supply. Proper polarity must be observed according to the desired logic scheme to ensure correct channel activation.

Field Installation Guidelines

• Prior to commencing any physical setup, verify that the input power supply is fully isolated and strictly maintained within the 0–30 VDC range before attempting to connect any field devices to the module terminals.

• Once the power supply status is confirmed, ensure that all wiring is meticulously routed and connected to the 20-pin terminal block located behind the swing door, utilizing the provided printed wiring reference to guarantee correct pin-to-signal mapping.

• Subsequently, tighten all terminal screws to the manufacturer-specified torque; this step is necessary to maintain secure electrical contact and, consequently, prevent any potential intermittent signal loss during operation.

• Furthermore, it is imperative to maintain adequate physical separation between all low-voltage DC input wiring and high-voltage AC lines; doing so serves to mitigate electromagnetic interference that could otherwise adversely affect input state accuracy.

• Finally, after the wiring is completed, utilize the integrated channel status LEDs to perform comprehensive local diagnostics during the commissioning phase, thereby confirming accurate and consistent signal transmission from all connected field sensors.
