Description

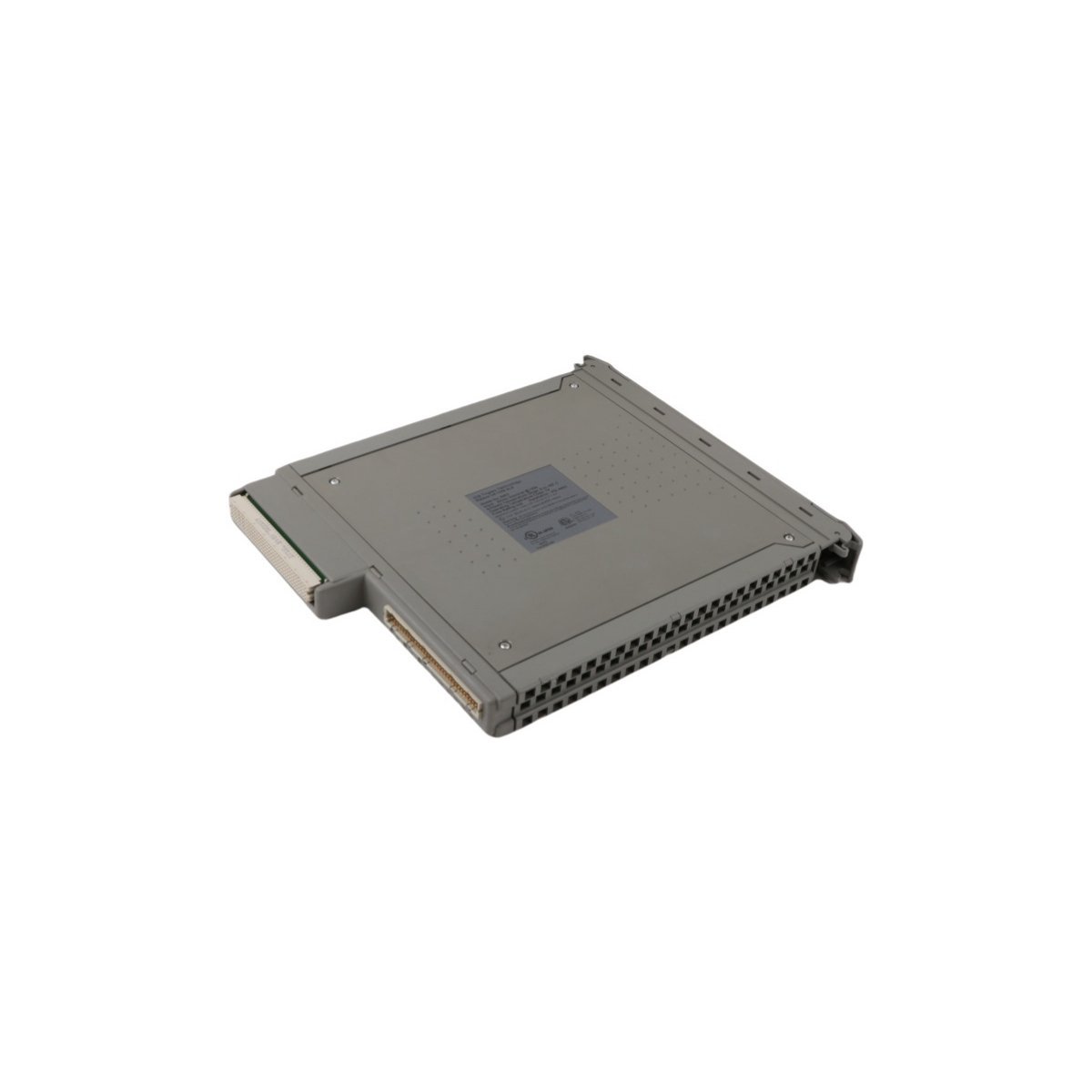

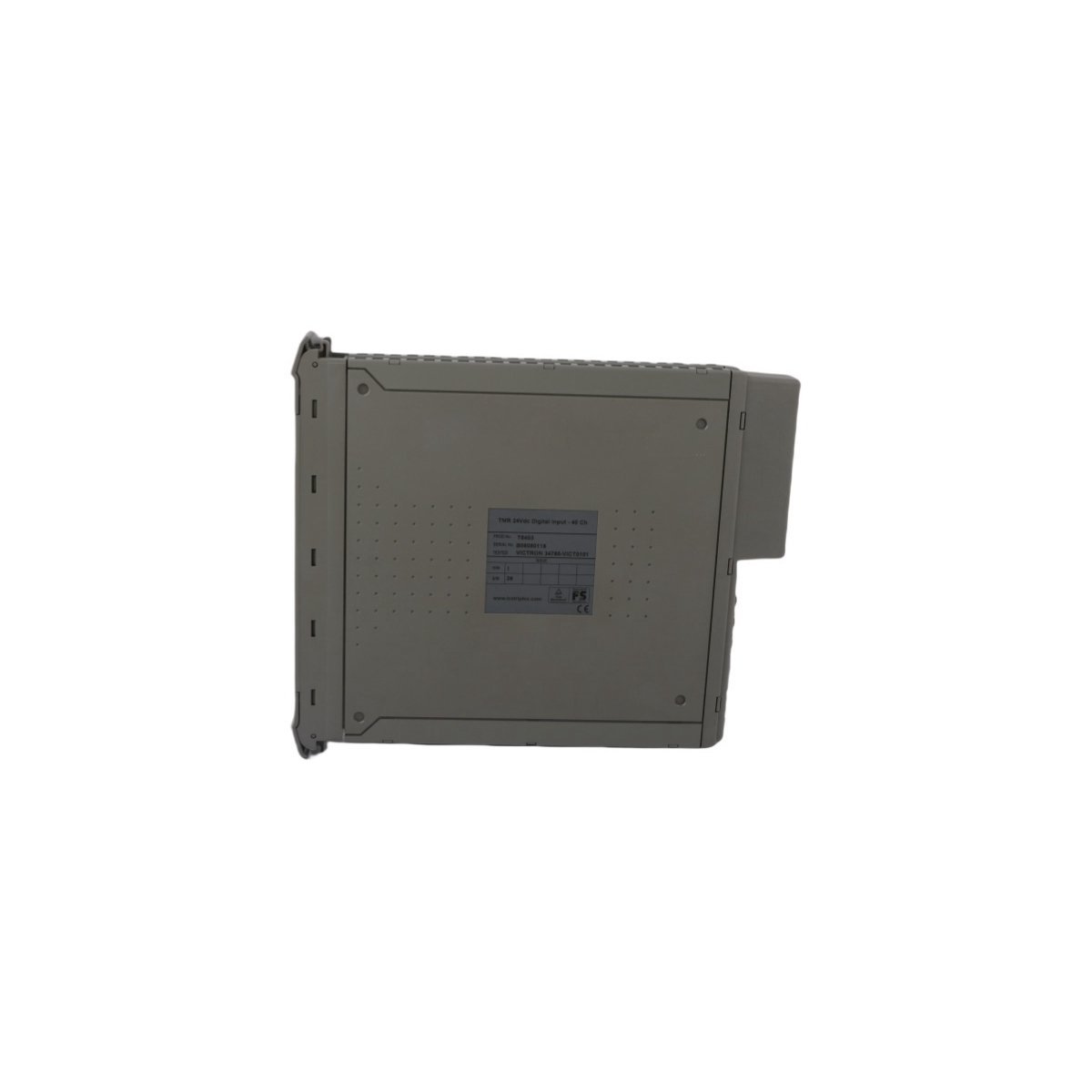

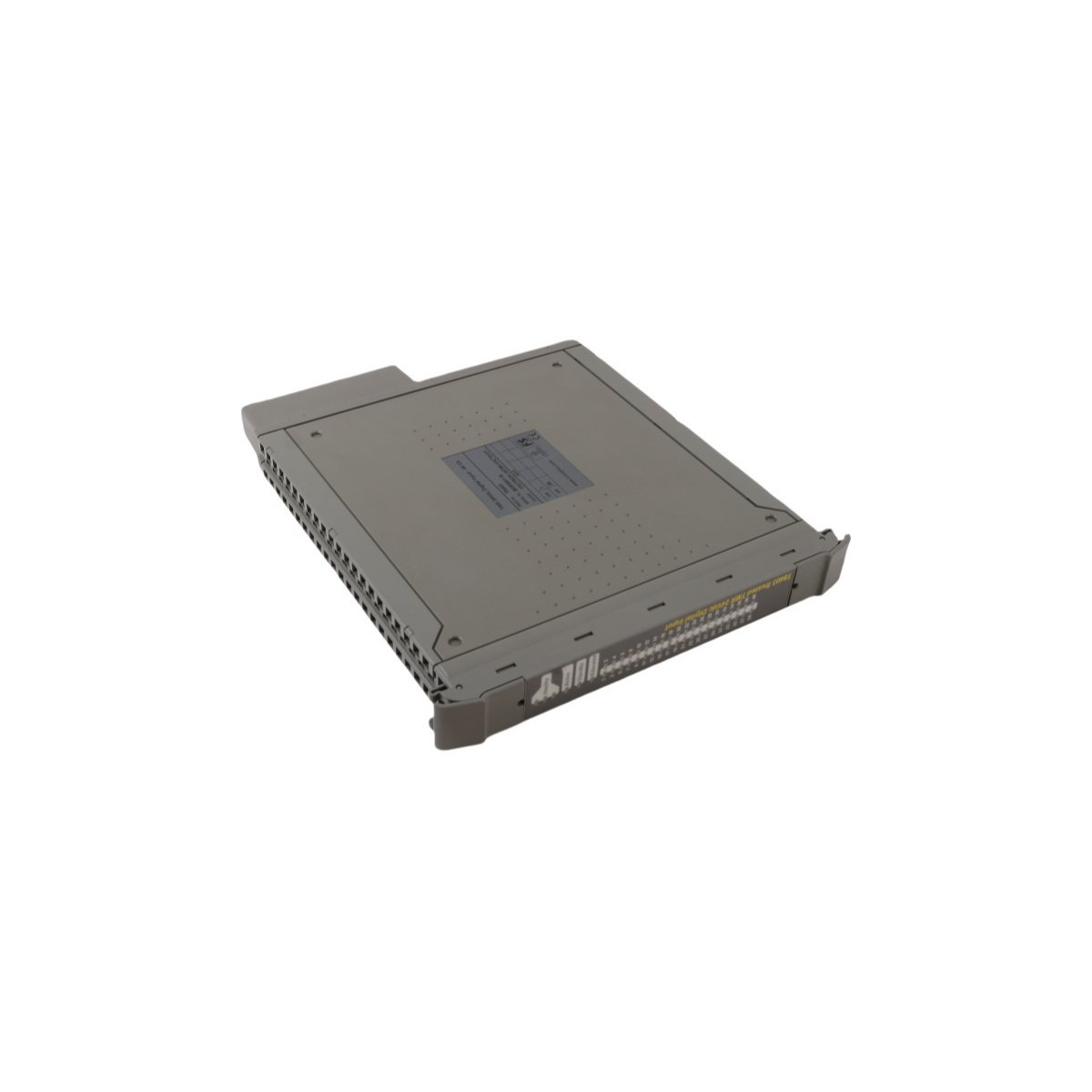

The ICS Triplex T8403 functions as a high-integrity interface within the Trusted Triple Modular Redundant (TMR) system. This 24Vdc digital input module provides 40 fully isolated channels for critical signal monitoring. Because it utilizes a fault-tolerant architecture, the module ensures maximum system availability for safety-critical tasks. It accurately detects field device states and communicates them to the central processor. This hardware remains a primary choice for industries requiring zero-compromise reliability and rapid diagnostic feedback.

Technical Specifications and Hardware Profile

Advanced Operational Capabilities

The T8403 module employs a hardware-based voting mechanism to eliminate single points of failure. Three independent processing paths cross-reference every input signal before validating the data. This design protects the process from internal component malfunctions or transient electrical noise. Furthermore, the module includes comprehensive line monitoring to detect field-side wiring faults. It identifies open circuits and short circuits in real-time to prevent unplanned system trips.

Modern automation facilities benefit from the module’s seamless integration with HMI and PLC environments. Its high-speed processing capability supports 1ms resolution for Sequence of Events (SOE) recording. This feature allows engineers to analyze precise trip sequences during process disturbances. Consequently, maintenance teams can resolve issues faster and improve overall facility safety.

Industrial Applications and Integration

The T8403 performs reliably in the world’s most demanding industrial sectors. Common deployment areas include:

• Emergency Shutdown Systems (ESD) for offshore platforms
• Fire and Gas (F&G) detection and protection networks
• Burner Management Systems (BMS) for utility boilers
• High-integrity pressure protection systems (HIPPS)
• Critical interlocking logic in petrochemical refineries

The module supports hot-swapping within a powered Trusted controller chassis. This capability allows for maintenance or upgrades without disrupting the active control process. Moreover, the 1.2 kg compact frame facilitates high-density channel counts in limited cabinet space. The T8403 represents a robust investment for long-term operational success in hazardous environments.
