Description

Brief Product Description

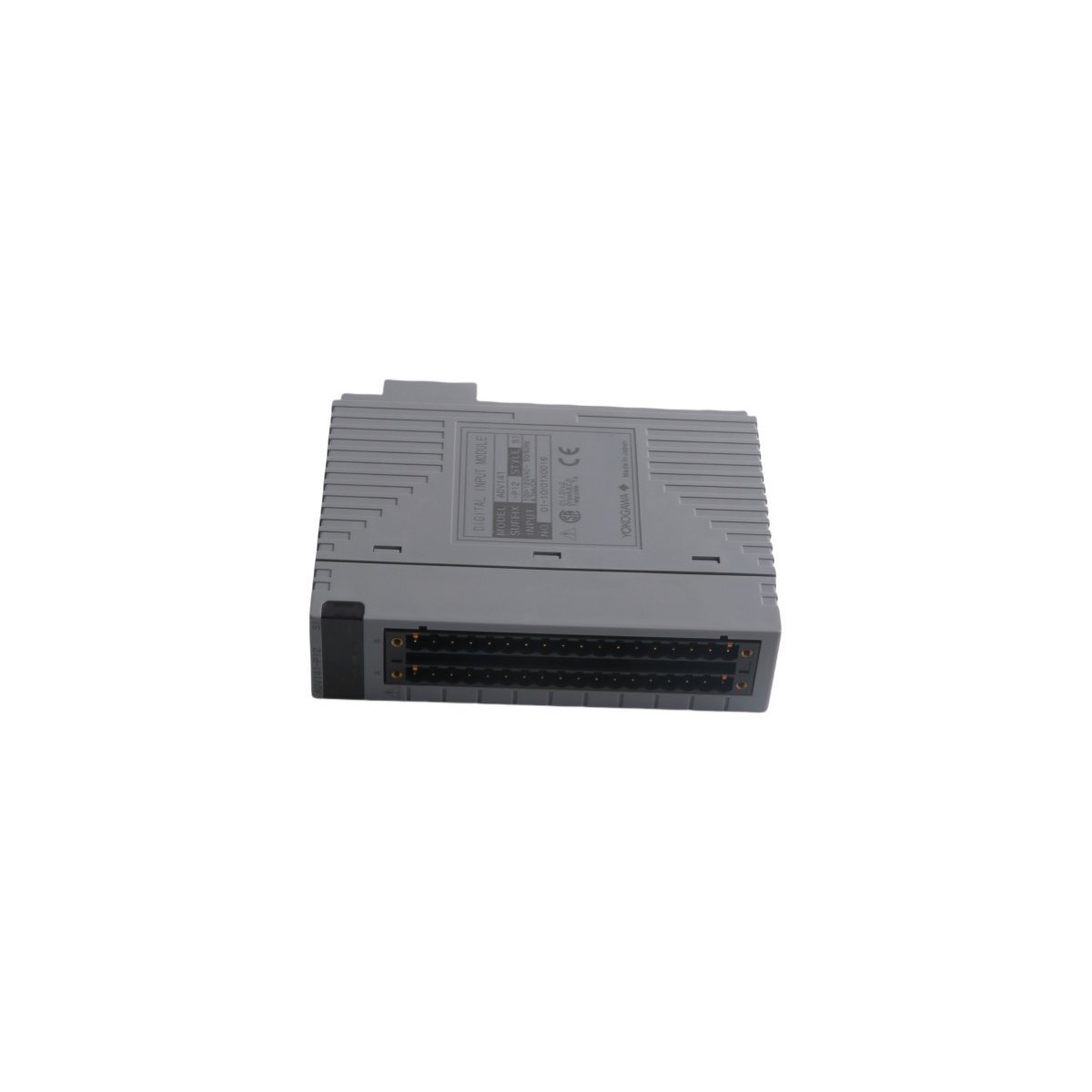

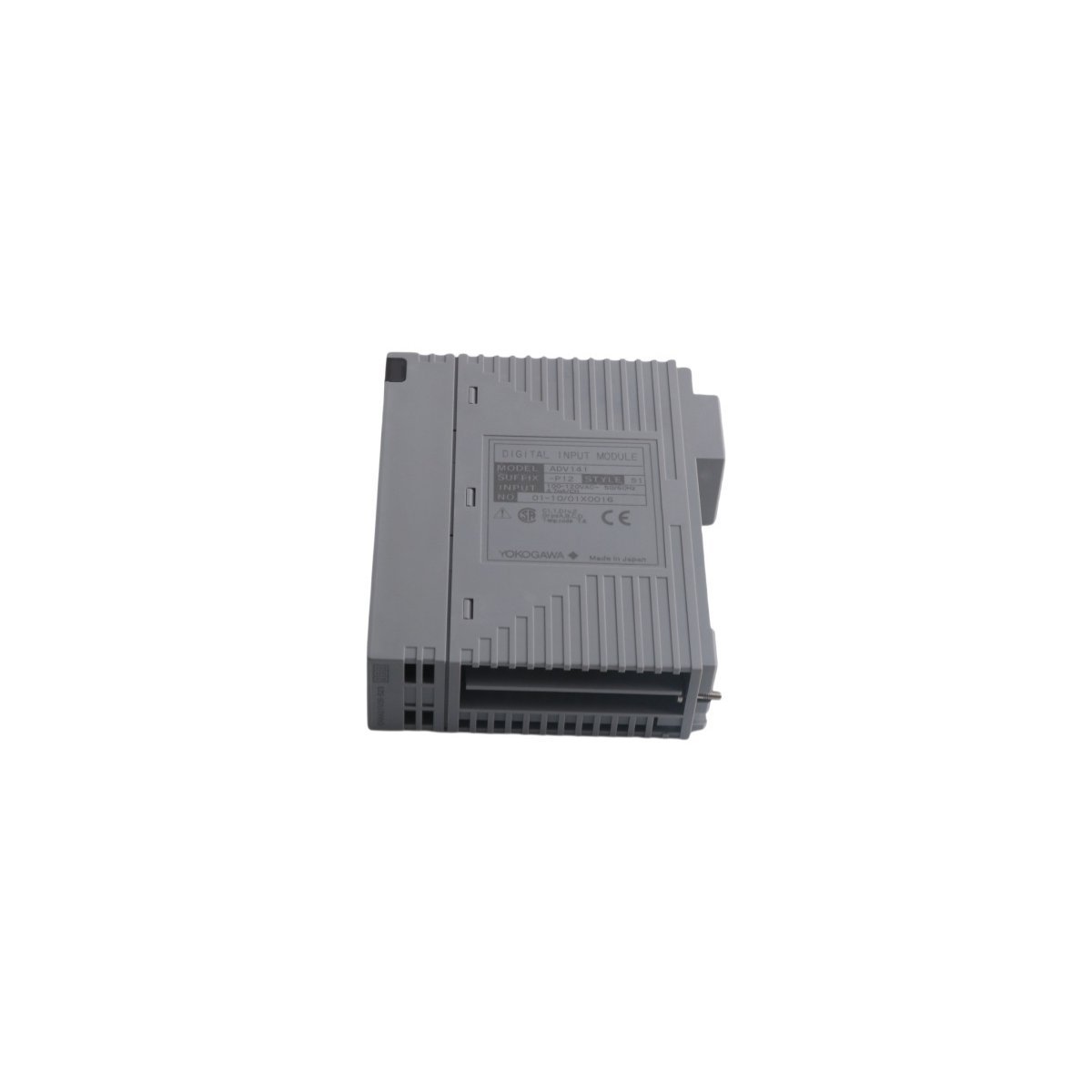

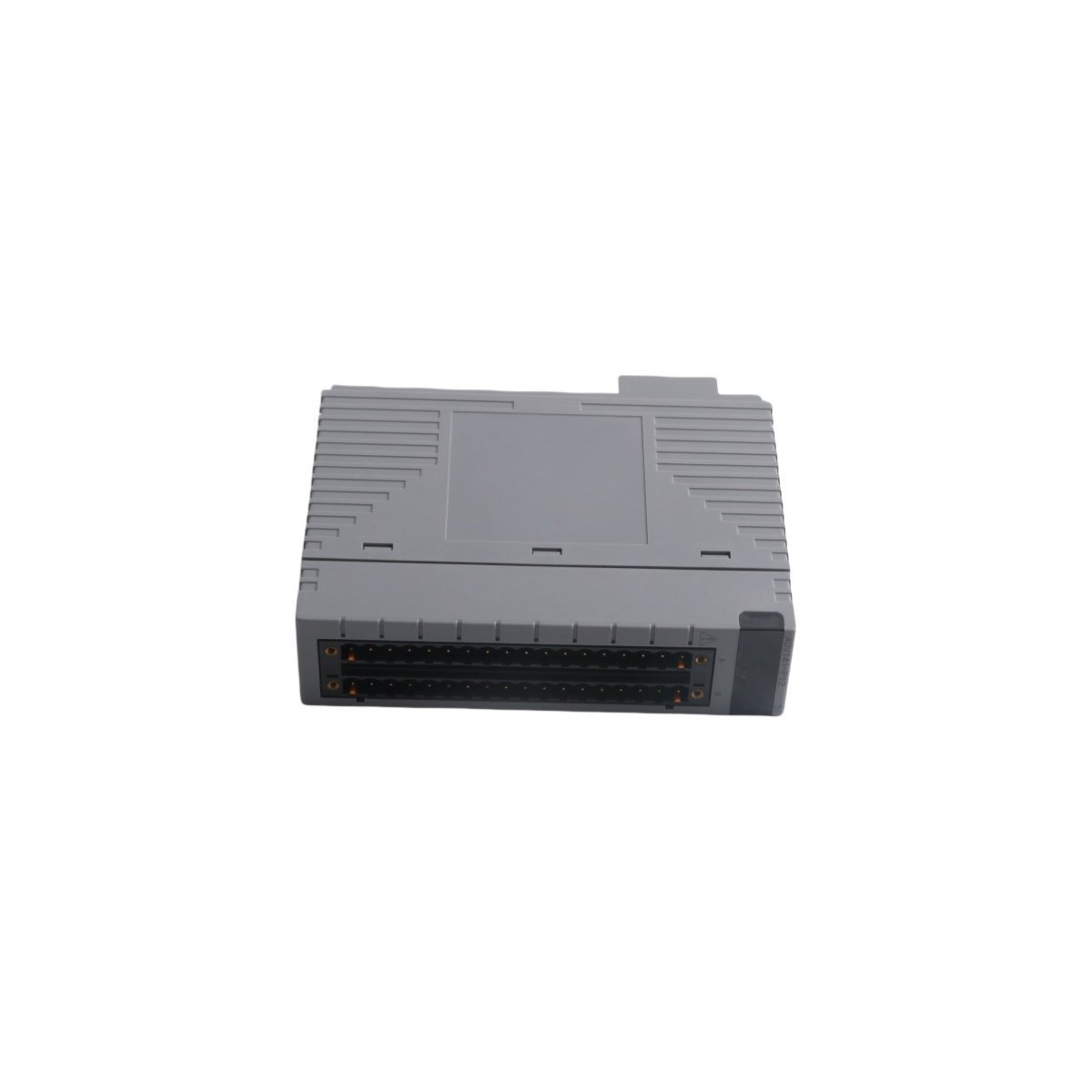

The Yokogawa ADV141-P12 S1 is a high-density 16-channel digital input module designed for the CENTUM VP distributed control system. It provides precise status monitoring and signal isolation for industrial field devices to ensure stable and secure automation control.

​Product Description

High-Density Signal Processing

The Yokogawa ADV141-P12 S1 serves as a critical interface within the CENTUM VP architecture, providing 16 individual channels for digital signal acquisition. This module accurately detects the status of field contacts, such as switches, pushbuttons, and relay outputs, converting them into actionable logic for the DCS. By centralizing 16 inputs into a single compact unit, Yokogawa enables engineers to maximize cabinet space while maintaining comprehensive oversight of plant operations. This efficiency is particularly valuable in large-scale installations where high I/O density directly correlates to reduced infrastructure costs.

Advanced Electrical Isolation and Safety

Safety remains a primary focus of the ADV141-P12 S1 design. The module incorporates high-grade opto-isolation technology to create a robust barrier between sensitive control logic and external field wiring. This isolation protects the system from common industrial hazards, including electrical surges, ground loops, and transient noise. Furthermore, the S1 variant features enhanced circuit protection to prevent localized faults from propagating through the backplane. Consequently, the module increases the overall resilience of the automation network and safeguards the integrity of the process data.

Industrial-Grade Reliability and Versatility

Yokogawa engineered the ADV141-P12 S1 to perform consistently across a wide range of environmental conditions. The module maintains peak functionality within broad temperature and humidity parameters, ensuring it meets the demands of offshore platforms, refineries, and chemical processing facilities. Additionally, its flexible voltage support allows for integration with various field device standards. Because the module utilizes a low-power consumption design, it contributes to lower thermal loading within control panels, which significantly extends the operational lifespan of neighboring electronic components.

Technical Specification Overview
