Description

Brief Product Description

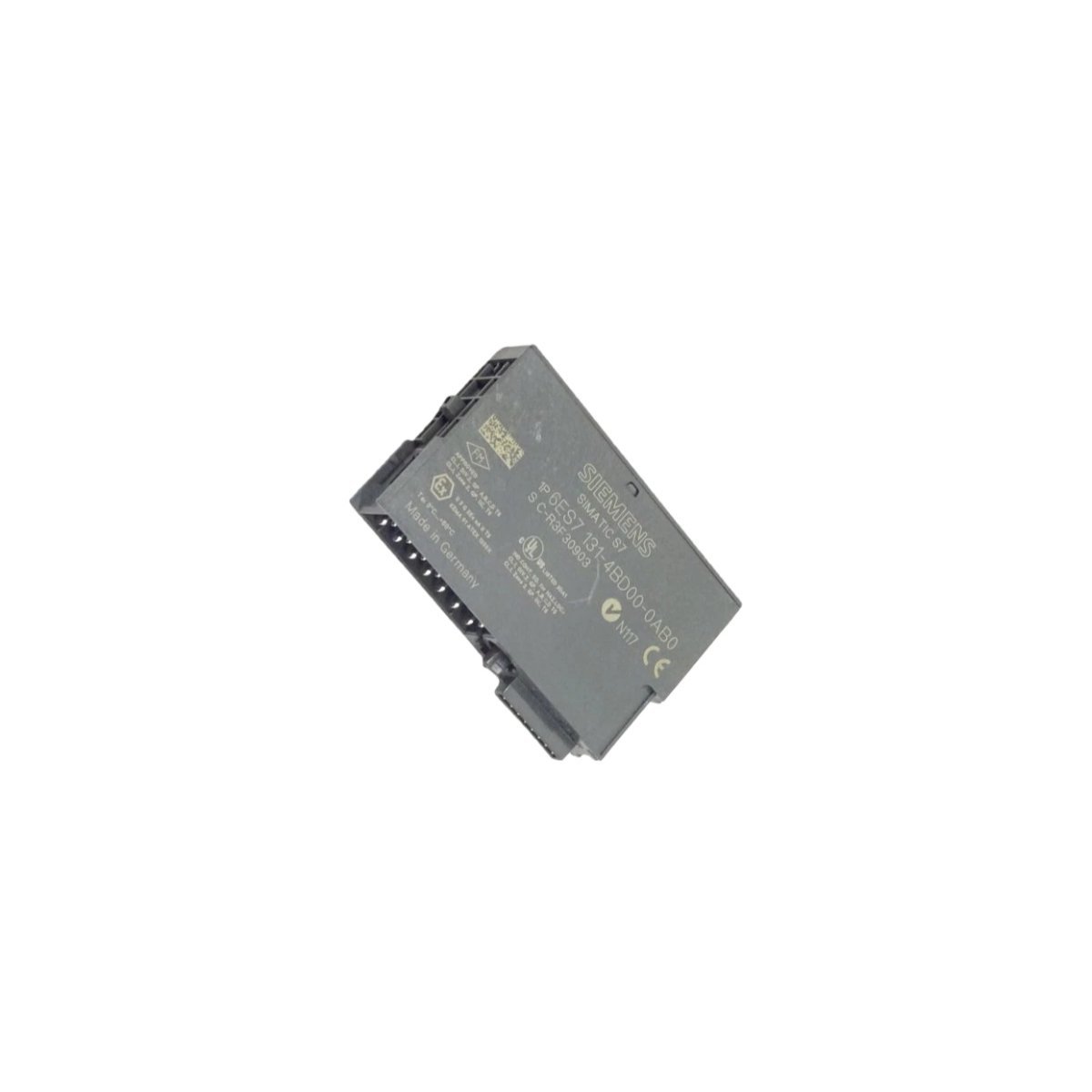

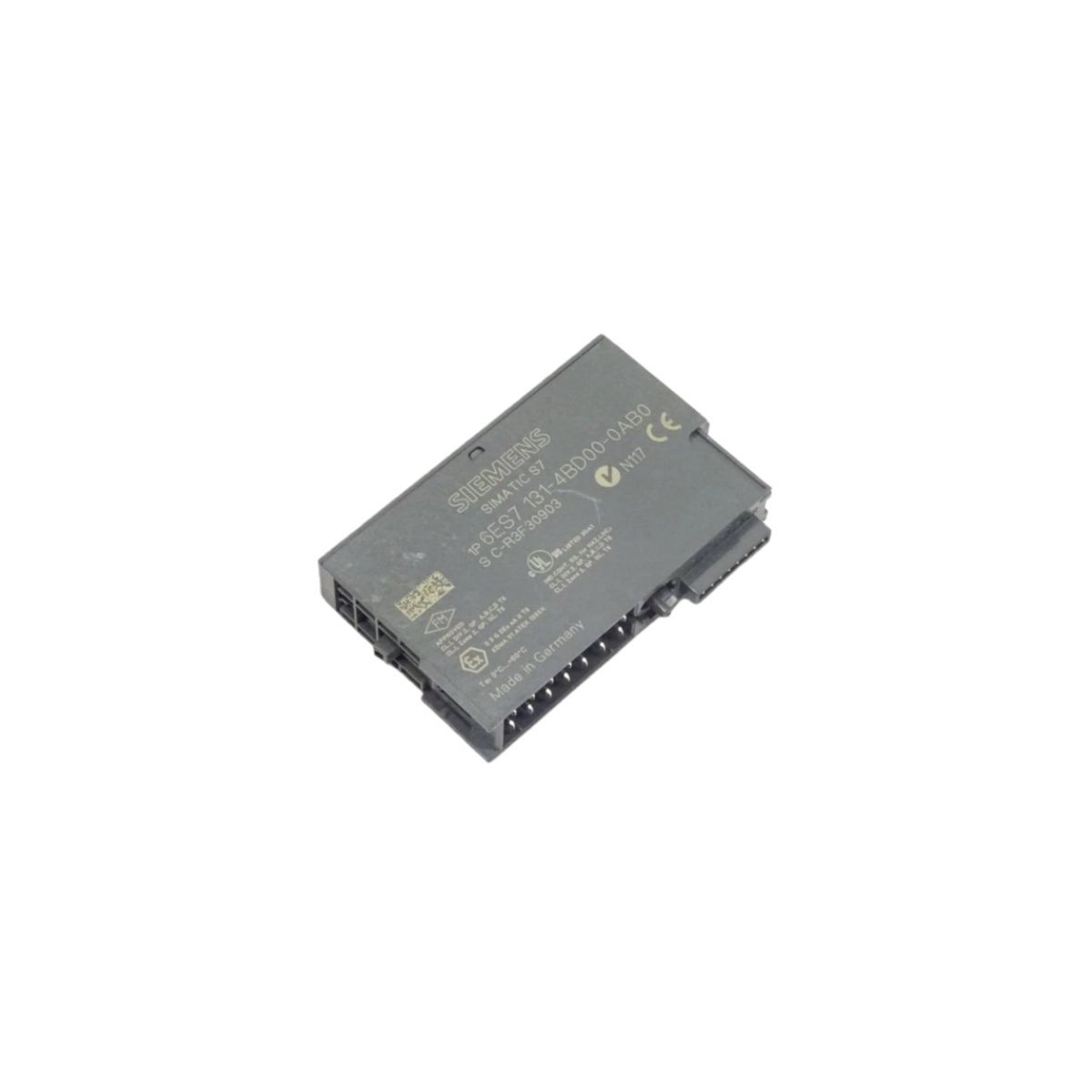

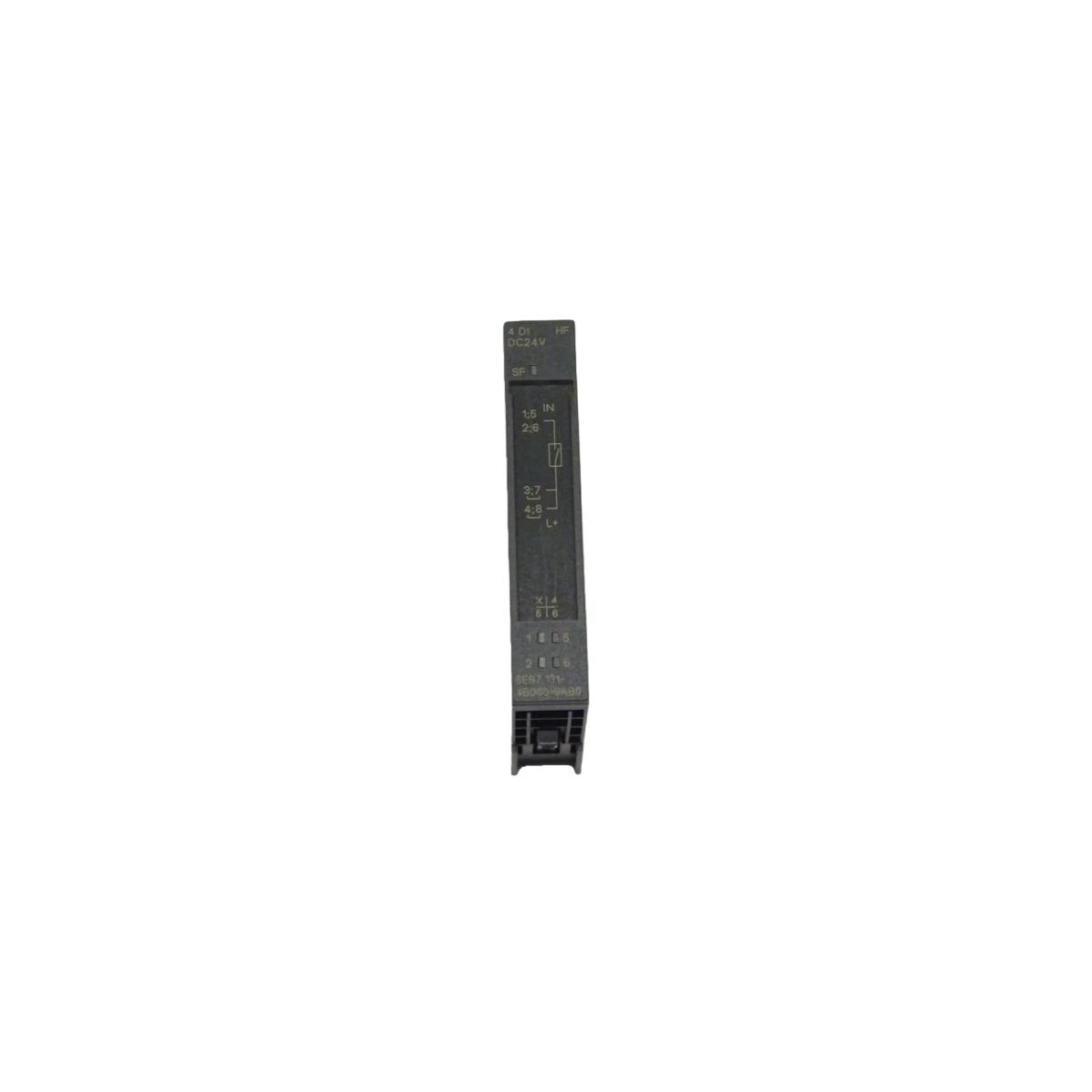

The Siemens 6ES7131-4BD00-0AB0 is a “High Feature” digital input module for the SIMATIC ET 200S distributed I/O system, providing four 24V DC channels with advanced diagnostics.² This compact, 15mm wide electronic module enables high-density signal processing and real-time fault detection in automated control environments.³

Product Description

High-Density Distributed I/O Integration

The Siemens 6ES7131-4BD00-0AB0 functions as a core component of the SIMATIC ET 200S distributed I/O architecture. By offering four digital input channels within a slim 15mm form factor, this module allows system designers to maximize control cabinet density. It effectively bridges the gap between field-level sensors and a central PLC, such as an S7-300 or S7-1500, via PROFIBUS or PROFINET. This specific “High Feature” version provides superior data processing capabilities compared to standard modules, ensuring high-speed signal acquisition for time-critical manufacturing processes.

Precision Electrical Performance and Standards

This electronic module adheres strictly to IEC 61131 Type 1 input standards, ensuring compatibility with a wide array of industrial sensors. It operates on a 24V DC nominal supply and maintains a narrow voltage threshold for signal accuracy, recognizing a logic high (“1”) between 15V and 30V.⁴ Furthermore, the module provides an integrated encoder supply with a rated output current of 500mA. This feature simplifies wiring by allowing the module to power connected sensors directly, while the 0.7W typical power consumption ensures the system remains energy efficient even under full loads.

Advanced Diagnostics and System Reliability

Reliability serves as the primary focus of the 6ES7131-4BD00-0AB0 technical design. The module includes parameterizable input delays, which help filter out electrical noise and contact bounce from field devices.⁵ To minimize downtime, it features sophisticated diagnostic functions such as encoder short-circuit detection and wire-break monitoring.⁶ A front-facing System Fault (SF) LED provides immediate visual alerts for group errors, allowing maintenance teams to identify and resolve issues rapidly.⁷ Additionally, its hot-swapping capability allows operators to replace modules without powering down the entire station, significantly enhancing overall system availability.
