Description

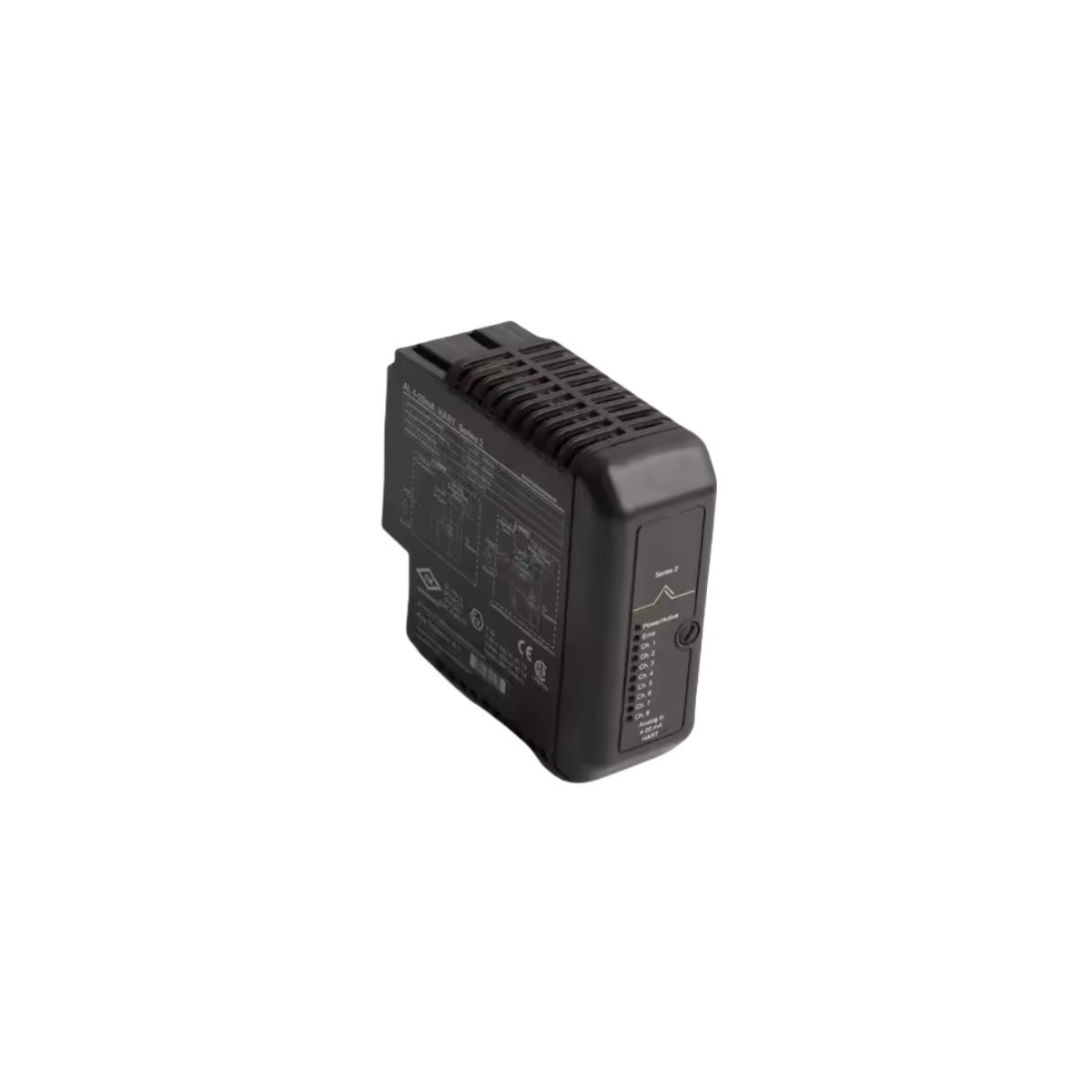

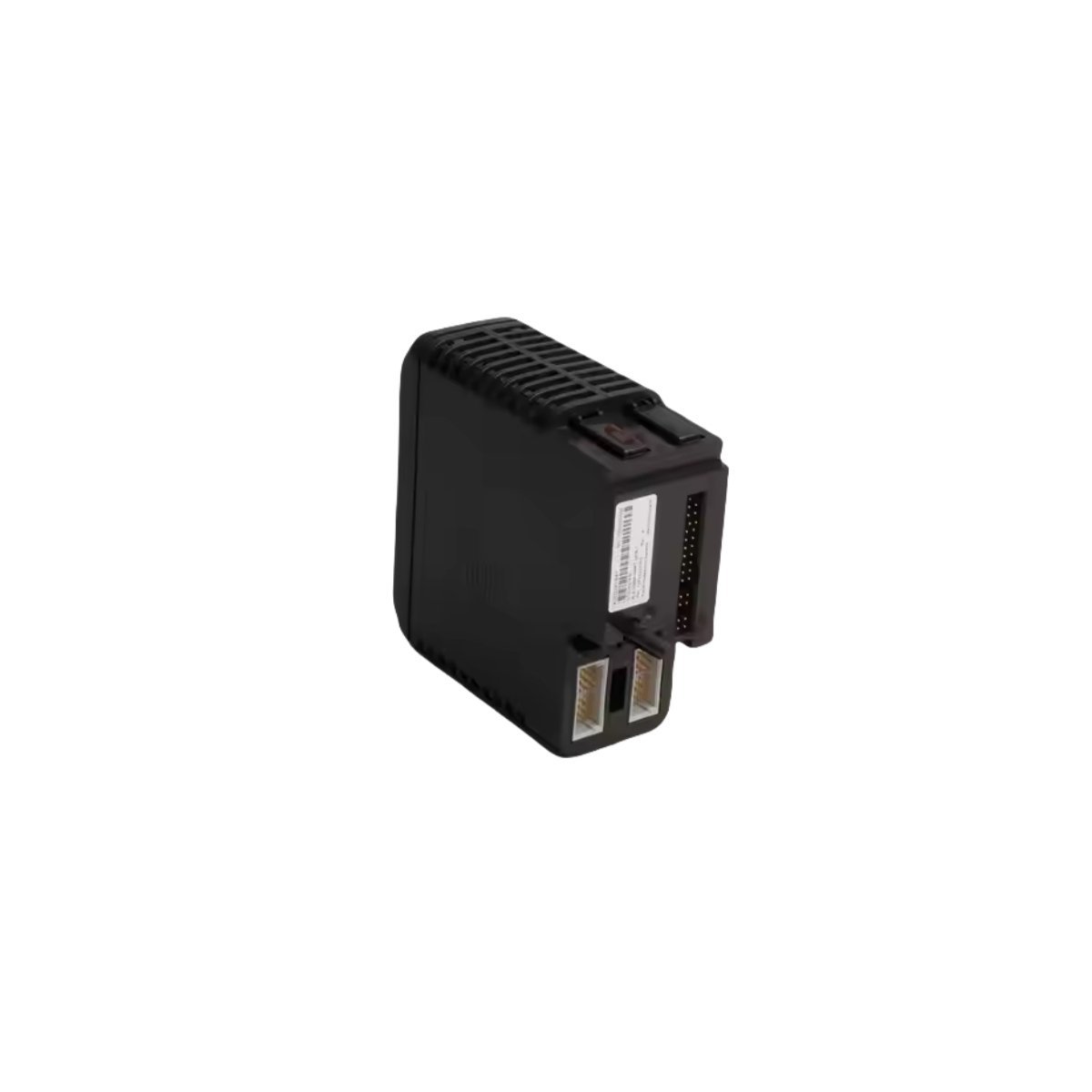

The KJ3222X1-BA1 serves as a high-precision interface within the Emerson DeltaV M-series I/O subsystem. This analog input card captures critical field data from 4-20 mA HART-capable devices. It converts these continuous signals into digital values for the DCS controller. Consequently, the module enables real-time monitoring of pressure, temperature, and flow variables. Its architecture prioritizes signal integrity and high-speed data processing. This ensures the control system receives accurate information for complex automation loops.

System Architecture and Compatibility

This module utilizes the VE4003S2B2 fused termination block for secure field wiring. The fusion of hardware and specialized firmware optimizes the module for Rosemount transmitters. It integrates seamlessly into the DeltaV M-series rail assembly. Furthermore, the card supports online replacement without interrupting the wider control network. The 12P2532X092 configuration maintains full compatibility with legacy M-series controllers. This makes it an ideal choice for system expansions or maintenance updates.

Hardware Features and Protection

The KJ3222X1-BA1 includes individual channel fuses to protect internal circuitry from field faults. These fuses prevent a single short circuit from affecting the entire I/O card. Additionally, the module features on-board diagnostics to detect open circuits or over-range conditions. Status LEDs provide immediate visual confirmation of module health and channel activity. The rugged housing protects the electronics from typical industrial contaminants and vibration. This durable construction ensures a long service life in demanding environments.

Industrial Applications

Process engineers deploy this module in high-stakes industries like oil and gas. It provides the stability required for chemical processing and power generation facilities. The module excels at managing critical loops where precision is non-negotiable. Moreover, it facilitates advanced asset management through HART protocol transparency. This allows technicians to perform remote diagnostics on smart field instruments. The KJ3222X1-BA1 remains a cornerstone for achieving operational excellence in modern plants.

Technical Specifications

• Manufacturer: Emerson Process Management
• Model Number: KJ3222X1-BA1
• Part Number: 12P2532X092
• Assembly Number: VE4003S2B2
• Signal Type: 4-20 mA DC Analog Input
• Input Channels: 8 Channels (Fused)
• Operating Temperature: -40 to 70 degrees Celsius
• Input Impedance: 250 ohms
• Resolution: 16-Bit A/D Conversion
