Description

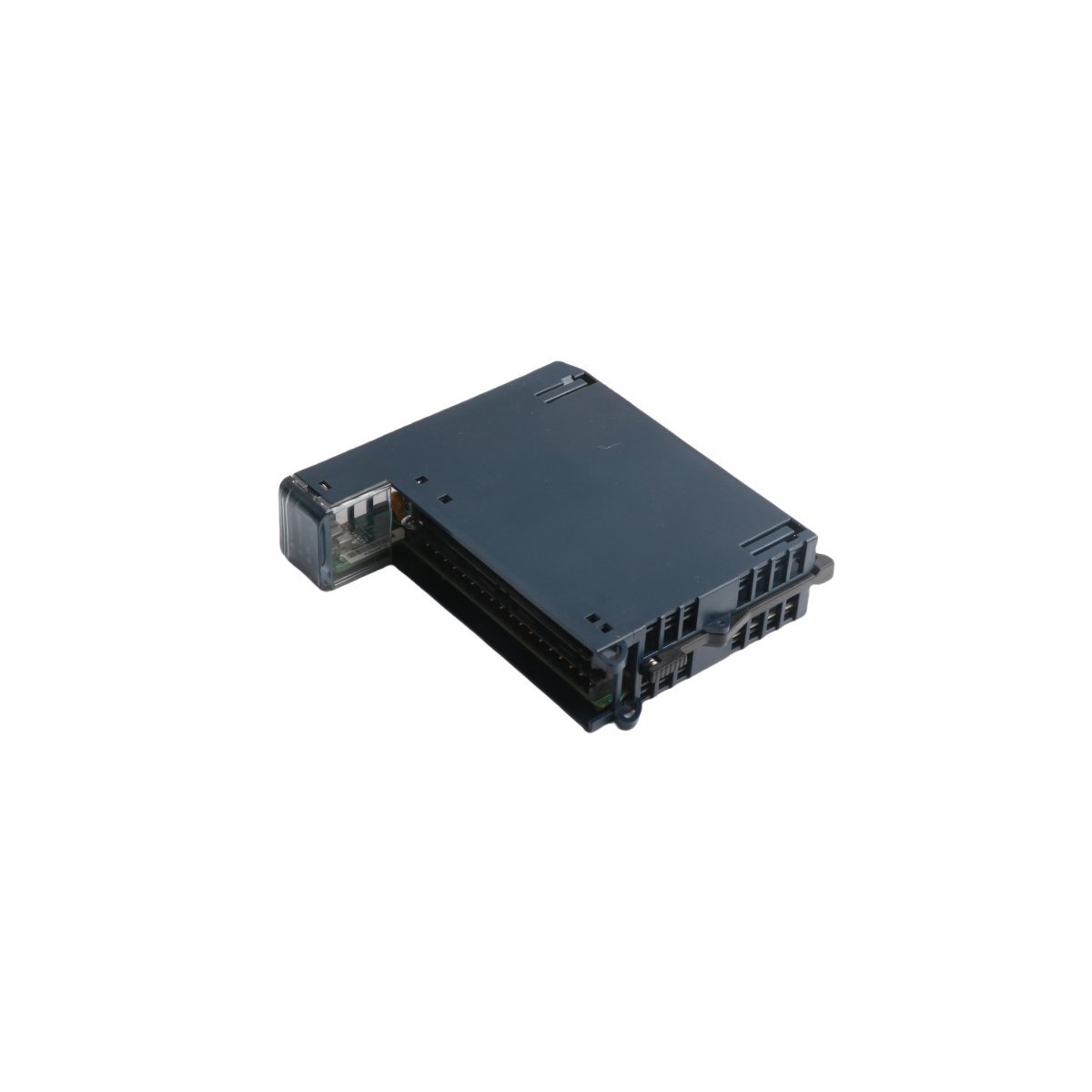

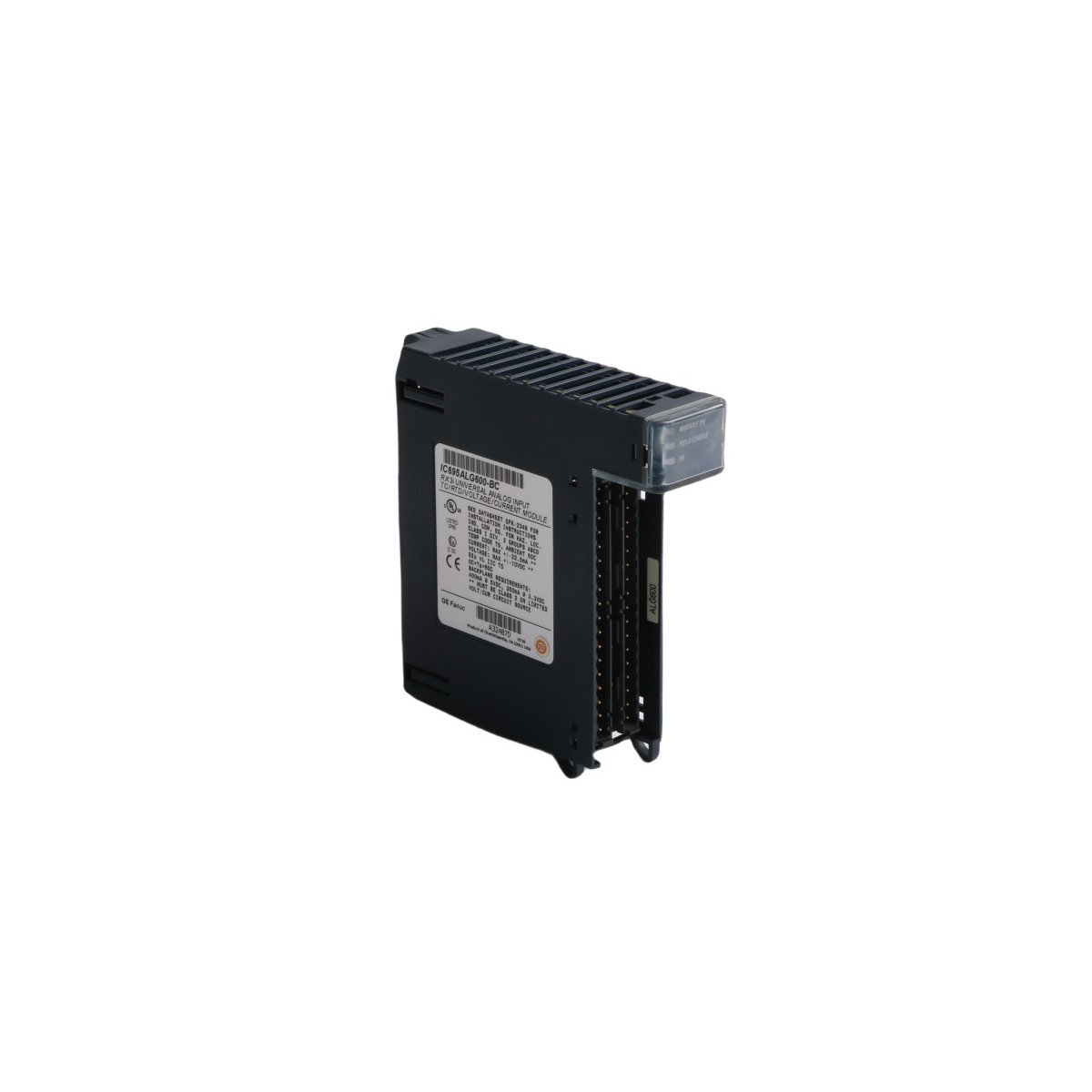

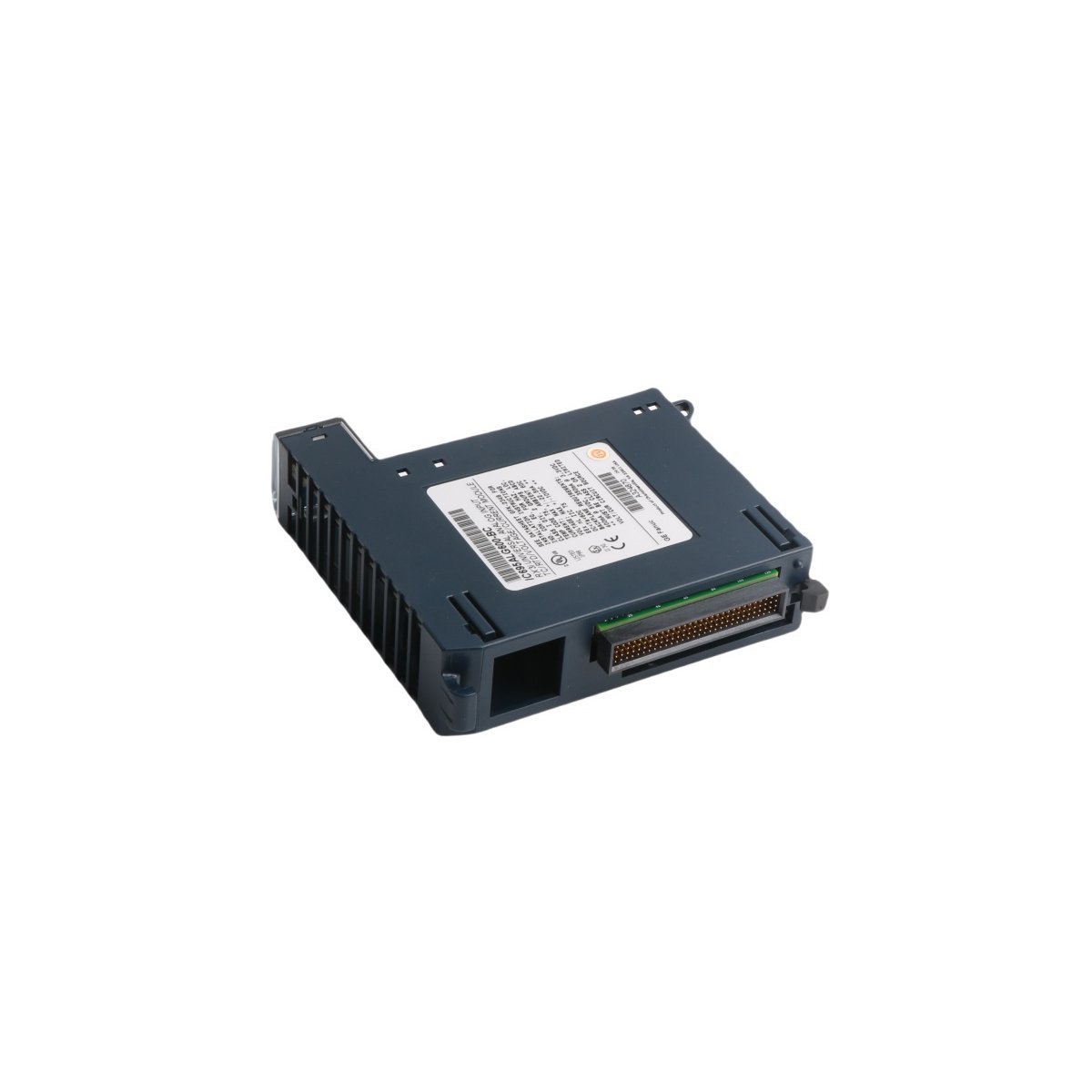

The IC695ALG600 is a high-performance universal analog input module for the PACSystems RX3i platform. This Emerson-manufactured unit offers exceptional flexibility by supporting multiple signal types on a single hardware interface. It features eight independent channels organized into two isolated groups. Engineers can configure each channel to process voltage, current, resistance, or temperature data. This versatility eliminates the need for specialized modules in diverse sensor environments. Consequently, it simplifies system architecture and reduces spare parts inventory.

Advanced Functional Characteristics

This module utilizes high-speed processing to ensure accurate data acquisition for complex control loops. Internal flash memory allows for convenient firmware field upgrades via the RX3i backplane. Furthermore, the unit performs continuous self-diagnostics to maintain measurement integrity. It includes dedicated LED indicators for module status, field power, and terminal block connection. These visual cues significantly accelerate the troubleshooting process during commissioning. The module also supports software-based configuration via Proficy Machine Edition.

Installation and Hardware Compatibility

The IC695ALG600 installs directly into any RX3i Universal Backplane slot. It requires an external terminal block for field wiring connections. Compatible options include the IC694TBB032 box-style or the IC694TBB132 extended box-style connectors. Additionally, the system must run firmware version 2.80 or higher for full compatibility. The module operates reliably within a standard temperature range of 0°C to 60°C. Its slim 35mm profile helps maximize available space in high-density control cabinets.

Operational Benefits

By integrating RTD and Thermocouple support, this module excels in thermal process monitoring. It also handles standard process signals like 4-20mA with high precision. Users benefit from flexible scaling and configurable digital filtering per channel. These settings help eliminate high-frequency noise in heavy industrial environments. The robust design ensures a long service life in power plants and chemical facilities. This universal approach provides a future-proof solution for evolving automation requirements.

Technical Specifications

• Manufacturer: GE Fanuc / Emerson
• Model Number: IC695ALG600
• Input Channels: 8 Channels (organized in 2 groups)
• Voltage Inputs: ±10V, 0-10V, 1-5V, ±5V
• Current Inputs: 0-20mA, 4-20mA, ±20mA
• RTD Support: PT100, PT1000, Ni120, Cu10
• Thermocouple Types: J, K, T, E, R, S, B, N, L, U
• Resolution: 16-bit Analog-to-Digital Conversion
• Power Dissipation: 5.4 Watts (Maximum)
