Description

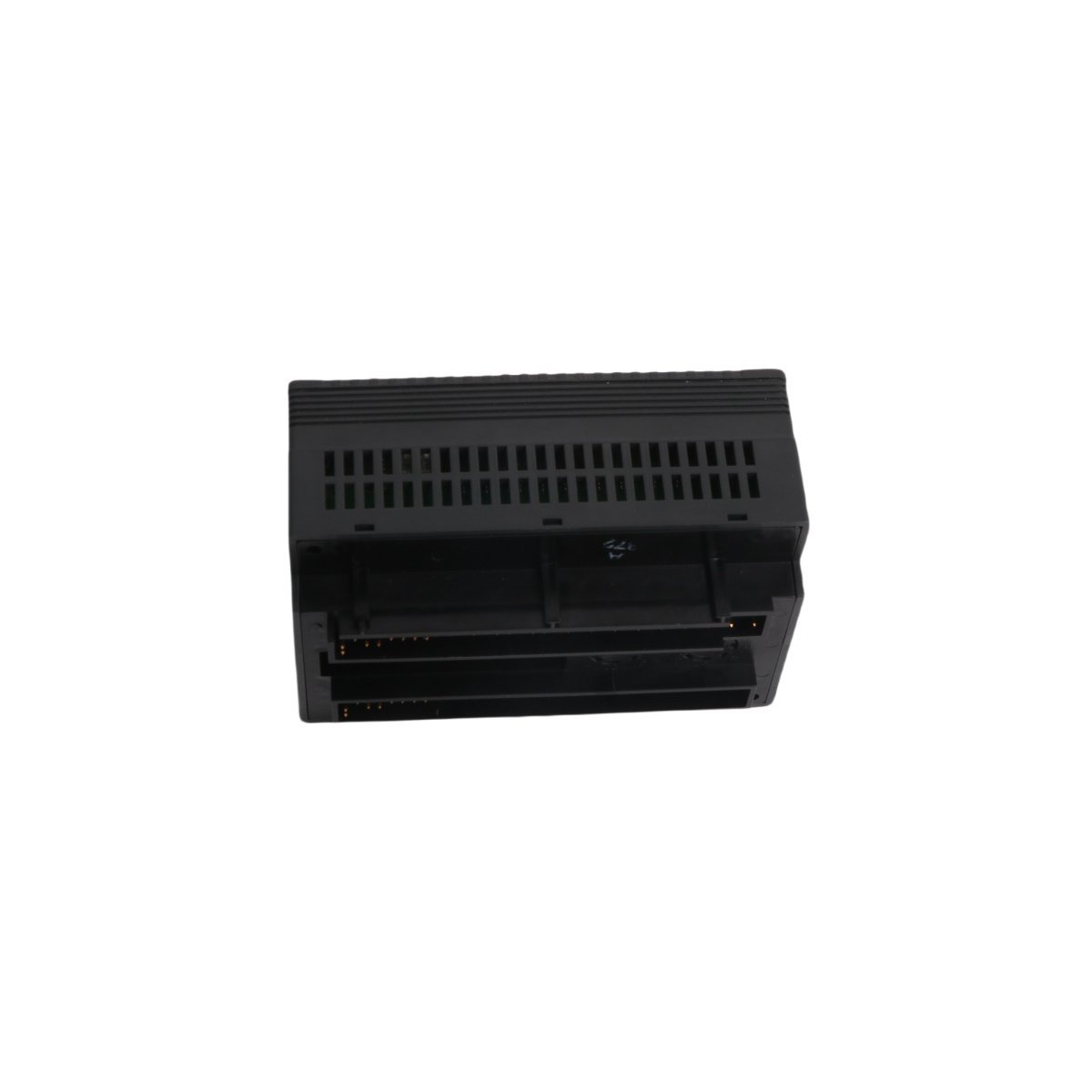

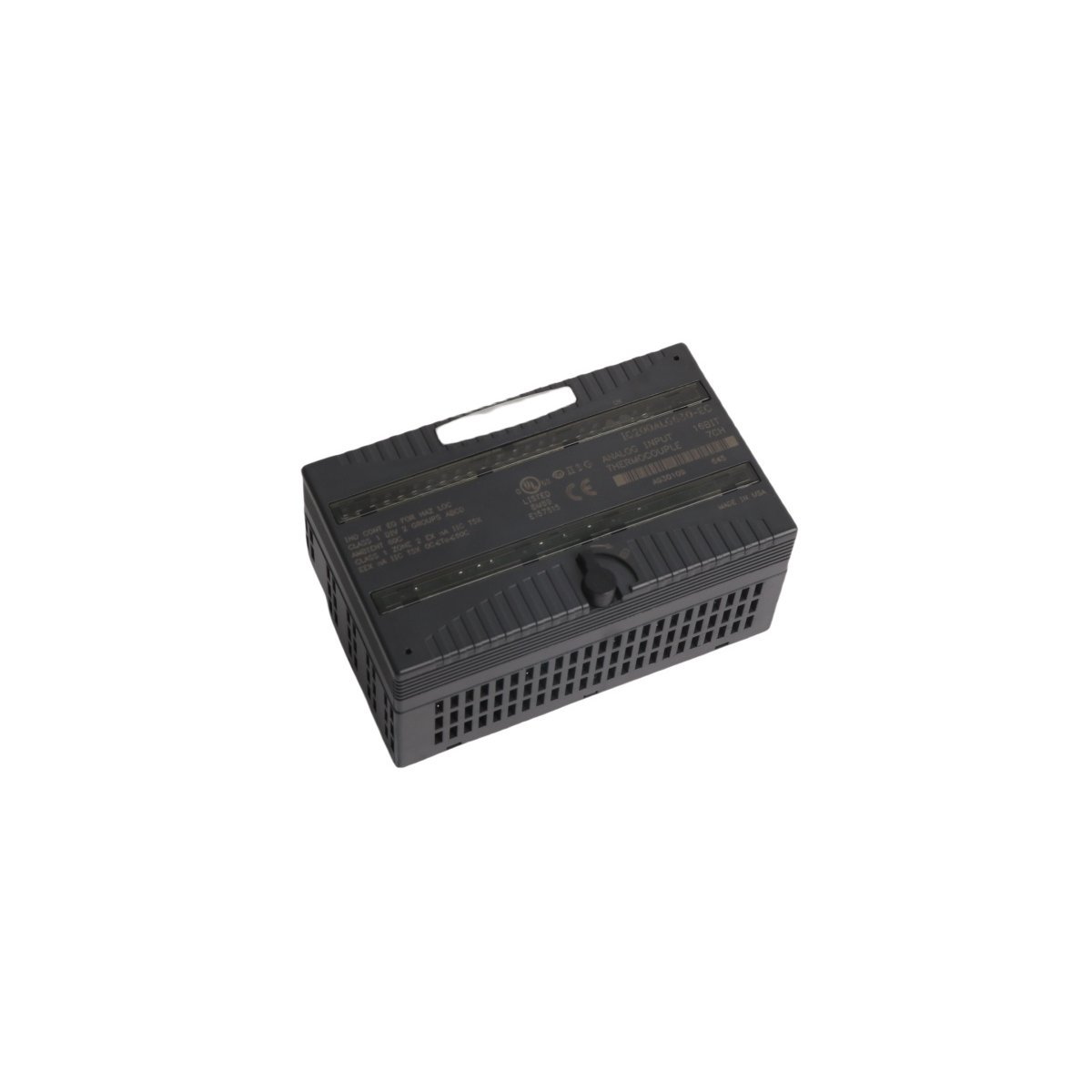

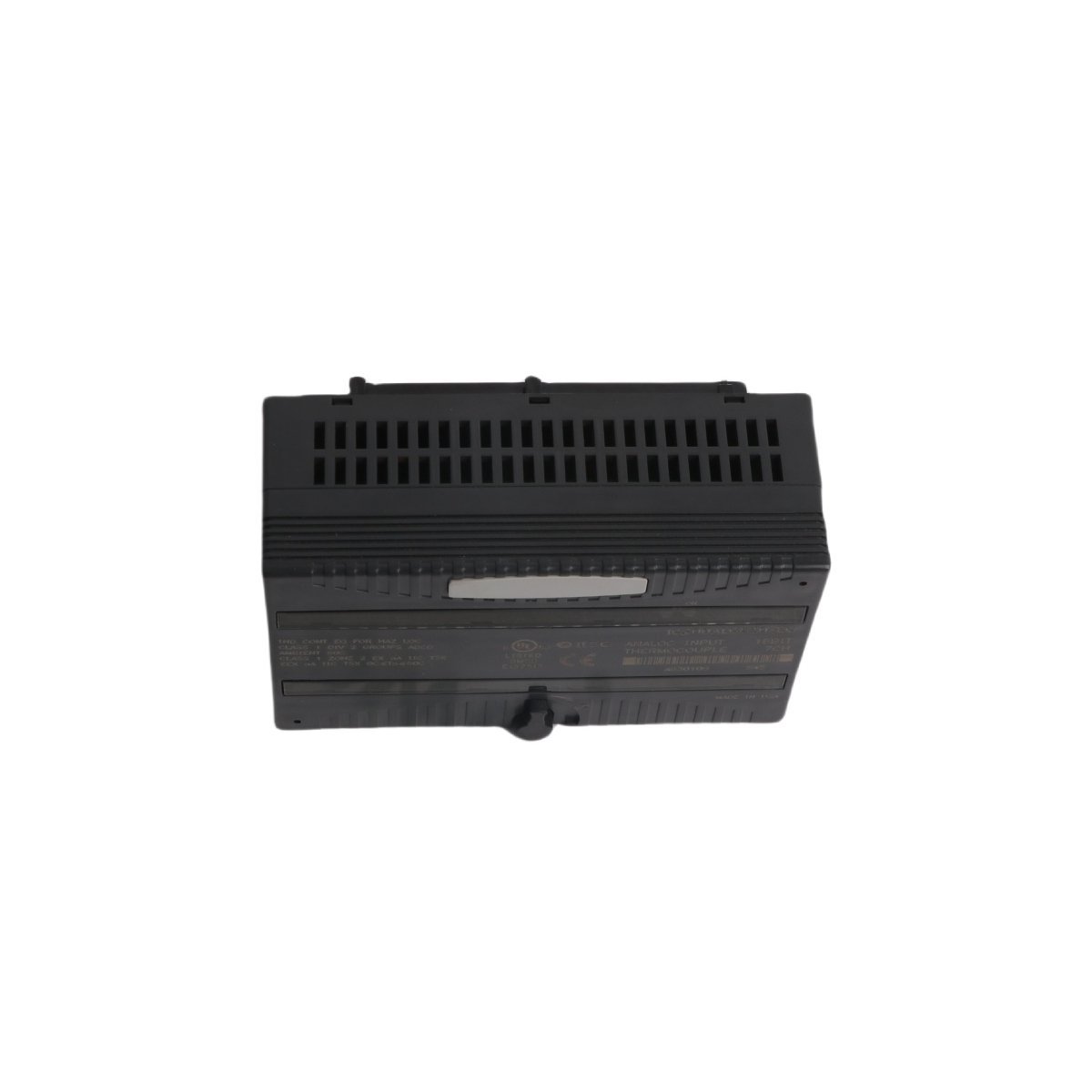

The GE Fanuc IC200ALG630 is a high-performance analog input module within the VersaMax I/O family. This specific unit provides seven independent channels for precision temperature and millivolt measurements. It interfaces directly with standard thermocouples and low-voltage sensors without external signal conditioners. Currently part of the Emerson Automation portfolio, this module maintains compatibility with legacy GE Intelligent Platforms systems. It serves as a reliable solution for industrial monitoring and thermal process control.

Core Functional Capabilities

Each channel on the IC200ALG630 operates with an independent 16-bit converter to ensure data integrity. The module supports a wide variety of thermocouple types to accommodate diverse industrial requirements. Furthermore, it provides sophisticated onboard diagnostics to identify open circuits and range violations. Users can configure filter settings to minimize electrical noise in demanding plant environments. The compact modular design allows for rapid installation on VersaMax carrier bases.

Diagnostics and Safety Features

The hardware includes a front-panel LED for immediate operational feedback. A green light confirms healthy status, while amber indicates a detected fault or configuration error. Additionally, the module features cold-junction compensation to maintain accuracy across varying ambient temperatures. Built-in alarms alert the control system to over-range or under-range conditions automatically. Superior isolation characteristics protect the PLC backplane from external electrical surges. These layers of protection ensure stable operation in high-interference areas.

Application and Integration

This VersaMax module excels in heat treating, plastic injection molding, and HVAC monitoring. It integrates seamlessly with VersaMax CPUs and various network interface units. Technicians can perform setup via standard programming software for fast commissioning. Its high-resolution capabilities make it suitable for scientific and pharmaceutical laboratory environments. By reducing the need for external transmitters, it significantly lowers overall system costs.

Module Specifications

• Manufacturer: GE Fanuc / Emerson
• Model Number: IC200ALG630
• Input Channels: 7 Differential Channels
• Resolution: 16-bit Analog-to-Digital Conversion
• Thermocouple Types: J, K, T, S, R, B, C, E, and N
• Millivolt Ranges: ±19.5mV to ±625mV
• Accuracy: ±0.2% for voltage; ±0.15% for temperature
• Backplane Current: 125mA at 5V DC
• Isolation: 250VAC continuous; 1500VAC transient
