Description

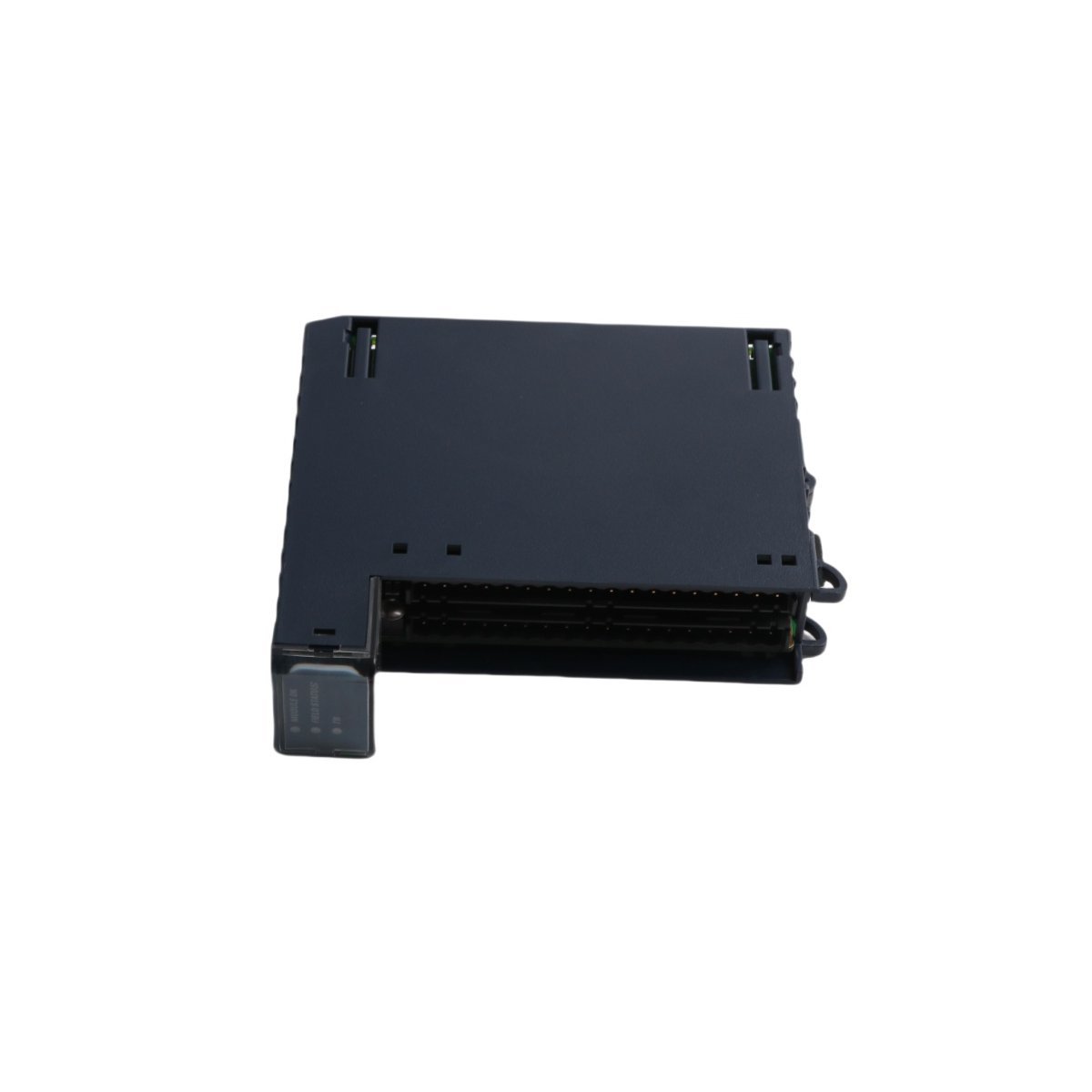

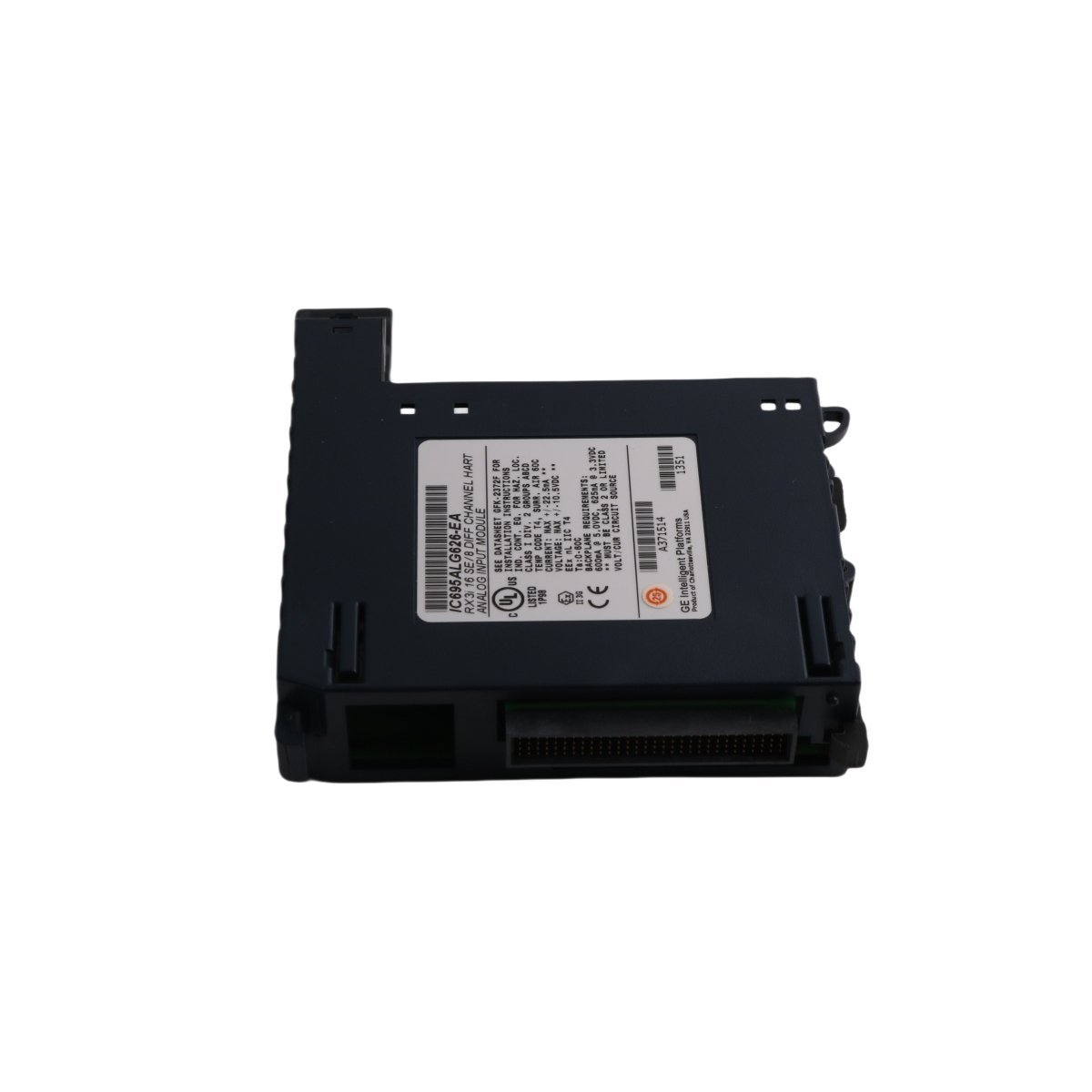

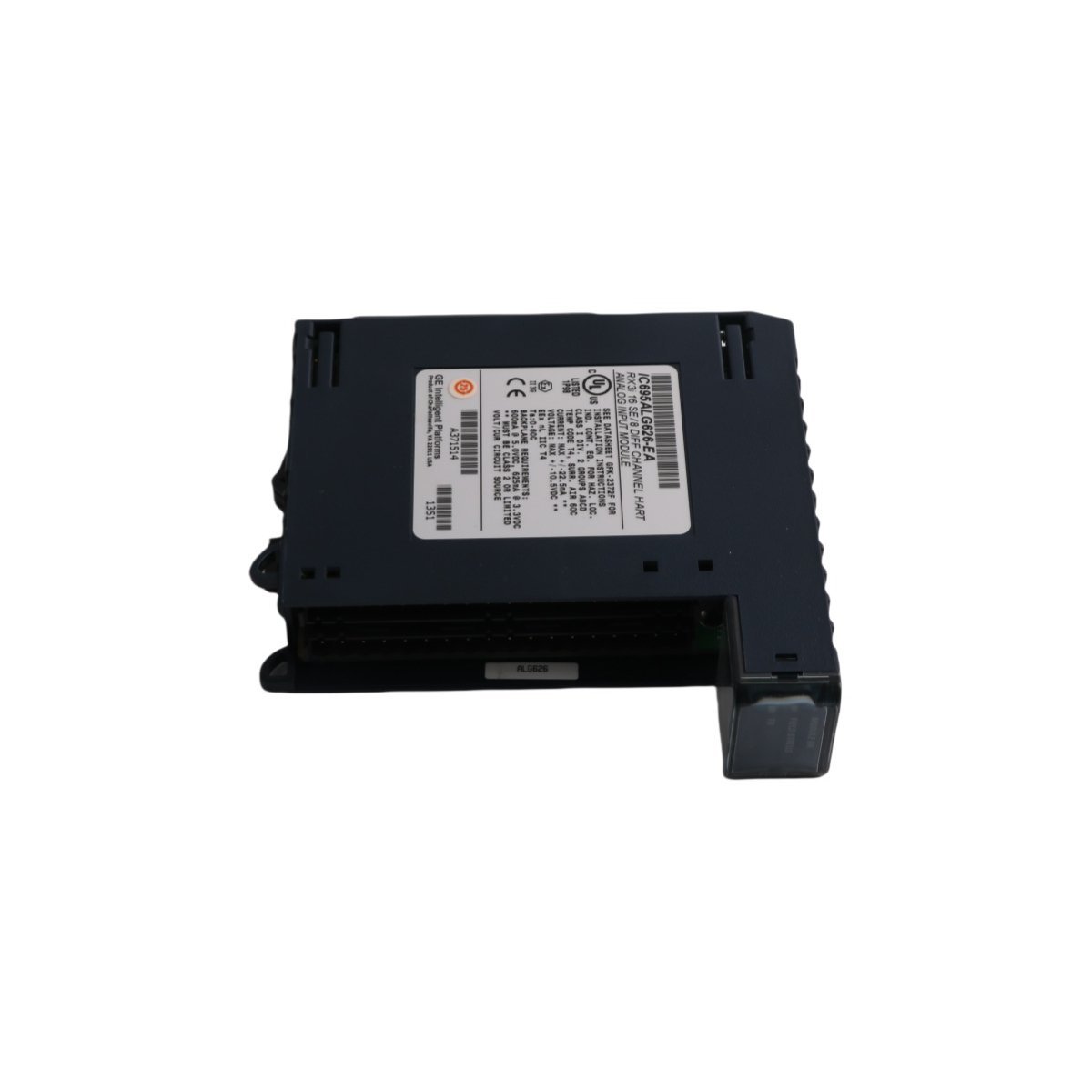

The IC695ALG626 is a sophisticated analog input module belonging to the Emerson PACSystems RX3i family. This high-density component enables direct communication with intelligent field instruments through the HART 5.0 protocol. It bridges the gap between traditional analog sensing and digital asset management. Furthermore, the module converts diverse electrical signals into precise digital process data for the controller. Its advanced architecture supports both current and voltage measurements across multiple channels. Consequently, it serves as a versatile solution for complex automation and diagnostic requirements.

Hardware Capabilities and Integration

This RX3i module utilizes a jumper-less design to streamline the initial setup process. It supports Hot Insertion and Extraction (HITS) within the universal backplane. This allows for module replacement while the rest of the system remains powered. Additionally, onboard flash memory facilitates easy firmware updates in the field. The module also features internal auto-calibration to maintain long-term measurement accuracy. Users can configure sophisticated alarm structures for rate of change and limit thresholds. These tools help identify process deviations before they become critical failures.

Diagnostics and Status Monitoring

The IC695ALG626 provides comprehensive diagnostic feedback through front-panel LED indicators. These lights signal module health, field-side power status, and terminal block connectivity. Specifically, the system detects open circuits and out-of-range input conditions immediately. The HART interface goes further by allowing remote access to secondary instrument variables. Maintenance teams can perform calibration checks and device configuration through the PLC backplane. This capability significantly reduces the need for manual inspections in hazardous areas.

Industrial Applications

Process engineers typically deploy this module in water treatment, chemical, and refining plants. It excels in environments where instrument health monitoring is a priority. The module manages critical loops by providing stable and repeatable data points. Moreover, its high-density channel count saves valuable rack space in control cabinets. The rugged design ensures reliable operation even in thermally challenging conditions. Therefore, the IC695ALG626 remains a preferred choice for modernizing legacy DCS and PLC infrastructures.

Technical Specifications

• Manufacturer: GE / Emerson
• Model Number: IC695ALG626
• Input Channels: 16 Single-ended or 8 Differential
• Communication Protocol: HART version 5.0 (All channels)
• Current Ranges: 0 to 20mA, 4 to 20mA, ±20mA
• Voltage Ranges: 0 to 10V, ±10V, 0 to 5V, ±5V, 1 to 5V
• A/D Resolution: 16-bit
• Operating Temperature: 0°C to 60°C (32°F to 140°F)
• Mounting Type: RX3i Universal Backplane (PCI Bus)
