Description

Brief Product Description

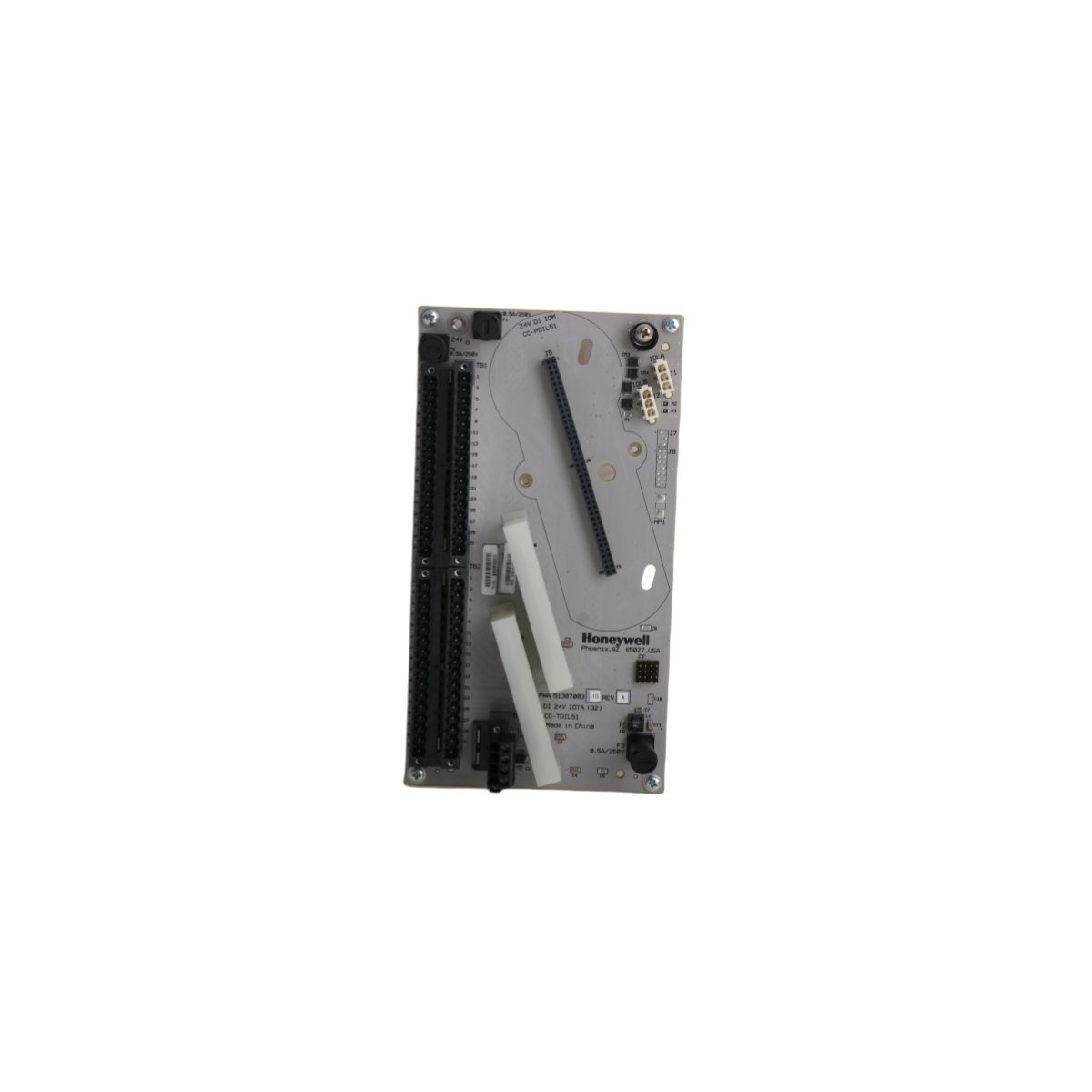

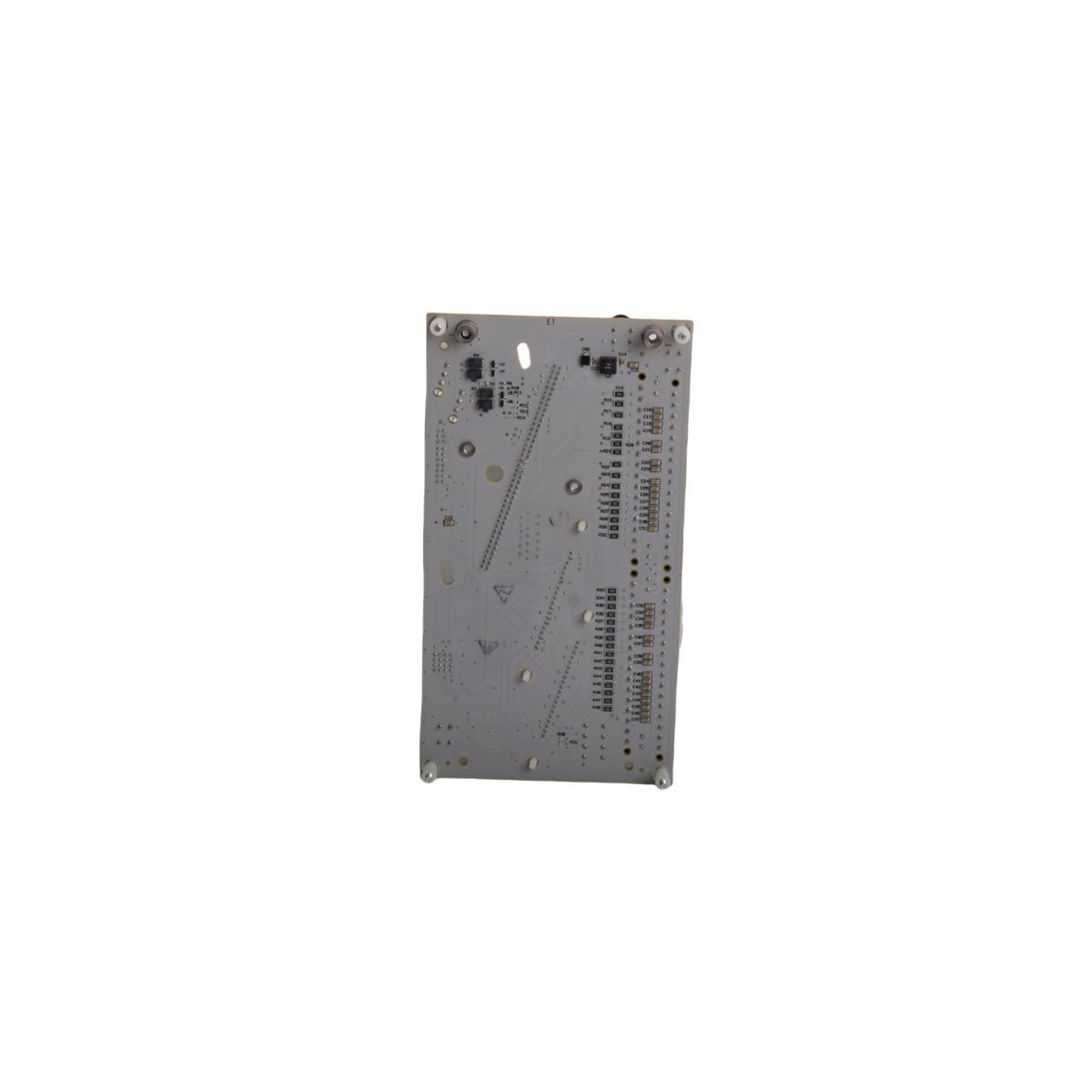

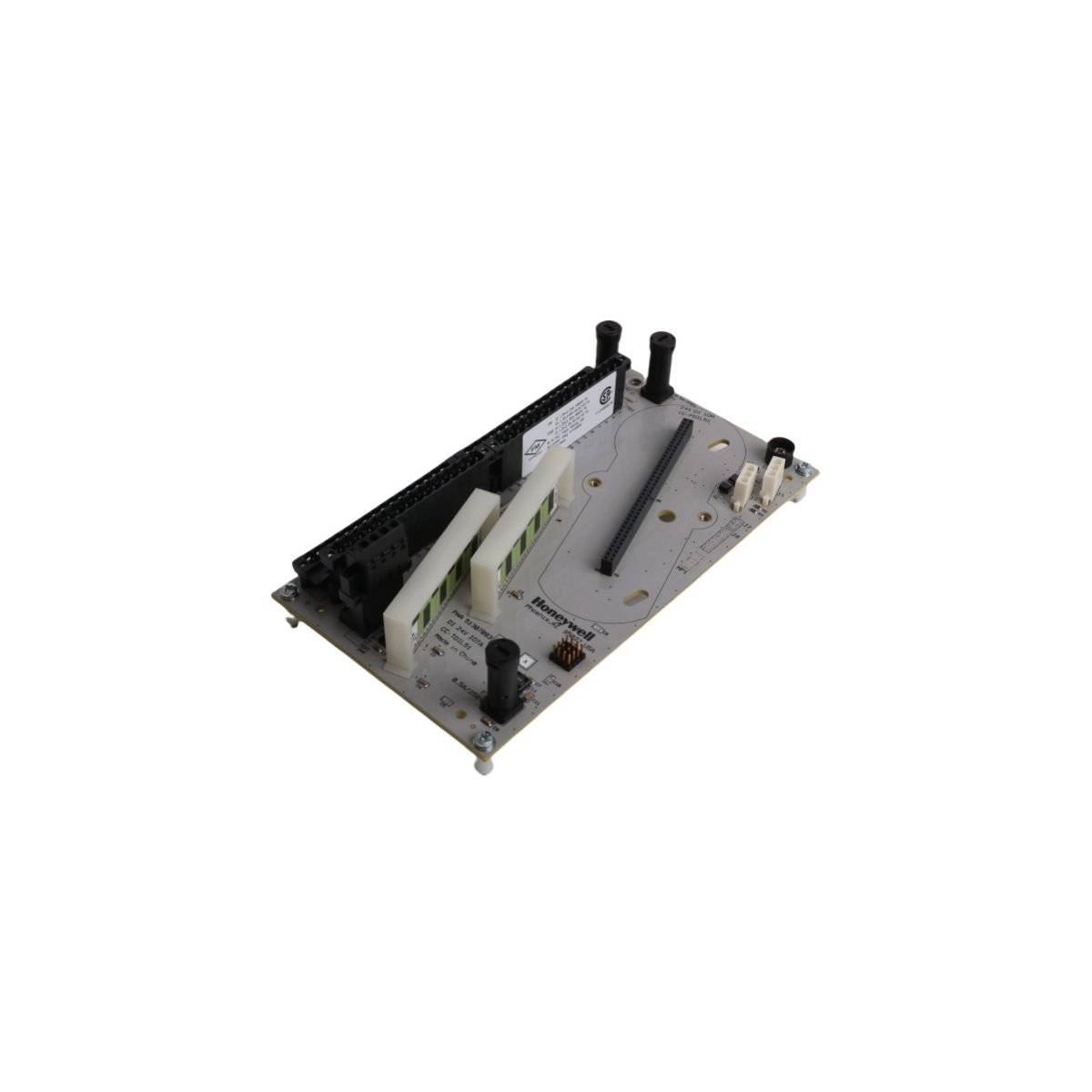

The Honeywell CC-TDIL51 is a high-density Series C Digital Input Module designed for the Experion PKS environment, offering 16 isolated channels for reliable discrete signal acquisition. This module features integrated redundancy diode logic to ensure continuous process monitoring and high system availability in mission-critical industrial applications.

High-Integrity Digital Signal Acquisition

The Honeywell CC-TDIL51 serves as a foundational interface within the Experion Process Knowledge System (PKS) architecture. This Digital Input Module converts discrete signals from field equipment into actionable data for the C300 controller. By providing 16 isolated digital input channels, the module effectively prevents ground loops and protects the control network from field-side electrical surges. Consequently, the CC-TDIL51 maintains high signal fidelity, which is essential for monitoring critical states such as valve positions, motor statuses, and pressure switch activations.

Advanced Redundancy and Fault Tolerance

System uptime remains a primary objective in heavy industrial sectors; therefore, the CC-TDIL51 incorporates a Digital Input Redundancy Diode Module design. This specific hardware configuration allows for redundant I/O wiring, ensuring that the control system continues to receive field data even if a single component or path fails. Furthermore, the module utilizes sophisticated internal diagnostics to identify channel-level faults and wiring issues in real time. Transitioning from reactive to proactive maintenance becomes easier as the module automatically reports hardware discrepancies to the Experion operator interface, significantly reducing the Mean Time to Repair (MTTR).

Built for Rigorous Industrial Deployment

Honeywell engineered the CC-TDIL51 to thrive in the demanding atmospheres of oil refineries, chemical plants, and power generation facilities. Its Series C form factor features an upright design that optimizes cabinet airflow and heat dissipation. Because the module resists high levels of electromagnetic interference (EMI) and electrical noise, it delivers stable performance near high-voltage switchgear and heavy machinery. Additionally, the plug-and-play vertical orientation simplifies the installation process, allowing technicians to perform hot-swap replacements without disturbing the integrity of the surrounding I/O modules or field wiring.

Key Technical Characteristics

• 16 Isolated Channels: Provides complete electrical separation between the field and the control logic for enhanced safety.
• Series C Architecture: Optimized for vertical mounting in Experion PKS cabinets to maximize space and cooling.
• Redundancy Support: Features integrated diode logic for high-availability control configurations.
• Wide Voltage Compatibility: Supports various discrete input ranges to interface with diverse sensors and switches.
• Real-Time Diagnostics: Continuously monitors hardware health and field-side wiring integrity.
• Hot-Swappable Design: Permits module replacement under power to eliminate process interruptions.
